Technical specifications
Product
| UPC number | 193424096947 |
|---|---|
| Product type | Power Packs |
| UNSPSC code | 43212108 |
Storage
| Storage temperature range | -10 to 40°C |
|---|
Battery and power
| Battery type | LG INR 18650 (4 cells) |
|---|---|
| Battery life | 2 hours and 30 minutes |
| Battery recharge time | 24 V, 2 hr 30 min |
Copy and scan
| Copyright notice | © Copyright 2024 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Dimensions (W x D x H) | 5.79 x 2.78 x 0.96 in |
|---|---|
| Weight | 0.64 lb |
Package
| Smaller master carton barcode | 10193424096944; 20193424096941 |
|---|---|
| Case dimensions (case or master carton) | Air: 14.37 x 8.58 x 8.46 in; Sea 15.94 x 13.00 x 5.91 in |
| Case or master carton dimensions (W x D x H) | Air: 365 x 218 x 215 mm; Sea: 405 x 330 x 150 mm |
| Package dimensions (W x D x H) | 7.8 x 4.57 x 1.10 in |
| Pallet dimensions | Air: 47.24 x 43.31 x 57.09 mm; Sea: 47.24 x 43.31 x 76.77 mm |
| Pallet dimensions (W x D x H) | Air: 1200 x 1100 x 1450 mm; Sea: 1200 x 1100 x 1950 mm |
| Case or master carton quantity | Air: 104; Sea: 96 |
| Count of layers in pallet | Air 8; Sea: 12 |
| Quantity per pallet | Air: 2080; Sea: 1920 |
| Case weight (case or master carton) | 7.9kg |
| Package weight | 0.83lb |
| Pallet weight | Air: 992.08 lb; Sea:1653.47 lb |
Warranty and service
| Warranty | HP includes a one-year limited warranty with online support available. Consult the HP Customer Support Center for details, or go to http://www.hp.com/go/orderdocuments. Internet access required and not included. |
|---|
Other

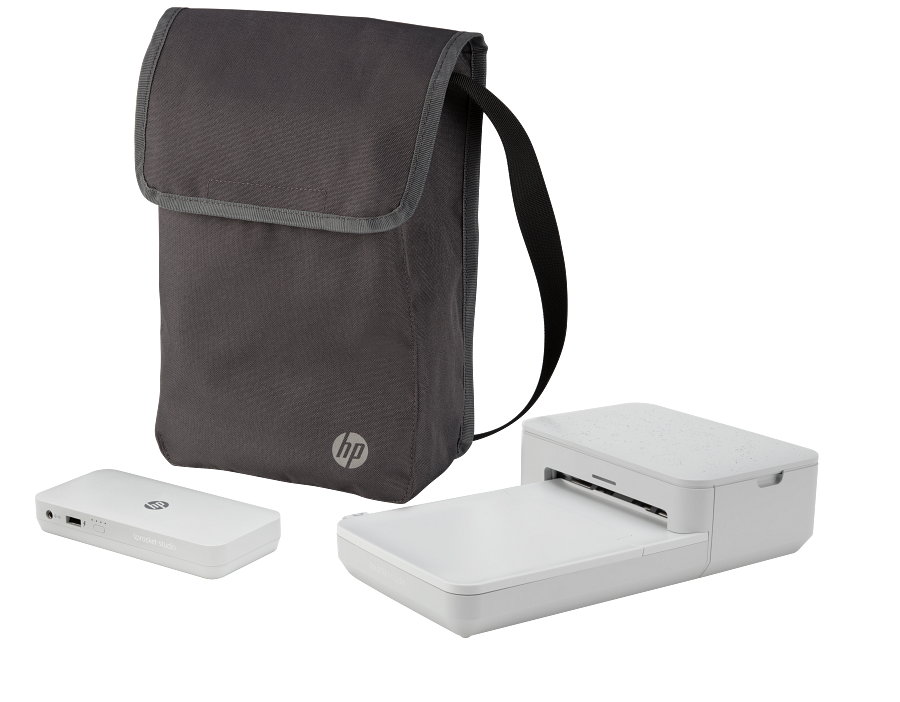

| What's in the box | HP Sprocket Studio Battery; Safety instructions; Setup card |
|---|---|
| Input operating current | Power in: 24 V/1.5 A (3MP72-60015 or 3MP72-60075 external power supplies) |
| Power consumption | 3100 mAh |
| Power | Power out: 21-24 V/1.2 A, USB 5 V/2 A |
| Registration required | No |
| Compatibility | HP Sprocket Studio |
| Interface | USB Type A™ |
| Non-Operating Humidity Range | 95% RH @ 65°C for 24 hrs |
| Operating humidity range | 10 to 90% RH @ 50°C |
| Operating temperature range | Charge: 0°C to +40°C; Discharge: 0°C to +60°C; Storage: -10°C to +60°C |
| Country of origin | Made in China |
| Why to buy | Easily connect your Sprocket Studio to the HP Sprocket Studio Power Bank, and print up to 80 photos on one charge.[1] With sleek design, you can help maximize fun and minimize space at any event. Compatible with HP Sprocket Studio only. |
| Headline | With built-in charge indicators, you can easily monitor power levels of your Sprocket Studio and power bank. |
| Image legal disclaimer | Product image may differ from actual product |
| Segment | Home |
| Cartons per layer | Air 13; Sea: 8 |
| Overview | Make your Sprocket Studio ready for any event with the HP Sprocket Studio Power Bank. Easily connect to print up to 80 photos on one charge.[1] Compatible with HP Sprocket Studio only. |
| Company | HPI |

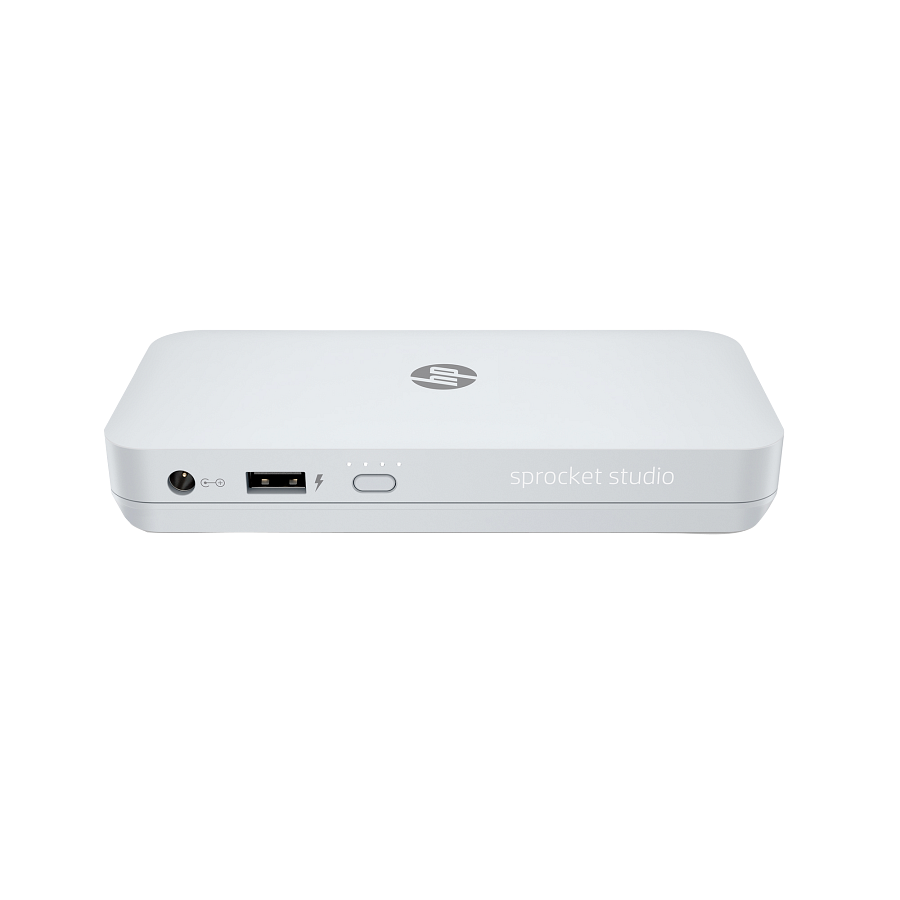

| Product long name | HP Sprocket Studio Power Bank |
| Tariff numbers | NHTS: 8507600090; AMS: 8443321050; EMEA: 8443321000; AP: 84433290 |
| Orderable product number | 1BG88A |
| Product classification flag | Standard HP Product |
| LED | Fuel gauge LED's |
| Tangible flag | Y |
| Ideal for | Experience-focused users who love to share photos, who seek out fun, and who love expressing themselves creatively while being the life of the party. |
| Material Type for item | FERT |
Notes and footnotes
- [1] HP Sprocket app required. Based on average photo printed and full charge of power bank with no cell phone charge required in between printing photos.
