SKU: 1F3Y3A

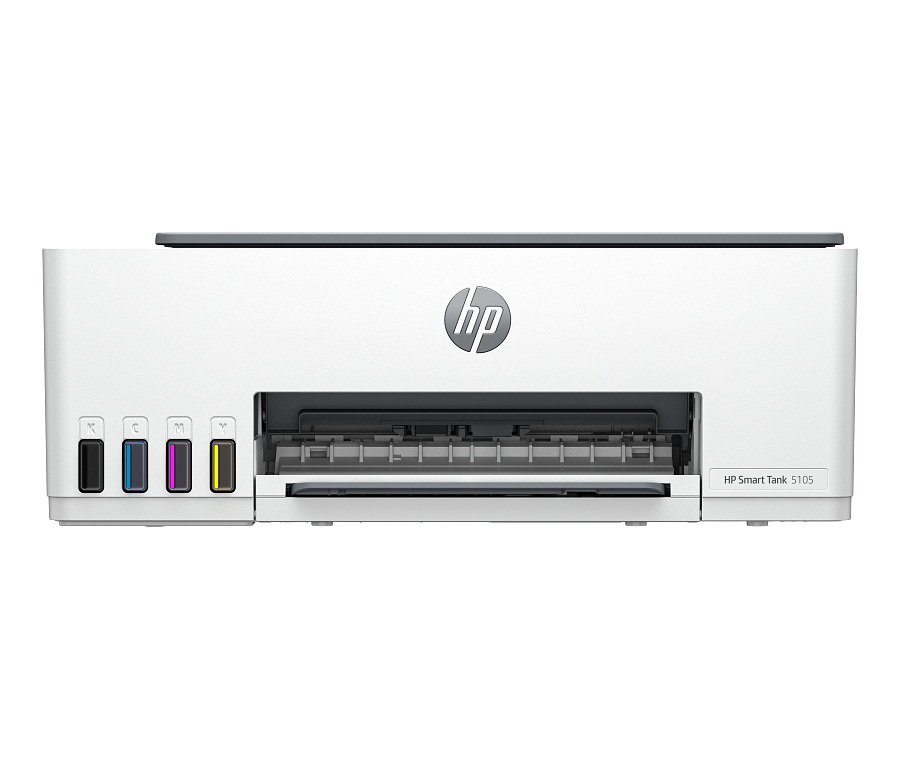

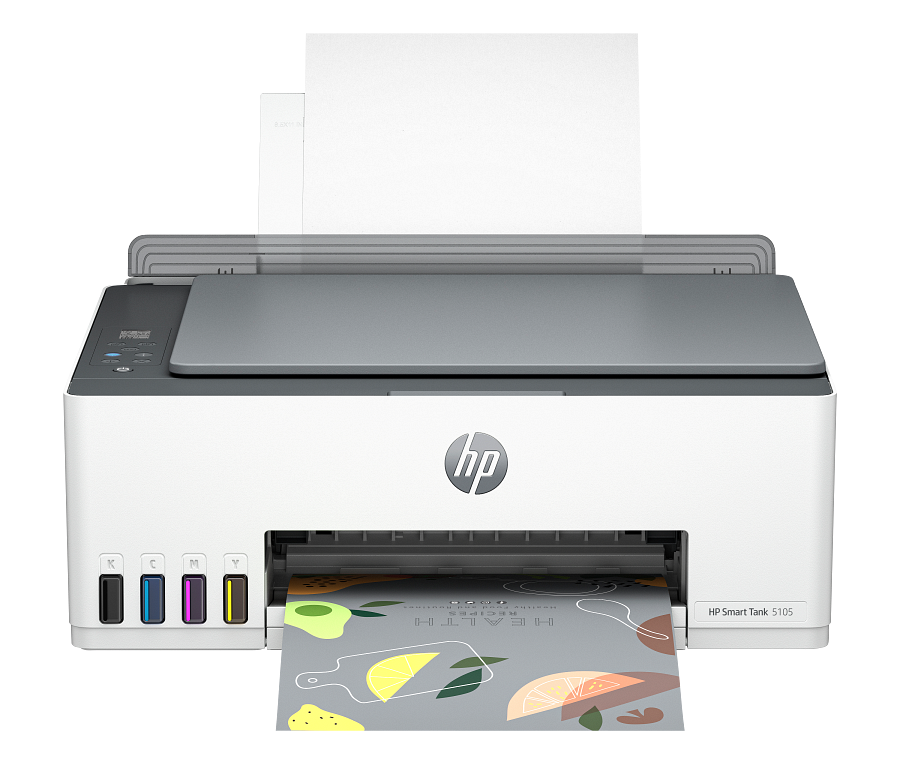

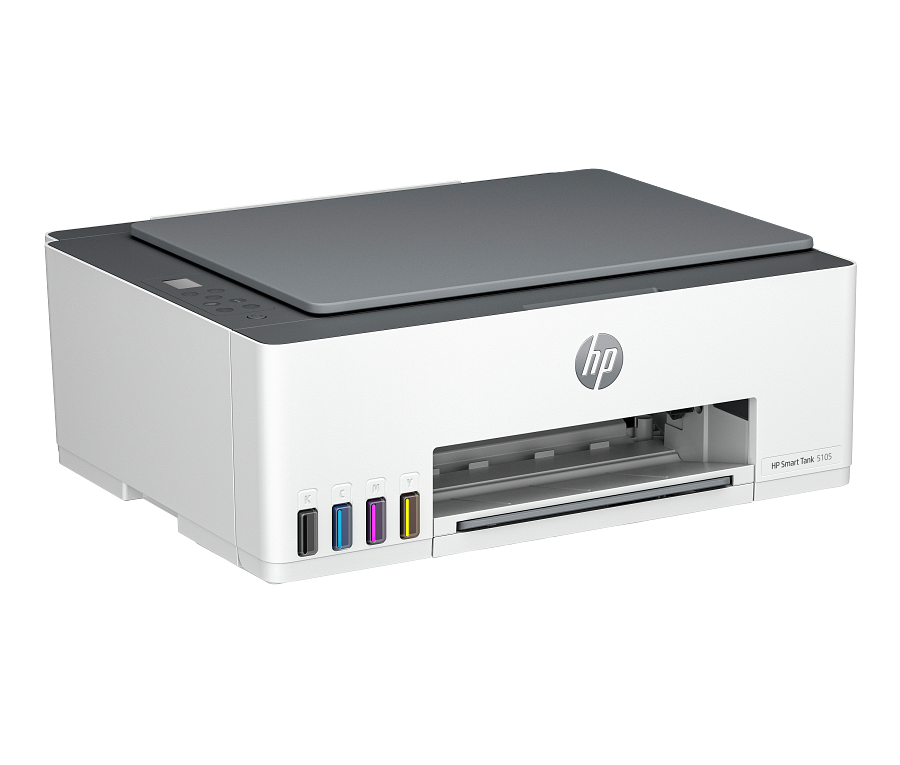

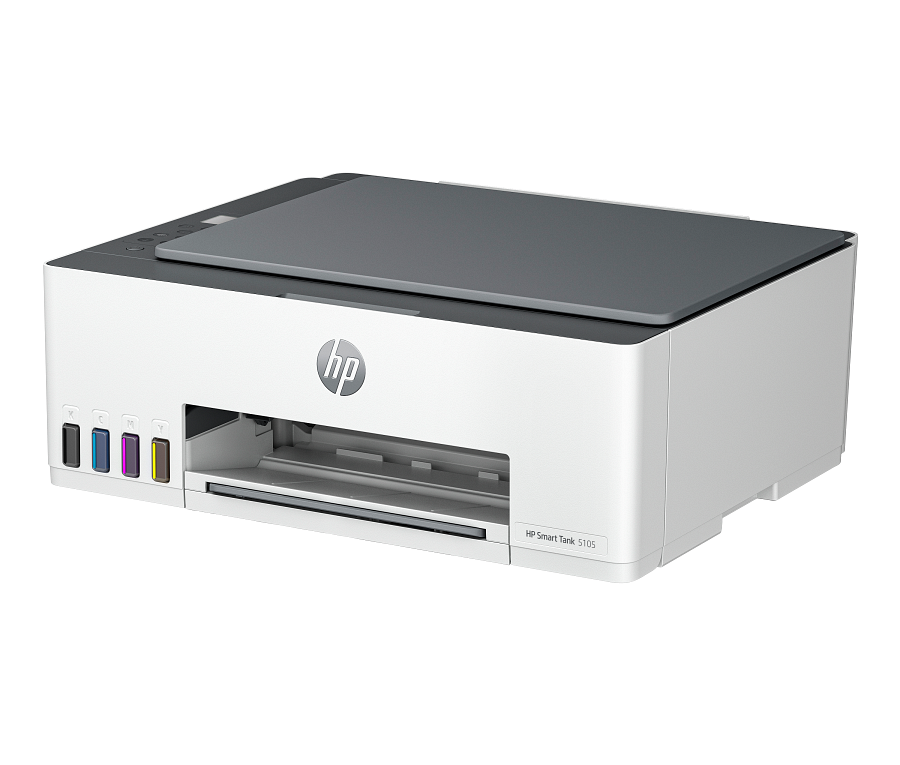

HP Smart Tank 5105 All-in-One Printer
- Print technology
- Ink
- Display
- 33 segments + 1.2-inch iCON LCD Display
Contact us for pricing
Key features
- Wireless
- High-volume printer tank
- Print from phone or tablet
- Scan to PDF
- Mobile-guided, seamless setup
- Smart-guided buttons
- Low-on-ink sensors
- Self-healing Wi-Fi®
- HP Smart Advance
- HP Auto On/Off technology
- Engineered for high-volume printing
- Spill-free ink refill experience
Technical specifications
Product
| UPC number | (ABJ) 196548866830; (BGM) 196188530344; (BHC) 196188530351 |
|---|---|
| Product type | Inkjet printers |
| Subcategory | Single and multifunction printers |
Storage
| Storage altitude | 15,000 ft |
|---|---|
| Storage temperature range | -40 to 140°F |
Display
| Display | 33 segments + 1.2-inch iCON LCD Display |
|---|
Wireless
| Wireless capability | Yes, built-in Wi-Fi 2.4G, Wi-Fi Direct |
|---|---|
| Wireless technologies | 802.11b/g/n |
Battery and power
| Power supply type | Internal built in |
|---|
Software
| Compatible Operating Systems | Windows 11; Windows 10; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; macOS 13 Ventura; macOS 14 Sonoma; macOS 15 Sequoia |
|---|
| Print Technology | Ink |
|---|---|
| Mobile printing capability | HP app; Apple AirPrint; Mopria Print Service; HP Print Service Plugin (Android printing); Wi-Fi® Direct Printing |
| Acoustic power emissions (active, printing) | 6.4 B(A) |
Copy and scan
| Color copy capability | Yes |
|---|---|
| Copy reduce / enlarge settings | Via HP app |
| Copy resolution (black graphics) | Up to 600 dpi |
| Copy speed black (ISO) | Up to 10 cpm |
| Copy speed color (ISO) | Up to 2 cpm |
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
Physical
| Product color | Light basalt |
|---|---|
| Print Cartridge/Bottle, Color(s) | Black; Cyan; Magenta; Yellow |
| Print colors maximum | 4 |
| Maximum dimensions (W x D x H) | 434.66 x 580.65 x 259.37 mm |
| Dimensions (W x D x H) | 434.66 x 361.53 x 157.26 mm |
Package
| Package dimensions (W x D x H) | 19.49 x 7.8 x 18.82 in |
|---|---|
| Pallet dimensions | 47.99 x 40 x 94.09 in |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2390 mm |
Sustainability
| Ecolabels | Conforms to ecolabel energy efficiency limits |
|---|---|
| Sustainability specifications | 45% post-consumer recycled plastic; EPEAT® registered |
Warranty and service
| Manufacturer Warranty | One-year or 30,000 pages limited hardware warranty, whichever is earlier from the date of purchase. For more info please visit us at http://support.hp.com |
|---|---|
| PictBridge supported | No |
| File Format Supported | JPG; PDF |
Other
| Connection type | Wireless |
|---|---|
| Minimum System Requirements | Windows 11, Windows 10, 1 GHz processor, 2 GB SSD, Internet |
| What's in the box | HP Smart Tank 5105 All-in-One Printer; HP 32XL 135ml Black Original Ink Bottle; HP 31 50ml Cyan Original Ink Bottle; HP 31 50ml Magenta Original Ink Bottle; HP 31 50ml Yellow Original Ink Bottle; HP Black Printhead; HP Tri-color Printhead; Power cord; Ink caution flyer; Setup guide; Reference guide; Regulatory flyers; Warranty flyers |
| Energy savings feature technology | HP Auto-Off Technology |
| Power consumption | 0.109 watts (manual-Off), 3.023 watts (ready), 1.096 watt (sleep) |
| Power | Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). High voltage: Input voltage 200 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz) |
| Cable included | (ABJ) Yes, 1m USB. (BGM, BHC) No, please purchase USB cable separately |
| Output file format | JPEG |
| Ink types | Pigment-based (black); Dye-based (color) |
| Page Yield in Draft Mode | (ABJ)~16,000 pages Black, ~9,200 pages Color,(BGM)~8,000 pages Black, ~9,200 pages Color,(BHC)~8,000 pages Black, ~9,200 pages Color |
| Page yield (set-up/inbox cartridges) | ~6000 pages black, ~6,000 pages cyan, magenta, yellow composite yield |
| Print Cartridges/Bottle, Number | 4 (1 each black bottle, set of 3 color bottles) |
| Print head nozzles | 704 (Black), 588 (Tri-color) |
| Print heads | 2 (1 each black, tri-color) |
| Replacement cartridges | North America: HP 32XL 135-ml Black Original Ink Bottle 1VV24AN; HP 31 Cyan Original Ink Bottle 1VU26AN; HP 31 Magenta Original Ink Bottle 1VU27AN; HP 31 Yellow Original Ink Bottle 1VU28AN; Europa Middle East and Africa: HP 32XL 135-ml Black Original Ink Bottle 1VV24AE; HP 31 Cyan Original Ink Bottle 1VU26AE; HP 31 Magenta Original Ink Bottle 1VU27AE; HP 31 Yellow Original Ink Bottle 1VU28AE. Asia Pacific: HP 32XL 135-ml Black Original Ink Bottle 1VV24AA; HP 31 Cyan Original Ink Bottle 1VU26AA; HP 31 Magenta Original Ink Bottle 1VU27AA; HP 31 Yellow Original Ink Bottle 1VU28AA. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies . |
| Segment (filter) | Home |
| Brand | HP |
| Sub brand | Smart Tank |
| Electromagnetic compatibility | CISPR 32 2015+A1:2019 Class B/EN 55032:2015+A11:2020 Class B; CISPR 24:2010 +A1:2015/EN 55024:2010 +A1:2015; CISPR 35:2016/EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-2:2014; EN 61000-3-3:2013 +A1:2019; EN 301 489-1 V2.2.3; EN 301 489-17 V3.2.4; FCC CFR 47 Part 15; ICES-003, Issue 7; VCCI-CISPR32:2016 |
| Safety | IEC 62368-1 compliant; EU RED and EN 62368-1 compliant; NEMKO GS approved; CSA NRTL approved; Japan VCCI; Australia and New Zealand RCM. |
| Telecom compliance (fax capability) | EN 300 328 V2.2.2; EN 301 893 V2.1.1; EN 300 440 V2.1.1 |
| Accessories | None |
| Connectivity | Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™; USB; Wireless (Wi-Fi®); Print Anywhere |
| Number of users | 1-3 Users |
| Connectivity, standard | 1 Hi-Speed USB 2.0 (device); 1 Wi-Fi 802.11b/g/n; 1 Wi-Fi Direct |
| Network capabilities | Yes (via WiFi) |
| Plug and play | Auto Wireless Connect |
| Copier settings | Actual size; Binding Margin; Color; Black; ID Copy; Resize; Quality (Draft/Normal/Best); Enhancement; Lighter/Darker; Number of Copies |
| Copies, maximum | Up to 99 copies |
| Digital sending standard features | Scan to file (from software); HP Smart Tasks |
| Acoustic pressure emissions | 50.5 dBA (Mono) ; 43.7 dBA (Colour) |
| Non-Operating Humidity Range | 5 to 90% RH (non-condensing) |
| Operating humidity range | 15 to 80% RH (non-condensing) |
| Recommended operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Recommended operating temperature range | 15 to 30°C |
| Functions | Multifunction / All-in-One |
| Form factor | All-in-One |
| Country of origin | Made in China |
| Geographic availability | DM |
| Differentiator (features) | Intuitively smart. Light on price. |
| Differentiator | Enjoy all the HP quality you expect -- with savings[5] that are anything but expected |
| Why to buy | Discover intuitively smart capabilities and savings with the HP Smart Tank 5105 Wireless All-in-One printer with up to 2 years of printing included at an ultra-low cost per page. Plus, cartridge-free printing which is better for you and the planet with 45% recycled plastic. |
| Headline | HP delivers intuitive technology designed for every day. |
| Key selling point | HP Auto-On/Off technology turns your printer on when you need it and off when you don't |
| Image legal disclaimer | Product image may differ from actual product |
Notes and footnotes
- For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies .
- Draft page yields are approximate and were measured using “Draft” print-quality settings in the Windows/Mac driver, based on HP Methodology from the simulation of continuous printing of ISO/IEC 24712 pages. Actual page yield varies significantly depending on content printed, ink levels maintained in all four reservoirs, and other factors. For more information about fill and yield, see https://hp.com/go/learnaboutsupplies .
- Black and composite color average per bottle (cyan/magenta/yellow) results based on HP methodology from the simulation of continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. An additional black ink bottle is required to print 8,000 color test pages. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies .
- Post-consumer recycled is based on the definition set in the EPEAT standard for imaging equipment, IEEE 1680.2
- Requires the HP Smart app download. For details on local printing requirements see www.hp.com/go/mobileprinting. Certain features/software are available in English language only and differ between desktop and mobile applications. Subscription may be required; subscription may not be available in all countries. For details, see: www.HPSmart.com Internet access required and must be purchased separately. HP account required for full functionality. List of supported operating systems available in app stores.
- Wireless operations are compatible with 2.4 GHz operations only. Learn more at www.hp.com/go/mobileprinting. Wi-Fi is a registered trademark of Wi-Fi Alliance®.
- [1] Dimensions vary as per configuration
- Black and composite color average per bottle (cyan/magenta/yellow) results based on HP methodology and continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. An additional black ink bottle is required to print 6000 color test pages. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For details, see: www.hp.com/go/learnaboutsupplies.
- HP ink bottles compared to HP ink cartridges. Cost per page based on expected black and composite (cyan/magenta/yellow) page yield results based on HP methodology and continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For more information about fill and yield, see hp.com/go/learnaboutsupplies.
- [2] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
- HP Auto-On/Auto-Off Technology capabilities subject to printer and settings; may require a firmware upgrade.
- [3] Wireless performance is dependent upon physical environment and distance from the access point. Wireless operations are compatible with 2.4 GHz routers only; excludes wireless direct. Wireless direct may require driver or apps be installed and connected on wireless-enabled mobile device or PC. Wireless functionality may vary by computer and mobile operating systems, see http://hpconnected.com . Print times and connection speeds may vary. Apple, AirPrint, Mac, and macOS are trademarks of Apple Inc., registered in the U.S. and other countries. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Windows is a trademark of the Microsoft group of companies. Mopria®, the Mopria® Logo, and the Mopria Alliance™ word mark and logo are registered and/or unregistered trademarks and service marks of Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited
- Program availability varies. See hp.com/recycle.
- [4] Speed specifications have been updated to reflect current industry testing methods.
- [8] HP ink bottles compared to HP ink cartridges. Cost per page based on expected black and composite (cyan/magenta/yellow) page yield results based on HP methodology and continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For more information about fill and yield, see hp.com/go/learnaboutsupplies.
- [5] Either after first page or after first set of ISO test pages. For details see: http://hp.com/go/printerclaims
- [6] Average based on ISO/IEC 24711 or HP testing methodology and continuous printing. Actual yield varies considerably based on content of printed pages and other factors. For details see http://hp.com/go/learnaboutsupplies
- [7] Based on HP internal A4 Memo draft document methodology. For details see https://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA8-4168ENW .
- After 12 months, monthly fee applies to continue advanced features with HP Smart Advance. HP Smart Advance is not available in all countries.
- [8]Draft page yields are approximate and were measured using “Draft” print-quality settings in the Windows/Mac driver, based on HP Methodology from the simulation of continuous printing of ISO/IEC 24712 pages. Actual page yield varies significantly depending on content printed, ink levels maintained in all four reservoirs, and other factors. For more information about fill and yield, see https://hp.com/go/learnaboutsupplies .
- Original HP Ink Bottles with colored caps compared to bottles with white caps.
- [10] Program availability varies. For details, see http://www.hp.com/recycle.
- [11] Post-consumer recycled is based on the definition set in the EPEAT standard for imaging equipment, IEEE 1680.2, and is expressed as percent of total weight of plastic.
