| What's in the box |
Printer: HP DesignJet T1700dr 44-in PostScript Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits; Scanner: HP SD Pro 2 44-in Scanner, stand, touchscreen (panel PC), quick reference guide, media guides, setup poster, maintenance sheet, copy/scan software, documentation software, Ethernet cable, USB cable, power cords |
| Power consumption |
Printer: |
| Power |
Printer: Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max; Scanner: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz, 5 A max |
| Registration required |
No |
| Cartridge volume |
130 ml; 300 ml |
| Ink drop |
6 pl |
| Ink types |
Dye-based (C, M, Y, PK, G); pigment-based (MK) |
| Number of cartridges |
6 |
| Print Cartridges/Bottle, Number |
6 (C, M, Y, G, pK, mK) |
| Print cartridge/bottle volume |
300 ml (C, M, Y, G, pK, mK); 130 ml (C, M, Y, G, pK, mK) |
| Print head nozzles |
2112 each color |
| Print heads |
3 universal printheads, 2 colors each |
| Primary applications |
Office documents and presentations; Engineering and construction documents; Maps |
| Sub brand |
DesignJet |
| Electromagnetic compatibility |
Printer: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS); Scanner: Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP), Russia (EAC) |
| Safety |
Printer: USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Scanner: USA and Canada (UL certified), EU (LVD and EN 60950-1 compliant), Russia (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC) |
| Connectivity, optional |
Printer: HP USB 3.0 to Gigabit LAN Adapter |
| Connectivity, standard |
Printer: Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab), USB Type-A host port; Scanner: Gigabit Ethernet (1000Base-T), USB 3.1 gen 1 (3+1) and USB 2.0 (1) rear |
| HP ePrint capability |
Yes |
| Interface |
15.6" (396-mm) large touchscreen to preview and enhance images |
| Network ready |
Standard |
| Security features |
HP Secure Boot, Allowlisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, PIN printing |
| Copier settings |
Print mode, output size, paper type, copies, page order, collate, printer output destination (folder, stacker, bin), folding style selection (only available when folder accessory is available and supported by the HP large-format printer), paneling, tiling, nesting, reprint |
| Acoustic pressure emissions |
Printer: 45 dB(A) (operating), 32 dB(A) (idle), |
| Non-Operating Humidity Range |
0 to 90% RH |
| Operating humidity range |
20 to 80% RH |
| Operating temperature range |
41 to 104ºF |
| Country of origin |
China |
| Why to buy |
Work productively with the HP DesignJet SD Pro 2 MFP. Capture documents quickly and in detail with the high-speed scanner. Simplify operation and boost workflows with dual rolls and smart switching. Handle complex files easily and securely. |
| Headline |
Enjoy a smooth scanning/printing experience. Two rolls and smart switching let you print seamlessly on different paper types and sizes. Manage complex files with ease while also protecting your devices and data with advanced security features. |
| Key selling point |
Rely on Adobe PDF drivers to free up your computer immediately after sending to print—even for complex files. |
| Image legal disclaimer |
Product image may differ from actual product |
| Product logos |
Adobe PDF Print Engine 4; Adobe PostScript 3; ENERGY STAR; EPEAT; Gold IPv6 Ready; Intel Inside Core i5; Mac; PANTONE* Digital Color; Windows 11 Compatible |
| Monthly printed pages |
Very frequently |
| Taxonomy |
Large Format Printers/ Plotters |
| Segment |
Business |
| Maximum optical density (black) |
2.15 maximum black optical density (6 L*min) |
| Functions |
Print, copy, scan |
| Line accuracy |
±0.1%[2] |
| Model size |
1118 mm |
| Printer drivers included |
Printer: Raster drivers for Windows and macOS, PostScript and PDF Windows drivers and macOS PostScript driver; Scanner: Windows drivers for compatible HP PageWide XL and HP DesignJet Printers |
| Print languages |
Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4 |
| Theoretical minimum line width |
0.0008 in (PDF addressable @ 1200 dpi) |
| Maximum roll diameter |
5.3 in |
| Media thickness |
Up to 31.5 mil |
| Printer Applications |
Architecture; Maps; Presentation graphics |
| Recommended media |
HP Bright White Inkjet Paper (FSC® certified)[4] (Recyclable)[5];HP Heavyweight Coated Paper (Recyclable)[5];HP Universal Instant-dry Satin Photo Paper (FSC® certified)[4] (Recyclable)[5];HP Universal Coated Paper (FSC® certified)[4] (Recyclable)[5] |
| Roll maximum input |
2 |
| Roll size |
Up to 44 in |
| Product Disclaimer |
Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges. |
| Dynamic security |
Dynamic security enabled printer |
| Overview |
Quickly print and scan documents, maps, and drawings with the HP DesignJet SD Pro 2 MFP. See high-quality results at fast speeds. Accelerate workflows and handle even the most complex files with this reliable, secure printer. |
| Company |
HPI |
| Code name |
Juno bundle |
| Product long name |

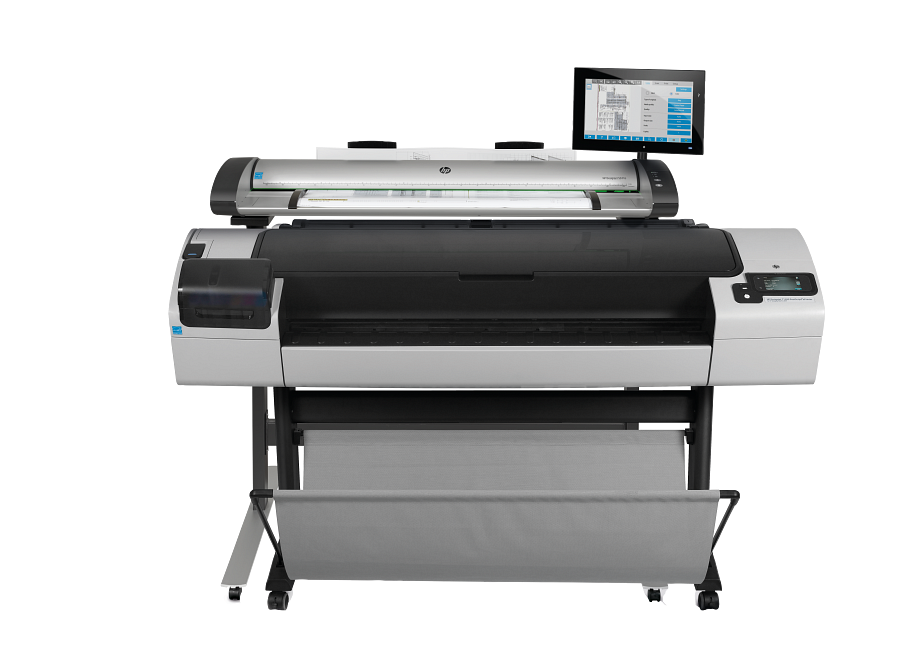

HP DesignJet SD Pro 2 44-in MFP |
| Short product name |
SD Pro 2 MFP |
| Product classification flag |
Standard HP Product |
| Media thickness maximum (metric) |
Up to 0.8 mm |
| Media types |
Printer: Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl); Scanner: Non-abrasive paper, sepia, blueprints, plastic, plastic laminate, foam board, cardboard, newspaper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies) |
| Tangible flag |
Y |
| Material Type for item |
FERT |
