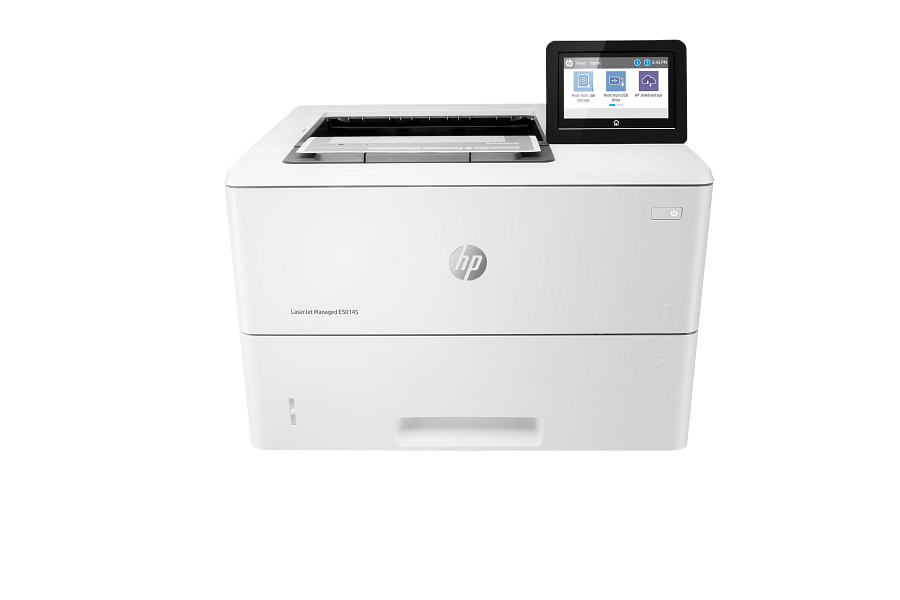

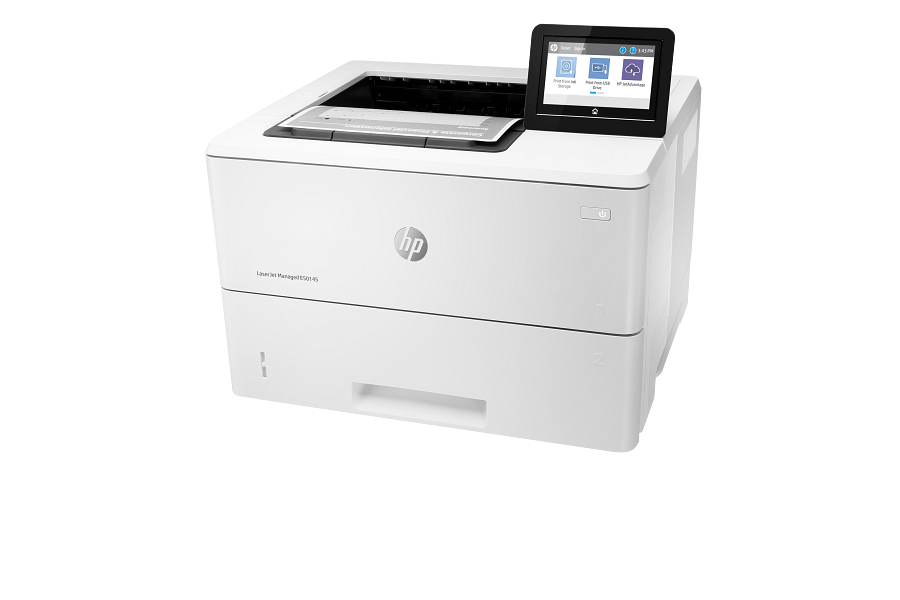

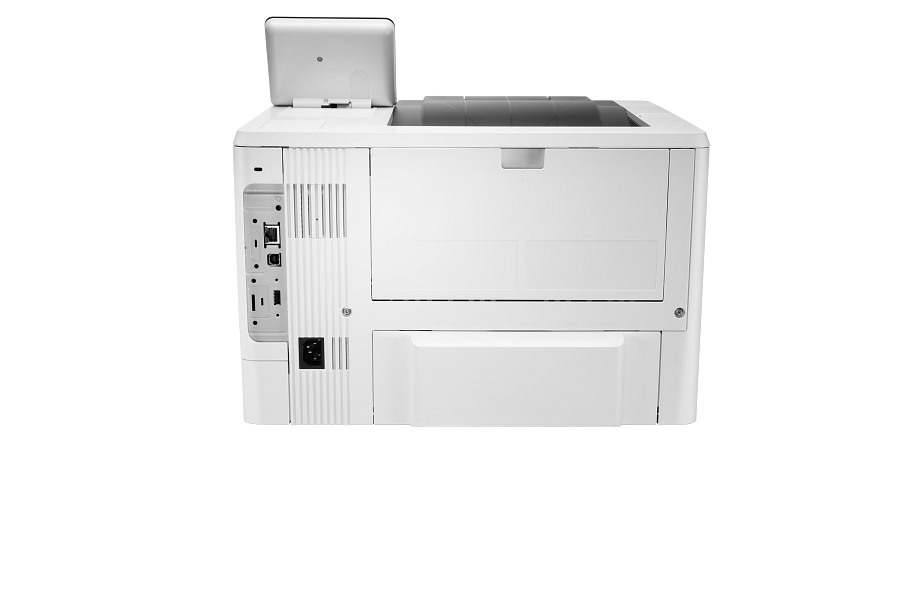

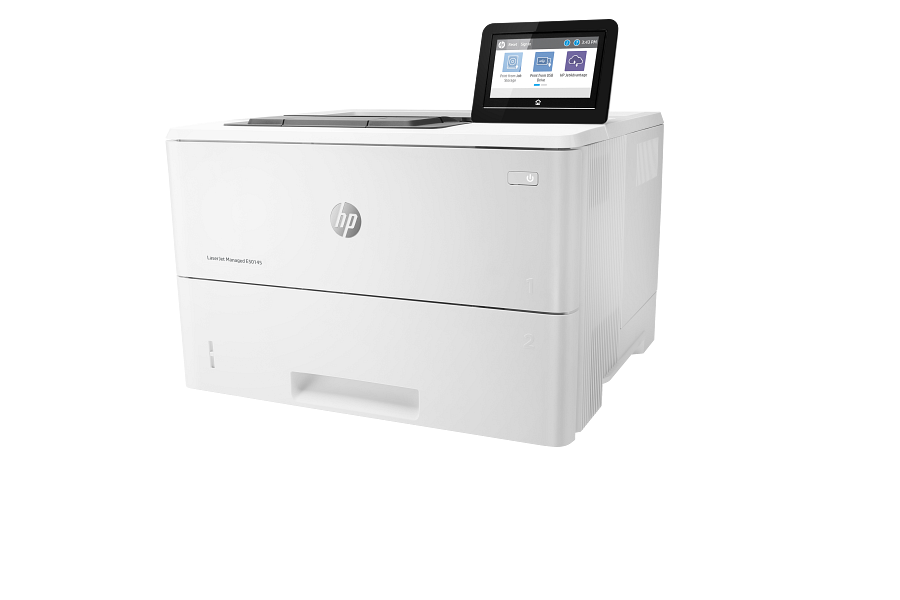

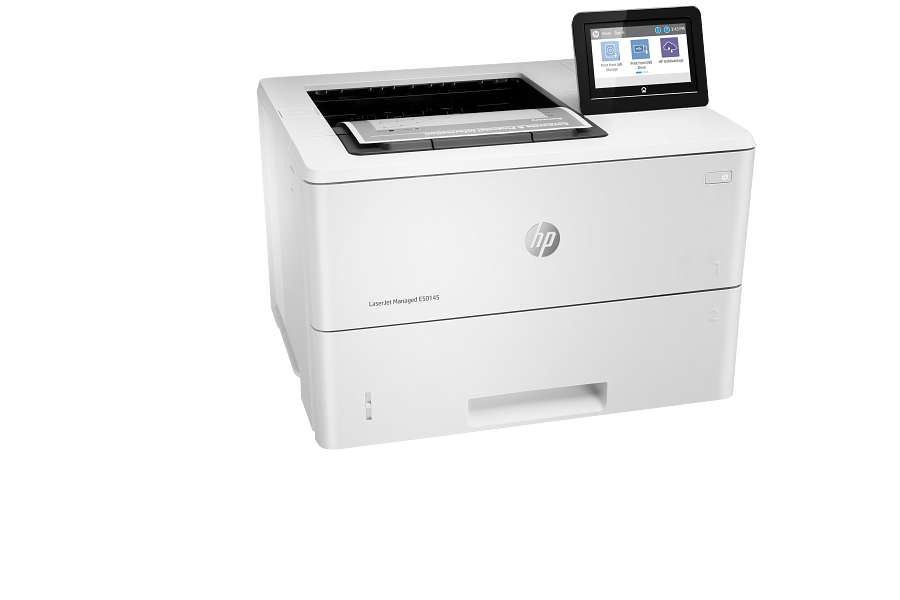

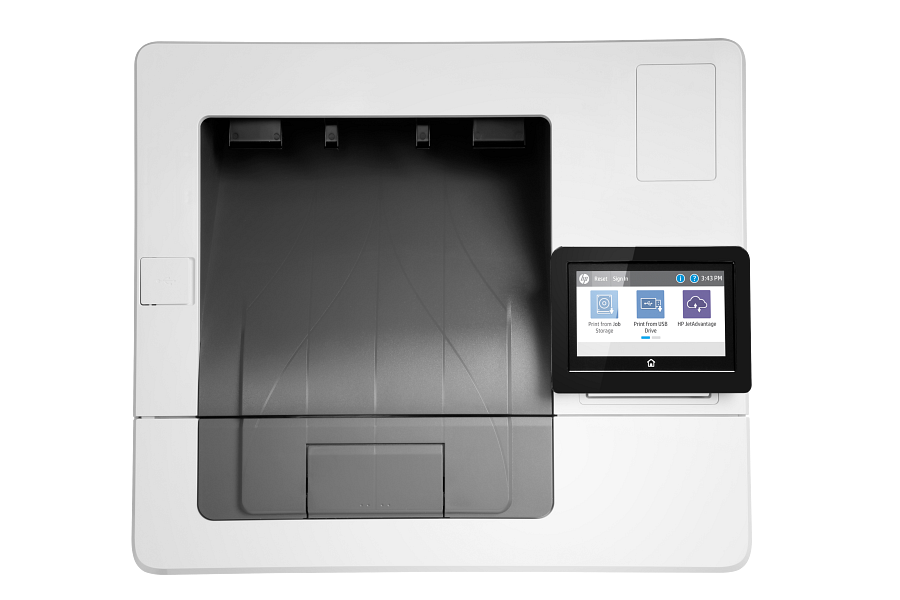

HP LaserJet Managed E50145dn

Back to Printers (all)

SKU: 1PU51A

Print technology: Laser

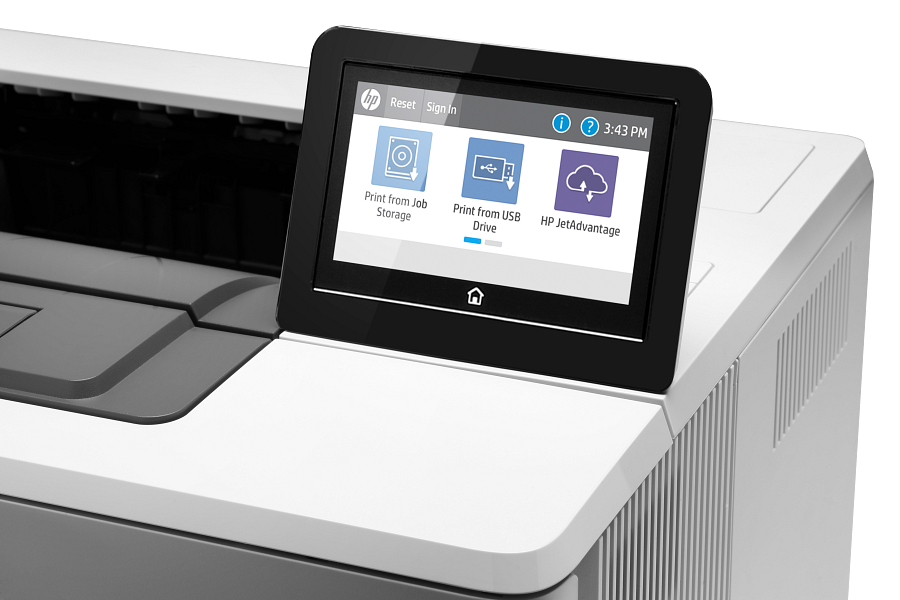

Display: 4.3-in (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle)
Memory: 512 MB

Request a quote

Key features

JetIntelligence cartridge
Two-sided printing
Low energy consumption
World’s most secure printing
Robust mobility
Enhanced user interface
Enterprise manageability
Enhanced workflows
Compact – small footprint
More competitive cartridge offerings
Competitive hardware specs
Increased memory capacity

Technical specifications

Product

UPC number	(696) 192545079136; (697) 192545799737; (AB0) 192545079020; (AB2) 192545079037; (ABJ) 192545079044; (ABT) 192545079075; (ABY) 192545079082; (AC8) 192545079143; (ACQ) 192545079099; (B13) 192545079105; (B19) 192545079112; (BAZ) 192545079129; (BBU) 192545079051; (BGJ) 192545079150; (BGM) 192545079068
Product type	Laser printers
Subcategory	Single and multifunction printers

Memory

Maximum Memory	1.5 GB, MAX memory, when 1 GB Accessory DIMM is installed
Memory Slots	1 slot, 90-pin DDR3 Slim DIMM
Memory upgrade	Expandable to 1.5 GB through 1 GB 90-pin DDR3 DIMM
Memory	512 MB

Storage

Storage temperature range	-20 to 40°C

Display

Display	4.3-in (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle)
Display area (metric)	95.04 x 53.86 mm

Wireless

Wireless capability	Optional, enabled with purchase of a wireless hardware accessory. Single band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3000w NFC/Wireless Accessory J8030A, Dual band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A, Dual band Wireless Station functionality available with HP Jetdirect 2900nw Print Server J8031A

Wireless capability

Optional, enabled with purchase of a wireless hardware accessory. Single band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3000w NFC/Wireless Accessory J8030A, Dual band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A, Dual band Wireless Station functionality available with HP Jetdirect 2900nw Print Server J8031A

Battery and power

Power supply type	Built-in 115V or 220V Power Supply

Software

Compatible Operating Systems	Windows 11; Windows 10; Windows 8; Windows 7; Windows Client OS; Android; iOS; Mobile OS; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave
Printer smart software features	Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB

Print

Print Technology	Laser
Mobile printing capability	HP ePrint; Apple AirPrint™; Google Cloud Print™; Mopria™ Certified
Acoustic power emissions (active, printing)	6.8 B(A)
Acoustic pressure emissions bystander (active, printing)	54 dB(A)
Print speed, black	45
Print quality black (best)	Up to 1200 x 1200 dpi
Print quality black (normal)	Up to 600 x 600 dpi
Print Resolution Technologies	300 dpi, 600 dpi, HP FastRes 1200, HP ProRes 1200
Print speed	Print speed up to 45 ppm (black)
Print speed duplex (A4)	Up to 34 ipm
Print speed duplex (letter)	Up to 36 ipm
Print speed black (Landscape, A5)	Up to 65 ppm
Print speed black (ISO, letter)	Up to 45 cpm (default) ; Up to 52 cpm (HP High Speed)
Print speed black (ISO, A4)	Up to 43 cpm (default) ; Up to 50 cpm (HP High Speed)
Duplex printing	Automatic (standard)

Copy and scan

Copyright notice	© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Paper handling

Paper size	Letter; A4; Legal; B5

Physical

Maximum dimensions (W x D x H)	418 x 639 x 326 mm
Dimensions (W x D x H)	418 x 376 x 326 mm
Color or black	Black and white

Package

Package dimensions (W x D x H)	497 x 398 x 466 mm
Pallet dimensions (W x D x H)	1200 x 1000 x 2481 mm
Count of layers in pallet	5
Quantity per pallet	30

Sustainability

Ecolabels	Blue Angel; EPEAT® Silver; CECP; ENERGY STAR® qualified
Energy star certified	Yes
Sustainability specifications	Mercury free

Warranty and service

Manufacturer Warranty	One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4G; wty ID A001)
Network protocols, supported	Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, Syslog; Security: SNMPv3, SSL Cert Management, IPSec/Firewall, ACL, 802.1x

Manufacturer Warranty

One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4G; wty ID A001)

Network protocols, supported

Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, Syslog; Security: SNMPv3, SSL Cert Management, IPSec/Firewall, ACL, 802.1x

Other

Minimum System Requirements	2 GB available hard disk space, Internet connection, USB port, Internet browser. (For Additional OS hardware requirements see microsoft.com)
What's in the box	HP LaserJet Managed E50145dn Printer; HP Original LaserJet Toner Cartridge (~5,000 pages); Fixed-Size Cassette Guides; Regulatory flyer; Unpack flyer; Installation Guide; Power cord; Warranty Cards; Support flyers/ phone number list; USB-8ft cable (APJ only)
Energy savings feature technology	HP Auto-On/Auto-Off Technology; Instant-on Technology
Power consumption	601 watts (Active Printing), 7.60 watts (Ready), 2.61 watts (Sleep), 0.06 watts (Auto-Off), 0.06 watts (Off), Auto Off/Wake on LAN 0.73 Watt
Power	Input voltage: 100 V to 127 V nominal (+/-10%), 50 - 60 Hz nominal (+/- 3 Hz), 7.5 A; Input voltage: 220 V to 240 V nominal (+/-10%), 50 - 60 Hz nominal (+/- 3 Hz), 4 A. Not dual voltage, power supply varies by part number with # Option code identifier.
Cable included	Yes, 1 USB
Registration required	No
Print Cartridges/Bottle, Number	1 (black)
Replacement cartridges	HP Black Managed LaserJet Toner Cartridge (~23,000 pages) W9008MC
Supplies feature	HP JetIntelligence Cartridge
Brand	HP
Sub brand	LaserJet
Blue Angel compliant	Yes, Blue Angel DE-UZ 219—only ensured when using Original HP supplies
Electromagnetic compatibility	CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, EMC Directive 2014/30/EU, FCC CFR 47 Part 15 Class A/ICES-003, Issue 6 Class A. Other EMC approvals as required by individual countries.
FCC Class A emissions	FCC Class A emissions - for use in commercial environments, not residential environments
Safety	EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011; IEC 60950-1:2005 +A1:2009; EN 62479:2010/IEC 62479:2010; CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance of IEC 60950-1 standard considers all country deviations according to the most recent IECEE CB Bulletin; UL/cUL Listed and UC CoC (US/Canada); GS Certificate (Germany, Europe); Low Voltage Directive 2006/95/EC with CE Mark (Europe); Compliance with Laser safety standards: EN 60825-1:2007/IEC 60825-1:2007 (Class 1 Laser Product); Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007 FDA 21 CFR subchapter J part 1010 and 1040 (FDA Accession Number via test/ reporting to CDRH Factory ID, location and inspections are part of the certification process and record)
Accessories	HP LaserJet 550 Sheet Paper Tray F2A72A, HP LaserJet Printer Cabinet F2A73A, HP USB Port 100pc M507/M528 Accessory 1PV95A, HP Secure Hard Disk Drive with FIPS Validation (TAA Compliant) 5EL03A, HP Internal USB Ports B5L28A, HP Secure High Performance Hard Disk Drive B5L29A, HP Jetdirect 2900nw Print Server J8031A, HP 1 GB 90-Pin DDR3 DIMM G6W84A, Accessibility Assistant 2MU47A, HP Jetdirect 3000w NFC/Wireless Accessory J8030A, HP JetDirect 3100w BLE/NFC/Wireless Accessory 3JN69A, HP Removable Hard Drive Enclosure 2NR12A, HP USB Universal Card Reader X3D03A, HP HIP2 Keystroke Reader Y7C05A, HP Legic Card Reader 4QL32A
Connectivity	Apple AirPrint™; HP ePrint; USB; Ethernet networking; Wireless optional (with accessory)
Number of users	5-15 Users
Connectivity, optional	HP Jetdirect 2900nw Print Server J8031A; HP Jetdirect 3000w NFC/Wireless Accessory J8030A; HP Jetdirect 3100w BLE/NFC/Wireless
Connectivity, standard	2 Hi-Speed USB 2.0 Host; 1 Hi-Speed USB 2.0 Device; 1 Gigabit Ethernet 10/100/1000T network
Network capabilities	Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); 802.11a/b/g/n wireless networking (optional); second Ethernet port (optional); Microsoft Universal Print (MUP) support
Plug and play	HP Smart Install
Maximum metric depth	639
Maximum metric height	326
Maximum metric width	418
Metric depth	376
Business filter	cMPS
Component type	Printer
Printer black pages (MPV black)	1550
Acoustic power emissions (ready)	3.9 B(A)
Acoustic pressure emissions bystander (ready)	24 dB(A)
Operating humidity range	10 to 80% RH
Recommended operating humidity range	30 to 70% RH
Operating temperature range	15 to 30°C
Recommended operating temperature range	17.5 to 25°C
Functions	Print only
Form factor	Multifunction
Country of origin	Made in Philippines; Made in Brazil (696, 697, AC8)
Datasheet publication number	4AA7-4198EEP
Web address for additional information	Solutions: http://www.hp.com/go/gsc; Fonts and IPDS Emulation: http://www.hp.com/go/laserjetfonts; HP Web Jetadmin: http://www.hp.com/go/wja; HP Universal Print Driver: http://www.hp.com/go/upd; HP Imaging & Printing Security Center: http://www.hp.com/go/ipsc; On Demand Cloud Solutions: http://www.hpjetadvantage.com/ondemand
Differentiator (features)	Redefine long-term expectations
Why to buy	Choose an HP LaserJet Enterprise printer designed to handle business solutions securely and efficiently, and helps conserve energy with HP EcoSmart black toner. Keep up with the demands of growing business with a printer you can rely on.
Headline	HP printers have the industry’s strongest security[1] because they’re always on guard, continually detecting and stopping threats while adapting to new ones. And only HP printers automatically self-heal from attacks, so IT doesn’t need to intervene.
Key selling point	Firmware is automatically checked during startup to determine if it’s authentic code—digitally signed by HP.
Image legal disclaimer	Product image may differ from actual product
Legal disclaimer	ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Microsoft and Windows are registered trademarks of Microsoft Corporation. AirPrint and the AirPrint logo are trademarks of Apple Inc., registered in the U.S. and other countries. Linux is a U.S. registered trademark of Linus Torvalds. UNIX is a registered trademark of The Open Group.
Monthly printed pages	150,000
Segment	Business
Cartons per layer	6
Maximum print area	212 x 352 mm
Bottom margin (A4)	4.3 mm
First page out black (A4, ready)	As fast as 5.9 sec
First page out black (A4, sleep)	As fast as 10 sec
Duty cycle (monthly, A4)	Up to 150,000 pages
Fonts and typefaces	105 internal TrueType fonts scalable in HP PCL, 92 internal scalable fonts in HP postscript Level 3 emulation (Euro symbol built-in); 1 internal Unicode Fonts (Andale Mono World Type);2 Internal Windows Vista 8 Fonts (Calibri, Cambria);additional font solutions available via third-party flash memory cards; HP LaserJet Fonts and IPDS Emulation available at Http://www.hp.com/go/laserjetfonts

Notes and footnotes

[15] Requires HP FutureSmart 5.8.1.1 or later.
[1] Based on HP review of 2018 published security features of competitive in-class printers. Only HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate software integrity in a reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims
[2] High Yield Black Original LaserJet Toner Cartridges not included; please purchase separately
[3] HP Auto-On/Auto-Off Technology capabilities are subject to printer and settings.
[1] In box cartridge yields 5,000 black pages based on ISO/IWC 19752 and continuous printing. Actual pages may vary considerably based on images printed and other factors. For more information, visit: http://www.hp.com/go/learnaboutsupplies.
[4] HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin
[5] HP JetAdvantage Security Manager must be purchased separately. To learn more, please visit http://www.hp.com/go/securitymanager
[2] With print cartridges
[6] Wireless operations are compatible with 2.4 GHz operations only. App or software and HP ePrint account registration may also be required. Some features require purchase of an optional accessory. Learn more at http://www.hp.com/go/mobileprinting
[3] Declared yield value in accordance with ISO/IEC 19752. Actual yields vary considerably based on images printed and other factors. For more information, visit: http://www.hp.com/go/learnaboutsupplies
[7] To enable HP Roam, some devices may require firmware to be upgraded and an optional accessory to add Bluetooth® Low Energy (BLE) beaconing capabilities. Subscription may be required. For more information, visit hp.com/go/roam
[4] To enable HP Roam, some devices may require firmware to be upgraded and an optional accessory to add Bluetooth® Low Energy (BLE) beaconing capabilities. Customer can purchase the HP Jetdirect 3100w BLE/NFC/Wireless accessory or the RadBeacon USB.
[8] Based on HP testing using the ENERGY STAR® program’s Typical Electricity Consumption (TEC) method or as reported in energystar.gov as of May 2019. Actual results may vary. HP testing is based on using the default Sleep Timer setting for all products and using the Network port. Default Sleep Timer setting is 0 minutes. Increasing the Sleep Timer setting longer than the default value can increase TEC.
[5] Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
[6] HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
[7] Measured using ISO 24734 Feature Test, A5 Landscape Feed. Speed may vary based on content, PC, media orientation, and media type.?
[8] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.?
[9] Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
[10] EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country
[11] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on measurement of 115 V device.
[12] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115 V device.
[13] Best TEC is not applicable to the ES 2.0 TEC. This measurement was made with the printer configuration optimized for energy efficiency. Minimum Sleep Delay was used, Wi-Fi Direct was disabled, and Active I/O - Energy Efficient Ethernet was used.
[14] Acoustic values are subject to change. For current information see http://www.hp.com/support. Configuration tested: base model, simplex printing, A4 paper at an average of 43 ppm.
7
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
