SKU: 1PV87A

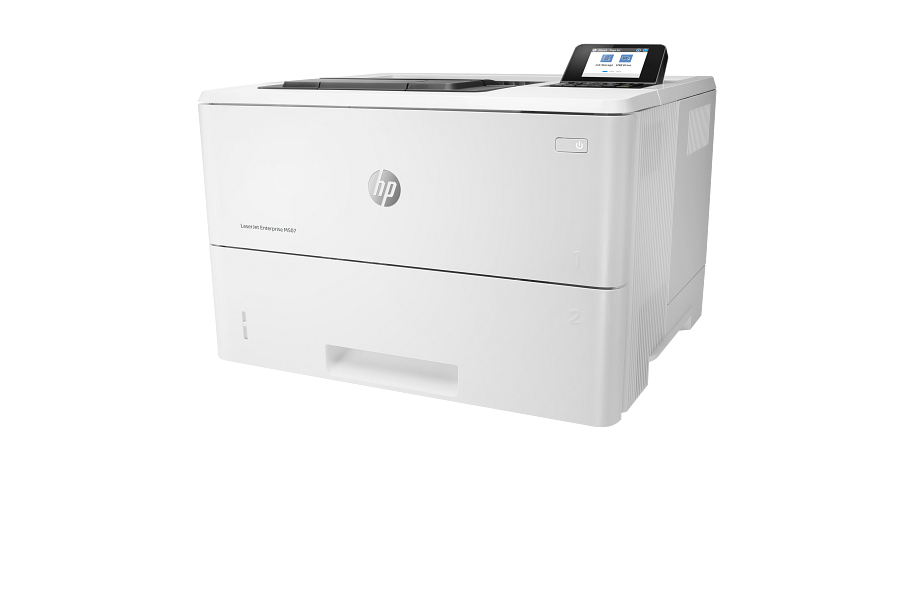

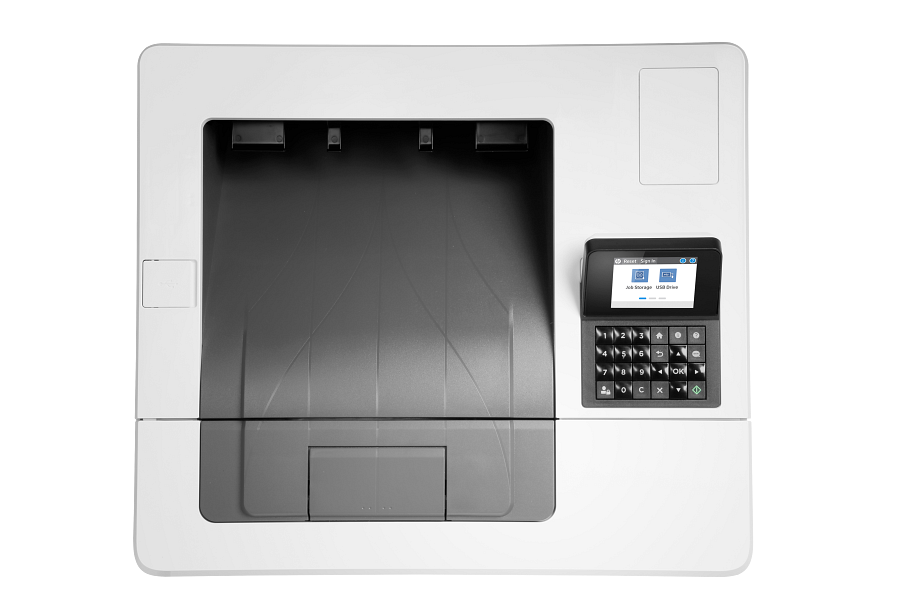

HP LaserJet Enterprise M507dn
- Print technology
- Laser
- Display
- (6.86 cm) QVGA LCD (color graphics)
- Memory
- 512 MB
Contact us for pricing
Key features
- Front USB flash drive port
- Two-sided printing
- Low energy consumption
- World’s most secure printing
- Robust mobility
- Enhanced user interface
- Enterprise manageability
- Enhanced workflows
- Compact – small footprint
- More competitive cartridge offerings
- Competitive hardware specs
- Increased memory capacity
Technical specifications
Product
| UPC number | (201) 193015958142; (696) 192545078832; (697) 192545799713; (AAZ) 193015958159; (AB0) 192545078726; (AB2) 192545078733; (ABJ) 192545078740; (ABT) 192545078771; (ABU) 198415553829; (ABY) 192545078788; (AC8) 192545078849; (ACJ) 192545799706; (ACQ) 192545078795; (B13) 192545078801; (B19) 192545078818; (BAZ) 192545078825; (BBU) 192545078757; (BGJ) 192545078856; (BGM) 192545078764 |
|---|---|
| Product type | Laser printers |
| Subcategory | Single and multifunction printers |
Memory
| Maximum Memory | 1.5 GB MAX memory, when Accessory DIMM is installed |
|---|---|
| Memory Slots | 1 slot, 90-pin DDR3 Slim DIMM |
| Memory upgrade | Expandable to 1.5 GB through one 90-pin SlimDIMM accessory |
| Memory | 512 MB |
Storage
| Storage temperature range | -20 to 40°C |
|---|
Display
| Display | (6.86 cm) QVGA LCD (color graphics) |
|---|---|
| Display area (metric) | 54 x 40.5 mm |
Wireless
| Wireless capability | Optional, enabled with purchase of a wireless hardware accessory. Dual band Wireless Station functionality available with HP Jetdirect 2900nw Print Server J8031A |
|---|
Battery and power
| Power supply type | Built-in 115V or 220V Power Supply |
|---|
Software
| Compatible Operating Systems | Windows 11; Windows 8; Windows 7; Windows Client OS; Android; iOS; Mobile OS; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave |
|---|---|
| Printer smart software features | Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB |
| Print Technology | Laser |
|---|---|
| Mobile printing capability | HP ePrint; Apple AirPrint™; Mopria™ Certified; Google Cloud Print™ |
| Acoustic power emissions (active, printing) | 6.9 B(A) |
| Acoustic pressure emissions bystander (active, printing) | 55 dB(A) |
| Print speed, black | 43 |
| Print quality black (best) | Up to 1200 x 1200 dpi |
| Print quality black (normal) | Up to 600 x 600 dpi |
| Print Resolution Technologies | 300 dpi, 600 dpi, HP FastRes 1200, HP ProRes 1200 |
| Print speed | Print speed up to 45 ppm (black) |
| Print speed duplex (A4) | Up to 34 ipm |
| Print speed duplex (letter) | Up to 36 ipm |
| Print speed black (Landscape, A5) | Up to 65 ppm |
| Print speed black (ISO, letter) | Up to 45 ppm (default) ; Up to 52 ppm (HP High Speed) |
| Print speed black (ISO, A4) | Up to 43 ppm (default) ; Up to 50 ppm (HP High Speed) |
| Duplex printing | Automatic (standard) |
Copy and scan
| Copyright notice | © Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Paper handling
| Paper size | Letter; A4; Legal; B5 |
|---|
Physical
| Maximum dimensions (W x D x H) | 418 x 639 x 299 mm |
|---|---|
| Dimensions (W x D x H) | 418 x 376 x 299 mm |
| Color or black | Black and white |
Package
| Package dimensions (W x D x H) | 497 x 398 x 466 mm |
|---|---|
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2481 mm |
| Count of layers in pallet | 5 |
| Quantity per pallet | 30 |
Sustainability
| Ecolabels | CECP; Blue Angel; ENERGY STAR® certified |
|---|---|
| Energy star certified | Yes |
| Sustainability specifications | Mercury free |
| Energy Usage CO2e (kg) | 78 |
| End of Life CO2e (kg) | 15 |
| Production CO2e (kg) | 107 |
| Total CO2e (kg) | 204 |
| Transportation CO2e (kg) | 4 |
Warranty and service
| Manufacturer Warranty | One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4G; wty ID A001) |
|---|---|
| Network protocols, supported | Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Stateful via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, Syslog; Security: SNMPv3, SSL Cert Management, IPSec/Firewall, ACL, 802.1x |
Other
| Minimum System Requirements | 2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com |
|---|---|
| What's in the box | HP LaserJet Enterprise M507dn Printer; HP Original LaserJet Toner Cartridge (~5,000 pages); Regulatory flyer (CD replacement); Chile Regulatory flyer (#AC8); Unpack Flyer; Installation Guide; Power cord; Warranty Cards; Support flyers/number list; USB-8ft cable (APJ region only) |
| Energy savings feature technology | HP Auto-On/Auto-Off Technology; Instant-on Technology |
| Power consumption | 601 (Active Printing) 7.60 (Ready), 2.61 watts (Sleep), 0.06 watts (Auto-Off), 0.06 watts (Off), Auto Off/Wake on LAN 0.73 Watt |
| Power | Input voltage: 100V to 127V nominal (+/-10%), 50 - 60Hz nominal (+/- 3Hz), 7.5 A; Input voltage: 220V to 240V nominal (+/-10%), 50 - 60Hz nominal (+/- 3Hz), 4 A. Not dual voltage, power supply varies by part number with # Option code identifier. |
| Cable included | No, please purchase USB cable separately; Yes, 1 USB (APJ region Only) |
| Registration required | No |
| Print Cartridges/Bottle, Number | 1 (black) |
| Replacement cartridges | HP 89A Black Original LaserJet Toner Cartridge (~5,000 pages) CF289A; HP89X High Yield Black Original LaserJet Toner Cartridge (~10,000 pages) CF289X; HP89Y Extra High Yield Black Original LaserJet Toner Cartridge (~20,000 pages) CF289Y |
| Supplies feature | HP JetIntelligence Cartridge |
| Brand | HP |
| Sub brand | LaserJet Enterprise |
| Blue Angel compliant | Yes, Blue Angel DE-UZ 219—only ensured when using Original HP supplies |
| Electromagnetic compatibility | CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, EMC Directive 2014/30/EU, FCC CFR 47 Part 15 Class A/ICES-003, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| FCC Class A emissions | FCC Class A emissions - for use in commercial environments, not residential environments |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2014/IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries. |
| Accessories | HP LaserJet 550 Sheet Paper Tray F2A72A, HP LaserJet Printer Cabinet F2A73A, HP USB Port 100 pc M507/M528 Accessory 1PV95A, HP Secure Hard Disk Drive with FIPS Validation (TAA Compliant) 5EL03A, HP Internal USB Ports B5L28A, HP Secure High Performance Hard Disk Drive B5L29A, HP Jetdirect 2900nw Print Server J8031A, HP 1 GB 90-Pin DDR3 DIMM G6W84A, Accessibility Assistant 2MU47A, HP Jetdirect 3000w NFC/Wireless Accessory J8030A, HP JetDirect 3100w BLE/NFC/Wireless Accessory 3JN69A, HP Removable Hard Drive Enclosure 2NR12A, HP USB Universal Card Reader X3D03A, HP HIP2 Keystroke Reader Y7C05A, HP Logic Card Reader 4QL32A |
| Connectivity | Apple AirPrint™; Ethernet networking; Google Cloud Print™; HP ePrint; USB; Wireless optional (with accessory) |
| Number of users | 5-15 Users |
| Connectivity, optional | HP Jetdirect 2900nw Print Server J8031A |
| Connectivity, standard | 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet; 1 Hardware Integration Pocket |
| Network capabilities | Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); 802.11a/b/g/n wireless networking (optional); second Ethernet port (optional); Microsoft Universal Print (MUP) support |
| Plug and play | HP Smart Install |
| Maximum metric depth | 639 |
| Maximum metric height | 299 |
| Maximum metric width | 418 |
| Metric depth | 376 |
| Business filter | cMPS |
| Component type | Printer |
| Printer black pages (MPV black) | 1600 |
| Acoustic power emissions (ready) | 3.9 B(A) |
| Acoustic pressure emissions bystander (ready) | 25 dB(A) |
| Operating humidity range | 10 to 80% RH |
| Recommended operating humidity range | 30 to 70% RH |
| Operating temperature range | 10 to 32.5°C |
| Recommended operating temperature range | 15 to 27°C |
| Functions | Print only |
| Country of origin | Made in Philippines; Made in Japan (201, AAZ); Made in Brazil (696, 697, AC8) |
| Web address for additional information | Solutions: http://www.hp.com/go/gsc; Fonts and IPDS Emulation: http://www.hp.com/go/laserjetfonts; HP Web Jetadmin: http://www.hp.com/go/wja; HP Universal Print Driver: http://www.hp.com/go/upd; HP Imaging & Printing Security Center: http://www.hp.com/go/ipsc; On Demand Cloud Solutions: http://www.hpjetadvantage.com/ondemand |
| Differentiator (features) | Redefine long-term expectations |
| Why to buy | Choose an HP LaserJet Enterprise printer designed to handle business solutions securely and efficiently, and helps conserve energy with HP EcoSmart black toner. Keep up with the demands of growing business with a printer you can rely on.[8] |
| Headline | HP printers have the industry’s strongest security[1] because they’re always on guard, continually detecting and stopping threats while adapting to new ones. And only HP printers automatically self-heal from attacks, so IT doesn’t need to intervene. |
| Key selling point | Firmware is automatically checked during startup to determine if it’s authentic code—digitally signed by HP. |
| Image legal disclaimer | Product image may differ from actual product |
| Legal disclaimer | ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Microsoft and Windows are registered trademarks of Microsoft Corporation. AirPrint and the AirPrint logo are trademarks of Apple Inc., registered in the U.S. and other countries. Linux is a U.S. registered trademark of Linus Torvalds. UNIX is a registered trademark of The Open Group. |
| Monthly printed pages | 150,000 |
| Segment | Business |
| Cartons per layer | 6 |
| Maximum print area | 212 x 352 mm |
| Bottom margin (A4) | 4.3 mm |
| First page out black (A4, ready) | As fast as 5.9 sec |
| First page out black (A4, sleep) | As fast as 10 sec |
| Duty cycle (monthly, A4) | Up to 150,000 pages |
Notes and footnotes
- [1] In box cartridge yields 5,000 black pages based on ISO/IWC 19752 and continuous printing. Actual pages may vary considerably based on images printed and other factors. For more information, visit: http://www.hp.com/go/learnaboutsupplies.
- [6] Declared yield value in accordance with ISO/IEC 19752. Actual yields vary considerably based on images printed and other factors. For more information, visit: http://www.hp.com/go/learnaboutsupplies
- [14] Requires HP FutureSmart 5.8.1.1 or later.
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [1] Based on HP review of 2018 published security features of competitive in-class printers. Only HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate software integrity in a reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims
- [2] High Yield Black Original LaserJet Toner Cartridges not included; please purchase separately
- [3] HP Auto-On/Auto-Off Technology capabilities are subject to printer and settings.
- [4] HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin
- [5] HP JetAdvantage Security Manager must be purchased separately. To learn more, please visit http://www.hp.com/go/securitymanager
- [2] With print cartridges
- [6] Requires an Internet connection to the printer. Services may require registration. App availability varies by country, language, and agreements. For details, see hpconnected.com.
- [3] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on measurement of 115V device.
- [7] Wireless operations are compatible with 2.4 GHz operations only. App or software and HP ePrint account registration may also be required. Some features require purchase of an optional accessory. Learn more at http://www.hp.com/go/mobileprinting
- [4] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115 V device.
- [8] HP Secure Print is optional and requires a license.
- [5] Best TEC is not applicable to the ES 2.0 TEC. This measurement was made with the printer configuration optimized for energy efficiency. Minimum Sleep Delay was used, Wi-Fi Direct was disabled, and Active I/O - Energy Efficient Ethernet was used.
- [9] An FCC Class A emissions compliant device meets the less stringent (higher) levels of emissions allowed by the FCC for a product operation in a commercial environment. An FCC class A device cannot be marketed for use in a residential environment and an FCC class A device should not be purchased for use in a residential environment due to the increased risk of interference to radio communications.
- [7] Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
- [8] HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
- [9] HP SureSupply alerts you when your print cartridge is running low and helps you purchase online or locally through HP or a participating retailer. Only available with Original HP supplies; Internet access required. To learn more, visit http://www.hp.com/go/SureSupply.
- [10] FCC Class A emissions - for use in commercial environments, not residential environments
- [11] EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
- [12] Configuration tested: base model, simplex printing, A4 paper at an average of 43 ppm
- [13] Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [15] Configuration tested: base model, simplex printing, A4 paper at an average of 43 ppm.
- FCC Class A emissions device for use in commercial environments, not residential environments[9]
- [11] Measured using ISO 24734 Feature Test, A5 Landscape Feed. Speed may vary based on content, PC, media orientation, and media type.
