SKU: 1TJ10A
HP Smart Tank 517 Wireless All-in-One
- Print technology
- Ink
- Display
- 7 segment + 2-inch icon display
- Memory
- 256 MB; Integrated memory
Contact us for pricing
Key features
- Ink tank system

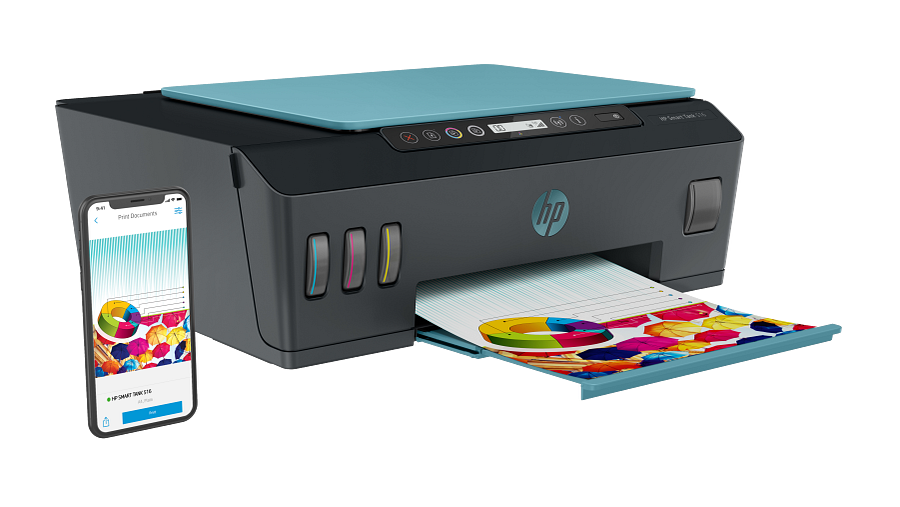

- Print from mobile device
- Scan to PDF
- Your reliable connection
- Customizable shortcuts on your phone
- Print, scan, and copy anywhere
- Exceptional HP quality
- Achieve high speeds for all your prints
- Convenient ink management
- Engineered for high-volume printing

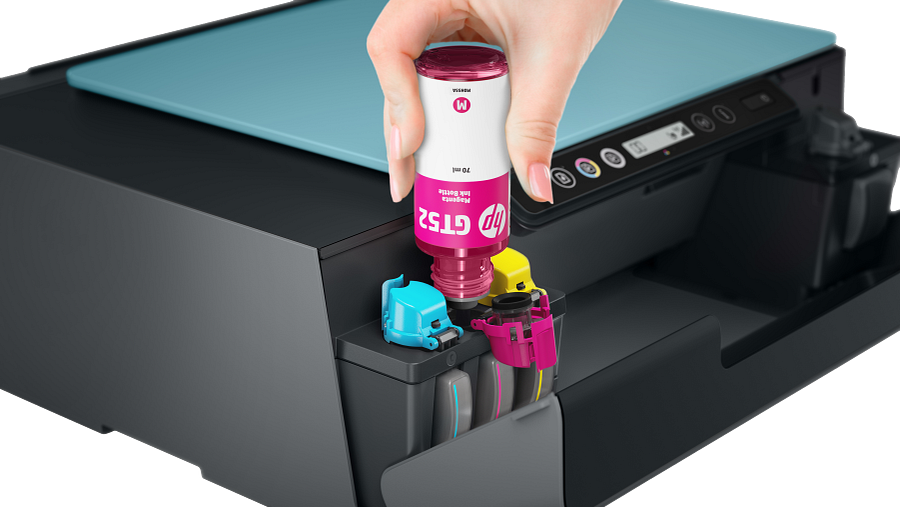

- Simple, spill-free refill
- Preserve your photos
Technical specifications
Product
| UPC number | (696) 193015110328; (AK4) 192545948487 |
|---|---|
| Product type | Inkjet printers |
| Subcategory | Single and multifunction printers |
Memory
| Maximum Memory | 256 MB |
|---|---|
| Memory | 256 MB; Integrated memory |
Storage
| Storage altitude | 15,000 ft |
|---|---|
| Storage temperature range | -40 to 140°F |
Display
| Display | 7 segment + 2-inch icon display |
|---|
Camera and audio
| Camera phone description | Direct printing from camera phone via Wireless or Wireless Direct |
|---|
Wireless
| Wireless capability | Yes, built-in dual band Wi-Fi 802.11b/g/n, Wireless direct, BLE |
|---|
Battery and power
| Power supply type | Internal built in |
|---|
Software
| Compatible Operating Systems | Windows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; macOS 10.11 El Capitan; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 13 Ventura; macOS 14 Sonoma |
|---|
| Print Technology | Ink |
|---|---|
| Mobile printing capability | Apple AirPrint; Mopria Print Service; HP app; Google Cloud Print™; Wi-Fi® Direct Printing |
| Acoustic power emissions (active, printing) | 6.5 B(A) |
| Print speed, black | 11 |
Copy and scan
| Color copy capability | Yes |
|---|---|
| Copy reduce / enlarge settings | Via HP app |
| Copy resolution (black graphics) | Up to 600 dpi |
| Copy speed black (ISO) | Up to 10 cpm |
| Copy speed color (ISO) | Up to 2 cpm |
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
Paper handling
| Paper size | Letter; A4; Legal; 4 x 6 in |
|---|
Physical
| Print Cartridge/Bottle, Color(s) | Black; Cyan; Magenta; Yellow |
|---|---|
| Print colors maximum | 4 |
| Maximum dimensions (W x D x H) | 17.7 x 23.8 x 10.18 in |
| Dimensions (W x D x H) | 17.6 x 14.7 x 6.2 in |
| Dimensions with trays up (W x D x H) | 447 x 373 x 158 mm |
| Color or black | Color |
Package
| Package dimensions (W x D x H) | 19.49 x 7.8 x 18.9 in |
|---|---|
| Pallet dimensions | 47.24 x 39.37 x 94.39 in |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2400 mm |
| Count of layers in pallet | 5 |
| Quantity per pallet | 60 |
Warranty and service
| Manufacturer Warranty | One year of 24/7 world-class technical support services through http://www.hp.com/support; One-year or 30,000 pages limited hardware warranty, whichever is earlier from the date of purchase; user replaceable parts have separate warranty periods |
|---|---|
| PictBridge supported | No |
| Network protocols, supported | 9100, SNMP, SLP, IPP, WS-Print, Wireless, LPR |
| File Format Supported | BMP; PDF; JPG; PNG; TIF |
| Service & support features | With services, software, solutions and support from HP Total Care, you can use, protect and enjoy your HP technology; one-year technical support; one-year or 30,000 pages limited hardware warranty, whichever is earlier from the date of purchase; user replaceable parts have separate warranty periods; access to 24/7 world-class support services through http://www.hp.com/support; to improve your product experience, please take the time to register at http://www.register.hp.com. CHINA ONLY WARRANTY STATEMENT: With services, software, solutions and support from HP Total Care, you can use, protect and enjoy your HP technology; one-year technical support; one-year limited hardware warranty; user replaceable parts have separate warranty periods; access to 24/7 world-class support services through http://www.hp.com/support; to improve your product experience, please take the time to register at http://www.register.hp.com |
Other
| Connection type | Wireless |
|---|---|
| Minimum System Requirements | Windows 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer. |
| What's in the box | HP Smart Tank 517; 2 x HP GT53XL 135-ml Black Original Ink Bottle; HP GT52 Cyan Original Ink Bottle; HP GT52 Magenta Original Ink Bottle; HP GT52 Yellow Original Ink Bottle; Ink caution flyer; Repacking flyer; Setup guide; Reference guide; Regulatory flyer; Warranty card, Power cord [For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies] |
| Energy savings feature technology | HP Auto-Off Technology |
| Power consumption | 0.12 watts (manual-Off), 3.12 watts (ready), 0.75 watt (sleep) |
| Power | Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). High voltage: Input voltage 200 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz). Not dual voltage, power supply varies by part number with # Option code identifier. |
| Cable included | WW: No, please purchase (USB) cable separately; AP EM: Yes, 1.5 m (USB) cable (except Taiwan, Hong Kong and Singapore) |
| Output file format | JPEG |
| Ink types | Pigment-based (black); Dye-based (color) |
| Print Cartridges/Bottle, Number | 4 (1 each black bottle, set of 3 color bottles) |
| Print head nozzles | 704 (Black), 588 (Tri-color) |
| Print heads | 2 (1 each black, tri-color) |
| Replacement cartridges | HP GT53 90-ml Black Original Ink Bottle 1VV22AL; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AL; HP GT52 Cyan Original Ink Bottle M0H54AL; HP GT52 Magenta Original Ink Bottle M0H55AL; HP GT52 Yellow Original Ink Bottle M0H56AL; HP GT52 3-pack Cyan/Magenta/Yellow Original Ink Bottles X4E44AL.For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies |
| Segment (filter) | Home and home office |
| Brand | HP |
| Sub brand | Smart Tank |
| Compliance alliances | None |
| Electromagnetic compatibility | CISPR 32:2015/EN 55032:2015 Class B; CISPR24:2010/EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 301 489-1 V2.1.1:2017; EN 301 489-17 V3.1.1:2017 GB4943.1-2011, GB/T9254-2008, GB17625.1-2012 (CCC China); CNS14336-1, CNS13438 & CNS15663 (BSMI RoHS -Taiwan); EAC (Russia) |
| Safety | IEC 60950-1 & IEC 62368-1 compliant; EU LVD and EN 60950 & EN 62368 compliant; UL GS approved; Singapore Safety; Russia EAC; China CCC; Taiwan BSMI |
| Telecom compliance (fax capability) | EN 300 328 V2.1.1:2016; EN 301 893 V2.1.0:2017 |
| Orderable supplies | HP GT53 90-ml Black Original Ink Bottle 1VV22AL; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AL; HP GT52 Cyan Original Ink Bottle M0H54AL; HP GT52 Magenta Original Ink Bottle M0H55AL; HP GT52 Yellow Original Ink Bottle M0H56AL; HP GT52 3-pack Cyan/Magenta/Yellow Original Ink Bottles X4E44AL |
| Connectivity | Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™; Wireless (Wi-Fi®); Wireless direct printing; Bluetooth |
| Number of users | 1-3 Users |
| Connectivity, standard | Hi-Speed USB 2.0, Wi-Fi, Bluetooth LE |
| Modem | Not Supported |
| Network capabilities | Yes (via Wi-Fi) |
| Plug and play | Set up from mobile device; Wi-Fi Protected Setup (WPS) |
| Copier settings | Number of Copies, Resize, Quality, Lighter/Darker, Papersize, Papertype, ID Copy, Enhancement |
| Copies, maximum | Up to 99 copies |
| Digital sending standard features | Everyday scan (scan to PDF); HP Smart Tasks |
| Acoustic pressure emissions | 51 dB |
| Non-Operating Humidity Range | 5 to 90% RH (non-condensing) |
| Operating humidity range | 15 to 80% RH (non-condensing) |
| Recommended operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Recommended operating temperature range | 15 to 30°C |
| Functions | Multifunction / All-in-One |
| Form factor | All-in-One |
| Country of origin | Product of China |
| Geographic availability | WW, EM |
| Differentiator (features) | The ultimate in printing freedom |
| Why to buy | Print without restraints. Get high-capacity ink tank printing with fax,[1] faster connections with dual band Wi-Fi,[2] easy mobile printing with HP Smart app,[3] and high-quality printing – up to 8000 color or 6000 black pages included.[4] |
| Headline | With integrated ink tanks and an automatic ink sensor, you get a compact, spill-free refill system that makes it easy to manage ink.[9] Perfect for low-cost, high-volume printing – up to 8000 color pages or up to 6000 black pages.[4] |
| Key selling point | Create borderless brochures, flyers, photos, and other documents that look great - right in your office. |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | Air Print; Android; Windows; Google Cloud Print Ready; USB high speed; WiFi certified; Mopria; PAP 20; SmartWay (NA only); Fragile; Keep out of Rain; This side up; stacking height (7); Bluetooth LE |
| Monthly printed pages | 800 |
| Segment | Home |
| Cartons per layer | 12 |
Notes and footnotes
- [2] Wireless operations are compatible with 2.4 GHz and 5.0 GHz operations only. Learn more at http://hp.com/go/mobileprinting. Wi-Fi is a registered trademark of Wi-Fi Alliance®. Supports both 5.0 GHz and 2.4 GHz using up to 12 non-overlapping channels vs only 3 non-overlapping channels for 2.4 GHz only. Supports 5.0 GHz band (up to 150 mbps) vs 2.4 GHz band (up to 72.2 mbps).
- [3] Requires the HP app download. For details on local printing requirements see http://hp.com/go/mobileprinting.
- [1] Dimensions vary as per configuration
- [4] Black and composite color average per bottle (cyan/magenta/yellow) Results based on HP methodology and continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. An additional black ink bottle is required to print 8000 color test pages. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For more information about fill and yield, see: http://www.hp.com/go/learnaboutsupplies.
- [5] For more information, see http://hp.com/go/printpermanence.
- [2] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
- [6] Compared to OEM mobile printing apps for the majority of top-selling inkjet & laser printers & all-in-ones for home & home office, priced less than or equal to $429.99 USD. Market share as reported by IDC CYQ2 2018 Hardcopy Peripherals Tracker. Claim based on research of printer manufacturer’s mobile print apps and Keypoint Intelligence - Buyers Lab hands-on testing and study commissioned by HP. See September 2018 report at http://www.keypointintelligence.com/HPSmartApp.
- [3] Wireless performance is dependent upon physical environment and distance from the access point. Wireless operations are compatible with 2.4 GHz routers only; excludes wireless direct. Wireless direct may require driver or apps be installed and connected on wireless-enabled mobile device or PC. Wireless functionality may vary by computer and mobile operating systems, see http://hpconnected.com. Print times and connection speeds may vary. AirPrint™ supports macOS Mojave, iOS 4.2 or later and requires the printer be connected to the same network as your macOS or iOS device. AirPrint, the AirPrint Logo and macOS are trademarks of Apple Inc. Windows is a trademark of the Microsoft group of companies.
- [7] Compared with HP Smart Tank/Ink Tank All-in-One Printer series. Excludes first set of ISO test pages. For details, see http://hp.com/go/printerclaims.
- [4] Speed specifications have been updated to reflect current industry testing methods.
- [8] Mobile device needs to be connected to Wi-Fi Direct® signal of a Wi-Fi Direct-supported AiO or printer prior to printing. Details at http://hp.com/go/mobileprinting. Wi-Fi Direct® is a registered trademark of Wi-Fi Alliance®.
- [5] ISO speeds measured using ISO/IEC 24734, ISO/IEC 17629 or ISO/IEC 29183. In simplex mode. Excludes first page or first set of ISO test pages for PPM measurements. For details see: http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [9] When used in accordance with set up instructions.
- [6] Average based on ISO/IEC 24711 or HP testing methodology and continuous printing. Actual yield varies considerably based on content of printed pages and other factors. For details see http://hp.com/go/learnaboutsupplies
- [10] Mobile device needs to support Bluetooth v4.0+ and be enabled. A mobile app such as HP ePrint or HP Smart must be installed and opened for printing. Mobile device must be within 5 feet of the printer. For details, see http://www.hp.com/go/bleprinting. Bluetooth is a trademark owned by its proprietor and used by HP under license.
- [7] For details see: http://www.hp.com/go/printerclaims
- [8] Based on HP internal A4 Memo draft document methodology. For details see https://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA8-4168ENW .
