SKU: 20G08A

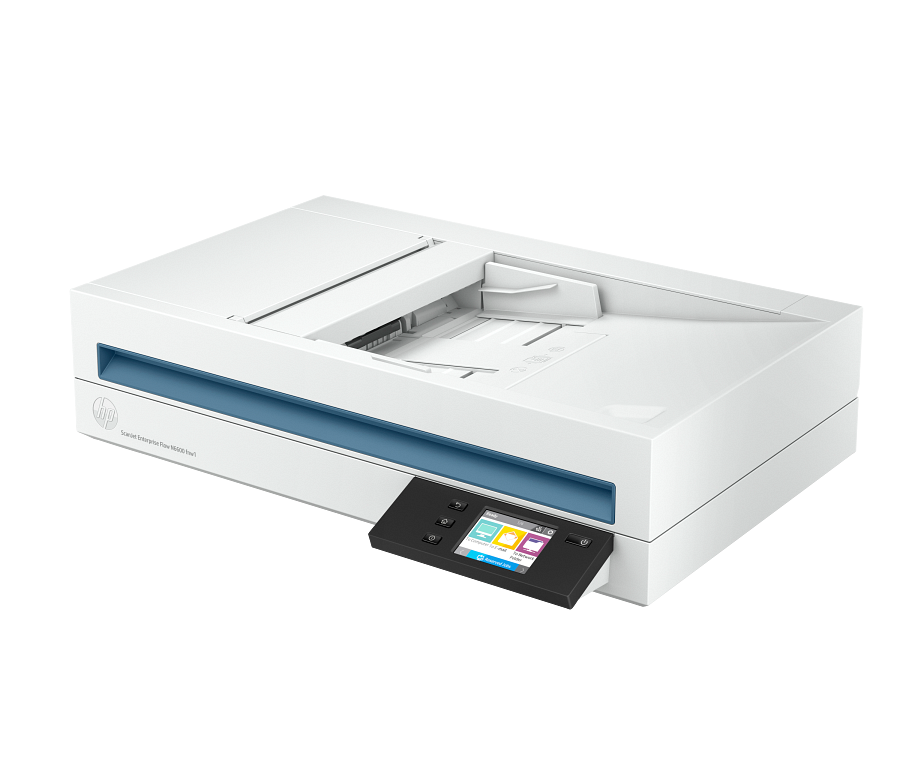

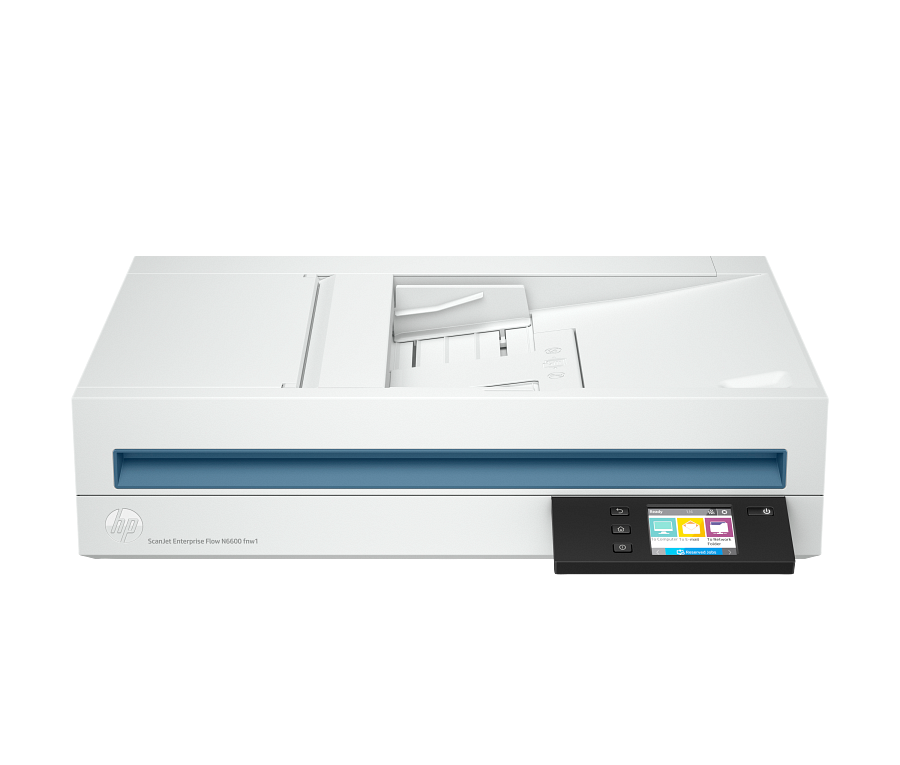

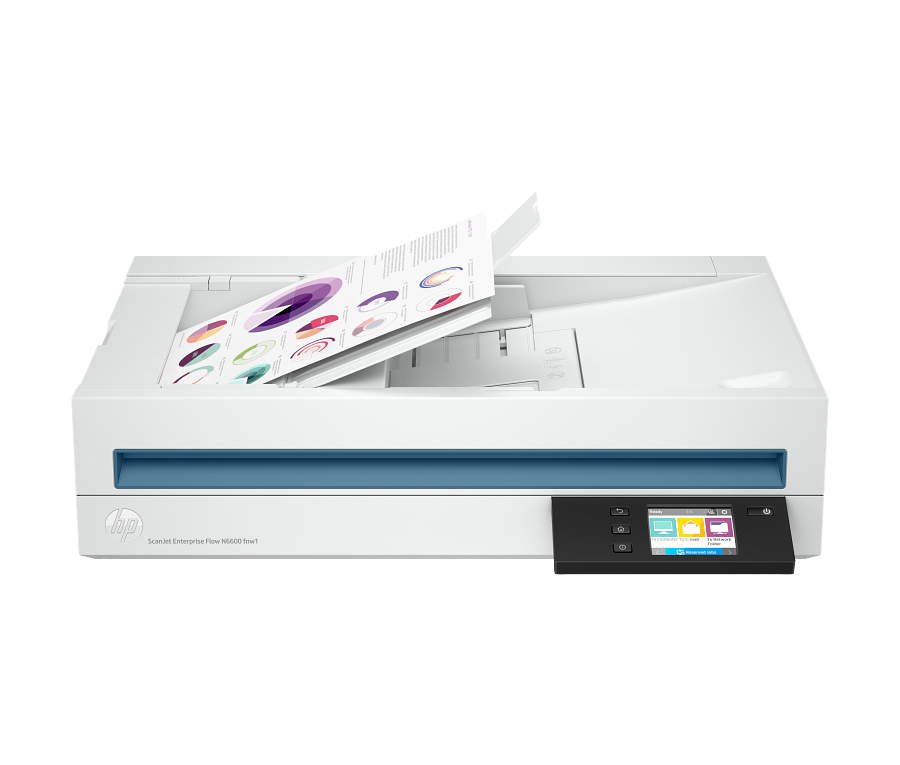

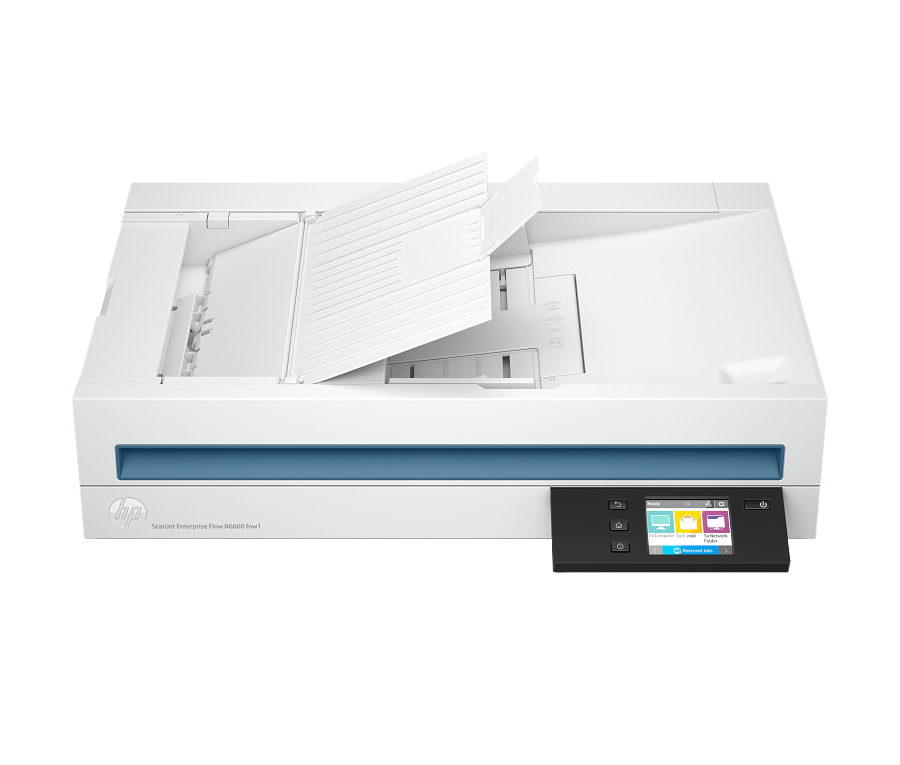

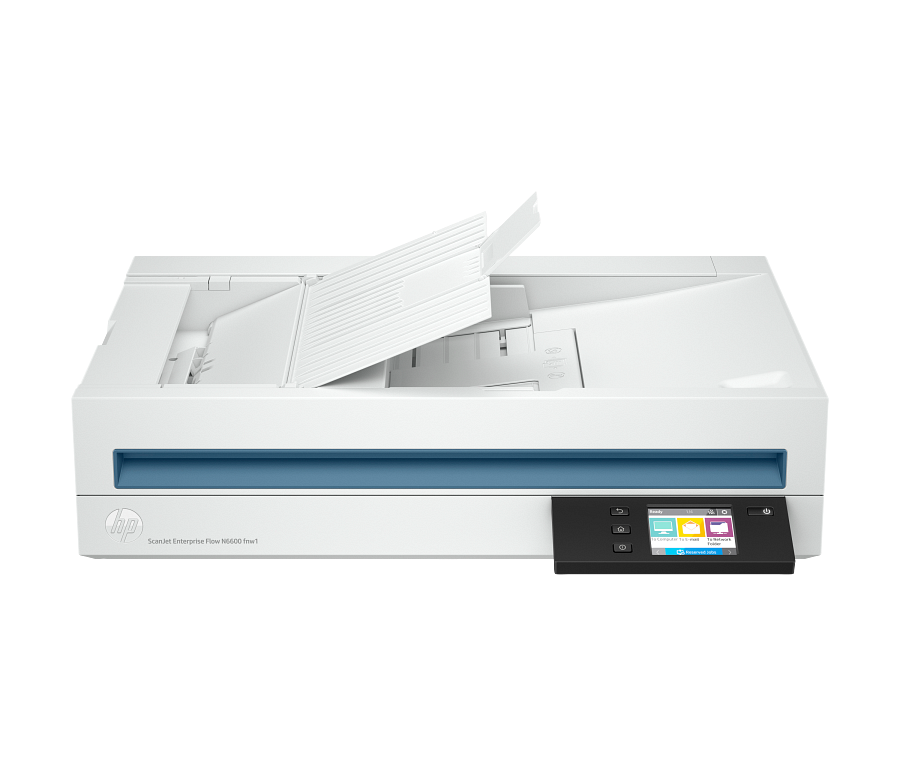

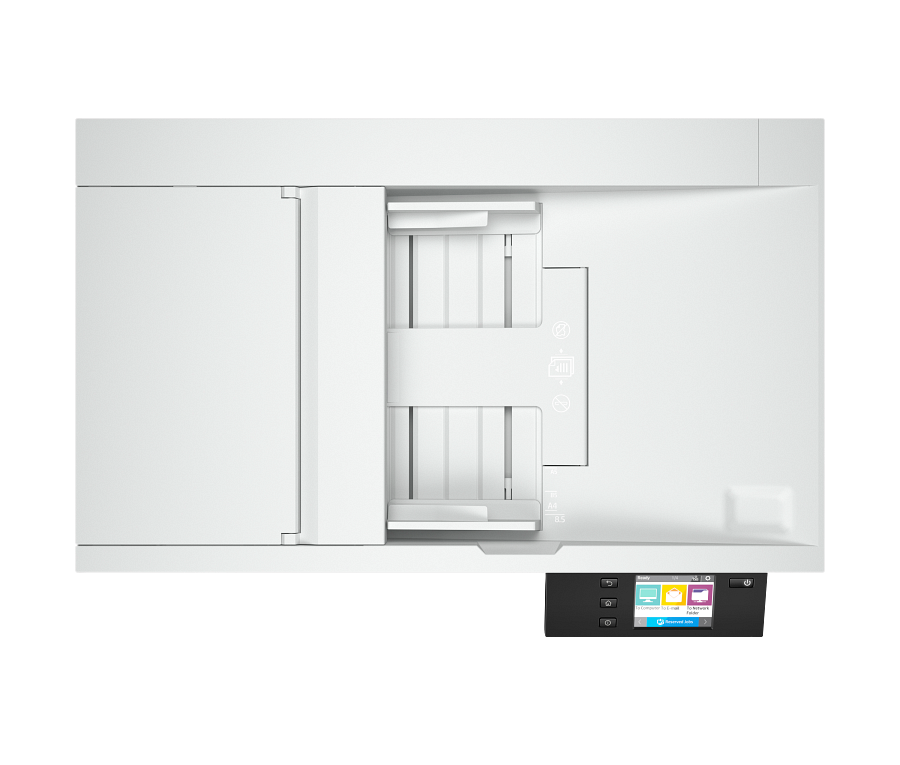

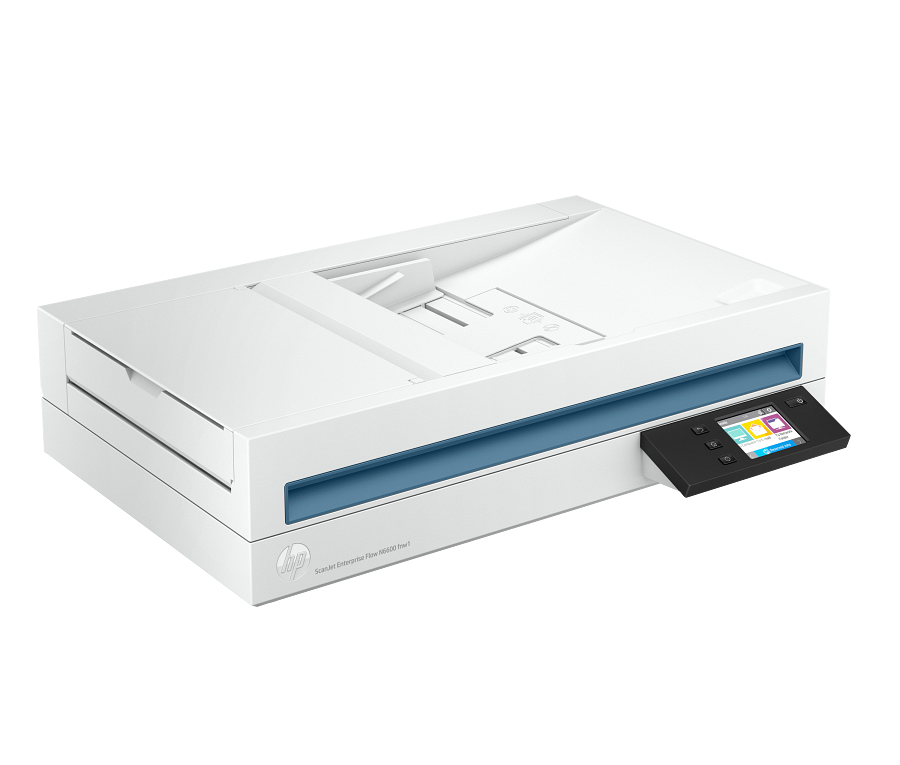

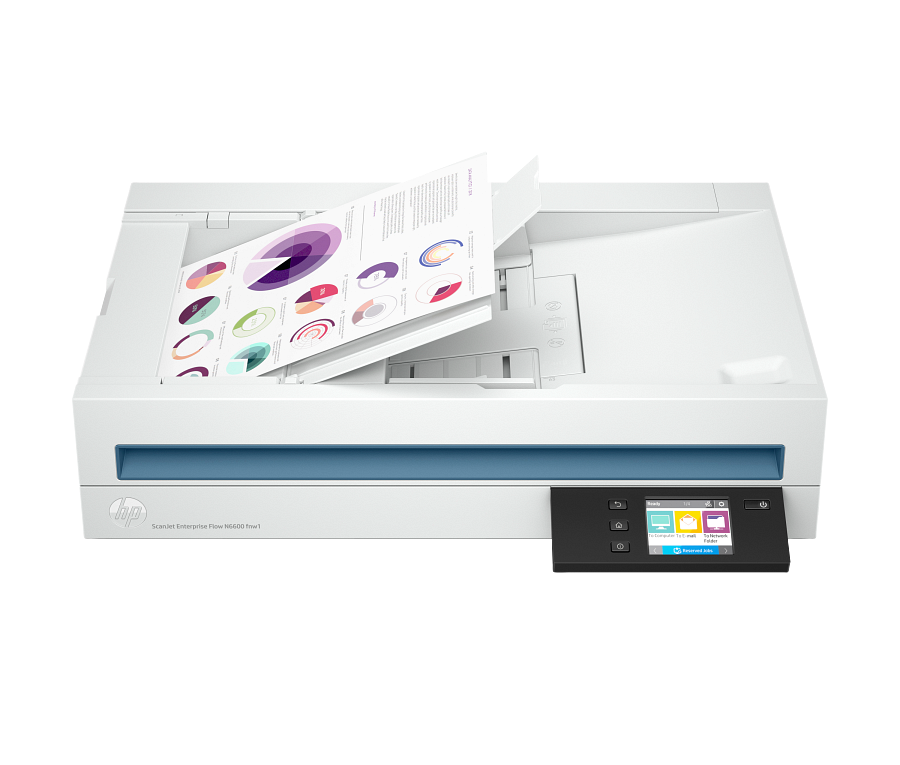

HP ScanJet Enterprise Flow N6600 fnw1
- Print technology
- Laser
- Display
- 2.8-in (7.11-cm) Touchscreen
- Memory
- 1 GB
Contact us for pricing
Key features
- Get scan jobs done blazing fast
- Capture every page, every time
- Versatile scanning
- Simple scan to US drive
- Fast, versatile connectivity
- No waiting - Instant on
- Simplify and automate workflows
- Designed for very high volumes
- Clear sharp scans
- Secure boot
- Secure firmware updates
- Sustainable design
Technical specifications
Product
| UPC number | (201) 195697674259; (460) 196188611852; (AB2) 195697674273; (ABG) 195697674280; (ABT) 195697674297; (ABY) 195697674303; (AC4) 195697674327; (AC8) 195697674334; (ACJ) 195697674341; (ACQ) 195697674358; (AKV) 195697674365; (B13) 195697674372; (B19) 195697674396; (BAZ) 195697674402; (BBU) 195697674419; (BGJ) 195697674426 |
|---|---|
| Product type | Scanners Flatbed |
| Subcategory | Scanner |
| UNSPSC code | 43211711 |
Processor
| Processor speed | 666 MHz |
|---|
Memory
| Memory | 1 GB |
|---|
Storage
| Storage temperature range | -40 to 140°F |
|---|
Display
| Display | 2.8-in (7.11-cm) Touchscreen |
|---|---|
| Optical resolution | 600 dpi |
| Output resolution dpi settings | 75; 150; 200; 240; 300; 400; 500; 600; 1200 ppi |
Battery and power
| Power supply type | External power adapter |
|---|
Software
| Compatible Operating Systems | Windows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; Windows Server; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; Linux |
|---|
| Print Technology | Laser |
|---|---|
| Acoustic power emissions (active, printing) | 7.0 B(A) |
Copy and scan
| Scanner advanced features | One pass duplex scanning; Multi-feed detection sensor; Configurable Scan shortcuts with HP Scan Premium Software: OCR; Auto exposure; Auto threshold; Auto detect colour; Background smooth/removal; Auto detect size; Straighten content; Enhance content; Auto orient; Multicolour dropout; Edge erase; Blank page options: Delete Blank Page, Blank Page Detection Sensitivity, Zonal Blank Detect; Merge pages; Document separation options: Zonal Text Separation, Barcode Separation, Blank Page Separation, Detect All/ Exclude All Edges Evenly/Exclude Edges Specifically, HP Separator Page Separation, Barcode Settings for Doc Separation, Any Format/Specific Format, Barcode Value, Delete Barcode Separator; Auto Feed; Show Viewer After Scan and Post Scan Operations are: Mark the image for Deletion, Rotate option, Move Left/Right, Create/Delete New Selection, Save as Scan Area, Manual Straighten option, Drag and Crop, Undo Options, image - Basic Zoom Slider, Open in Zoom Window (Zoom, Crop, Rotate) ; Background Clean-up options: Clean-up Background, Remove: make white, Smooth, make consistent, Remove Holes; Multi-Streaming; Multizone Selection for Zonal OCR, Barcode and QR Code; Multizone options: Ability to select Multiple Zones for OCR/Barcode, File Naming, Folder Naming, Document separation, Capture Metadata; Digital Stamp; PDF options: PDF Security Settings (Applicable for PDF and Searchable PDF), Password Security & Document Permission Settings, PDF – iHQC compression, File Size/Quality Slider, TIFF Compression Options: for Gray or Color: Uncompressed/LZW/Jpeg-Tiff, for BW: Uncompressed/LZW/Tiff G3/Tiff G4; File Name Options: Base Name, Date, Time, Batch Counter, Document Counter, Barcode Value, Zonal Text, File name sequence Settings, If File name already exists Actions - Overwrite/Append Date Time Stamp/Prompt for File Name, Intelligent File Naming; Destinations options: Email (Mail Clients, Save Local Copy Option, Local or NW), Folder, Save Folder path, Show Save as Dialog Box, After Saving the File(s) action, Printer/Fax, Send To multiple Destinations, Custom Destinations, Sub Folder Name by Date of Scan, by Time of Scan, Plugins available if not already included: SMTP, SFTP, Box and Evernote, SharePoint, SharePoint365, Google Drive, Dropbox, OneDrive, One Drive for Business and more..; XML and PDF Metadata; Enable Book Scan (Flatbed); Intelligent Document Classification; Manual Redaction; Vertical Streak Removal/Detection; Multi Document Scanning; Enable Desktop Icons creation for Scan Profiles/Shortcuts; Shortcut Management: Create new Scan Shortcut, Delete, Rename, Move Up/Down, Save/Undo, Restore Defaults-Factory Settings, Import/Export Shortcuts, retrieve shortcuts from Scanner without accessing the software on the PC; Configurable Scan shortcuts as standalone (using only the firmware of the scanner) without using the HP Scan Software: Scan to Computer, E-mail, Network Folder, SharePoint, Scan to USB Drive. |
|---|---|
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
| Scan size maximum (mm) | 216 x 3098 mm |
| Scan size maximum (in) | 8.5 x 122 in |
| Enhanced scanning resolution | Up to 1200 dpi |
| Scan resolution, hardware | Up to 600 x 600 dpi (color and mono, ADF); Up to 1200 x 1200 dpi (color and mono, flatbed) |
| Scan resolution, optical | Up to 600 dpi (color and mono, ADF); Up to 1200 dpi (color and mono, flatbed) |
| Automatic document feeder scan speed | Up to 50 ppm/100 ipm (b&w, color, gray scale, 300 dpi) |
| Document weight ADF (maximum) | 120 g/m² |
| Document weight ADF (minimum) | 12 lb |
| Light source (scanning) | Light Emitting Diode (LED) |
| Scan file format | BMP; CSV; Excel (XLS); Excel ( XLSX); JPEG; PDF; PDF/A; RTF; Searchable PDF; TIFF; TXT; Word (DOC); Word (DOCX); XML |
| Scan input modes | Scan front-panel function : Scan to Computer, Scan to E-mail, Scan to Network Folder, Scan to Share Folder, Scan to USB Drive and Everyday Scan. HP Scan in Win OS, HP Easy Scan/ICA in Mac OS and THIRD parties applications via TWAIN. |
| Scanning options (ADF) | Single-pass Duplex scanning |
| Scan size (ADF), maximum | 216 x 5362 mm |
| Scan size, maximum | 216 x 356 mm |
| Scan size (ADF), minimum | 89 x 148 mm |
Physical
| Maximum dimensions (W x D x H) | 536.5 x 442.6 x 387.42 mm |
|---|---|
| Dimensions (W x D x H) | 536.5 x 325.4 x 133.3 mm |
| Printer color pages (MPV color) | 4680 |
Package
| Package dimensions (W x D x H) | 25.39 x 9.65 x 19.65 in |
|---|---|
| Pallet dimensions | Wood pallet: 47.24 x 39.37 x 83.54 in / Slip sheet: 44.69 x 35.04 x 78.62 in |
| Pallet dimensions (W x D x H) | Wood pallet: 1200 x1000 x 2122 mm / Slip sheet: 1135 x 890 x 1997 mm |
| Count of layers in pallet | 4 |
| Quantity per pallet | 24 |
Sustainability
| Ecolabels | CECP; SEPA; IT ECO Declaration; EPEAT® Silver registered |
|---|---|
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR® 3.0 qualified; EPEAT® rated |
| Consumables CO2e (kg) | 12 |
| Energy Usage CO2e (kg) | 784 |
| End of Life CO2e (kg) | 0.2 |
| Production CO2e (kg) | 366 |
| Total CO2e (kg) | 1173.2 |
| Transportation CO2e (kg) | 11 |
Warranty and service
| Manufacturer Warranty | One-year limited hardware warranty, phone and Web support included. Warranty may vary by country as required by law. Go to http://www.hp.com/support to learn about HP world-class service and support options in your region. |
|---|---|
| Network protocols, supported | Via built-in networking solution: TCP/IP, IPv4, IPv6; Web Services; Discovery: Bonjour, Web Services Discovery; IP Config: IPv4 (DHCP, Manual), IPv6 (DHCPv6) ARP;ICMP; IGMP;UDP;TCP;DHCP;APIPA;DNS;mDNS;LLMNR;WSD;WS-Scan;SNTP;SMB;SNMP;FTP;SFTP;SMTP;HTTP Server Part;HTTPS |
Other
| Minimum System Requirements | Microsoft® Windows® (11, 10, 8.1, 7 : 32-bit and 64-bit, 2008 R2, 2012 R2, 2016, 2019); 2 GB available hard disk space, Internet connection, Microsoft® Internet Explorer or any browser |
|---|---|
| What's in the box | HP ScanJet Enterprise Flow N6600 fnw1 Scanner; Install guide; Supporting flyers; Cushions; USB cable; Power adapter; Power cords |
| Power consumption | 23.9 watts (Active - Scanning), 7 watts (Ready), 2 watts (Sleep), 0.06 (Auto-Off), 0.06 (Manual-Off) |
| Power | Input Voltage: 100 to 240 VAC |
| Cable included | Yes, 1 USB PC to Scanner |
| Registration required | No |
| Sub brand | ScanJet |
| Electromagnetic compatibility | Class B Emissions; CISPR 32:2015 (International); European Union EMC Directive 2004/108/EC, EN 55032:2015 (CE mark); China GB9254-2008 (CCC); Taiwan CNS13438:2006 (BSMI); USA CFR47 Part 15, Subpart B (FCC); ICES-003:2020 Issue 7 (Canada); Australia C-tick (includes New Zealand); KN 22 and Korea KCC; EAC EMC Certificate; Ukraine EMC approval; EN 61000-3-2:2014 (harmonics); EN 61000-3-3:2013 (flicker); Immunity 55035:2017 |
| Safety | IEC62368-1:2018, IEC 60950-1:2005 +A1 and all applicable amendments; CSA/UL 60950-1, 2nd edition (2007); EN 60950-1:2006 +A11 +A1 +A12+A2; EAC safety; Canada cUL CoC; China CCC; European Union CE; Kenya PVOC; Kuwait TER; Nigeria SON; Saudi Arabia SASO; South Africa NRCS; Taiwan BSMI; Ukraine safety approval |
| Accessories | - HP ScanJet A Roller Unit (4T8E4A, 100000 pages) - HP ScanJet A Separation Unit (4T8E5A, 100000 pages) |
| Connectivity, standard | Ethernet 10/100/1000 Base-T, USB 3.0, WiFi 802.11 b/g/n, WiFi Direct |
| Digital sending optional features | Send to email; Send to network folder; Send to PC |
| Digital sending standard features | Send to email (Store up to 50 e-mails); Send to network folder; Send to PC |
| Business filter | cMPS |
| Component type | Printer |
| Printer black pages (MPV black) | 7020 |
| Non-Operating Humidity Range | 15 to 90% RH (non-condensing) |
| Operating humidity range | 15 to 80% RH (non-condensing) |
| Recommended operating humidity range | 30 to 70% RH |
| Operating temperature range | 10 to 35°C |
| Recommended operating temperature range | 17.5 to 25°C |
| Functions | Scan only |
| Country of origin | China(BBU, BGJ, AC8, B19, ABT, AKV, ACJ, ABG, , ACQ, BAZ, B13, ABY, AB2); Taiwan(201, 460) |
| Plus | Network connected, high-speed, Legal-size flatbed Scanner with HP EveryPage technology. |
| Differentiator (features) | High-volume, ultra-fast, professional scanning for the workteam. |
| Differentiator | Boost productivity for professional scanning tasks with the ultra-fast, reliable, network connected HP ScanJet Enterprise, designed for scanning up to 8,000 pages daily. Automate workflows with shortcuts and fast, two-sided scanning from the auto document feeder. |
| Why to buy | Boost productivity for professional scanning tasks with the ultra-fast, reliable, network connected HP ScanJet Enterprise, designed for scanning up to 8,000 pages daily. Automate workflows with shortcuts and fast, two-sided scanning from the auto document feeder. |
| Headline | Rest assured your scanner is up to the task for you and your workteam. Designed for high daily volumes and hassle-free operation to support up to 8,000 pages daily. HP EveryPage helps avoid misfeeds and simplifies your workflows. |
| Key selling point | Scan up to 100 images (50 pages) per minute with a 100-page, two-sided, single-pass auto document feeder.[1] |
| Image legal disclaimer | Product image may differ from actual product |
| Taxonomy | Scanners |
| Segment | Business |
| Usage | General office |
| Cartons per layer | 6 |
| Duty cycle (daily) | Recommended daily duty cycle: 8000 pages (ADF) |
| Overview | Boost productivity for professional scanning tasks with the fast, reliable, network connected HP ScanJet Enterprise, designed for scanning up-to 8,000 pages daily. Automate workflows with shortcuts and fast, two-sided scanning from the document feeder. |
| Company | HPI |
| Code name | Lime |
| Product long name | HP ScanJet Enterprise Flow N6600 fnw1 |
| Short product name | ScanJet N6600 fnw1 |
| RMN number | SEOLB-2100-11 |
| Tariff numbers | 8471608000 |
| Automatic document feeder capacity | Standard, 100 sheets |
| Bit depth | 24-bit (external), 48-bit (internal) |
| Image scaling or enlargement range | Will not perform any arbitrary scaling |
| Levels of grayscale | 256 |
Notes and footnotes
- Power requirements are based on the country or region where the product is sold. Do not convert operating voltages or use with other voltages. Doing so might cause damage that would not be covered under HP product warranty.
- [1] EPEAT® Silver registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
- [1] Scan speeds measured at 300 dpi (black and white, grayscale, and color). Actual processing speeds may vary depending on scan resolution, network conditions, computer performance, and application software.
- [2] Compared with products that use traditional fusing and cold cathode fluorescent lamp (CCFL) copying.
- [3]Wireless performance is dependent on physical environment and distance from access point, and may be limited during active VPN connections.
- [2] Scan speeds of up to 50 ppm measured at 300 dpi (color) from automatic document feeder when scanning to digital file. Actual speeds may vary depending on scan resolution, network conditions, computer performance and application software.
