SKU: 2QU12B

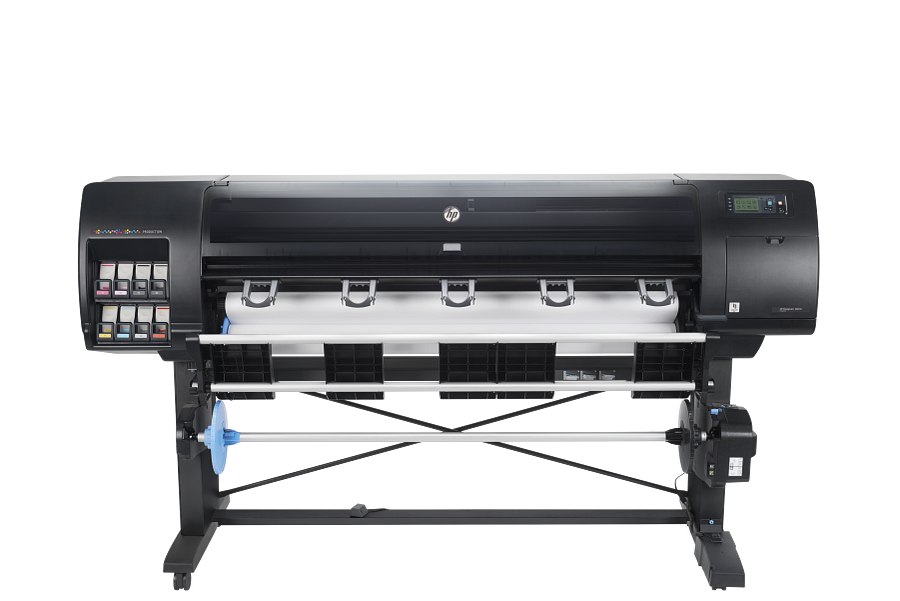

HP DesignJet Z6810 42-in Production Printer
- Print technology
- Ink
- Memory
- 64 GB file processing (based on 1 GB RAM)
Contact us for pricing
Key features
- Automatic horizontal cutter
- Stand
- USB
Technical specifications
Product
| UPC number | 192018992009 |
|---|---|
| Product type | Production Printers; Professional Photo-quality Printers |
| Subcategory | Large format |
| UNSPSC code | 43212104 |
Memory
| Memory | 64 GB file processing (based on 1 GB RAM) |
|---|
Storage
| Storage temperature range | -20 to 55ºC |
|---|---|
| Internal Storage | 500 GB |
Software
| Software included | Printer drivers, HP Click, HP DesignJet Utility including HP Color Center |
|---|
| Print technology | HP Thermal Inkjet |
|---|---|
| Acoustic power emissions (active, printing) | 7.0 B(A) (operating), 5.5 B(A) (idle), 5.5 B(A) (sleep) |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print speed | Fast-Economode: 1225 ft²/hr on plain media; Normal: 236 ft²/hr on coated media; Best: 118 ft²/hr on glossy media[1] |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Paper handling
| Media size maximum (mm) | 1067 |
|---|---|
| Media size maximum (in) | 42 |
| Media sizes standard (metric rolls) | 279 to 1067 mm |
Physical
| Color ink technology | Pigment |
|---|---|
| Print Cartridge/Bottle, Color(s) | Magenta, yellow, matte black, photo black, chromatic red, cyan or light cyan, light gray, light magenta |
| Dimensions (W x D x H) | 1970 x 690 x 1370 mm |
| Color accuracy | Median < 1.25 dE2000, 95% of colors < 2.75 dE2000[2] |
| Color Stability | < 1 dE2000 in less than 5 minutes[2] |
| Roll maximum weight | 40 lb |
| Finished output handling | Roll feed, automatic horizontal cutter, media bin, take-up reel (optional) |
| Media weight, recommended | 80 to 500 g/m² |
| Weight | 123 kg |
Package
| Package dimensions (W x D x H) | 2280 x 735 x 1200 mm |
|---|---|
| Package weight | 177 kg |
Sustainability
| Energy star certified | Yes |
|---|---|
| Environmental certification | ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Bronze |
| Sustainability Impact | ENERGY STAR®; EPEAT® |
| Print repeatability | Average < 0.5 dE2000, 95% of colors < 1.25 dE2000[2] |
Warranty and service
| Manufacturer Warranty | One-year limited hardware warranty |
|---|---|
| Supported Primary Applications | Exhibition and event graphics; Graphics design; Indoor posters; Layouts and comps; Light boxes - paper; Line drawings; Maps; Office Graphics; Orthophotos; Photo maps; Point of sale/display; POP/POS; Posters; Presentations; Renderings; Schematics; Technical presentations |
Other
| What's in the box | HP DesignJet Z6810 42-in Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, media bin, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power cord |
|---|---|
| Power consumption | 270 W (printing); < 48 W (ready); < 5.3 W (sleep); < 0.3 W (off) |
| Power | Input voltage (auto ranging): 100-127 V (±10%), 5 A; 220-240 V (±10%), 3 A; 50/60 Hz (±3 Hz) |
| Registration required | No |
| Cartridge volume | Greater than 300 ml |
| Ink types | Pigment-based |
| Number of cartridges | 8 |
| Print Cartridges/Bottle, Number | 8 (magenta, yellow, matte black, photo black, chromatic red, cyan or light cyan, light gray, light magenta) |
| Print cartridge/bottle volume | 775 ml |
| Print head nozzles | 2112 per color |
| Print heads | 8 (2x matte black/chromatic red, 2x magenta/yellow, 2x light magenta/cyan, 2x photo black/light gray) |
| Primary applications | Advertising posters, roll-ups, and banners; Photo and art; Design and illustrations; Indoor signage; Décor |
| Sub brand | DesignJet |
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP) |
| Safety | USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia (GOST); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); Korea (KC) |
| Accessories | CQ745B HP DesignJet PostScript/PDF Upgrade Kit;CQ752A HP DesignJet 42-in Take-up Reel;CQ753A HP DesignJet 42-in Spindle;G6H51B HP HD Pro 42-in Scanner;G6H50B HP SD Pro 44-in Scanner;J8025A HP Jetdirect 640n Print Server;L3J69AAE HP SmartStream Preflight Manager;L3J79AAE HP SmartStream Print Controller for HP DesignJet Z6xx0 Production Printers;L3J71AAE HP SmartStream Preflight Manager One-Year Subscription;Q6715A HP DesignJet User Maintenance Kit |
| Connectivity, optional | HP Jetdirect EIO print servers |
| Connectivity, standard | Gigabit Ethernet (1000Base-T); EIO Jetdirect accessory slot |
| Network ready | Standard |
| Security features | SNMPv3, Control Panel lock levels, Certificates management, IPsec, SSL, Secure file erase, Secure disk erase |
| Acoustic pressure emissions | 53 dB(A) (operating), 39 dB(A) (idle), 39 dB(A) (sleep) |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 5 to 40ºC |
| Country of origin | China |
| Why to buy | Meet customer expectations and increase your production volumes with the fastest high-quality production printing solution[1], designed to fit the way you work. |
| Headline | Help your customers stand out with high-quality output from impactful photos to canvas, backlits, POP, posters, maps, and line drawings. Avoid rework with consistent, accurate color across prints and printers, with the embedded spectrophotometer.[3] |
| Key selling point | Help your customers stand out from impactful photos to detailed maps/line drawings, with optimized printheads. |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | CE Marking; ENERGY STAR; EPEAT green; IPv6 Ready; i1 Color Technology; PANTONE Digital Color; Windows 10 Compatible |
| Monthly printed pages | Very frequently |
| Taxonomy | Large Format Printers/ Plotters |
| Segment | Business |
| Non-printable area (roll media) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Maximum optical density (black) | 4.5 L* min/2.31 D[2] |
| Functions | |
| Line accuracy | ±0.1% |
| Model size | 1067 mm |
| Guaranteed minimum line width | 0.0026 in (ISO/IEC 13660:2001(E)) |
| Printer drivers included | Raster driver for Windows; PostScript driver for Windows and macOS with optional PostScript/PDF Upgrade Kit |
| Optional printer languages | Adobe PostScript 3; Adobe PDF 1.7; TIFF; JPEG |
| Print languages | HP-GL/2, HP-RTL, CALS G4 |
| Theoretical minimum line width | 0.0008 in (HP-GL/2 addressable) |
| Maximum roll diameter | 6.7 in |
| Media thickness | Up to 22 mil |
| Printer Applications | Architecture; Engineering; Construction; Technical documents; Retail signage; Maps; Photographs; Presentation graphics |
| Recommended media | HP Everyday Matte Polypropylene;HP Artist Matte Canvas;HP Super Heavyweight Plus Matte Paper (FSC® certified)[3] (Recyclable)[4];HP Premium Instant-dry Satin Photo Paper (FSC® certified)[3] (Recyclable)[4];HP Premium Vivid Color Backlit Film |
| Roll maximum input | 1 |
| Roll size | Up to 42 in |
| Overview | Achieve impressive results to meet your customers' high-quality expectations. Accommodate production peaks and handle more jobs to increase your production volumes. Use your current RIPs[2] and enjoy new tools that help you simplify your workflow. |
| Company | HPI |
| Code name | Panther 1.5 |
| Product long name | HP DesignJet Z6810 42-in Production Printer |
| Short product name | Z6810 |
| Product classification flag | Standard HP Product |
| Media thickness maximum (metric) | Up to 0.6 mm |
| Media types | Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material |
| Tangible flag | Y |
| Material Type for item | FERT |
Notes and footnotes
- [1] Compared with large-format photo inks inkjet printers under $10,000 USD for graphics applications. Based on the fastest-rated color speeds as published by manufacturers as of June, 2017. Test methods vary.
- [2] For a list of HP certified RIPs, visit: https://h20195.www2.hp.com/v2/GetDocument.aspx?docname=c07798647
- [3] Embedded in the HP DesignJet Z6810 Production Printer is an i1 spectrophotometer from X-Rite. Close collaboration between HP and X-Rite ensures a reliable solution that’s been thoroughly tested to meet customer demands for ease, quality, and dependability.
- [1] Maximum rate of output for color image 100% color coverage. Printed on maximum roll size, with Original HP Vivid Photo Inks.
- [4] HP Professional PANTONE® color emulation and Adobe PostScript®/PDF upgrade kit sold separately.
- [5] Using glossy paper and Normal mode, HP DesignJet Z6810 42-in Production Printers can achieve print speeds up to 177 ft²/hour. Using coated paper and Normal mode, HP DesignJet Z6810 42-in Production Printers can achieve speeds up to 236 ft²/hour.
- [2] With HP Premium Instant-dry Satin Photo Paper with HP Vivid Photo Inks.
- [6] Once image is selected, one-click printing when printing the entire file without any modifications to the print settings. Applicable to PDF, JPEG, TIFF, and HP-GL/2 files.
- [3] BMG trademark license code FSC®-C115319, see http://www.fsc.org . HP trademark license code FSC®-C017543, see http://www.fsc.org . Not all FSC®-certified products are available in all regions.
- [4] Recyclable HP papers can be recycled through commonly available recycling programs, or according to region-specific practices, or can be returned through the HP Large Format Media take-back program. Recycling programs may not exist in your area. See http://www.HPLFMedia.com/hp/ecosolutions for details.
