SKU: 2Y9H1A

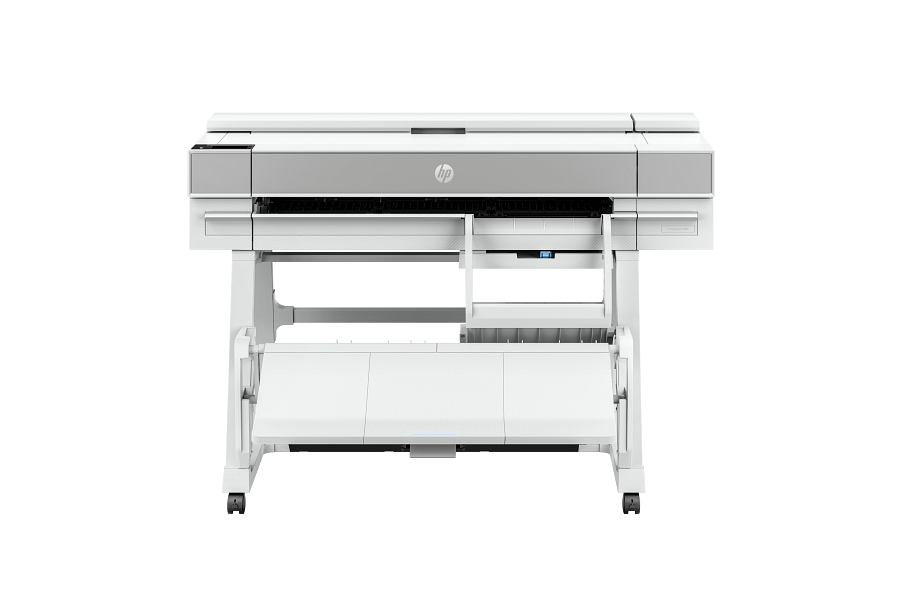

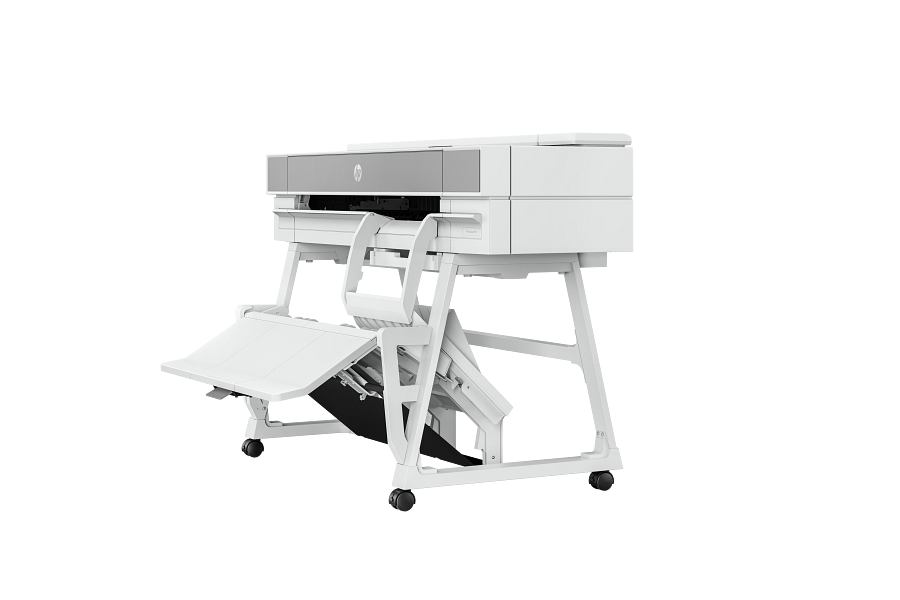

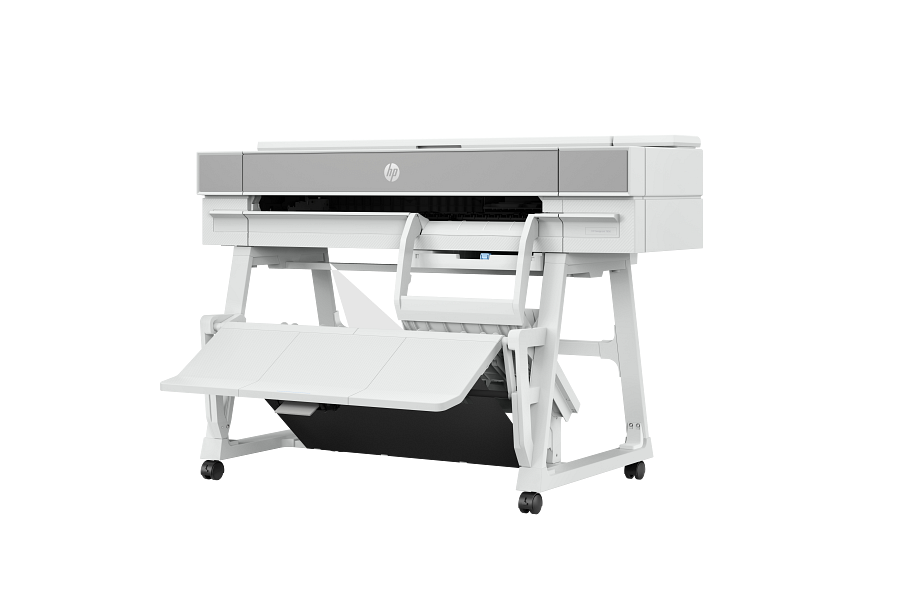

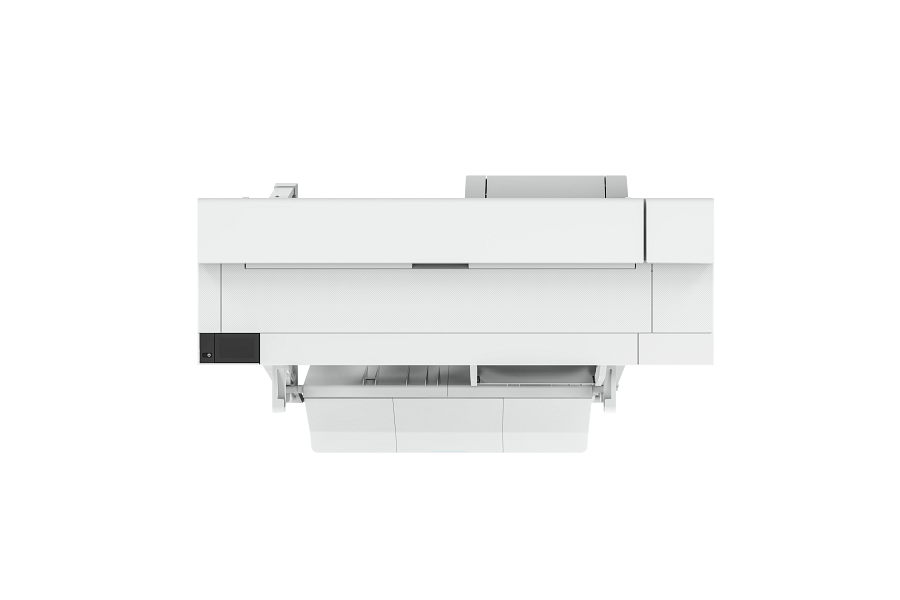

HP DesignJet T950 36-in Printer
- Print technology
- Ink
- Memory
- 1 GB
- Storage
- 2.7 GB reprint queue
Contact us for pricing
Key features
- Touchscreen
- Automatic document feeder
- Sheet input tray
- Automatic horizontal cutter
- Stand
- Wi-Fi
- USB
Technical specifications
Product
| UPC number | (AB1) 198701770640; (ABG) 196548313099; (AC4) 197498560588; (ACJ) 196548313105; (AKV) 197498560595; (B19) 196548313112; (B1K) 196548313129; (BCD) 196548313136; (EMU) 196548313143 |
|---|---|
| Product type | Office Printers for CAD and GIS |
| Subcategory | Large format |
| UNSPSC code | 43212104 |
Memory
| Memory | 1 GB |
|---|
Storage
| Storage temperature range | -13 to 131°F |
|---|---|
| Internal Storage | None |
| Additional storage | 2.7 GB reprint queue |
Display
| Product display name | HP DesignJet T950 Large Format 36-in Plotter Printer with Automatic A1/D and A3/B Printing in One Device, Compact Size |
|---|
Software
| Software included | HP Click App, HP Click Driver for Windows 11, HP app for Windows, macOS, Android, and iOS |
|---|
| Print technology | HP Thermal Inkjet |
|---|---|
| Acoustic power emissions (active, printing) | 5.8 B(A) (operating), |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print speed | 21 sec/page for D size, 120 D size 24" x 36" prints per hour[1] |
| Printing path | Wi-Fi Direct, remote printing, HP Click App, HP Click Driver for Windows 11, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Paper handling
| Media size maximum (mm) | 914 |
|---|---|
| Media size maximum (in) | 36 |
| Media sizes standard (metric rolls) | 369 to 914 mm |
| Media sizes standard (sheets, rolls) | 14.5 to 36 in |
| Media sizes, custom | Front-loading input tray: 210 x 279 to 305 x 457 mm; Manual feed: 210 x 279 to 914 x 1676 mm |
| Media sizes supported | Input tray: A4, A3; Manual feed: A4, A3, A2, A1, A0 |
Physical
| Color ink technology | Pigment |
|---|---|
| Print Cartridge/Bottle, Color(s) | Cyan, magenta, yellow, matte black |
| Dimensions (W x D x H) | 55.4 x 28.3 x 38.1 in |
| Color or black | Color |
| Roll maximum weight | 28.6 lb |

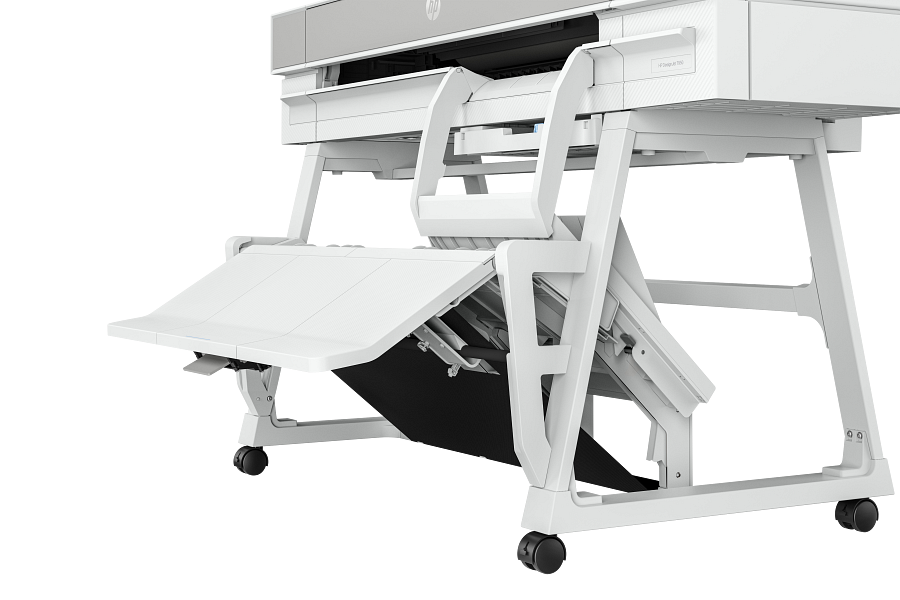

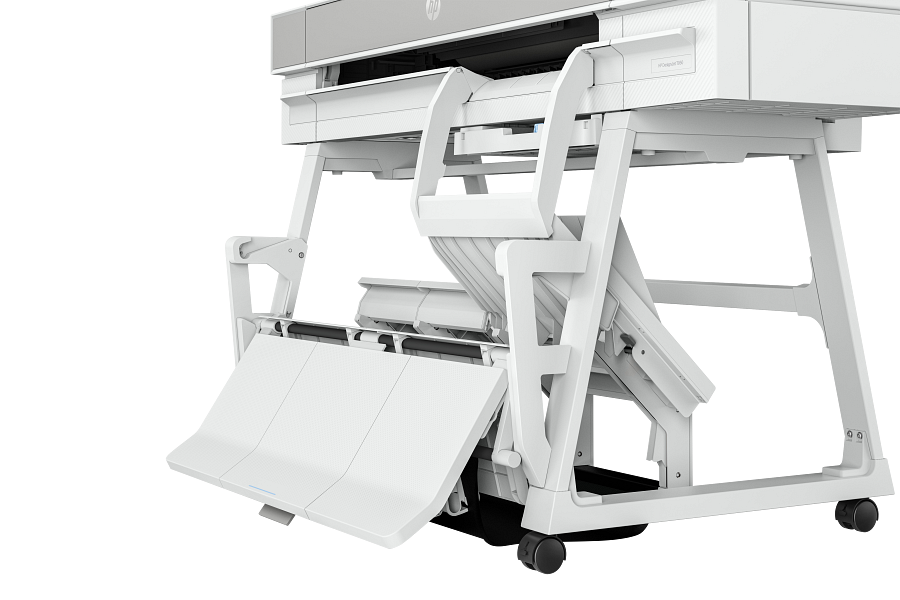

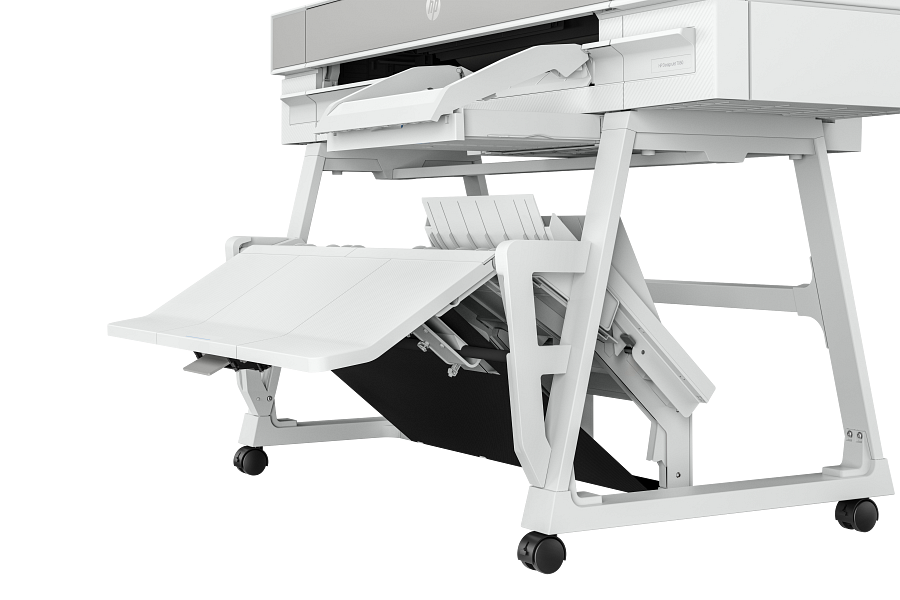

| Finished output handling | Sheet feed, roll feed, front-loading input tray (100 sheet capacity), sheet organizer (50 sheet capacity[4]), stacker (40 sheet capacity[4]), automatic horizontal cutter |
| Media weight, recommended | 60 to 280 g/m² (roll/manual feed); 64 to 220 g/m² (front-loading input tray) |
| Weight | 123.5 lb |
Package
| Package dimensions (W x D x H) | 62 x 24.8 x 30.7 in |
|---|---|
| Package weight | 185.3 lb |
Sustainability
| Energy star certified | Yes |
|---|---|
| Environmental certification | ENERGY STAR, EPEAT, UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements. |
| Sustainability Impact | ENERGY STAR®; EPEAT®; UL Ecologo |
| Energy Usage CO2e (kg) | 67 |
| End of Life CO2e (kg) | 21 |
| Post consumer recycled plastic in hardware by weight of plastic | 40% |
| Production CO2e (kg) | 360 |
| Total CO2e (kg) | 480 |
| Transportation CO2e (kg) | 32 |
Warranty and service
| Manufacturer Warranty | One-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. |
|---|---|
| Supported Primary Applications | Banners; Line drawings; Maps; Posters; Presentations; Renderings; Signage |
| Playbook BTF e-tail Supporting (medium) | Protect your printer and data from cyberthreats without any effort thanks to HP Wolf Pro Security. |
Other
| What's in the box | HP DesignJet T950 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
|---|---|
| Power consumption | 35 W (printing), |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
| Registration required | No |
| Cartridge volume | 130 ml; 300 ml |
| Ink drop | 6 pl (C, M, Y); 12.6 pl (mK) |
| Ink types | Pigment-based (C, M, Y, mK) |
| Number of cartridges | 4 |
| Print Cartridges/Bottle, Number | 4 (C, M, Y, mK) |
| Print cartridge/bottle volume | 300 ml, 130 ml |
| Print head nozzles | 1376 per color; 5504 in total |
| Print heads | 1 (C, M, Y, mK) |
| Primary applications | Office documents and presentations; Engineering and construction documents; Advertising posters, roll-ups, and banners; Design and illustrations; Maps |
| Sub brand | DesignJet |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| Safety | USA and Canada (CSA certified); EU (RED Directive, EN 62368-1 compliant); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS) |
| Orderable supplies | HP Original Ink: HP 738 cartridges (Black, Cyan, Magenta, Yellow), and HP 739 printhead |
| Connectivity | Apple AirPrint™; Ethernet networking; Wireless (Wi-Fi®); Wireless direct printing |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
| Network ready | Standard |
| Security features | HP Wolf Pro Security, HP Secure Boot, Allowlisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL, Semi-permanent-queue Erase, HP Web JetAdmin, HP Security Manager, SIEM Integration, FIPS 140-2 (in transit) |
| Acoustic pressure emissions | 42 dB(A) (operating), |
| Non-Operating Humidity Range | 0 to 95% RH |
| Operating altitude | Up to 9843 ft |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Functions | Print only |
| Country of origin | China |
| Why to buy | Take productive printing to the next level with the world’s most efficient A4/A-A0/E printing experience.[1] Print multiple sizes in one click.[4] HP Wolf Pro Security safeguards data, while the compact T950 cuts waste[5][6] and helps save energy.[7] |
| Headline | Save time with the most efficient A4/A-A0/E experience.[1] Seamlessly print A3 jobs with integrated input and output trays, keeping pages sorted by size. The flat 40-page stacker makes collection easy,[2] while fast print speeds keep projects moving. |
| Key selling point | Easily print A4 to A0-sized jobs with the integrated input tray—no manual switching between roll and sheet. Quickly pick up jobs from the output tray, with a stacker that holds up to 40 pages flat.[2] |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | AirPrint; CE marking; ENERGY STAR; EPEAT green; UL ECOLOGO; IPv6 Ready; Mac; Wi-Fi Certified; Windows 11 Compatible; HP Wolf Pro Security |
| Monthly printed pages | Often |
| Taxonomy | Large Format Printers/ Plotters |
| Segment | Business |
| Non-printable area (cut-sheet) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Maximum optical density (black) | 15 L* min/1.7 D[3] |
| Line accuracy | ±0.1%[2] |
| Model size | 914 mm |
| Printer drivers included | Raster driver for macOS and Windows, HP Click Driver for Windows 11, HP-GL/2 driver for Windows |
| Print languages | TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
| Theoretical minimum line width | 0.0008 in (via raster driver) |

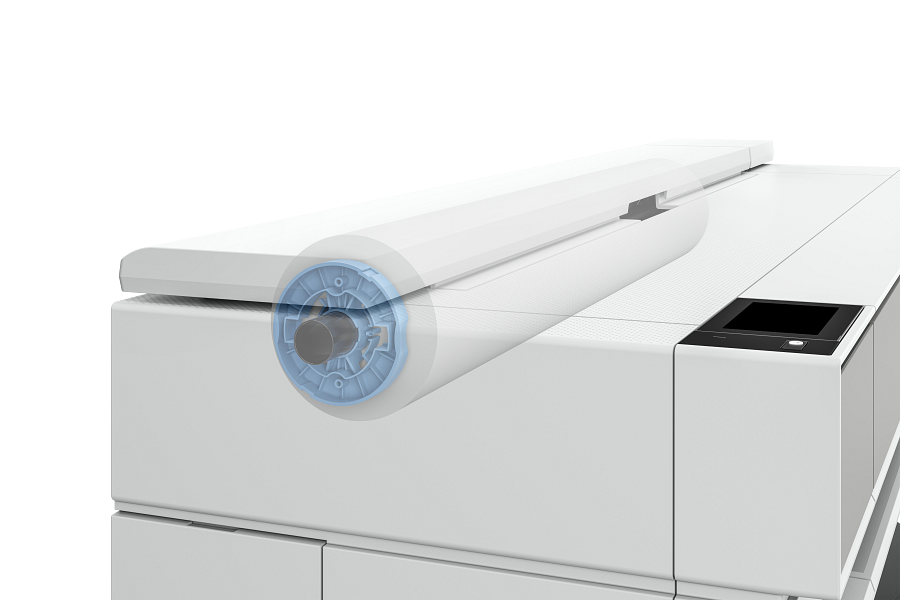

| Maximum roll diameter | 5.5 in |
| Media thickness | Up to 11.8 mil |
| Printer Applications | Architecture; Engineering; Maps |
| Recommended media | HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6]; HP Coated Paper (FSC® certified)[5] (recyclable)[6]; HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6]; HP Recycled[6] Removable Adhesive Fabric; HP Opaque Scrim Banner; HP Production Matte Canvas; HP Backlit Polyester Film; HP Universal Instant?dry Gloss Photo Paper(FSC® certified)[5]; HP Universal Instant?dry Satin Photo Paper (FSC® certified)[5]; HP Everyday Matte Polypropylene |
| Roll maximum input | 1 |
| Roll size | Up to 36 in |
| Product Disclaimer | Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges. |
| Dynamic security | Dynamic security enabled printer |
| Overview | Boost productivity with the world’s most efficient A4/A to A0/E experience.[1] Print multi-size CAD, posters, and more with the integrated input/output tray. Save time with HP Click.[4] And meet environmental needs with this compact plotter. |
| Company | HPI |
| Code name | Beam Power SF |
| Product long name | HP DesignJet T950 36-in Printer |
| Short product name | T950 |
| Product classification flag | Standard HP Product |
| Media thickness maximum (metric) | Up to 0.3 mm |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte, backlit), photographic paper (ID satin, ID gloss), self-adhesive (matte/gloss, polypropylene gloss, removable fabric), banner (polypropylene matte, PVC banner), fine art material (canvas) |
| Technical features | A3 input tray;Stacker;A3 sheet organizer;Auto-power on/off scheduler;Max. resolution 2400 x 2400 dpi;HP Wolf Pro Security;130/300 ml cartridges;HP Flex Tech Inks |
| Tangible flag | Y |
| Ideal for | AEC firms, the education market, and retailers looking for a 36-inch printer that's secure, easy to use, and prints everything from high-quality CAD drawings and renders to educational posters and durable retail signage. |
| Playbook e-tail Gallery header | Printer includes at least 35% recycled plastics[4] |
| Playbook BTF e-tail Header | Reduce energy and ink waste |
| Material Type for item | FERT |
Notes and footnotes
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [1] Based on test results using HP Click with the HP DesignJet T850. This solution enables printing in fewer steps compared to main competitor printing solutions. Printing a 5-page mixed job set with A1 and A3 takes 3 steps using HP Click vs. 12 steps with competitor A and 8 steps with competitor B. Testing performed by Sogeti, April 2023. Detailed test report is available upon request.
- [2] Based on test results using A1/D size, plain paper, and standard configuration. Stacking capacity is subject to paper type, printed file, and ambient conditions.
- [3] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP Inks.
- [1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.
- [4] HP Click App is compatible with Windows and Mac. HP Click Driver is compatible with Windows 11 only. HP Click software is only compatible with Original HP ink supplies. Applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files.
- [5] The percentage reductions in energy consumption are based on tests conducted by HP, 2024. Data based on the implementation of auto-scheduled on/off usage in various printer models, measured on a monthly basis. Actual savings may vary depending on the specific usage patterns, printer models, and environmental conditions.
- [2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.
- [6] Declared %RCP content is based on the quantity and weight of parts made with RCP resin over the total plastic parts.
- [3] With HP Universal Instant Dry Photo Gloss media with Original HP inks.
- [7] Program availability varies. See https://www.hp.com/go/recycle .
- [4] Based on test results using 80 g/m² plain paper and standard configuration. Capacity is subject to paper type, printed file, and ambient conditions.
- [5] BMG trademark license code FSC®-C115319, see http://www.fsc.org . HP trademark license code FSC®-C017543, see http://www.fsc.org
- [6] Can be recycled through commonly available recycling programs.
