SKU: 2Z634A

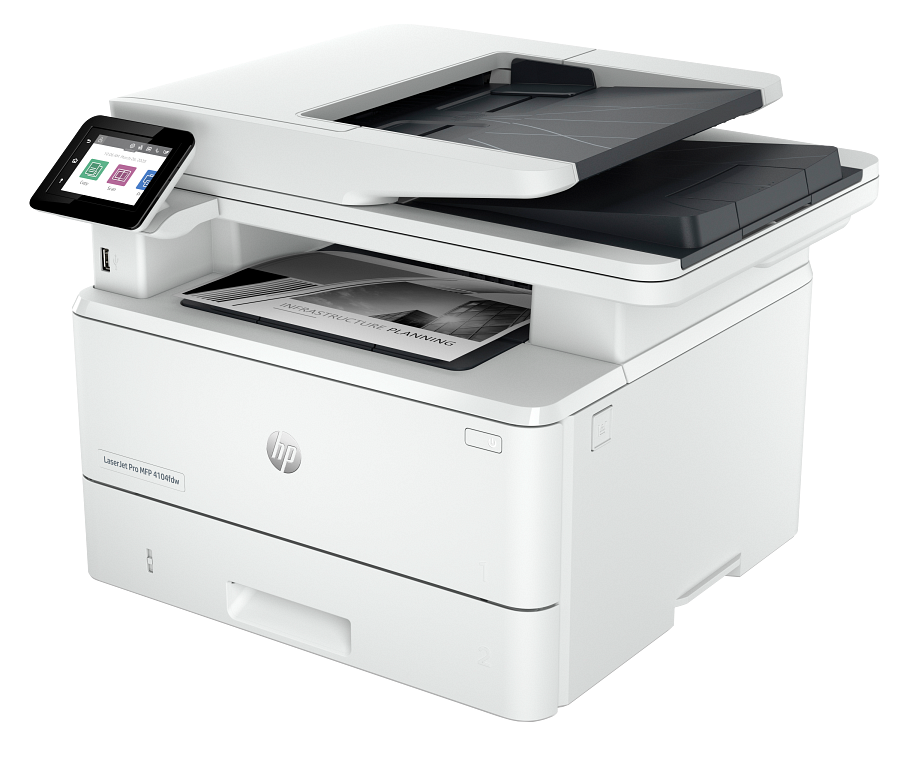

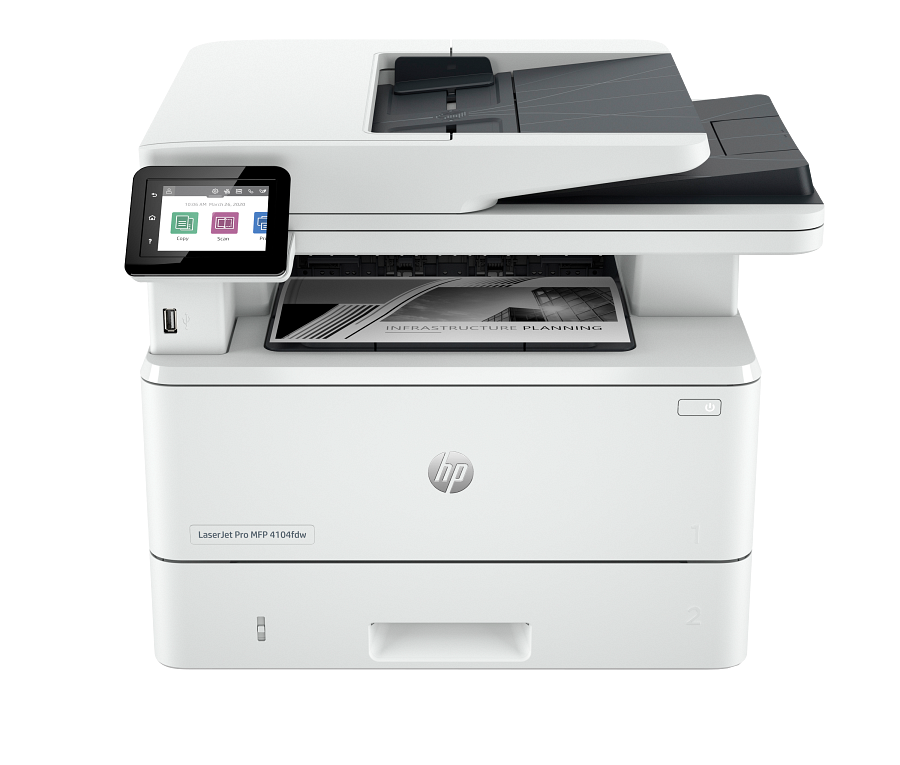

HP LaserJet Pro MFP 4104fdw Printer
- Print technology
- Laser
- Display
- 2.7" (6.86 cm) intuitive color touchscreen (CGD)
Contact us for pricing
Key features
- Wireless
- Automatic document feeder
- Print from phone or tablet
- Two-sided printing
- Two-sided scanning
- Scan to email
- Scan to PDF
- Fax
- Front USB flash drive port
- Optional high-capacity trays
- Touchscreen
- JetIntelligence cartridge
Technical specifications
Product
| UPC number | (460) 196548904730; (AB2) 195161936678; (ACJ) 195161936685 |
|---|---|
| Product type | Laser printers |
| Subcategory | Single and multifunction printers |
Memory
| Fax memory | Up to 400 pages |
|---|
Storage
| Storage temperature range | -20 to 40°C |
|---|
Display
| Display | 2.7" (6.86 cm) intuitive color touchscreen (CGD) |
|---|---|
| Display area (metric) | 5.4 x 4.05 cm |
| Fax Resolution Black (best) | Up to 300 x 300 dpi |
| Resolution (black photo grayscale) | 300 x 300 dpi (halftone) |
| Fax resolution black | Up to 203 x 196 dpi |
| Resolution (black and white, standard mode) | 203 x 98 dpi |
Battery and power
| Power supply type | Internal (Built-in) power supply |
|---|
Software
| Compatible Operating Systems | Windows 11; Windows 10; Windows Client OS; Android; iOS; Mobile OS; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; macOS 13 Ventura; macOS 15 Sequoia; Chrome OS |
|---|---|
| Fax smart software features | Auto fax reduction; Auto redialing; Delayed sending; Fax forwarding; TAM interface; Junk barrier; Distinctive ring detection; Cover page; Block fax; Billing codes; Save and load; Fax activity reports; Dial prefix setting; Print fax log; HP Digital Fax |
| Printer smart software features | Auto duplex and booklet printing, N-up printing, collation, watermarks, install printer driver only, Economode for toner savings, accepts a variety of paper sizes and types |
| Print Technology | Laser |
|---|---|
| Mobile printing capability | Apple AirPrint™; Mopria™ certified; HP app; Wi-Fi® Direct Printing |
| Acoustic power emissions (active, printing) | 6.7 B(A) |
| Acoustic pressure emissions bystander (active, printing) | 54 dB(A) |
Copy and scan
| Scanner advanced features | Single-pass 2-sided scanning ADF, Scan to cloud (Google Drive and DropBox) Scan to email with LDAP email address lookup, Scan to network folder, Scan to USB, Scan to Microsoft SharePoint®, Scan to computer with software, Fax archive to network folder, Fax archive to email, Fax to computer, Enable/disable fax, Quick Sets |
|---|---|
| Copy reduce / enlarge settings | 25 to 400% |
| Copy resolution (black text) | Up to 600 x 600 dpi |
| Copy speed black duplex (A4) | Up to 34 cpm |
| Copy speed black duplex (Letter) | Up to 36 cpm |
| Copy speed (black, normal quality, A4) | Up to 40 cpm |
| Copy speed black (normal, letter) | Up to 42 cpm |
| First copy out black (A4) | As fast as 7.2 sec |
| First copy out black (A4, sleep) | As fast as 9.5 sec |
| First copy out black (letter, sleep) | As fast as 9.1 sec |
| First copy out black (letter) | As fast as 6.8 sec |
| Acoustic power emissions (active scan) | 6.2 B(A) |
| Acoustic pressure emissions bystander (active scan) | 48 dB(A) |
Physical
| Dimensions (W x D x H) Note | without trays and covers not extended |
|---|---|
| Maximum dimensions (W x D x H) | 16.93 x 25 x 12.8 in |
| Dimensions (W x D x H) | 16.54 x 15.35 x 12.72 in |
Package
| Package dimensions (W x D x H) | 19.6 x 15.7 x 19.3 in |
|---|---|
| Pallet dimensions | AMS: 47.2 x 39.4 x 102.4 in, EMEA/APJ: 47.2 x 39.4 x 83.1 in |
| Pallet dimensions (W x D x H) | AMS: 1200 x 1000 x 2601 mm, EMEA/APJ: 1200 x 1000 x 2111 mm |
Sustainability
| Ecolabels | CECP; SEPA; IT ECO Declaration |
|---|---|
| Sustainability specifications | Recyclable through HP Planet Partners; Contains post-consumer recycled plastic |
| Energy Usage CO2e (kg) | 53 |
| End of Life CO2e (kg) | 16 |
| Production CO2e (kg) | 91 |
| Total CO2e (kg) | 165 |
| Transportation CO2e (kg) | 5 |
Warranty and service
| Manufacturer Warranty | One-year, onsite repair. Warranty and support options vary by product, country and local legal requirements. Contact your Contractual Vendor or go to hp.com/support to learn about HP award winning service and support options in your region. |
|---|---|
| Network protocols, supported | TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Apple AirPrint™, Mopria, IPP Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6), SSL Security and Certificate management; Management: SNMPv1, SNMPv2, SNMPv3, HTTP/HTTPS, Syslog, FTP FW Download |
| Auto fax reduction supported | Yes |
Other
| Connection type | Wireless |
|---|---|
| Security | HP Security Manager; Optional Smart Security; HP Secure Print and Insights |
| Minimum System Requirements | 2 GB available hard disk space; Internet connection or USB port; Internet browser. For additional OS hardware requirements see microsoft.com; |
| What's in the box | Preinstalled HP Black Original LaserJet Toner Cartridge; Getting Started Guide; Support Flyer; Warranty Guide; Regulatory Flyer; Power cord; USB cable (AP & Wireless Only) |
| Energy savings feature technology | HP Auto-On/Auto-Off Technology; Instant-on Technology; EcoSmart black toner |
| Power consumption | 510 watts (active printing), 7.5 watts (ready), 0.9 watts (sleep), 0.9 watts (Auto Off/Wake on LAN, enabled at shipment), 0.06 watts (Auto-off/Manual-on), 0.06 (Manual Off) |
| Power | 110-volt input voltage: 110 to 127 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz); 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz) (Not dual voltage, product varies by part number with # Option code identifier) |
| Cable included | Yes, 1 USB; 1 USB PC to Printer (AP and Wireless); No, please purchase USB cable separately (EMEA, NA) |
| Registration required | No |
| Page yield (set-up/inbox cartridges) | ~3,050 black pages |
| Print Cartridges/Bottle, Number | 1 (black) |
| Replacement cartridges | HP 152A Black Original LaserJet Toner Cartridge (~3,050 pages), W1520A; HP 152X Black Original LaserJet Toner Cartridge (~9,700 pages), W1520X |
| Segment (filter) | Small medium business |
| Supplies feature | HP JetIntelligence Cartridge |
| Brand | HP |
| Sub brand | LaserJet Pro |
| Blue Angel compliant | No, please refer to the ECI (Ecolabel Comparison Information) document |
| Certifications and compliances | RCM (Australia), TUV and GS Mark (Germany), BSMI (Taiwan), CCC (China), BIS (India), KC (South Korea), SIRIM (Malaysia), Cambodia, Ukraine, EAC, Eastern European approvals, CE Marking, FCC, UL, Paraguay, Chile, Argentina, Indonesia, Singapore, Philippines, etc. |
| Electromagnetic compatibility | CISPR 32:2015 Class B / EN 55032:2015 Class B; CISPR 35:2016 / EN 55035:2017 Class B; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 61000-4-12:2016; FCC CFR 47 Part 15 Class B; ICES-003, Issue 7 Class B |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013; IEC 62368-1:2014 / EN 62368-1:2014; IEC 60825-1:2014 / EN 60825-1:2014; IEC 62479:2010 / EN 62479:2010 |
| Telecom compliance (fax capability) | ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4 |
| Connectivity | Apple AirPrint™; Ethernet networking; Mopria™; USB; Wireless (Wi-Fi®); Wireless direct printing |
| Number of users | 3-10 Users |
| Connectivity, standard | 1 Front USB port; 1 Gigabit Ethernet 10/100/1000 Base-T network; 1 Hi-Speed USB 2.0 (host); 1 Wi-Fi 802.3az; 802.11b/g/n (2.4 GHz) Wi-Fi radio |
| Modem | 33.6 kbps |
| Network capabilities | Yes, via built-in 10/100Base-TX Ethernet, Gigabit; Auto-crossover Ethernet; Authentication via 802.1X |
| Copier settings | ID Copy; Number of copies; Resize (including 2-Up); Lighter/Darker; Enhancements; Original Size; Binding Margin; Collation; Tray Selection; Two-Sided; Quality (Draft/Normal/Best); Save Current Settings; Restore Factory Defaults |
| Copies, maximum | Up to 9999 copies |
| Maximum metric depth | 635 mm |
| Maximum metric height | 325 mm |
| Maximum metric width | 430 mm |
| Metric depth | 390 mm |
| Metric height | 323 mm |
| Metric width | 420 mm |
| Acoustic power emissions (ready) | Inaudible |
| Operating humidity range | 10 to 80% RH (non-condensing) |
| Recommended operating humidity range | 30 to 70% RH |
| Operating temperature range | 10 to 32.5°C |
| Recommended operating temperature range | 59 to 80.6°F |
| Fax Broadcast Locations | 0 |
| Fax Speed Dials, Maximum Number | Up to 200 numbers |
| Junk fax barrier | Yes, CSID matching only (Caller ID not supported) |
| Fax Remote Retrieval | Yes (receive only) |
| Fax transmission speed (letter) | 6 sec per page |
| Fax Transmission Speed | 33.6 kbps (maximum); 14.4 kbps (default) |
| Functions | Print scan copy and fax |
Notes and footnotes
- [1] Job Storage feature requires a purchase of separate USB flash drive with a minimum of 16 GB capacity.
- Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
- [2] For yield information on the cartridge included with your printer, see http://www.hp.com/go/toneryield. Yield values measured in accordance with ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors.
- [4] Declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/toneryield
- [5] EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
- First Copy Out from Ready and Simplex Copy Speed measured using ISO/IEC 29183, Duplex Copy Speed measured using ISO/IEC 24735, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application and document complexity.
- Configuration tested: base model, simplex printing, A4 paper at an average of 40 ppm
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- Based on standard ITU-T test image #1 at standard resolution. More complicated pages or higher resolution will take longer and use more memory.
- [1] Measured using ISO/IEC 24734 and excludes first set of test documents. For more information, see hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [2] Requires HP app download available at www.hp.com/go/mobileprinting. Certain features are available in English language only, and may vary by printer model/country, and between desktop/mobile applications. HP reserves the right to introduce charges for use of functionality facilitated by the HP app. Internet access required and may not be available in all countries. HP account required for full functionality. Fax capabilities are for sending a fax only. List of supported operating systems available in app stores. See details at www.hpsmart.com.
- [4] HP Web Jetadmin is available for download at no additional charge at hp.com/go/webjetadmin.
- [5] HP calculations based on ENERGY STAR® normalized TEC data comparing HP LaserJet 200-500 series printers at launch. See hp.com/ecosmart
- [2] For yield information on the cartridge included with your printer, see http://www.hp.com/go/toneryield . Yield values measured in accordance with ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors.
- [6] HP Auto-On/Auto-Off Technology capabilities subject to printer and settings; may require a firmware upgrade.
- [7] Recycling: Program availability varies. Original HP cartridge return and recycling is currently available in more than 60 countries, territories and regions in Asia, Africa, Europe, and North and South America through the HP Planet Partners program. For details, see hp.com/recycle.
- [8] Internet access required and must be purchased separately. Wireless operations are compatible with 2.4 GHz and 5.0 GHz operations only. Supports both 5.0 GHz and 2.4 GHz using up to 12 non-overlapping channels vs. only 3 non-overlapping channels for 2.4 GHz only. Supports 5.0 GHz band (up to 150 mbps) v. 2.4 GHz band (up to 72.2 mbps). Learn more at: www.hp.com/go/mobileprinting
- [9] HP JetAdvantage Security Manager must be purchased separately. To learn more, please visit hp.com/go/securitymanager.
- [6] Measured using ISO/IEC 24734 Feature Performance Test, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims . Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [7] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [8] Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims . Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [9] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115V device and 230V for Blue Angel.
