SKU: 3GY12A

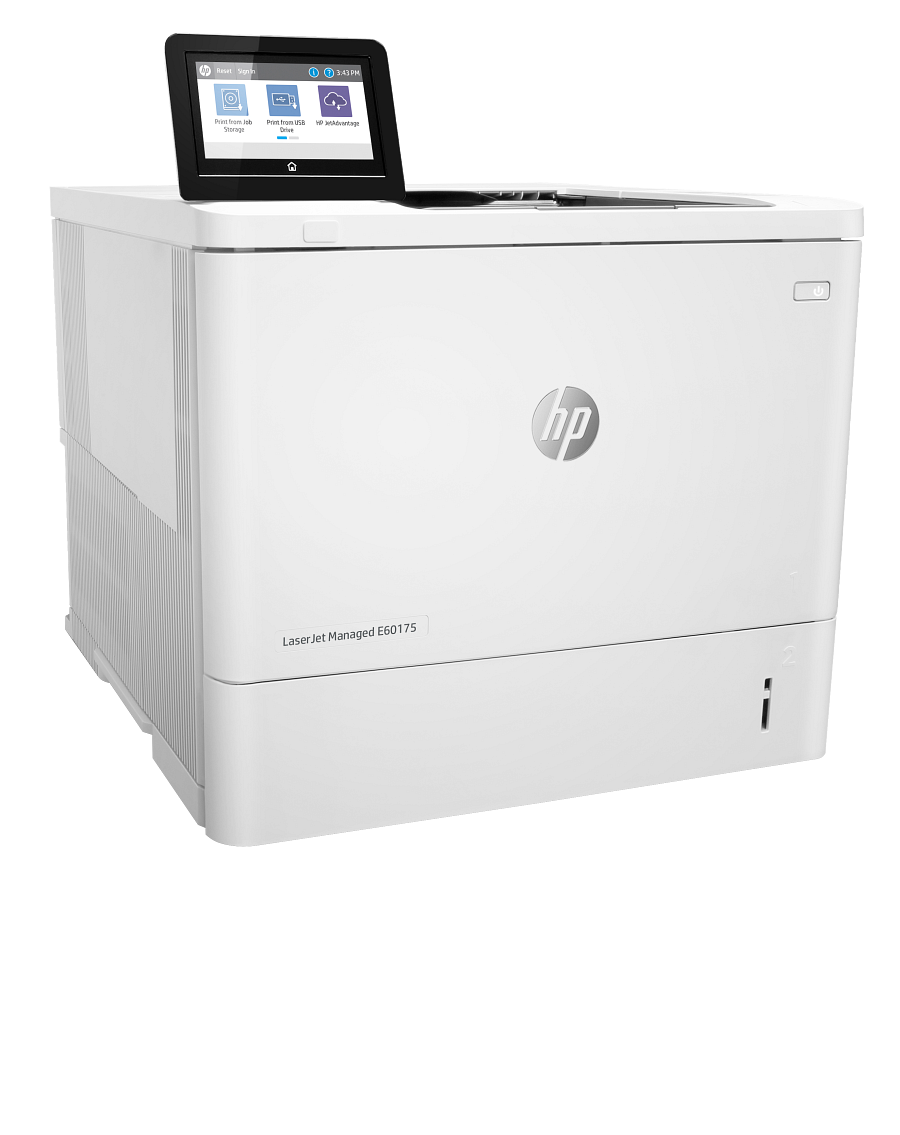

HP LaserJet Managed E60175dn
- Print technology
- Laser
- Display

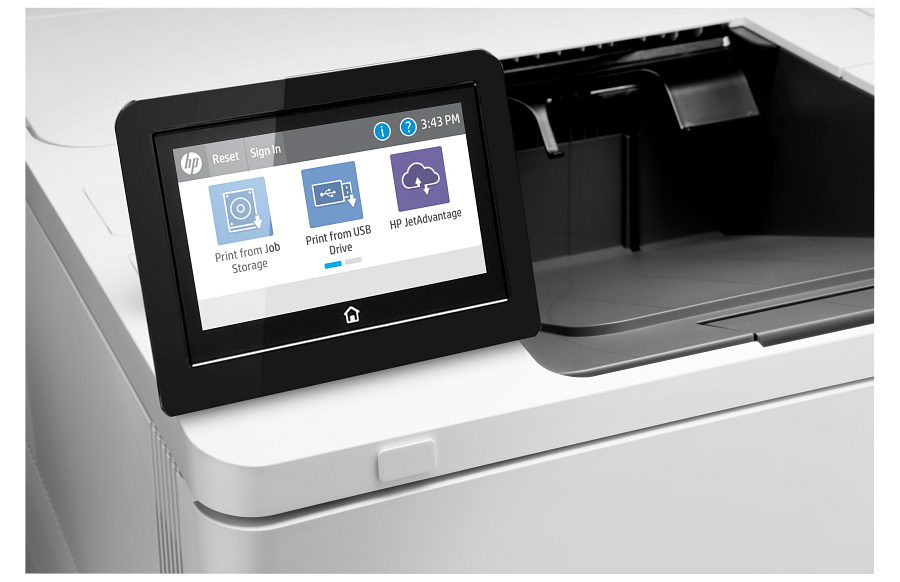

- (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; Home button
- Memory
- 512 MB
Contact us for pricing
Key features
- Front USB flash drive port
- Two-sided printing
- Consumable Access Control
- Locking paper tray guides
- Data logger & Print Engine Failure Sensor
- LLC Life Optimization
- HP Sure Start
- Run-time Intrusion detection
- Whitelisting
- HP Web Jetadmin
- Expand the capabilities of your printer
- Eliminate the wait from your workday
Technical specifications
Product
| UPC number | (460) 198990781143; (AB0) 193015270084; (AB2) 193015270091; (ABJ) 193015270107; (ABT) 193015270268; (ABY) 193015270275; (AC4) 193015811935; (AC8) 193015811942; (ACJ) 193015270114; (ACQ) 193015270282; (AKV) 193015811959; (B13) 193015270299; (B19) 193015270305; (BAZ) 193015270312; (BBU) 193015270121; (BGJ) 193015270343; (BGM) 193015270138 |
|---|---|
| Product type | Laser printers |
| Subcategory | Single and multifunction printers |
Memory
| Maximum Memory | 1.5 GB MAX memory, when Accessory DIMM is installed |
|---|---|
| Memory Slots | 1 slot, 90-pin |
| Memory upgrade | Expandable to 1.5 GB through one 90-pin DDR3 DIMM |
| Memory | 512 MB |
Storage
| Storage temperature range | -20 to 40°C |
|---|
Display
| Display | (10.92 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; Home button |
|---|---|
| Display area (metric) | 95.04 (W) x 53.856 (H) mm |
Wireless
| Wireless capability | Optional, enabled with purchase of a wireless hardware accessory. Single band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3000w NFC/Wireless Accessory J8030A, Dual band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A, Dual band Wireless Station functionality available with HP Jetdirect 2900nw Print Server J8031A |
|---|
Battery and power
| Power supply type | Built-in 115V or 220V Power Supply |
|---|
Software
| Compatible Operating Systems | Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple® macOS Sierra v10.12, Apple® macOS High Sierra v10.13, Apple® macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd |
|---|---|
| Printer smart software features | Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB |
| Print Technology | Laser |
|---|---|
| Mobile printing capability | HP ePrint; Apple AirPrint™; Google Cloud Print™; Mopria™ Certified |
| Acoustic power emissions (active, printing) | 7.2 B(A) |
| Acoustic pressure emissions bystander (active, printing) | 57 dB(A) |
| Print speed, black | 71 |
| Print quality black (best) | Up to 1200 x 1200 dpi |
| Print quality black (normal) | FastRes 1200 |
| Print Resolution Technologies | FastRes 1200; 1200 x 1200 dpi |
| Print speed | Print speed up to 75 ppm (black) |
| Print speed duplex (A4) | Up to 58 ipm |
| Print speed duplex (letter) | Up to 62 ipm |
| Print speed black (Landscape, A5) | Up to 115 ppm |
| Print speed black (ISO, letter) | Up to 75 ppm |
| Print speed black (ISO, A4) | Up to 71 ppm |
| Print speed black (Portrait, A5) | Up to 6 ppm |
| Duplex printing | Automatic (standard) |
Copy and scan
| Copyright notice | © Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Paper handling
| Paper size | Letter; A4; Legal; B5 |
|---|
Physical
| Maximum dimensions (W x D x H) | 17 x 40.9 x 17.8 in |
|---|---|
| Dimensions (W x D x H) | 431 x 466 x 380 mm |
| Color or black | Black and white |
Package
| Package dimensions (W x D x H) | 23.5 x 19.6 x 21.2 in |
|---|---|
| Pallet dimensions | 47.2 x 39.4 x 90.1 in (AMS/EMEA); 47.2 x 39.4 x 68.9 in (APJ) |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2288 mm (AMS/EMEA); 1200 x 1000 x 1749 mm (APJ) |
| Count of layers in pallet | 4 (AMS/EMEA); 3 (APJ) |
| Quantity per pallet | 16 (AMS/EMEA); 12 (APJ) |
Sustainability
| Ecolabels | CECP; EPEAT® Silver registered; ENERGY STAR® certified |
|---|---|
| Energy star certified | Yes |
| Sustainability specifications | Mercury free |
| Consumables CO2e (kg) | 40 |
| Energy Usage CO2e (kg) | 287 |
| End of Life CO2e (kg) | 16 |
| Production CO2e (kg) | 155 |
| Total CO2e (kg) | 510 |
| Transportation CO2e (kg) | 12 |
Warranty and service
| Manufacturer Warranty | One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4G) |
|---|---|
| Network protocols, supported | Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; DISCOVERY: SLP, Bonjour, Web Services Discovery; IP CONFIG: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Stateful via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, FTP FW Download, Syslog; Security: SNMPv3, SSL Cert Management, Firewall, ACL, 802.1x |
Other
| Minimum System Requirements | 2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com |
|---|---|
| What's in the box | HP LaserJet Managed E60175dn Printer; HP Original LaserJet Toner Cartridge (~11,000 pages); Documentation (Hardware Install Guide); Power cord; Fixed-Size Cassette Guides |
| Power consumption | 780 watts (printing), 15.3 watts (ready), 3.1 watts (sleep), < 0.1 watts (Auto Off/Manual On), < 0.1 watts (Manual Off) |
| Power | Input voltage: 100 V to 127 V nominal (+/-10%), 50 - 60 Hz nominal (+/- 3 Hz), 12 A; Input voltage: 220 V to 240 V nominal (+/-10%), 50 - 60 Hz nominal (+/- ), 6 A. Not dual voltage, power supply varies by part number with # Option code identifier. |
| Cable included | No, please purchase (USB) cable separately |
| Registration required | No |
| Print Cartridges/Bottle, Number | 1 (black) |
| Replacement cartridges | HP Black Managed LaserJet Toner (50,000 yield) W9004MC. This printer uses newer generation HP cartridges identifiable by a “P” at the end of the cartridge lot number. More at www.hp.com/go/learnaboutsupplies |
| Segment (filter) | Business |
| Supplies feature | HP JetIntelligence Cartridge |
| Brand | HP |
| Sub brand | LaserJet |
| Electromagnetic compatibility | CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, EMC Directive 2014/30/EU, FCC CFR 47 Part 15 Class A/ICES-003, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| FCC Class A emissions | FCC Class A emissions - for use in commercial environments, not residential environments |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2014/IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries. |
| Accessories | HP LaserJet 550-Sheet Paper feeder LOH17A, HP LaserJet 2100-Sheet Paper feeder LOH18A, HP LaserJet Printer Stand LOH19A, HP LaserJet Stapler/Stacker/ Mailbox LOH20A, HP Envelope Feeder LOH21A, HP Extension Tray Cover L0H22A, HP Internal USB Ports B5L28A, HP Secure High Performance Hard Disk Drive B5L29A, HP Jetdirect 2900nw Print Server J8031A, HP 1 GB 90-Pin DDR3 DIMM G6W84A, Accessibility Assistant 2MU47A, HP Jetdirect 3000w NFC/Wireless Accessory J8030A, HP JetDirect 3100w BLE/NFC/Wireless Accessory 3JN69A, HP Removable Hard Drive Enclosure 2NR12A, HP USB Universal Card Reader X3D03A, HP HIP2 Keystroke Reader Y7C05A, HP Logic Reader 4QL32A |
| Orderable supplies | HP Staple Cartridge Refill J8J96A, HP LaserJet 110 v Maintenance Kit L0H24A, HP LaserJet 220 v Maintenance Kit L0H25A |
| Connectivity | USB; Ethernet networking; Wireless optional (with accessory) |
| Number of users | 10-30 Users |
| Connectivity, optional | HP Jetdirect 2900nw Print Server J8031A; HP Jetdirect 3000w NFC/Wireless Accessory J8030A; HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A |

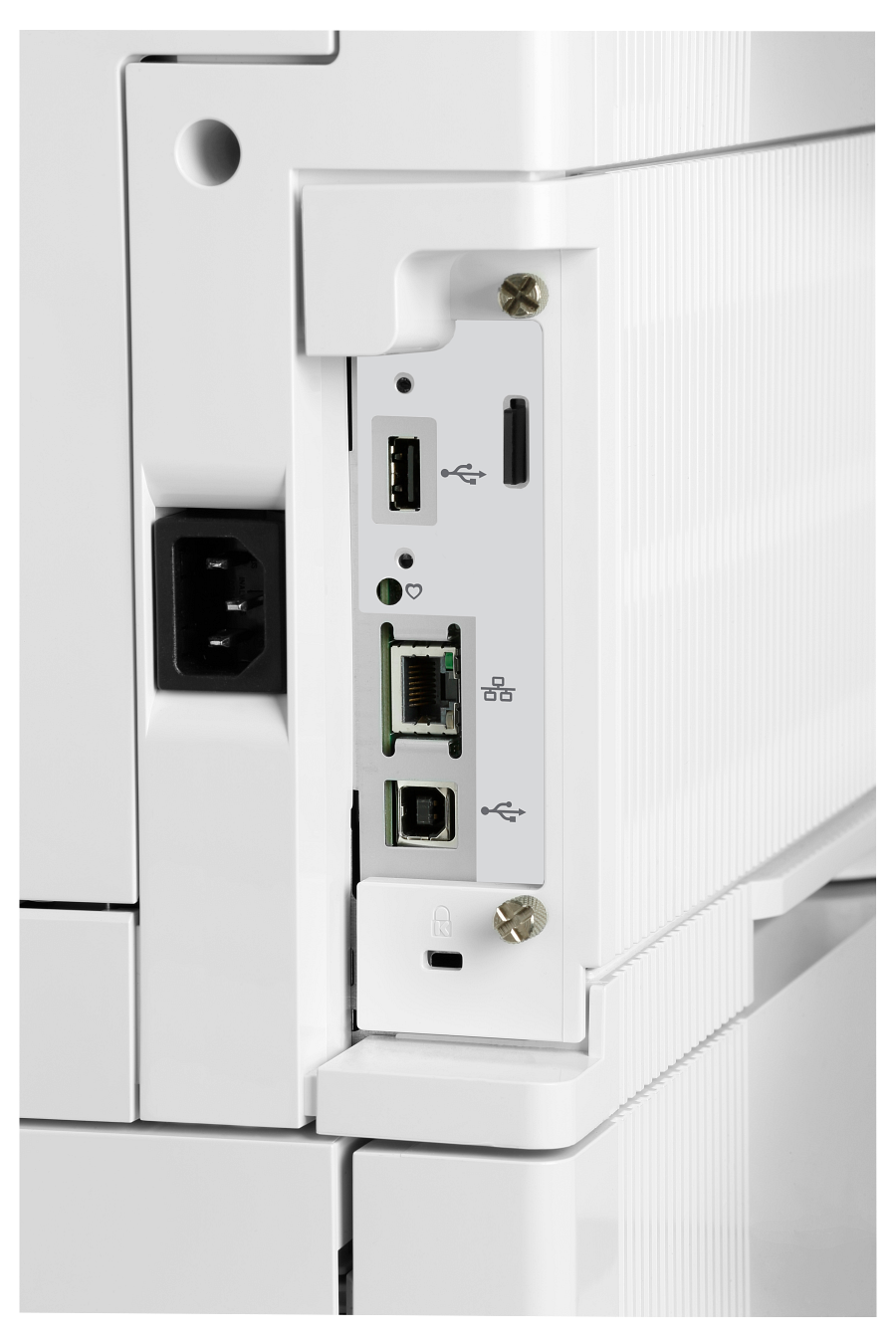

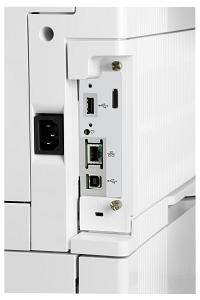

| Connectivity, standard | 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet; 1 Hardware Integration Pocket |
| Network capabilities | Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); 802.11a/b/g/n wireless networking (optional); Microsoft Universal Print (MUP) support |
| Plug and play | HP Smart Install |
| Maximum metric depth | 1040 |
| Maximum metric height | 453 |
| Maximum metric width | 431 |
| Metric depth | 466 |
| Metric height | 380 |
| Business filter | cMPS |
| Component type | Printer |
| Printer black pages (MPV black) | 6200 |
| Acoustic power emissions (ready) | 3.5 B(A) |
| Acoustic pressure emissions bystander (ready) | Inaudible |
| Operating humidity range | 10 to 80% RH |
| Recommended operating humidity range | 30 to 70% RH |
| Operating temperature range | 15 to 30°C |
| Recommended operating temperature range | 17.5 to 25°C |
| Functions | Print only |
| Country of origin | Product of China, Assembled in Mexico (#AKV); Made in China (other options) |
| Datasheet publication number | 4AA7-4194EEP |
| Web address for additional information | Solutions: http://www.hp.com/go/gsc; Fonts and IPDS Emulation: http://www.hp.com/go/laserjetfonts; HP Web Jetadmin: http://www.hp.com/go/wja; HP Universal Print Driver: http://www.hp.com/go/upd; HP JetAdvantage Security Manager: http://www.hp.com/go/securitymanager; HP JetAdvantage On Demand Cloud Solutions: http://www.hp.com/go/JetAdvantageondemand |
| Differentiator (features) | The pinnacle of performance and security |
| Why to buy | HP Managed Printers are optimized for managed environments. Offering increased monthly page volumes and fewer interventions, this product can help reduce printing and copying costs. See your HP Authorized Reseller for details. |
| Headline | Only HP Enterprise printers repair themselves from attacks in real time while offering outstanding manageability. Automatically monitor threats, detect intrusions, and validate operating software while centrally managing your fleet with ease.[1] |
| Key selling point | This printer uses exceptionally low amounts of energy thanks to its innovative design and toner technology.[5] |
| Image legal disclaimer | Product image may differ from actual product |
| Legal disclaimer | ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Microsoft and Windows are registered trademarks of Microsoft Corporation. AirPrint and the AirPrint logo are trademarks of Apple Inc., registered in the U.S. and other countries. Linux is a U.S. registered trademark of Linus Torvalds. UNIX is a registered trademark of The Open Group. |
| Monthly printed pages | 450,000 |
| Cartons per layer | 4 |
| Maximum print area | 212 x 352 mm |
| Bottom margin (A4) | 4.3 mm |
| First page out black (A4, ready) | As fast as 5.1 sec |
| First page out black (A4, sleep) | As fast as 8.3 sec |
| First page out black (letter, ready) | As fast as 5.0 sec |
| First page out black (letter, sleep) | As fast as 8.2 sec |
| Duty cycle (monthly, A4) | Up to 450,000 pages |
Notes and footnotes
- [13] Requires HP FutureSmart 5.8.1.1 or later.
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [1] Based on HP review of 2018 published security features of competitive in-class printers. Only HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate software integrity in a reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims.
- [2] HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin.
- [3] Measured using ISO/IEC 24734, excludes first set of test documents. For more information, see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [1] EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
- [4] Measured after 15 min in sleep. Exact speed varies depending on the system configuration, software application, driver, document complexity and time in sleep.
- [5] Based on HP testing using the ENERGY STAR® program’s Typical Electricity Consumption (TEC) method or as reported in energystar.gov versus the top three leading competitors as of 8/2015. Actual results may vary. For details see http://www.hp.com/go/Ljclaims.
- [2] Standard cartridges included; yields 11,000 black pages. Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
- [6] HP 37X High Yield Black Original LaserJet Toner Cartridges not included; please purchase separately.
- [3] With print cartridges
- [4] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on measurement of 115V device.
- [5] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115 V device.
- [6] Based on the BA TEC method with the following possible exceptions: 1 minute or less sleep delay setting, Wi-Fi disabled.
- [7] Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
- [8] Acoustic values are subject to change. For current information see http://www.hp.com/support. Configuration tested: base model, simplex printing, A4 paper at an average of 71 ppm.
- [9] Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
- [10] HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
- [11] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [12] Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- Measured using ISO 24734 Feature Test, A5 Landscape Feed. Speed may vary based on content, PC, media orientation, and media type.?
