SKU: 3GY17A

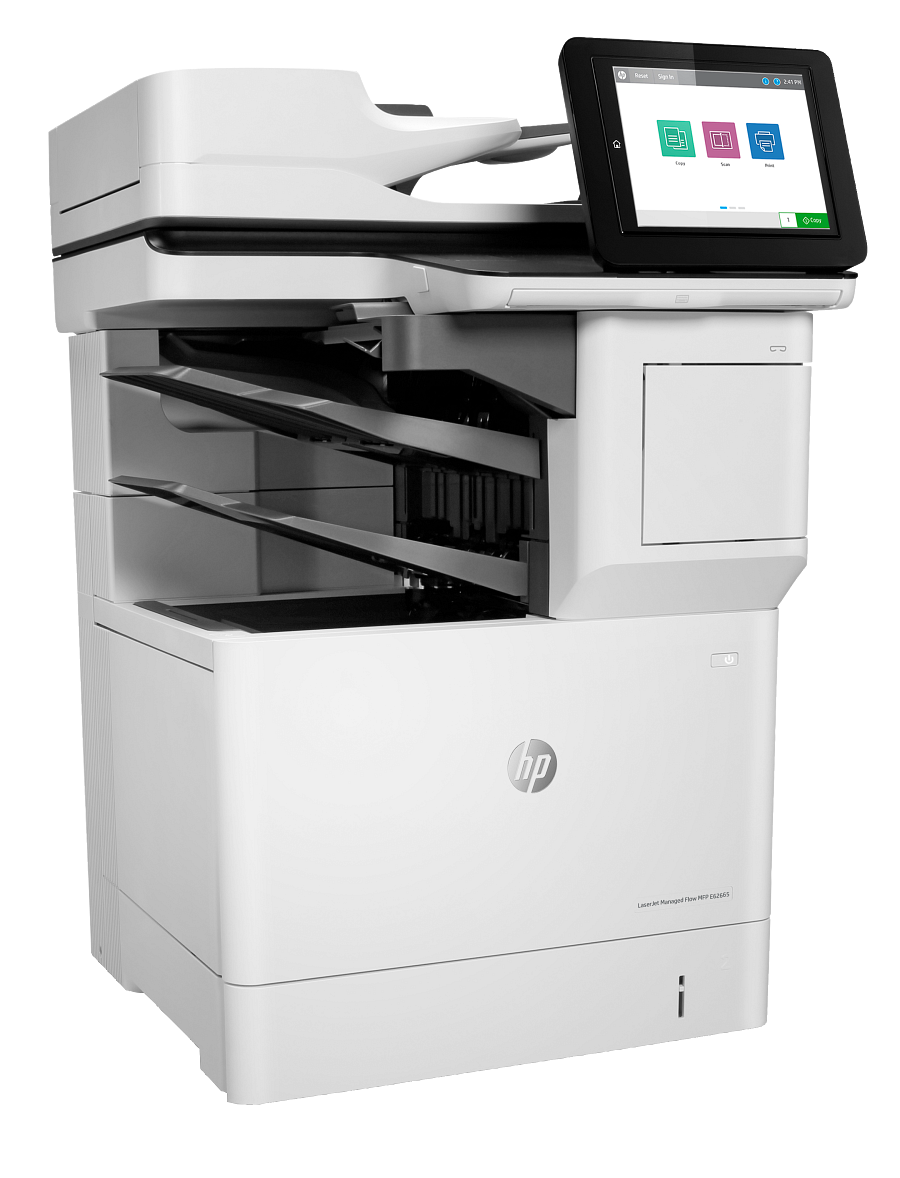

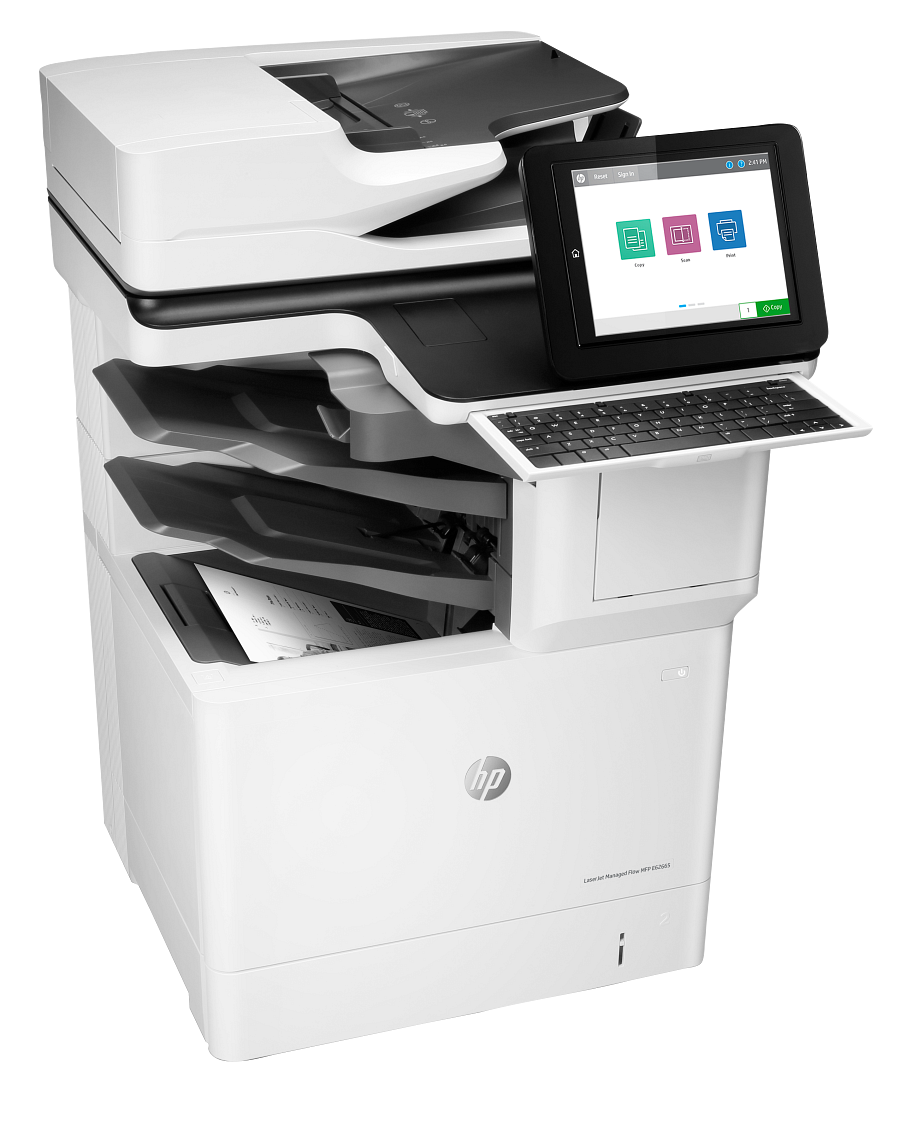

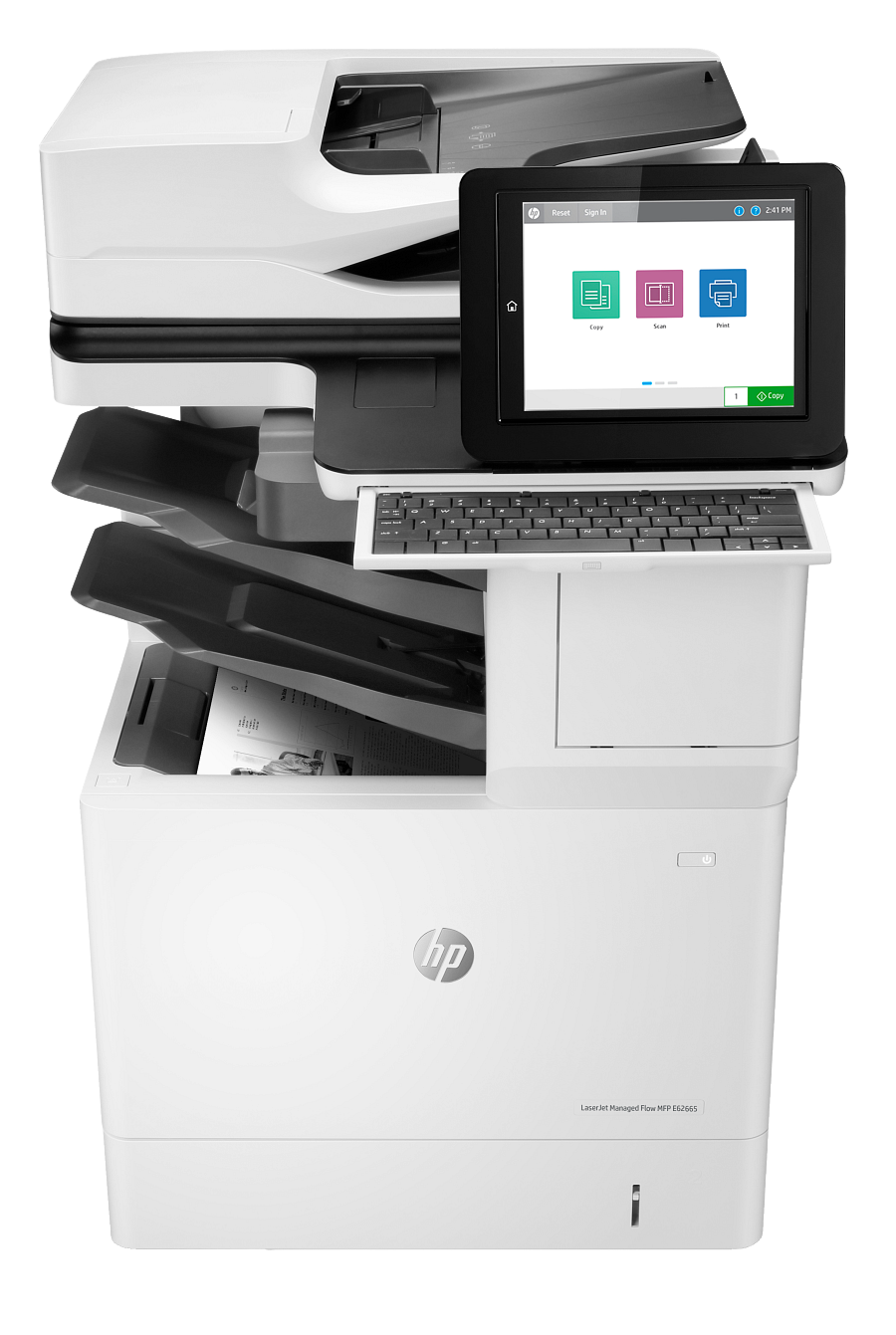

HP LaserJet Managed Flow MFP E62665z
- Print technology
- Laser
- Display
- (20.3 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; illuminated Home button (for quick return to the Home menu)
Contact us for pricing
Key features

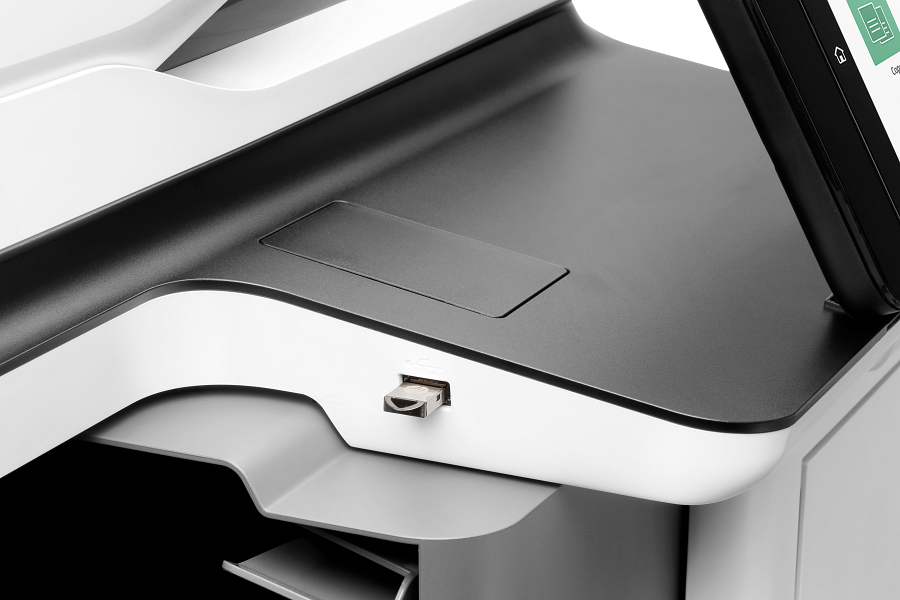

- Front USB flash drive port
- Two-sided printing
- Consumable Access Control
- Data logger & Print Engine Failure Sensor
- Fixed-size Cassette Guides
- LLC Life Optimization
- HP Sure Start
- Run-time Intrusion detection
- Whitelisting
- HP Web Jetadmin
- Expand the capabilities of your printer
- Eliminate the wait from your workday
Technical specifications
Product
| UPC number | (AB0) 193015237674; (AB2) 193015237681; (ABJ) 193015237698; (ABT) 193015237735; (ABY) 193015237742; (AC4) 193015237797; (AC8) 193015237803; (ACJ) 193015237704; (ACQ) 193015237759; (AKV) 193015237810; (B13) 193015237766; (B19) 193015237773; (BAZ) 193015237780; (BBU) 193015237711; (BGJ) 193015237827; (BGM) 193015237728 |
|---|---|
| Product type | Laser printers |
| Subcategory | Single and multifunction printers |
Storage
| Storage temperature range | -20 to 40°C |
|---|
Display

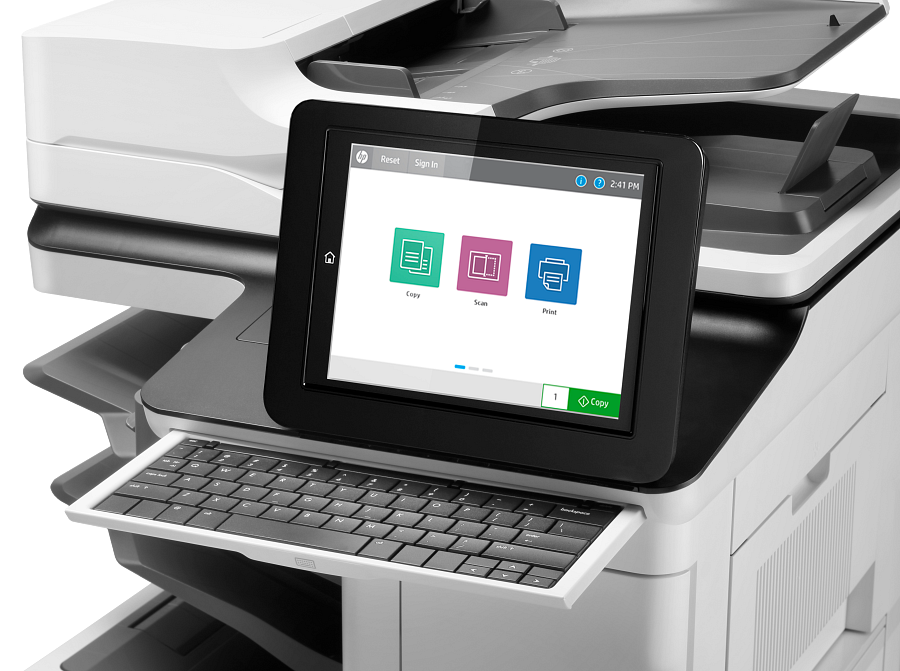

| Display | (20.3 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; illuminated Home button (for quick return to the Home menu) |
|---|---|
| Display area (metric) | 16.2 x 12.1 cm |
Wireless
| Wireless capability | Optional, enabled with purchase of a wireless hardware accessory. Single band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3000w NFC/Wireless Accessory J8030A, Dual band Wireless Station and Wi-Fi Direct functionality available with HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A, Dual band Wireless Station functionality available with HP Jetdirect 2900nw Print Server J8031A |
|---|
Battery and power
| Power supply type | Built-in 115V or 220V Power Supply |
|---|
Software
| Compatible Operating Systems | Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple® macOS Sierra v10.12, Apple® macOS High Sierra v10.13, Apple® macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see www.hp.com/go/upd |
|---|---|
| Copier smart software features | Auto scale; Reduce/enlarge from scanner glass (25 to 400 percent); Collate; Auto color detection; Two-sided copying; Image adjustments (darkness, background cleanup, sharpness); Job build |
| Printer smart software features | Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB |
| Print Technology | Laser |
|---|---|
| Mobile printing capability | Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™ Certified; Roam capable for easy printing |
| Acoustic power emissions (active, printing) | 7.2 B(A) |
| Acoustic pressure emissions bystander (active, printing) | 57 dB(A) |
Copy and scan
| Scanner advanced features | Optimize text/picture; Image adjustments; Job build; Output quality setting; Selectable scan resolution 75 to 600 dpi; Auto detect color; Edge Erase; Job notification; Blank page suppression; HP Quick Sets; HP EveryPage; Auto orientation; Embedded Optical Character Recognition (OCR), Auto crop to page; Auto-tone |
|---|---|
| Copy reduce / enlarge settings | 25 to 400% |
| Copier scaling (ADF) | 25 to 200% |
| Copy resolution (black text) | Up to 600 x 600 dpi |
| Copy speed black duplex (A4) | Up to 50 cpm |
| Copy speed black duplex (Letter) | Up to 53 cpm |
| Copy speed (black, normal quality, A4) | Up to 61 cpm |
| Copy speed black (normal, letter) | Up to 65 cpm |
| First copy out black (A4) | As fast as 4.9 sec |
| First copy out black (A4, sleep) | As fast as 14.7 sec |
| First copy out black (letter, sleep) | As fast as 14.6 sec |
| First copy out black (letter) | As fast as 4.8 sec |
| Acoustic power emissions (active scan) | 7.3 B(A) |
| Copyright notice | © Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
Paper handling
| Paper size | Letter; A4; Legal; B5 |
|---|
Physical
| Maximum dimensions (W x D x H) | 40.5 x 31.7 x 40.4 in (right side jam access door open, left side cartridge door open, all feeders open and extended, ADF open) |
|---|---|
| Dimensions (W x D x H) | 20.15 x 22 x 30.5 in |
Package
| Package dimensions (W x D x H) | 33.7 x 29.9 x 40.3 in |
|---|---|
| Pallet dimensions | 33.7 x 29.9 x 80.63 in |
| Pallet dimensions (W x D x H) | 856 x 760 x 2048 mm |
Sustainability
| Ecolabels | CECP; Blue Angel; EPEAT® Silver registered; ENERGY STAR® certified |
|---|---|
| Energy star certified | Yes |
| Sustainability specifications | Mercury free |
| Consumables CO2e (kg) | 12 |
| Energy Usage CO2e (kg) | 131 |
| End of Life CO2e (kg) | 0.4 |
| Production CO2e (kg) | 77 |
| Total CO2e (kg) | 251.4 |
| Transportation CO2e (kg) | 31 |
Warranty and service
| Manufacturer Warranty | One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements. Go to hp.com/support to learn about HP award winning service and support options in your region. (wty code 4G) |
|---|---|
| Network protocols, supported | Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, IPP 2.0, Apple AirPrint™, HP ePrint, FTP Print, Google Cloud Print; DISCOVERY: SLP, Bonjour, Web Services Discovery; IP CONFIG: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Stateful via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPs, Telnet, TFTP Config, FTP FW Download, Syslog; Security: SNMPv3, SSL Cert Management, Firewall, ACL, 802.1x |
| File Format Supported | CSV (OCR); HTML; PDF; PDF/A; RTF (OCR); Searchable PDF (OCR); Searchable PDF/A (OCR); TEXT (OCR); TIFF; Unicode TEXT (OCR); XPS |
Other
| Minimum System Requirements | 2 GB available hard disk space, Internet connection, USB port, Internet browser. For additional OS hardware requirements see microsoft.com |
|---|---|
| What's in the box | HP LaserJet Managed Flow E62665z MFP; HP Original LaserJet Toner Cartridge (~11,000 pages); Documentation (Hardware Install Guide); Power cord; Fixed-Size Cassette Guides |
| Energy savings feature technology | HP Auto-On/Auto-Off Technology; Instant-on Technology; Instant-on Copy |
| Power consumption | 740 watts (printing/copying), 29.0 watts (ready), 3.3 watts (sleep), < 0.1 watts (Auto Off/Manual On), < 0.1 watts (Manual Off) |
| Power | Input voltage: 100 V to 127 V nominal (+/-10%), 50 - 60 Hz nominal (+/- 3 Hz), 12 A; Input voltage: 220 V to 240 V nominal (+/-10%), 50 - 60 Hz nominal (+/- ), 6 A |
| Cable included | No, please purchase (USB) cable separately |
| Registration required | No |
| Print Cartridges/Bottle, Number | 1 (black) |
| Replacement cartridges | HP Black Managed LaserJet Toner (50,000 yield) W9004MC. This printer uses newer generation HP cartridges identifiable by a “P” at the end of the cartridge lot number. More at www.hp.com/go/learnaboutsupplies |
| Supplies feature | HP JetIntelligence Cartridge |
| Brand | HP |
| Sub brand | LaserJet Flow |
| Blue Angel compliant | Yes, Blue Angel DE-UZ 219—only ensured when using Original HP supplies |
| Certifications and compliances | CSA (Canada), RCM (Australia), TUV and GS Mark (Germany), BSMI (Taiwan), CCC (China), KCC (South Korea), NOM (Mexico), Nemko, Fimko, Demko, Semko (Nordic), Eastern European approvals, CE Marking, FCC approval, Energy Star, UL listed |
| Electromagnetic compatibility | CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, EMC Directive 2014/30/EU, FCC CFR 47 Part 15 Class A/ICES-003, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| FCC Class A emissions | FCC Class A emissions - for use in commercial environments, not residential environments |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2014/IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries. |
| Accessories | HP LaserJet 550 sheet paper feeder J8J89A, HP LaserJet 1x550-sheet paper feeder with stand and cabinet J8J91A , HP LaserJet 1x550-sheet and 2,000-sheet HCI feeder and stand J8J92A , HP LaserJet 3x550-sheet paper feeder with stand J8J93A , HP LaserJet Envelope Feeder J8J90A , HP Internal USB Ports B5L28A, HP Foreign Interface Harness B5L31A, HP Jetdirect 2900nw Print Server J8031A, HP LaserJet Keyboard Overlay Kit Sweden A7W14A, HP DDR3 x32 144-Pin 800 MHz SODIMM E5K48A, HP DDR3x32 144-Pin 800 MHz SODIMM Accessory E5K49A, Accessibility Assistant 2MU47A, HP Accessibility Kit 2TD64A, HP JetDirect 3100w BLE/NFC/Wireless Accessory 3JN69A, HP MFP Analog 700 Fax Accessory 2EH31A, HP USB Universal Card Reader X3D03A, HP HIP2 Keystroke Reader Y7C05A, HP Logic Reader 4QL32A |
| Orderable supplies | HP Staple Cartridge Refill J8J96A, HP LaserJet 110 v Maintenance Kit J8J87A, HP LaserJet 220 v Maintenance Kit J8J88A, HP 300 ADF Roller Replacement Kit J8J95A |
| Connectivity | USB; Ethernet networking; Wireless optional (with accessory) |
| Number of users | 10-30 Users |
| Connectivity, optional | HP Jetdirect 2900nw Print Server J8031A; HP Jetdirect 3000w NFC/Wireless Accessory J8030A; HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A |

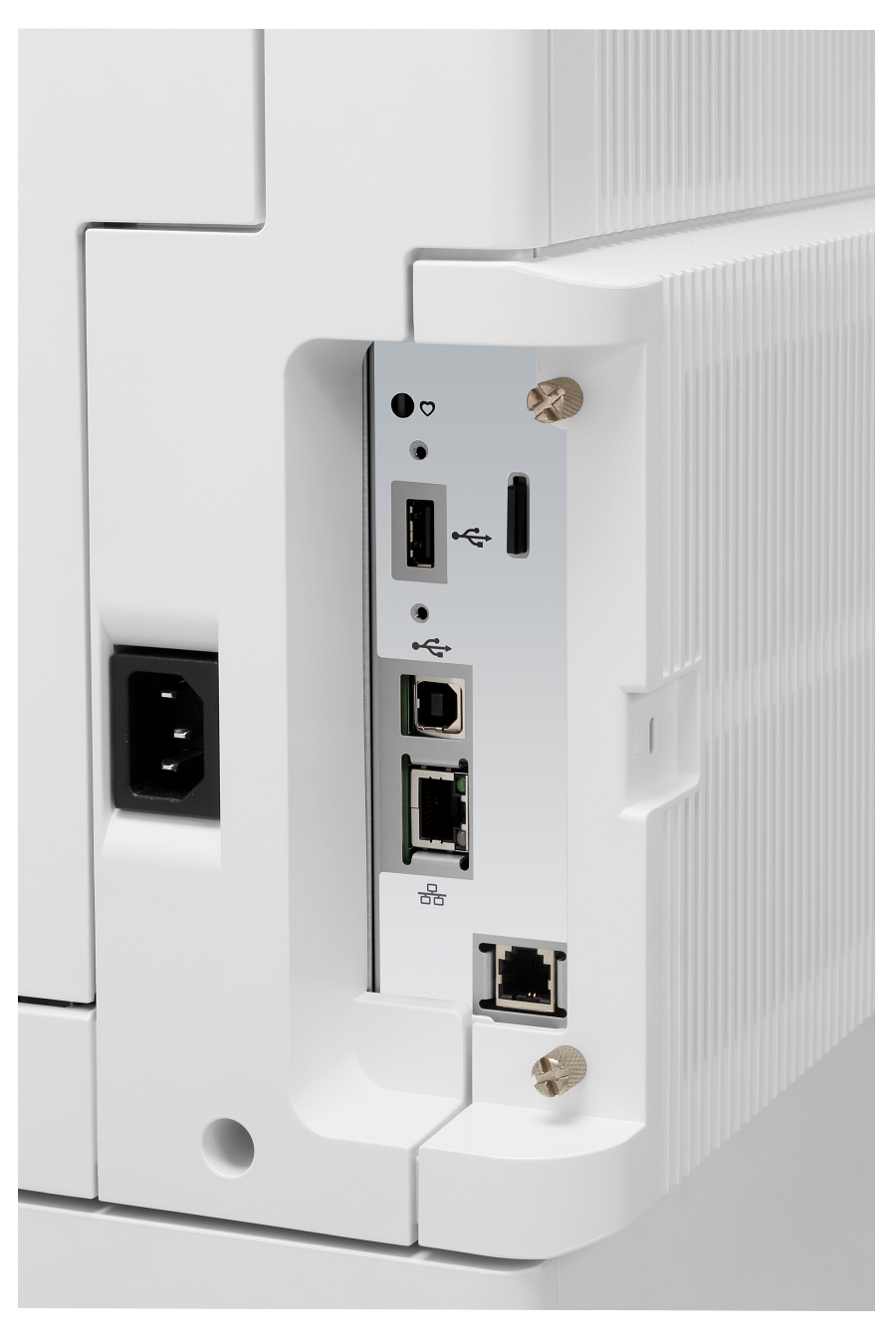

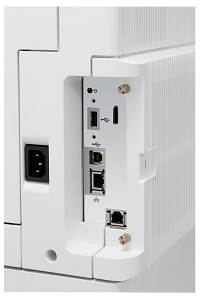

| Connectivity, standard | 1 Hi-Speed Device USB 2.0; 2 Hi-Speed USB 2.0 Host; 1 Gigabit Ethernet; 1 Hardware Integration Pocket |
| Network capabilities | Yes, via HP Jetdirect Ethernet embedded print server (standard) which supports: 10Base-T, 100Base-Tx, 1000Base-T; 802.3az (EEE) support on Fast Ethernet and Gig Links; IPsec (standard); 802.11a/b/g/n wireless networking (optional); Microsoft Universal Print (MUP) support |
| Plug and play | HP Smart Install |
| Copier settings | Two-sided copying, scalability, image adjustments (darkness, contrast, background cleanup, sharpness), N-up, N or Z-ordering, content orientation, collation, booklet, job build, edge-to-edge, job storage, ID Copy, Book Copy, A-to-B Copy (different media sizes) |
| Copies, maximum | Up to 9999 copies |
| Digital sending optional features | Authentication; Data transfer; Digital fax (send to LAN, Internet); Local Address Book; Metadata capture and validation; OCR; Scan workflow management; Send-to-folder; Send-to-printer; Send-to-workflow; via HP Embedded Capture; Optional via HP Digital Sending Software (HP DSS) |
| Digital sending standard features | Scan to E-mail; Scan-to-Sharepoint; Save-to-Network Folder; Save-to-USB drive; Send to Sharepoint; Send to FTP; Send to Internet Fax; Local Address Book; SMTP over SSL; Blank Page Removal; Edge Erase; Auto Color Sense; Auto Crop To Content; Compact PDF; Auto Tonescale; Auto Orientation; Multi-Pick Detect; Auto Straighten; Auto Crop To Page; OCR |
| Maximum metric depth | 808 |
| Maximum metric height | 1025 |
| Maximum metric width | 1030 |
| Metric depth | 558 |
| Metric height | 775 |
| Metric width | 512 |
| Business filter | cMPS |
| Component type | Printer |
| Printer black pages (MPV black) | 4125 |
| Acoustic power emissions (ready) | 3.5 B(A) |
| Acoustic pressure emissions bystander (ready) | 15 dB(A) |
| Operating humidity range | 10 to 80% RH |
| Recommended operating humidity range | 30 to 70% RH |
| Operating temperature range | 15 to 30°C |
| Recommended operating temperature range | 17.5 to 25°C |
| Functions | Multifunction / All-in-One |
| Form factor | Multifunction |
| Country of origin | China(, AB2, BGM, ACJ, BBU, AB0, ABJ); Mexico(, BGJ); Netherlands; Vietnam(ABY, 688, ACQ, ABT, B13, BAZ, B19) |
| Web address for additional information | Solutions: http://www.hp.com/go/gsc; Fonts and IPDS Emulation: http://www.hp.com/go/laserjetfonts; HP Web Jetadmin: http://www.hp.com/go/wja; HP Universal Print Driver: http://www.hp.com/go/upd; HP JetAdvantage Security Manager: http://www.hp.com/go/securitymanager; HP JetAdvantage On Demand Cloud Solutions: http://www.hp.com/go/JetAdvantageondemand |
| Differentiator (features) | The pinnacle of performance and security |
| Why to buy | HP Managed MFPs are optimized for managed environments. Offering increased monthly page volumes and fewer interventions, this product can help reduce printing and copying costs. See your HP Authorized Reseller for details. |
| Headline | Only HP Enterprise MFPs repair themselves from attacks in real time while offering outstanding manageability. Automatically monitor threats, detect intrusions, and validate operating software while centrally managing your fleet with ease.[1] |
| Key selling point | With HP Sure Start, each printer regularly checks its operating code and repairs itself from attempted hacks. |
| Image legal disclaimer | Product image may differ from actual product |
| Legal disclaimer | ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Microsoft and Windows are registered trademarks of Microsoft Corporation. AirPrint and the AirPrint logo are trademarks of Apple Inc., registered in the U.S. and other countries. Linux is a U.S. registered trademark of Linus Torvalds. UNIX is a registered trademark of The Open Group. |
| Monthly printed pages | 450,000 |
Notes and footnotes
- [16] Requires HP FutureSmart 5.8.1.1 or later.
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [1] Based on HP review of 2018 published security features of competitive in-class printers. Only HP offers a combination of security features that can monitor to detect and automatically stop an attack then self-validate software integrity in a reboot. For a list of printers, visit http://www.hp.com/go/PrintersThatProtect. For more information: http://www.hp.com/go/printersecurityclaims
- [2] HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin
- [3] Measured using ISO/IEC 24734, excludes first set of test documents. For more information, see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [1] EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country.
- [4] Measured after 15 min in sleep. Exact speed varies depending on the system configuration, software application, driver, document complexity and time in sleep.
- [5] Based on the reduced energy use of HP LaserJet printers and cartridges with JetIntelligence introduced since 2015 compared to previous toner versions without JetIntelligence, using EnergyStar methodology.
- [2] Standard cartridges included; yields 11,000 black pages. Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
- [6] HP Black Managed LaserJet Toner Cartridges not included; please purchase separately.
- [3] With print cartridges
- [7] Scan speed measured from ADF at default 300 dpi (black-and-white, grayscale, and color). Actual processing speeds may vary depending on scan resolution, network conditions, computer performance, and application software.
- [4] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typically based on measurement of 115 V device.
- [5] Average black declared yields based on ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
- [6] To enable HP Roam, some devices may require firmware to be upgraded and an optional accessory to add Bluetooth® Low Energy (BLE) beaconing capabilities. Customer can purchase the HP Jetdirect 3100w BLE/NFC/Wireless accessory or the RadBeacon USB.
- [7] Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
- [8] HP recommends that the number of scanned pages per month be within the stated range for optimum device performance.
- [9] FCC Class A emissions - for use in commercial environments, not residential environments.
- [10] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Energy Star value typically based on measurement of 115 V device.
- [11] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [12] Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [13] Scan speeds measured from ADF. Actual processing speeds may vary depending on scan resolution, network conditions, computer performance, and application software.
- [14] Measured using ISO 24734 Feature Test, A5 Landscape Feed. Speed may vary based on content, PC, media orientation, and media type.?
- [15] First Copy Out from Ready and Simplex Copy Speed measured using ISO/IEC 29183, Duplex Copy Speed measured using ISO/IEC 24735, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application and document complexity.
