SKU: 5HB11D

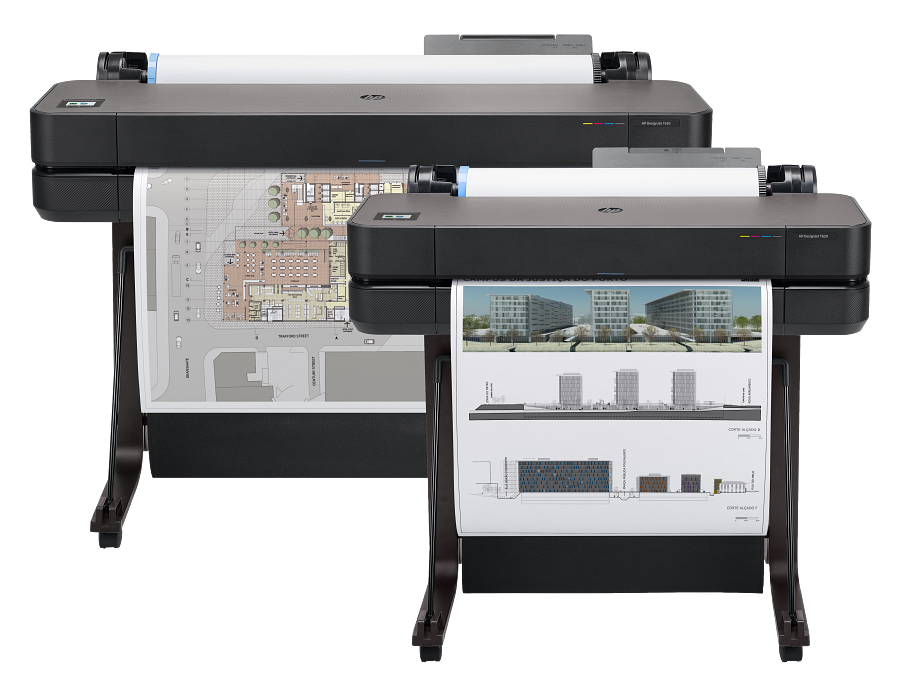

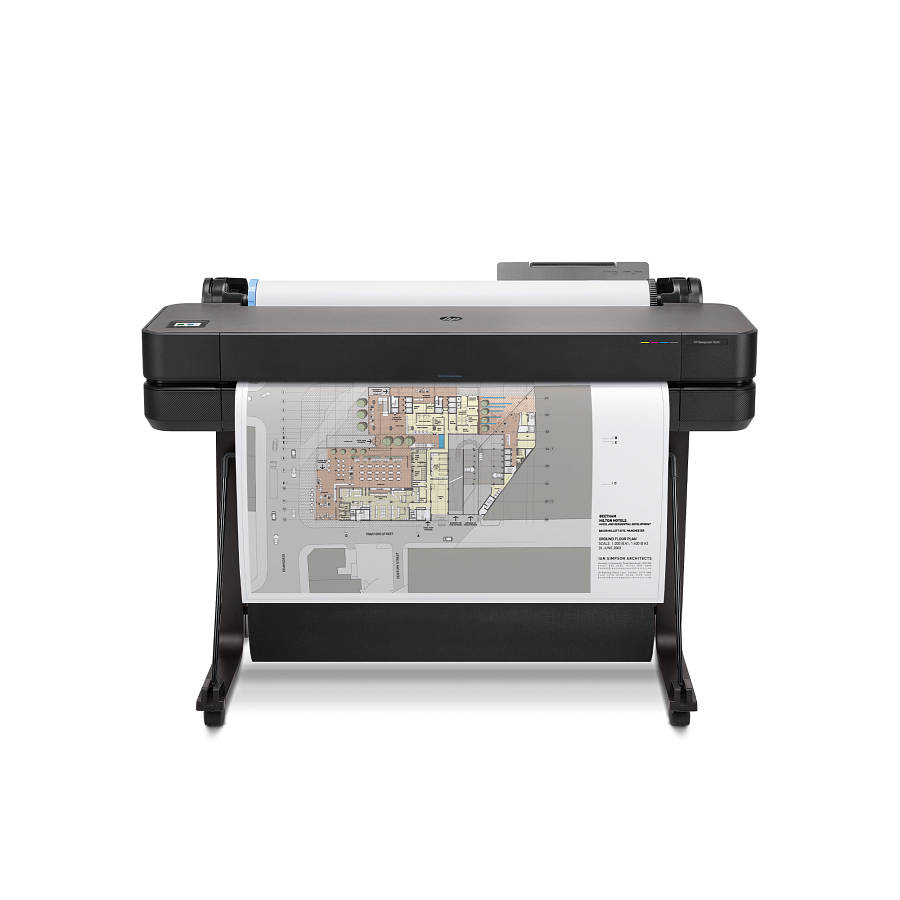

HP DesignJet T630 36-in Printer
- Print technology
- Ink
- Memory
- 1 GB
Contact us for pricing
Key features
- Touchscreen
- Automatic document feeder
- Front USB flash drive port
Technical specifications
Product
| UPC number | (ABG) 198701028185; (AC4) 198701028215; (ACJ) 198701031413; (AKV) 198701035350; (B19) 198701035343; (B1K) 198701035336; (BCD) 198701035329 |
|---|---|
| Product type | Office Printers for CAD and GIS |
| Subcategory | Large format |
| UNSPSC code | 43212104 |
Memory
| Memory | 1 GB |
|---|
Storage
| Storage temperature range | -13 to 131ºF |
|---|---|
| Internal Storage | None |
Software
| Software included | HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS |
|---|
| Print technology | HP Thermal Inkjet |
|---|---|
| Acoustic power emissions (active, printing) | 5.8 B(A) (operating), |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print speed | 30 sec/page on A1, 76 A1 prints per hour[1] |
| Printing path | HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, HP-GL/2 driver for Windows, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Paper handling
| Media size maximum (mm) | 910 |
|---|---|
| Media size maximum (in) | 36 |
| Media sizes standard (metric rolls) | 279 to 914 mm |
| Media sizes standard (sheets, rolls) | 11 to 36 in |
| Media sizes, custom | Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm |
| Media sizes supported | Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0 |
Physical
| Color ink technology | Pigment; Dye |
|---|---|
| High capacity of page yield (colour) | 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines[2] |
| Print Cartridge/Bottle, Color(s) | Cyan, magenta, yellow, black |
| Dimensions (W x D x H) | 51.9 x 23.8 x 36.7 in |
| Color or black | Color |
| Roll maximum weight | 13.6 lb |
| Finished output handling | Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter |
| Media weight, recommended | 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder) |
| Weight | 76.5 lb |
Package
| Package dimensions (W x D x H) | 57.9 x 22.6 x 23.2 in |
|---|---|
| Package weight | 123.5 lb |
Sustainability
| Energy star certified | Yes |
|---|---|
| Environmental certification | ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP; EPEAT Climate+ Gold; UL Ecologo |
| Sustainability Impact | ENERGY STAR®; EPEAT® |
| Post consumer recycled plastic in hardware by weight of plastic | 40% |
Warranty and service
| Manufacturer Warranty | One-year limited hardware warranty |
|---|---|
| Supported Primary Applications | Line drawings; Presentations; Renderings |
Other
| What's in the box | HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
|---|---|
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
| Registration required | No |
| Cartridge volume | Less than 130 ml |
| Ink drop | 5.5 pl (C, M, Y); 12 pl (K) |
| Ink types | Dye-based (C, M, Y); pigment-based (K) |
| Number of cartridges | 4 |
| Print Cartridges/Bottle, Number | 4 (C, M, Y, K) cartridges |
| Print cartridge/bottle volume | 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge |
| Print head nozzles | 1376 |
| Print heads | 1 (cyan, magenta, yellow, black) |
| Primary applications | Office documents and presentations; Engineering and construction documents |
| Sub brand | DesignJet |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| Safety | USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE) |
| Accessories | B3Q37A HP DesignJet 36-in Spindle |
| Connectivity | Apple AirPrint™; Ethernet networking; USB; Wireless (Wi-Fi®); Wireless direct printing |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct |
| Security features | HP Wolf Essential Security: Secure boot with HW root of trust; Firmware Code Signature Validation; Automatic FW Updates; HTTPS Redirect enabled by default; SNMPv1/2 read-only by default; SNMPv3 disabled by default; Write-protected memory; HP Cartridge Security; Unique password; Disable USB ports; TLS 1.2; 802.1x; IPv4 & IPv6 Compatibility; CA/JD Compatibility |
| Acoustic pressure emissions | 42 dB(A) (operating), |
| Non-Operating Humidity Range | 0 to 95% RH |
| Operating altitude | Up to 9843 ft |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104ºF |
| Functions | Print only |
| Country of origin | China |
| Why to buy | Simplify the way you print with the world's smallest plotters[1]. Save time with HP Click Print solutions[2]. Reduce energy[4], plastics use[6], waste[5]—and do more with a responsibly designed printer that fits the way you work. |
| Headline | RESPONSIBLY DESIGNED—Reduce energy and plastic use |
| Key selling point | Get high-quality results—HP Bright Office Inks deliver better line accuracy[12] and up to 34% more gamut.[13] |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | AirPrint; ENERGY STAR; EPEAT Climate+ Gold; Carbon Neutral; Gold IPv6 Ready; Hi-Speed USB; UL Validated; Wi-Fi CERTIFIED; Windows 11 Compatible |
| Monthly printed pages | Occasionally |
| Taxonomy | Large Format Printers/ Plotters |
| Segment | Business |
| Non-printable area (cut-sheet) | 0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray) |
| Non-printable area (roll media) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Maximum optical density (black) | 8 L* min/2.10 D[4] |
| Line accuracy | ±0.1%[3] |
| Model size | 914 mm |
| Printer drivers included | Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP Click Driver for Windows 11 |
| Print languages | HP-GL/2, HP-RTL, CALS G4, JPEG, URF |
| Theoretical minimum line width | 0.0008 in |
| Maximum roll diameter | 3.9 in |
| Media thickness | Up to 11.8 mil |
| Printer Applications | Architecture; Engineering; Construction; Technical documents; Presentation graphics |
| Recommended media | Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft) |
| Roll maximum input | 1 |
| Roll size | Up to 36 in |
| Product Disclaimer | Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges. |
| Dynamic security | Dynamic security enabled printer |
| Overview | Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions.[2] It's responsibly designed to help you save energy[5] and reduce plastics use[7]. Plus, it’s compact and adaptable—to fit the way you work. |
| Company | HPI |
| Code name | EcoSpark Humanist |
| Product long name | HP DesignJet T630 36-in Printer |
| Short product name | T630 |
| Product classification flag | Standard HP Product |
| Media thickness maximum (metric) | Up to 0.3 mm |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene) |
| Tangible flag | Y |
| Ideal for | Ideal for small or newly established architectural firms that want an easy, compact, and affordable printing solution that fits your office needs, is responsibly designed, and incredibly easy to use. |
| Material Type for item | FERT |
Notes and footnotes
- [1]Based on competitive comparison of operational footprint. Test performed by Sogeti and commissioned by HP in May 2024.
- [2]HP One-click printing with HP Click software. HP Click software is only compatible with Original HP ink supplies. Applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files.
- [3]Requires HP Smart app download available at https://www.hp.com/go/mobileprinting. Certain features are available in English language only, and may vary by printer model/country, and between desktop/mobile applications. HP reserves the right to introduce charges for use of functionality facilitated by the HP app. Internet access required and may not be available in all countries. HP account required for full functionality. List of supported operating systems available in app stores.
- [1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks. Actual performance may vary based on a variety of conditions, including but not limited to network configuration.
- [4]The percentage reductions in energy consumption are based on tests conducted by HP, 2024. Data based on the implementation of auto-scheduled on/off usage in various printer models, measured on a monthly basis. Actual savings may vary depending on the specific usage patterns, printer models, and environmental conditions.
- [5]Use up to 96% less ink for routine maintenance vs. competitor. Based on HP internal testing, June 2024, comparing the HP DesignJet T200 Printer series and Canon iPF TM printer series in terms of ink used during routine printhead cleanings.
- [2] Calculation done taking into account two normal printhead cleanings and ink on an A1/D CAD drawing with black and color lines and a pixel coverage of 5.2%.
- [6]The HP DesignJet T200/T600 Series 2025 Edition plotter uses polystyrene-free packaging with molded pulp cushions made from recycled fiber-based material. The plastic reduction is expressed as a percentage of the total packaging plastic weight. The reduction varies depending on the printer model, with at least a 53% reduction in the new 36-inch model and at least a 72% reduction in the new 24-inch model, compared to the previous T200/T600 models.
- [3] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.
- [7]Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled content is based on the definition set in the EPEAT standard for imaging equipment, IEEE 1680.2.
- [4] With HP Premium Instant Dry Photo Gloss media with Original HP inks.
- [8]Incorporation of a minimum of 5% of certified recycled metal, expected to be implemented in units manufactured after April 1st, 2025. Recycled metal is expressed as a percentage of the total weight of the metal according to ISO 14021 definitions for metal. This number is the minimum and may vary slightly due to manufacturing processes and material availability.
- [5] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org.
- [9]UL ECOLOGO® Certified HP 712 inks meet a range of stringent human health and environmental considerations. For certifications, see http://www.ul.com/EL and http://www.ul.com/gg
- [6] Can be recycled through commonly available recycling programs.
- [10] The T200/T600 is EPEAT Gold in the U.S. and Canada and has achieved EPEAT Climate+. See https://www.epeat.net for registration status and tier levels by country.
- [11] The HP DesignJet T630 2025 Edition 36-in delivers A1/D prints in 30 seconds.
- [12] Better line accuracy based on test commissioned by HP and performed by Sogeti in June, 2024. Clear lines based on the number of line breaks found in 2 mm of line. On vertical and diagonal 1px RGB (160,160,160) lines. Printed on Oce 75 g plain paper using equivalent fast print modes. For output produced with HP DesignJet T200 Printer series, Canon iPF TM printer series and Canon iPF TC-20. Test performed under the same conditions in all printers measuring with QEA PIAS II digital microscope tool.
- [13] Up to 34% more color gamut based on test commissioned by HP and performed by Sogeti in June 2024, of gamut volume comparing prints from the HP DesignJet T200 Printer series, Canon iPF TM printer series, Canon iPF TC-20 and Epson SC-T3100 on Oce 75gsm plain paper using equivalent fast/draft print modes.
