SKU: 5HX14A

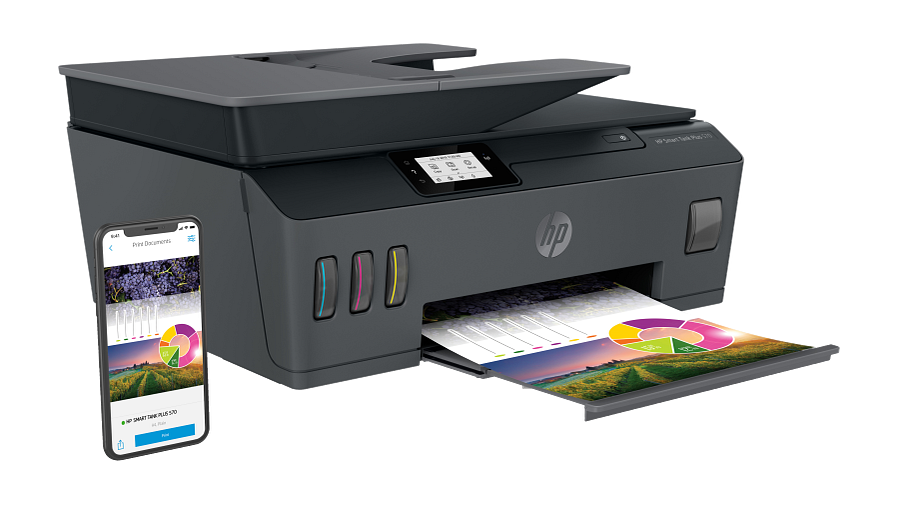

HP Smart Tank Plus 570 Wireless All-in-One
- Print technology
- Ink
- Display
- 2.2" Mono Touchscreen MGD (Mono Graphics Display)
- Memory
- 256 MB; Integrated memory
Contact us for pricing
Key features
- Automatic document feeder
- Ink tank system
- Print from mobile device
- Scan to PDF
- Your reliable connection
- Print, scan, and copy anywhere
- Exceptional HP quality
- Achieve high speeds for all your prints
- Convenient ink management
- Hands-free. Auto-fed.
- Simple, spill-free refill
- Preserve your photos
Technical specifications
Product
| UPC number | 193424413348 |
|---|---|
| Product type | Inkjet printers |
| Subcategory | Single and multifunction printers |
Memory
| Maximum Memory | 256 MB |
|---|---|
| Memory | 256 MB; Integrated memory |
Storage
| Storage altitude | 15,000 ft |
|---|---|
| Storage temperature range | -40 to 140°F |
Display
| Display | 2.2" Mono Touchscreen MGD (Mono Graphics Display) |
|---|
Camera and audio
| Camera phone description | Direct printing from camera phone via Wireless or Wireless Direct |
|---|
Wireless
| Wireless capability | Yes, built-in dual band Wi-Fi 802.11b/g/n, Wireless direct |
|---|
Battery and power
| Power supply type | Internal |
|---|
Software
| Compatible Operating Systems | Windows 11; Windows 10; Windows 7; macOS 10.11 El Capitan; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 13 Ventura; macOS 14 Sonoma |
|---|
| Print Technology | Ink |
|---|---|
| Mobile printing capability | HP app; Apple AirPrint™; Google Cloud Print™; HP ePrint; HP Print Service Plugin (Android printing); Mopria™ certified; Wi-Fi® Direct Printing |
| Acoustic power emissions (active, printing) | 6.4 B(A) |
| Print speed, black | 11 |
Copy and scan
| Color copy capability | Yes |
|---|---|
| Copy reduce / enlarge settings | 25 to 400% |
| Copy resolution (black graphics) | Up to 600 dpi |
| Copy Speed Black (maximum, A4) | Up to 22 cpm |
| Copy speed black (ISO) | Up to 10 cpm |
| Copy speed color (ISO) | Up to 2 cpm |
| Copy Speed Color (maximum, A4) | Up to 14 cpm |
| Acoustic power emissions (active copy) | 6.4 B(A) (copying at 5 ppm with ADF running) |
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
Paper handling
| Paper size | Letter; A4; Legal; 4 x 6 in |
|---|
Physical
| Print colors maximum | 4 |
|---|---|
| Maximum dimensions (W x D x H) | 449 x 605.65 x 258.7 mm |
| Dimensions (W x D x H) | 17.7 x 14.7 x 7.8 in |
| Dimensions with trays up (W x D x H) | 449 x 373 x 198 mm |
| Color or black | Color |
Package
| Package dimensions (W x D x H) | 19.49 x 9.37 x 18.9 in |
|---|---|
| Pallet dimensions | 47.24 x 39.37 x 94.39 in |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2400 mm |
| Count of layers in pallet | 5 |
| Quantity per pallet | 50 |
Sustainability
| Ecolabels | Conforms to ecolabel energy efficiency limits |
|---|
Warranty and service
| Manufacturer Warranty | One year of 24/7 world-class technical support services through http://www.hp.com/support; One-year or 30,000 pages limited hardware warranty, whichever is earlier from the date of purchase; user replaceable parts have separate warranty periods |
|---|---|
| PictBridge supported | No |
| Network protocols, supported | 9100, SNMP, SLP, IPP, WS-Print, Wireless, LPR |
| File Format Supported | PDF; BMP; PNG; TIF; JPG; RTF; TXT |
| Service & support features | With services, software, solutions and support from HP Total Care, you can use, protect and enjoy your HP technology; one-year technical support; one-year or 30,000 pages limited hardware warranty, whichever is earlier from the date of purchase; user replaceable parts have separate warranty periods; access to 24/7 world-class support services through http://www.hp.com/support; to improve your product experience, please take the time to register at http://www.register.hp.com. CHINA ONLY WARRANTY STATEMENT: With services, software, solutions and support from HP Total Care, you can use, protect and enjoy your HP technology; one-year technical support; one-year limited hardware warranty; user replaceable parts have separate warranty periods; access to 24/7 world-class support services through http://www.hp.com/support; to improve your product experience, please take the time to register at http://www.register.hp.com |
Other
| Connection type | Wireless |
|---|---|
| Minimum System Requirements | Windows 10, 7: 1 GHz 32-bit (x86) or 64-bit (x64) processor, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer 8. |
| What's in the box | EMEA DM: HP Smart Tank Plus 570 Wireless All-in-One; 2 x HP 32XL 135-ml Black Original Ink Bottle; HP 32 Cyan Original Ink Bottle; HP GT52 Magenta Original Ink Bottle; HP 32 Yellow Original Ink Bottle; Ink caution flyer; Repacking flyer; Setup guide; Reference guide; Regulatory flyer; PT flyer; RoH-EAC Regulatory flyer; Extended warranty flyer; Power cord [For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies] |
| Energy savings feature technology | HP Auto-Off Technology |
| Power consumption | 0.11 watts (manual-off), 3.72 watts (ready), 0.83 watts (sleep) |
| Power | Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). High voltage: Input voltage 200 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz). Not dual voltage, power supply varies by part number with # Option code identifier. |
| Cable included | No, please purchase (USB) cable separately |
| Ink types | Pigment-based (black); Dye-based (color) |
| Print Cartridges/Bottle, Number | 4 (1 each black bottle, set of 3 color bottles) |
| Print head nozzles | 704 (Black), 588 (Tri-color) |
| Print heads | 2 (1 each black, tri-color) |
| Replacement cartridges | EMEA DM: HP 32 90-ml Black Original Ink Bottle 1VV25AE; HP 31 70-ml Cyan Original Ink Bottle 1VU26AE; HP 31 70-ml Magenta Original Ink Bottle 1VU27AE; HP 31 70-ml Yellow Original Ink Bottle 1VU28AE; HP 32XL 135-ml Black Original Ink Bottle 1VV24AE. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies |
| Segment (filter) | Home |
| Brand | HP |
| Sub brand | Smart Tank |
| Compliance alliances | None |
| Electromagnetic compatibility | CISPR 32:2015/EN 55032:2015 Class B; CISPR24:2010/EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013; FCC CFR 47 Part 15B; ICES-003,2016 Issue 6; EN 301 489-1 V2.1.1:2017; EN 301 489-17 V3.1.1:2017 GB4943.1-2011, GB/T9254-2008, GB17625.1-2012 (CCC China); CNS14336-1, CNS13438 & CNS15663 (BSMI RoHS -Taiwan); EAC (Russia) |
| Safety | IEC 60950-1 & IEC 62368-1 compliant; Safety UL listed; EU LVD and EN 60950 & EN 62368 compliant; UL GS approved; Singapore Safety; Russia EAC; China CCC; Taiwan BSMI |
| Telecom compliance (fax capability) | EN 300 328 V2.1.1:2016; EN 301 893 V2.1.0:2018 |
| Orderable supplies | EMEA DM: HP 32 90-ml Black Original Ink Bottle 1VV25AE; HP 31 70-ml Cyan Original Ink Bottle 1VU26AE; HP 31 70-ml Magenta Original Ink Bottle 1VU27AE; HP 31 70-ml Yellow Original Ink Bottle 1VU28AE; HP 32XL 135-ml Black Original Ink Bottle 1VV24AE |
| Connectivity | Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™; Wireless (Wi-Fi®); Wireless direct printing |
| Number of users | 1-3 Users |
| Connectivity, standard | Hi-Speed USB 2.0; Dual Band Wi-Fi |
| Network capabilities | Yes (via Wi-Fi) |
| Plug and play | Set up from mobile device; Wi-Fi Protected Setup (WPS) |
| Copier settings | Number of Copies, Resize, Quality, Lighter/Darker, Papersize, Papertype, ID Copy, Enhancement |
| Copies, maximum | Up to 99 copies |
| Digital sending standard features | Everyday scan (scan to PDF); HP Smart Tasks |
| Acoustic pressure emissions | 50 dB |
| Non-Operating Humidity Range | 5 to 90% RH (non-condensing) |
| Operating humidity range | 15 to 80% RH (non-condensing) |
| Recommended operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Recommended operating temperature range | 15 to 30°C |
| Functions | Multifunction / All-in-One |
| Form factor | All-in-One |
| Country of origin | China(1H5, BHC) |
| Geographic availability | WW, DM |
| Differentiator (features) | Best ink tank print quality in-class[12] |
| Why to buy | Print without restraints. Get high-capacity ink tank printing with fax,[1] faster connections with dual band Wi-Fi,[2] easy mobile printing with HP app,[3] and high-quality, high-volume printing– up to 2 years of ink included in the box.[4] |
| Headline | Perfect for low-cost, high-capacity printing – up to 3 years of ink included in the box.[4] Count on the outstanding print quality you expect from HP – get best-in-class print quality.[12] |
| Key selling point | Get up to 38% faster speeds compared to previous HP Smart Tank.[7] Work fast with the 35-page auto-feeder.[1] |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | Air Print; Android; Windows; Google Cloud Print Ready; USB high speed; WiFi certified; Mopria; PAP 20; SmartWay (NA only); Fragile; Keep out of Rain; This side up; stacking height (7) |
| Monthly printed pages | 800 |
| Cartons per layer | 10 |
| Maximum print area | 216 x 355 mm |
| Bottom margin (A4) | 3 mm |
Notes and footnotes
- [1] Fax capabilities available only on HP Smart Tank Plus 650 Wireless All-in-One. 35-page ADF available only on HP Smart Tank Plus 570/HP Smart Tank Plus 650 Wireless All-in-One.
- [2] Wireless operations are compatible with 2.4 GHz and 5.0 GHz operations only. Learn more at http://hp.com/go/mobileprinting. Wi-Fi is a registered trademark of Wi-Fi Alliance®. Supports both 5.0 GHz and 2.4 GHz using up to 12 non-overlapping channels vs only 3 non-overlapping channels for 2.4 GHz only. Supports 5.0 GHz band (up to 150 mbps) vs 2.4 GHz band (up to 72.2 mbps).
- [3] Requires the HP app download. For details on local printing requirements see http://hp.com/go/mobileprinting.
- [1] Dimensions vary as per configuration
- [4] Based on average monthly print volumes of approximately 200 pages and based on local Australian usage data of HP ink tank systems, assuming comparable usage. Actual yields may vary considerably depending on reasons including subject matter, print settings, temperature, and humidity. Yields may be lower when printing infrequently or predominantly with a single ink color. Some ink from included bottles is used to start up the printer.
- [5] For more information, see http://hp.com/go/printpermanence.
- [2] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
- [6] Compared to OEM mobile printing apps for the majority of top-selling inkjet & laser printers & all-in-ones for home & home office, priced less than or equal to $429.99 USD. Market share as reported by IDC CYQ2 2018 Hardcopy Peripherals Tracker. Claim based on research of printer manufacturer’s mobile print apps and Keypoint Intelligence - Buyers Lab hands-on testing and study commissioned by HP. See September 2018 report at http://www.keypointintelligence.com/HPSmartApp.
- [3] Wireless performance is dependent upon physical environment and distance from the access point. Wireless operations are compatible with 2.4 GHz routers only; excludes wireless direct. Wireless direct may require driver or apps be installed and connected on wireless-enabled mobile device or PC. Wireless functionality may vary by computer and mobile operating systems, see http://hpconnected.com. Print times and connection speeds may vary. AirPrint™ supports macOS Mojave, iOS 4.2 or later and requires the printer be connected to the same network as your macOS or iOS device. AirPrint, the AirPrint Logo and macOS are trademarks of Apple Inc. Windows is a trademark of the Microsoft group of companies.
- [7] Compared with HP Smart Tank/Ink Tank All-in-One Printer series. Excludes first set of ISO test pages. For details, see http://hp.com/go/printerclaims.
- [4] Speed specifications have been updated to reflect current industry testing methods.
- [8] Mobile device needs to be connected to Wi-Fi Direct® signal of a Wi-Fi Direct-supported AiO or printer prior to printing. Details at http://hp.com/go/mobileprinting. Wi-Fi Direct® is a registered trademark of Wi-Fi Alliance®.
- [5] Either after first page or after first set of ISO test pages. For details see: http://hp.com/go/printerclaims
- [9] When used in accordance with set up instructions.
- [6] Average based on ISO/IEC 24711 or HP testing methodology and continuous printing. Actual yield varies considerably based on content of printed pages and other factors. For details see http://hp.com/go/learnaboutsupplies
- [10] HP ink bottles compared to HP ink cartridges. Cost per page based on expected black and composite (cyan/magenta/yellow) page yield results based on HP methodology and continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For more information about fill and yield, see http://hp.com/go/learnaboutsupplies.
- [12] Best in-class plain paper and photo print quality using OEM inks compared to majority of leading non-HP OEM CISS ink tank platforms
