Technical specifications
Product
| UPC number | 193808983924 |
|---|---|
| Product type | Printer accessories |
| UNSPSC code | 44103116 |
Storage
| Storage temperature range | -40 to 125°C |
|---|
Display
| Resolution (black and white, standard mode) | 203 x 98 dpi |
|---|
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Dimensions (W x D x H) | 4.76 x 1.63 x 0.65 in |
|---|---|
| Weight | 0.94 oz |
Package
| Package dimensions (W x D x H) | 295 x 204 x 114 mm |
|---|---|
| Pallet dimensions | 47.2 x 39.4 x 46.9 in |
| Pallet dimensions (W x D x H) | 1200 x 1000 x 1192 mm |
| Count of layers in pallet | 9 |
| Quantity per pallet | 180 |
| Package weight | 0.90 lb |
| Pallet weight | 202.4 lb |
Warranty and service
| Manufacturer Warranty | Free telephone support for basic setup, installation, and troubleshooting in North America, Europe, and Asia Pacific during warranty; |
|---|---|
| Warranty | 90 Day HP or Dealer Exchange. Warranty and support options vary by product, country and local legal requirements. |
Other
| What's in the box | HP MFP Analog Fax Accessory 701; phone cables; Install Guide; PCB Support; Regulatory Label |
|---|---|
| Registration required | No |
| Electromagnetic compatibility | CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032: 2012 (EU) - Class A, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010, EMC Directive 2014/30/EU, FCC CFR 47 Part 15 Class A/ICES-003, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| FCC Class A emissions | FCC Class A emissions - for use in commercial environments, not residential environments |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2014/IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries. |
| Telecom compliance (fax capability) | Telecom Wired: ES 203 021-1 v2.1.1; ES 203 021-2 v2.1.2; ES 203 021-3 v2.1.2; FCC Rules and Regulations 47 CFR Part 68 |
| Compatibility | T3U55A, J7Z09A, J7Z10A, J7Z08A, Z5G76A, J7Z14A, Z5G78A, J7Z05A, 2CF58A, 2CF60A, 2CF59A, Z5G79A, 2LF96A, 2CF56A, 2CF57A, J7Z03A, Z5G77A, J7Z07A, J7Z13A, X3A79A, X3A82A, X3A68A, X3A71A, X3A74A, X3A69A, X3A72A, X3A75A, Z8Z18A, Z8Z20A, Z8Z22A, Z8Z19A, Z8Z21A, Z8Z23A, X3A69A, X3A72A, X3A75A, X3A68A, X3A71A, X3A74A, X3A77A, X3A80A, X3A83A, X3A78A, X3A81A, X3A84A, Z8Z01A, Z8Z03A, Z8Z05A, Z8Z00A, Z8Z02A, Z8Z04A, X3A64A, X3A61A, X3A80A, X3A83A, X3A78A, X3A81A, X3A84A, X3A76A, X3A73A, X3A86A, X3A89A, X3A92A, X3A87A, X3A90A, X3A93A, Z8Z13A, Z8Z15A, Z8Z17A, Z8Z12A, Z8Z14A, Z8Z16A, X3A86A, X3A89A, X3A92A, X3A87A, X3A90A, X3A93A, X3A59A, X3A62A, X3A65A, X3A60A, X3A63A, X3A66A, Z8Z09A, Z8Z06A, Z8Z08A, Z8Z10A, Z8Z07A, Z8Z11A, X3A70A, X3A67A, X3A60A, X3A63A, X3A66A, X3A62A, X3A59A, X3A65A, 5CM76A, 5CM75A, 5CM77A, 5RC91A, 5RC92A, 5CM78A, 5CM79A, 5FM89A, 5FM90A, 5CM59A, 5CM58A, 5CM60A, 5CM61A, 5FM76A, 5FM77A, 5FM78A, 5RC83A, 5RC84A, 5RC85A, 5CM69A, 5CM70A, 5RC89A, 5RC90A, 5CM71A, 5CM68A, 5CM72A, 5FM85A, 5FM86A, 5CM64A, 5CM63A, 5CM65A, 5CM66A, 5FM80A, 5FM81A, 5FM82A, 5RC88A, 5RC86A, 5RC87A, 5RC88A, J8J63A, J8J64A, 3GY14A, J8J70A, 3GY16A, 3GY17A, 3GY15A, 3GY18A, 4PZ43A, 4PZ44A, 4PZ45A, 4PZ46A, Y3Z60A, Y3Z61A, Y3Z65A, Y3Z64A, Y3Z62A, Y3Z66A, Y3Z63A, Y3Z68A, 1PV64A, 1PS55A, 1PS54A, J8A10A, 3GY31A, 3GY32A |
| Business filter | cMPS |
| Non-Operating Humidity Range | 10 to 80% RH |
| Operating humidity range | 30 to 70% RH |
| Operating temperature range | 32 to 158°F |
| Fax Auto Redial | Yes |
| Fax certification | ITU-T G3, Super G3 |
| Country of origin | Product of China |
| Image legal disclaimer | Product image may differ from actual product |
| Segment | Business; Enterprise |
| Cartons per layer | 20 |
| Product count per unit | 1 |
| Company | HPI |

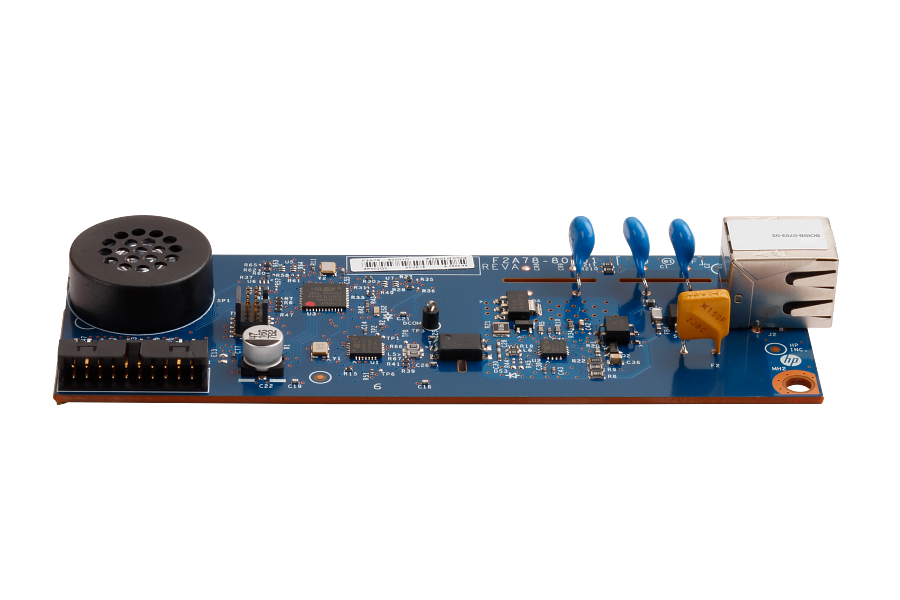

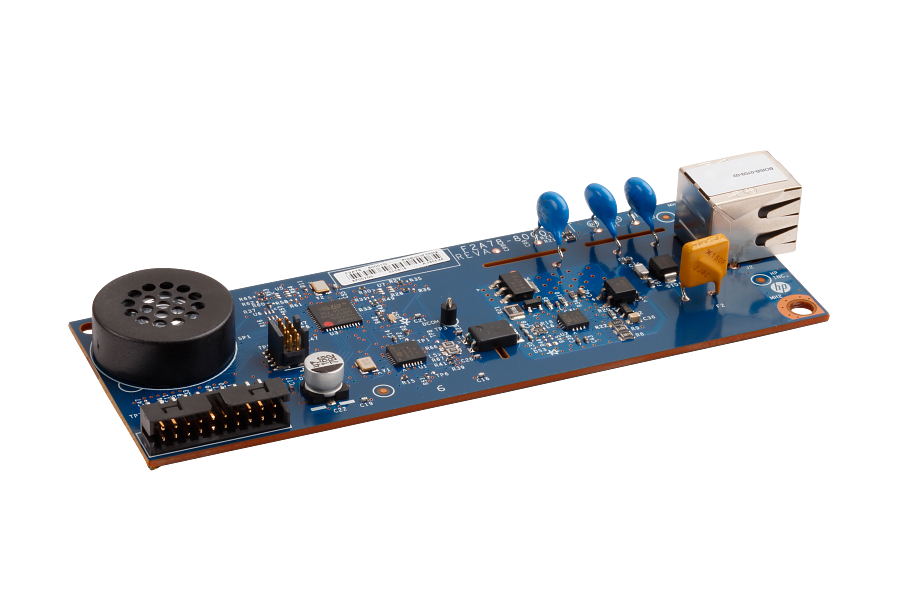

| Product long name | HP MFP Analog Fax Accessory 701 |
| Tariff numbers | 8517620010 |
| Orderable product number | 5UT59A |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
| Material Type for item | FERT |
