SKU: 7FR22A

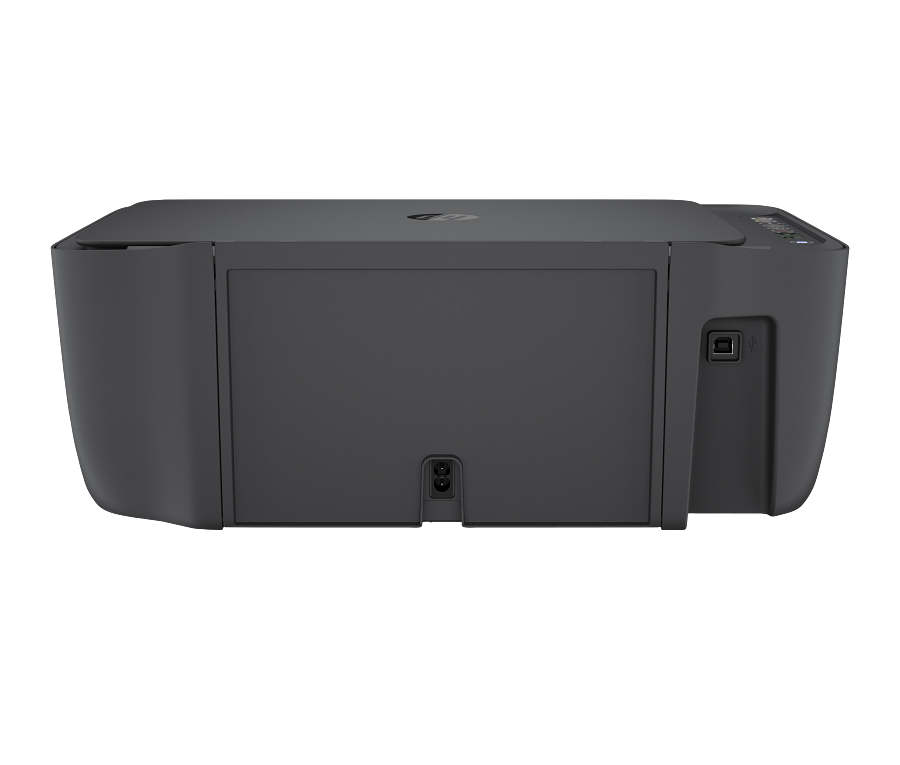

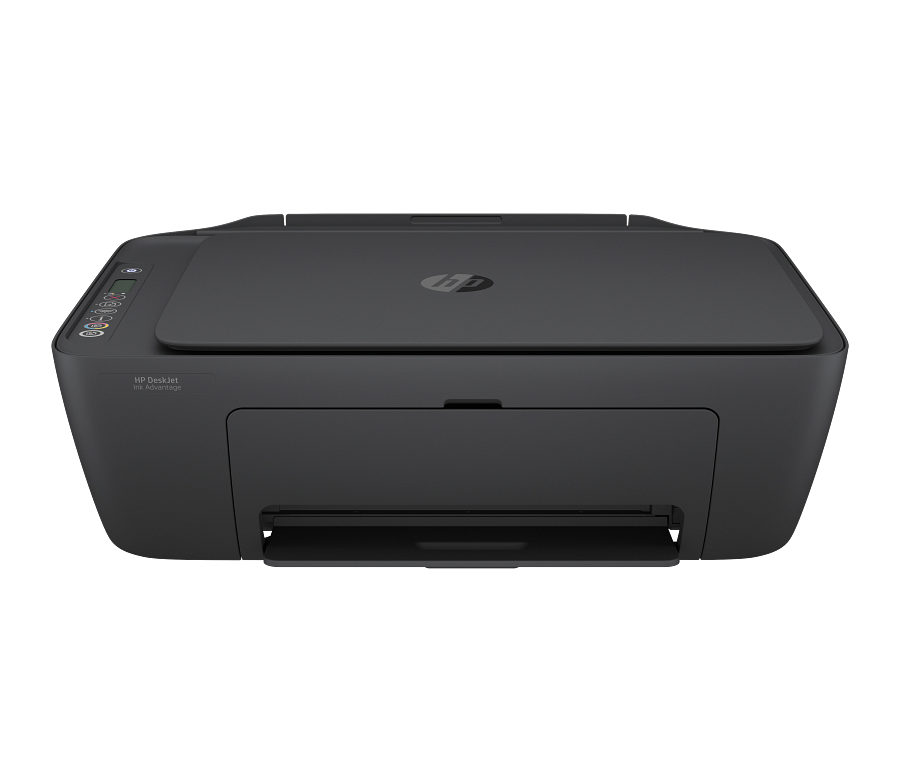

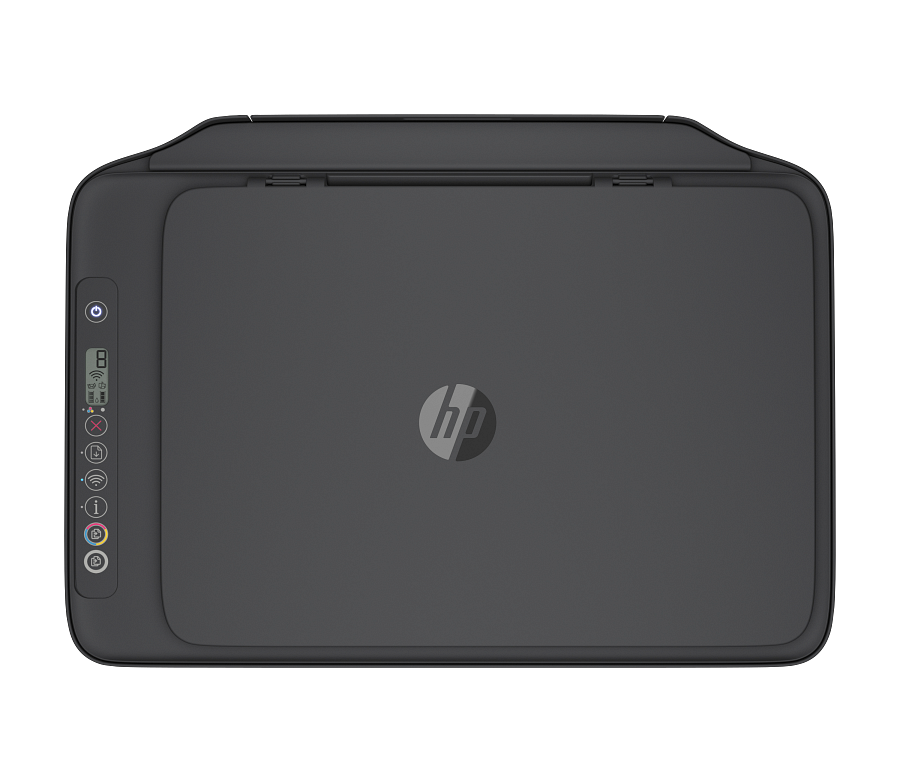

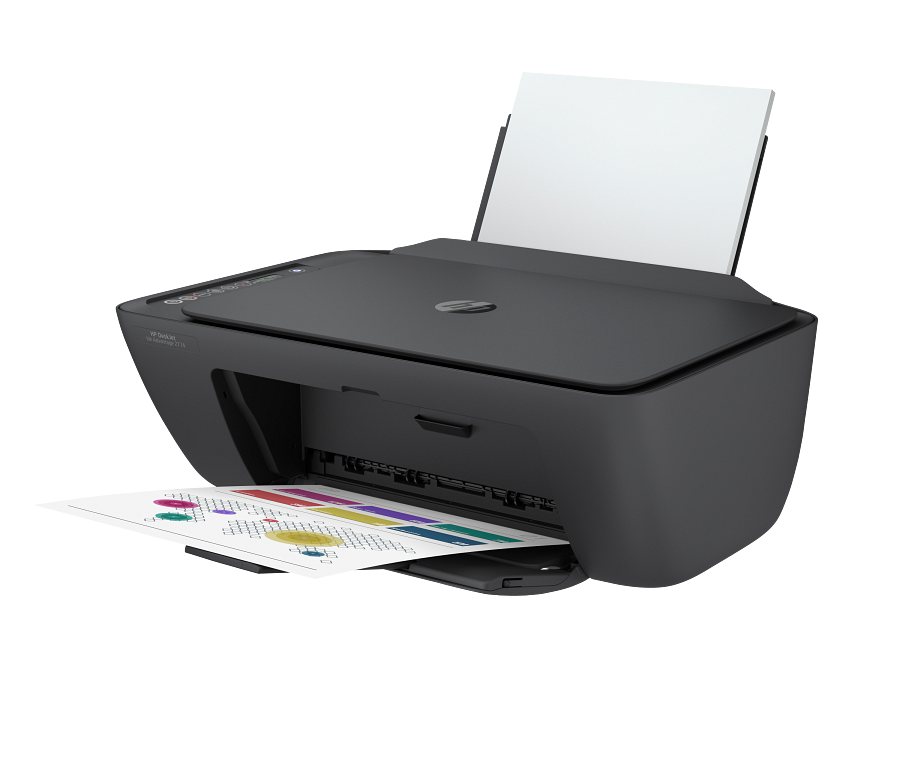

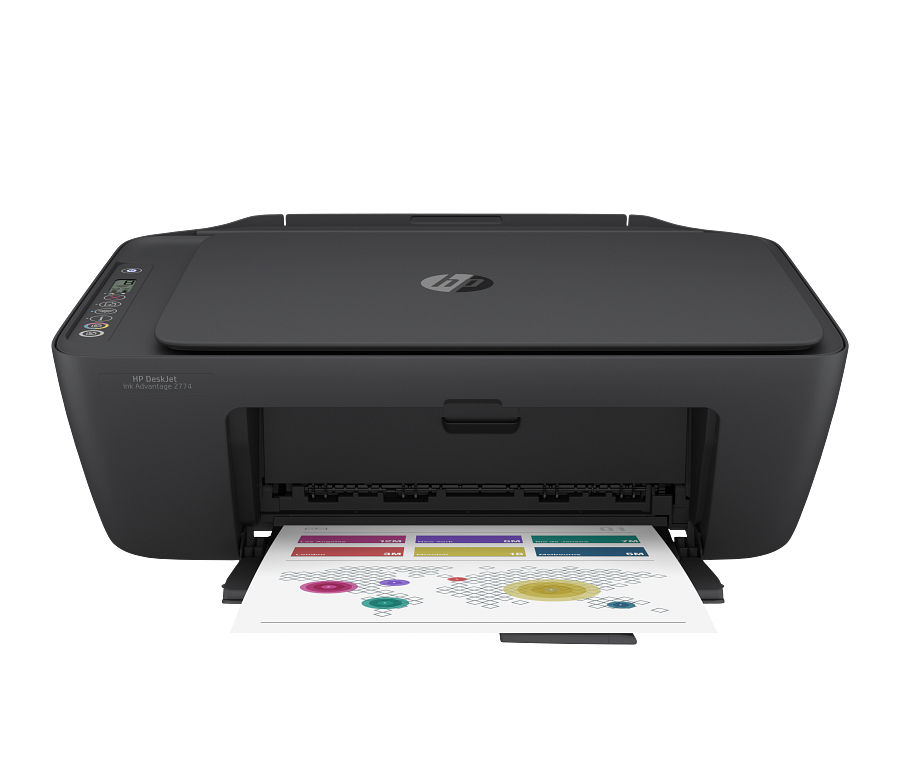

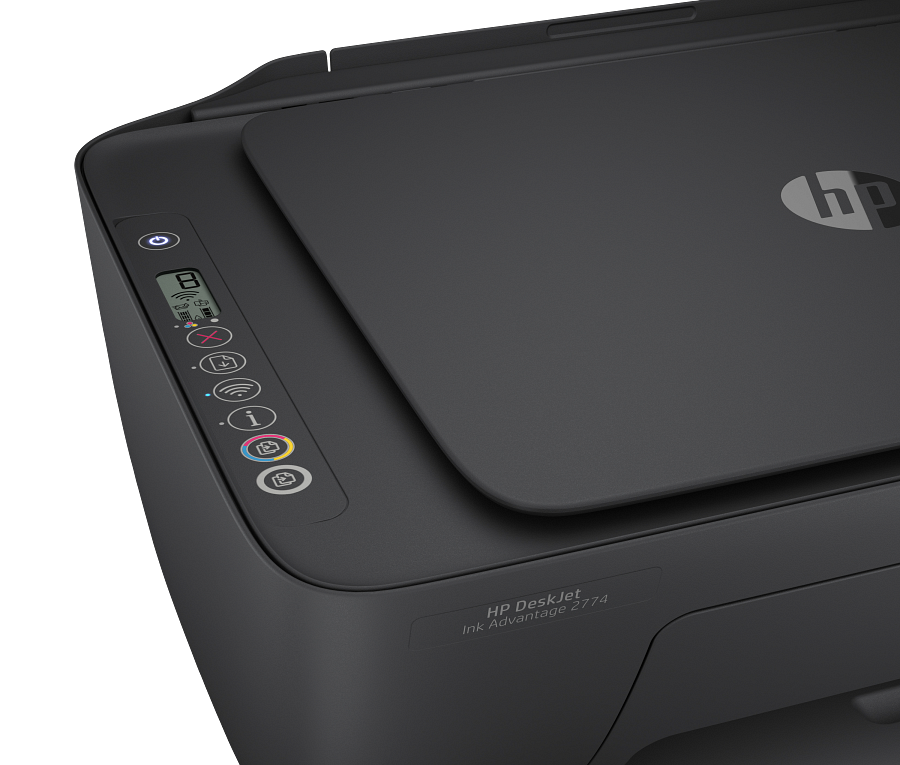

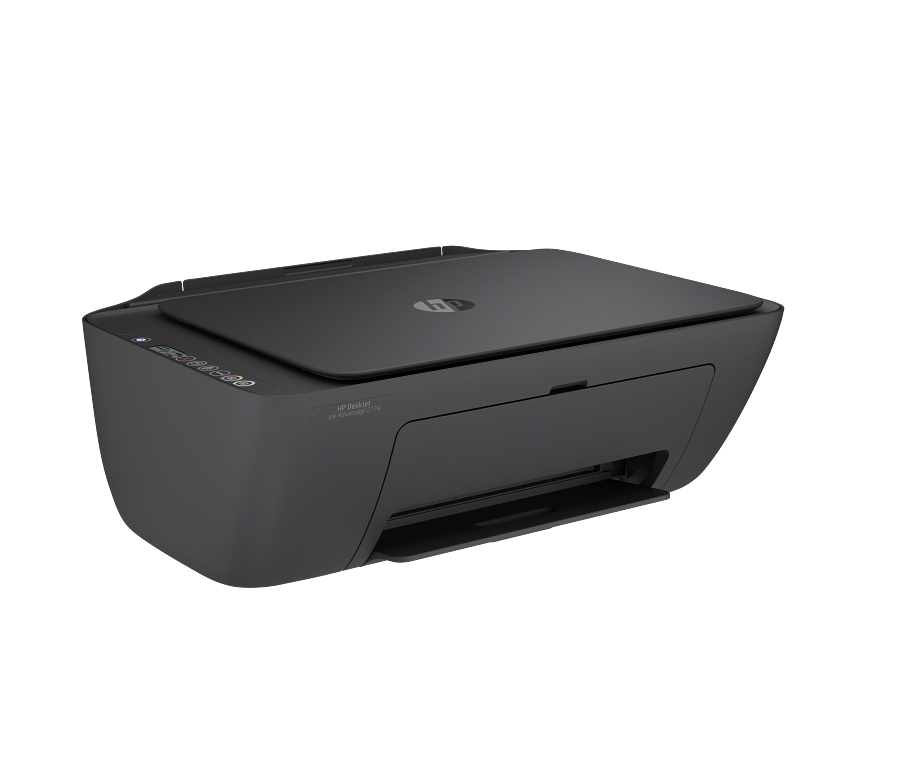

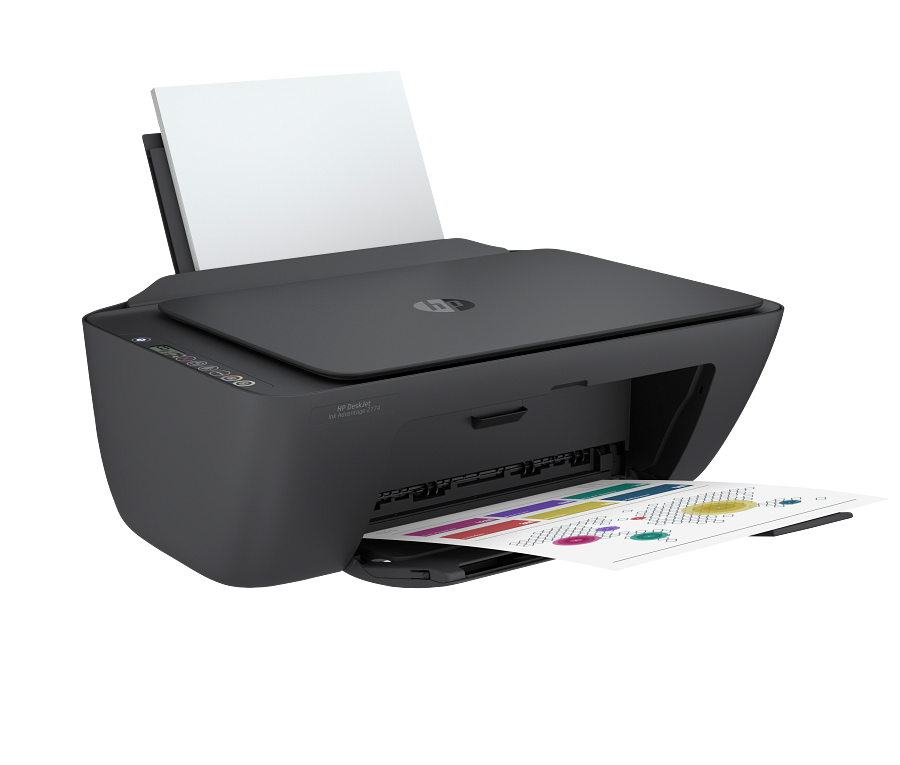

HP DeskJet Ink Advantage 2774 All-in-One Printer
- Print technology
- Ink
- Display
- Icon LCD display
- Memory
- 86 MB
Contact us for pricing
Key features
- Print from mobile device
- Seamless setup
- Your reliable connection
- Printing from your smartphone just got easier
- Amazing scanning, now on your smartphone
- Tackle the essentials
- Ready. Set. Connect.
- Connect your printer with USB
- Extend your printing reach
- Exceptional HP print quality
Technical specifications
Product
| UPC number | 195161151279 |
|---|---|
| Product type | Inkjet printers |
| Subcategory | Single and multifunction printers |
Memory
| Maximum Memory | 512 MB DDR1; 160 MB flash |
|---|---|
| Memory | 86 MB |
Storage
| Storage altitude | 4500 m |
|---|---|
| Storage temperature range | -40 to 60°C |
Display
| Display | Icon LCD display |
|---|
Wireless
| Wireless capability | Yes, built-in Wi-Fi 802.11a/b/g/n |
|---|
Battery and power
| Power supply type | Internal |
|---|
Software
| Compatible Operating Systems | Windows 11; Windows 10; Windows 7; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11 Big Sur; Chrome OS |
|---|
| Video action printing supported | No |
|---|---|
| Print Technology | Ink |
| Mobile printing capability | Apple AirPrint™; Chrome OS; HP app |
| Acoustic power emissions (active, printing) | 6.2 B(A) |
| Print speed, black | 7.5 |
| Print speed, color | 5.5 |
| Print quality black (best) | Up to 1200 x 1200 rendered dpi |
| Print quality color (best) | Up to 4800 x 1200 optimized dpi color (when printing from a computer on selected HP photo papers and 1200 input dpi) |
| Print speed black (ISO) | Up to 7.5 ppm |
| Print speed color (ISO) | Up to 5.5 ppm |
| Print speed | Print speed up to 7.5 ppm (black) and 5.5 ppm (color) |
| Print speed black (draft, A4) | Up to 20 ppm |
| Print speed color (draft, A4) | Up to 16 ppm |
| Print speed color (normal, 4x6 photo) | As fast as 65 sec |
| Duplex printing | Manual (driver support provided) |
Copy and scan
| Copy resolution (black graphics) | Up to 300 x 300 dpi |
|---|---|
| Acoustic power emissions (active copy) | 6.1 B(A) |
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
Paper handling
| Paper size | A4; Letter; B5; Legal |
|---|---|
| Paper trays, maximum | 1 |
Physical
| Print Cartridge/Bottle, Color(s) | Black; Cyan; Magenta; Yellow |
|---|---|
| Print colors maximum | 4 |
| Maximum dimensions (W x D x H) | 425 x 546 x 250 mm (Output Extension fully out) |
| Dimensions (W x D x H) | 425 x 304 x 154 mm |
| Dimensions with trays up (W x D x H) | 425.2 x 546.6 x 250 mm |
| Color or black | Color |
| First page out color (A4, ready) | As fast as 19 sec |
| Print colors | Yes |
Package
| Package dimensions (W x D x H) | 475 x 191 x 354 mm |
|---|---|
| Pallet dimensions (W x D x H) | AMS/AP: 1219.2 x 1016 x 2261 mm; EMEA: 1200 x x 1000 x 2261 mm |
| Count of layers in pallet | 6 |
| Quantity per pallet | 72 |
Sustainability
| Sustainability specifications | None |
|---|
Warranty and service
| Manufacturer Warranty | One-year limited hardware warranty; 24-hour, 7 days a week support |
|---|---|
| Network protocols, supported | Wireless Network Supported |
| Service & support features | With services, software, solutions and support from HP Total Care, you can use, protect and enjoy your HP technology; one-year technical support; one-year limited hardware warranty; access to 24/7 award-winning support services through http://www.hp.com/support; to improve your product experience, please take the time to register at http://www.register.hp.com |
Other
| Connection type | Wireless |
|---|---|
| Minimum System Requirements | Windows 10, 7: 1 GHz 32-bit (x86) or 64-bit (x64) processor, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer |
| What's in the box | HP DeskJet Ink Advantage 2774 All-in-One; HP 667 Setup Black Cartridge; HP 667 Setup Tri-color Cartridge; Regulatory flyer; Setup guide; Reference guide; Power cord 1.5 m [For ink volume and page yield information, visit http://hp.com/go/learnaboutsupplies] |
| Power consumption | 1.7 watts (ready), 0.9 watts (sleep), 0.1 watts (auto-off), 0.1 watts (off) |
| Power | Input voltage: 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). Input voltage: 200 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz) (China & India). Not dual voltage, power supply varies by part number with # Option code identifier. |
| Cable included | AP: Yes, 1.5 (USB) cable; AMS, EMEA: No, please purchase (USB) cable separately |
| Ink types | Dye-based (color); Pigment-based (black) |
| Page yield (set-up/inbox cartridges) | ~120 pages black, ~75 pages tri-color |
| Print Cartridges/Bottle, Number | 2 (1 each black, tri-color) |
| Print head nozzles | 328 (black), 588 (color) |
| Replacement cartridges | HP 667 Tri-color Original Ink Advantage Cartridge (~100 pages yield) 3YM78A; HP 667 Black Original Ink Advantage Cartridge (~120 pages yield) 3YM79A; HP 667XL Black High-Yield Original Ink Advantage Cartridge (~480 pages yield) 3YM81A; HP 667XL Tri-Color High-Yield Original Ink Advantage Cartridge (~330 pages yield) 3YM80A. Actual yield varies considerably based on content of printed pages and other factors. For details see http://www.hp.com/go/learnaboutsupplies |
| Segment (filter) | Home |
| Brand | HP |
| Sub brand | DeskJet Ink Advantage |
| Electromagnetic compatibility | EN 55032:2015 / CISPR 32:2015 Class B, EN 55024:2010 / CISPR 24:2010, EN 55035:2017 / CISPR 35:2016, EN 61000-3-2:2014 / IEC 61000-3-2:2014, EN 61000-3-3:2013 / IEC 61000-3-3:2013, FCC CFR 47 Part 15 Class B, ICES-003, Issue 6 Class B, EN 301 489-1 V2.1.1:2017, EN 301 489-17 V3.1.1:2017 |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013, EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC 62368-1:2014, EN 62368-1:2014 +A11:2017, EN 62479:2010, EN 62311:2008 |
| Telecom compliance (fax capability) | N/A |
| Orderable supplies | HP 667 Tri-color Original Ink Advantage Cartridge 3YM78A; HP 667 Black Original Ink Advantage Cartridge 3YM79A; HP 667XL Black High-Yield Original Ink Advantage Cartridge 3YM81A; HP 667XL Tri-Color High-Yield Original Ink Advantage Cartridge 3YM80A |
| Connectivity | Apple AirPrint™; Wireless (Wi-Fi®) |
| Number of users | 1-3 Users |
| Connectivity, standard | 1 Hi-Speed USB 2.0 |
| Network capabilities | Built-in WiFi 802.11a/b/g/n |
| Copier settings | Auto-enlarge |
| Copies, maximum | Up to 9 copies |
| Acoustic pressure emissions | 48 dB(A) |
| Non-Operating Humidity Range | 5 to 90% RH (non-condensing) |
| Operating altitude | Up to 3,000 m |
| Operating humidity range | 15 to 80% RH (non-condensing) |
| Recommended operating humidity range | 20 to 80% RH (non-condensing) |
| Operating temperature range | 5 to 40°C |
| Recommended operating temperature range | 15 to 30°C |
| Functions | Multifunction / All-in-One |
| Form factor | All-in-One |
| Country of origin | Made in China |
| Geographic availability | LA |
| Differentiator (features) | Keep it simple |
| Why to buy | Designed for a hassle-free experience for printing, scanning, and copying everyday documents, you’ll get faster, more reliable connections.[1] Set up with HP app and you’re ready to go on any device.[2] |
| Headline | Designed to help keep you connected. Dual-band Wi-Fi® with self-reset enables better range and faster, more reliable connections.[1] Plus, you can easily connect through your USB port. |
| Key selling point | Original HP ink cartridges deliver sharp text and vibrant graphics for all your everyday documents and photos. |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | High speed USB, Works with Microsoft Vista; Windows 7; Windows 10; Mac Simley, Mac Universal; Mopria, Wi-Fi Certified, Bluetooth, Airprint, ColorLock, Instant Ink (for countries that apply), WeChat (for countries that apply), Energy Star (For countries that apply), Recycle, Fragile, keep out of rain, this side up, PAP20 (for countries that apply), HP Total Care, Smart Way (for countries that apply), Stack height (NA:6, EMEA 6, AP 5), CE (for countries that apply), Green Dot (for countries that apply), Tidy Man (for countries that apply), EAC Logo (for countries that apply), KCCC Logo + approval number (Korea), AP Language bubble (AP only), RMN (regulatory model number), Regionalize mobius loop |
| Monthly printed pages | 100 |
| Cartons per layer | 12 |
| Maximum print area | 215 x 355 mm |
| Bottom margin (A4) | 12.7 mm |
| Left margin (A4) | 3 mm |
| First page out black (A4, ready) | As fast as 15 sec |
| Duty cycle (monthly, A4) | Up to 1000 pages |
| Duty cycle (monthly, letter) | Up to 1,000 pages |
Notes and footnotes
- [1] Wireless operations are compatible with 2.4 GHz and 5.0 GHz operations only. Learn more at http://hp.com/go/mobileprinting. Wi-Fi is a registered trademark of Wi-Fi Alliance®. Supports both 5.0 GHz and 2.4 GHz using up to 12 non-overlapping channels vs only 3 non-overlapping channels for 2.4 GHz only. Supports 5.0 GHz band (up to 150 mbps) vs 2.4 GHz band (up to 72.2 mbps). Internet access required and must be purchased separately.
- [2] Requires the HP app download. For details on local printing requirements see http://hp.com/go/mobileprinting. Certain features/software are available in English language only. Internet access required and must be purchased separately.
- [3] Mobile device needs to support Bluetooth v4.2+ and be enabled. A mobile app such as HP ePrint or HP Smart must be installed and opened for printing. Mobile device must be within 5 feet of the printer. For details, see http://www.hp.com/go/bleprinting. Bluetooth is a trademark owned by its proprietor and used by HP under license.
- [1] Dimensions vary as per configuration
- [4] Wireless operations are compatible with 2.4 GHz and 5.0 GHz operations only. Learn more at http://hp.com/go/mobileprinting. Wi-Fi is a registered trademark of Wi-Fi Alliance®.
- [5] USB cable not included; purchase separately.
- [2] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
- [3] Speed specifications have been updated to reflect current industry testing methods.
- [4] Average based on ISO/IEC 24711 or HP testing methodology and continuous printing. Actual yield varies considerably based on content of printed pages and other factors. For details see http://hp.com/go/learnaboutsupplies
- [5] Either after first page or after first set of ISO test pages. For details see http://www.hp.com/go/printerclaims
- [6] Either after first page or after first set of ISO test pages. For details see http://www.hp.com/go/printerclaims
- [7] For more information about page yields for replacement cartridges see http://hp.com/go/learnaboutsupplies for setup cartridges click on Setup supplies link on the same page.
- [8] Local printing requires mobile device and printer to be on the same network or have a direct wireless connection to the printer. Wireless performance is dependent on physical environment and distance from access point. Wireless operations are compatible with 2.4 GHz operations only. Remote printing requires an Internet connection to an HP web-connected printer. App or software and HP app account registration may also be required. Wireless broadband use requires separately purchased service contract for mobile devices. Check with service provider for coverage and availability in your area. Learn more at http://www.hp.com/go/mobileprinting
