SKU: 7K6D9AA
HP Integrated Remote System Controller
- OS
- Ubuntu 18.04 LTS
Contact us for pricing
Key features
- Redfish®
- Hardware Alerts and Reports
- HP Remote System Management
- Embedded Software
- Two Form Factors
- Advantage with Z by HP Workstations
- Remote Power Control
- Bare Metal Imaging
- Virtual Media
- Security You Need. Control You Want.
Technical specifications
Product
| UNSPSC code | 52161525 |
|---|
Ports
| Ports | External: 1 USB Type-A 5Gbps signaling rate; 1 Mini DisplayPort™; RJ-45; Internal: 1 Z Desktop Power and Signal Interface; 1 USB 5Gbps signaling rate |
|---|
Software
| Operating system | Ubuntu 18.04 LTS |
|---|
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Dimensions (W x D x H) | 112 x 72 x 20 mm |
|---|---|
| Weight | 126.4 g |
| Weight note (metric) | Weight does not include cables, half-height bracket, or packaging, and is only the HP Anyware Integrated Remote System Controller with the full-height PCIe bracket installed by default. |
Package
| Package dimensions (W x D x H) | 184 x 232 x 57 mm |
|---|
Warranty and service
| Manufacturer Warranty | HP standard one-year limited warranty |
|---|
Other
| Security | Discrete TPM 2.0 chip; Secure Boot requires HP-Signed Images; Network traffic encrypted with TLS 1.2; Network traffic requires X-Auth-Token exchanges |
|---|---|

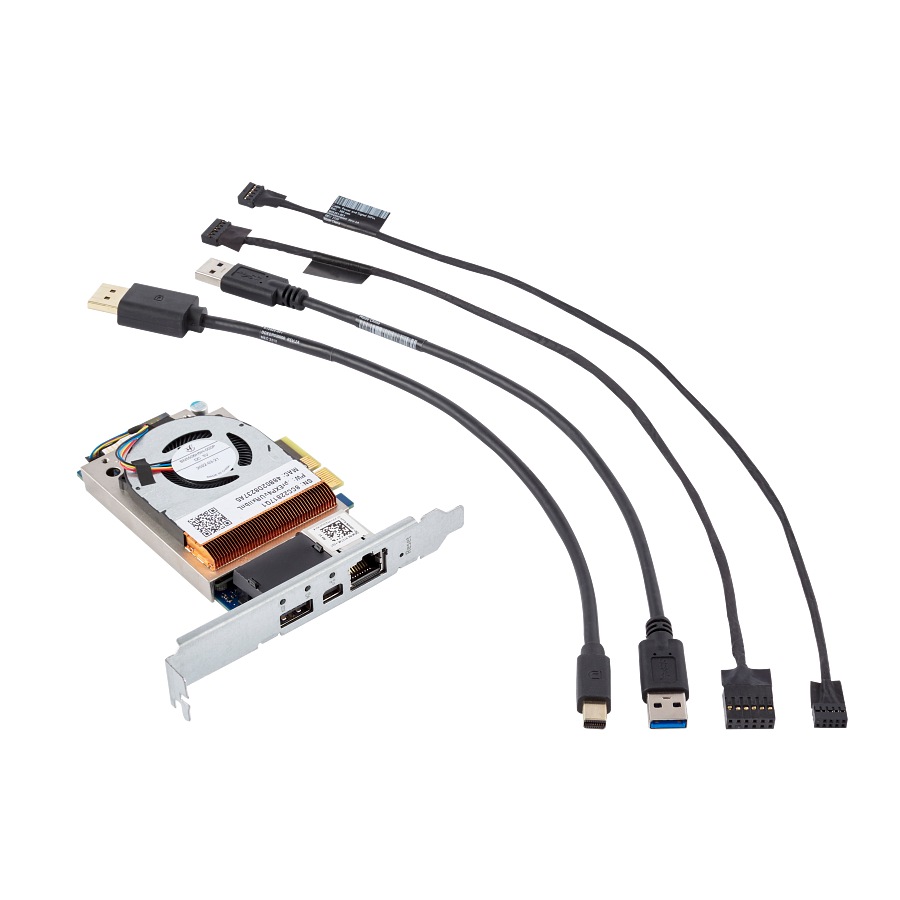

| What's in the box | HP Integrated Remote System Controller with PCIe Half-Height Bracket; DisplayPort™ to Mini DisplayPort™ cable; RSC Power and Signal; Main Board Adapter cable (380 mm); Internal USB3 cable; 1 external USB Type-A to type-A cable; Quick Start Guide |
| Registration required | No |
| Compatibility | Compatible with the Engage Flex Pro G2, Engage Flex Pro-C G2, Z2 Small Form Factor G9, Z2 Tower G9 Z2 Small Form Factor G1i, Z2 Tower G1i, Z4 Rack G5, and Z4/Z6/Z6A/Z8 G5 platforms. When using the HP Integrated Remote System Controller with the ZCentral 4R and Z4/Z6/Z8 G4 platforms, the HP Z4/Z6/Z8 G4/ZCentral 4R Remote System Controller Cable Adapter(7K6E5AA) is required to supply auxiliary power to the HP Integrated Remote System Controller, as well as power control, and host power status. Not compatible with Z2 Mini G9 due to size. |
| Operating temperature range | 32 to 131°F |
| Country of origin | China |
| Headline | Workstation Fleet Management – From Anywhere |
| Key selling point | Deploy an ideal solution with flexible options across hardware and software. Choose an internal or external controller—compatible with Z by HP workstations[4] and other compute devices[5]—and embedded or browser-based public cloud management software.[3] |
| Legal disclaimer | Actual product may vary from image shown. |
| Legal disclaimer [01] | [6] Full suite of hardware alerts available with select Z desktop workstations. |
| Legal disclaimer [02] | [7] HP Remote System Management required to view consolidated reports from all devices paired with HP Remote System Controller or HP Integrated Remote System Controller. |
| Legal disclaimer [03] | [8] Viewing system information is only available when paired with select Z desktop workstations. |
| Legal disclaimer [04] | [9] HP Integrated Remote System Controller not compatible with Z2 Mini platforms and not recommended for non-Z devices. |
| Legal disclaimer [05] | [10] Based on HP’s unique and comprehensive security capabilities at no additional cost among desktop workstation vendors as of January 2017 on HP Desktop Workstations with 7th Gen and higher Intel® Processors. |
| Legal disclaimer [06] | [11] Remote Power Control feature only available when HP Remote System Controller or HP Integrated Remote System Controller is paired with select Z desktop workstations. |
| Overview | This remote out-of-band management solution gives you the power to monitor and manage a workstation fleet without compromising control, all from a single interface. Quick-to-deploy, scalable, and with strong security— now you can provide support and maintenance from anywhere.[1] |
| Company | HPI |
| Code name | Icicle |
| Product long name | HP Integrated Remote System Controller |
| Management features | Remote KVM; Power control; Fleet management; Bare Metal imaging; Hardware alerts and diagnostics; System information; Hardware inventory |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
| Material Type for item | FERT |
Notes and footnotes
- An external version of this product is available called HP Remote System Controller (7K6D7AA). The latest BIOS update is required so the host provides power to the HP Integrated Remote System Controller in all host power states. By installing the HP Z4/Z6/Z8 G4/ZCentral 4R Remote System Controller Cable Adapter, power will be stolen from the front USB ports on the host. This was necessary to be able to power the Remote System Controllers in all power states, and it leaves the front USB ports unpowered and unusable.
- HP Anyware Integrated Remote System Controller only; not including PCIe Bracket or cables
- [1] Internet access required.
- [2] Internet access required. Automation of tasks available with select Z desktop workstations.
- [3] Internet access required. Fleet management requires HP Remote System Management.
- [1] Manageability features are dependent upon host system. The full set of manageability features is only available with HP Z2 G9 and beyond and HP Z4/6/8 G5 and beyond. For legacy Z workstations and non-Z compute devices, the feature set is limited. Fleet management is supported through the HP Remote System Management public cloud software, which is a licensed product.
- [4] HP Integrated Remote System Controller not compatible with Z2 Mini platforms and not recommended for non-Z devices.
- [5] HP service and support not available for non-Z devices.
- [2] The latest security updates for Ubuntu 18.04 will be applied as they become available.
- [3] The Internal USB cable is only supported on the Z4/Z6/Z8 G4 and G5 platforms. The header is leveraged from the Media Card Reader interface, so when the Media Card Reader is configured in the host, the external USB cable is required.
