HP Remote System Controller for Universal KVM

Back to Accessories (all)

SKU: 7K7N2AA

Request a quote

Key features

Redfish®
Hardware Alerts and Reports
HP Remote System Management
Embedded Software
Two Form Factors
Advantage with Z by HP Workstations
Remote Power Control
Bare Metal Imaging
Virtual Media
Security You Need. Control You Want.

Technical specifications

Product

UPC number	197192573013
UNSPSC code	52161525

Ports

Ports	Left: 1 RJ-45; 1 Z Desktop Power and Signal Interface; 1 Mini DisplayPort™; 1 USB Type-A 5Gbps signaling rate; Right: 1 Standard Kensington lock slot; 1 12 V DC power jack; 1 RJ-45

Copy and scan

Copyright notice	© Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

© Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Physical

Dimensions (W x D x H) Note	HP Anyware Remote System Controller only
Dimensions (W x D x H)	5.12 x 2.76 x 1.38 in
Weight	0.67 lb

Package

Package dimensions (W x D x H)	419 x 187 x 76.2 mm
Package weight	1.22 kg

Warranty and service

Manufacturer Warranty	HP standard one-year limited warranty

Other

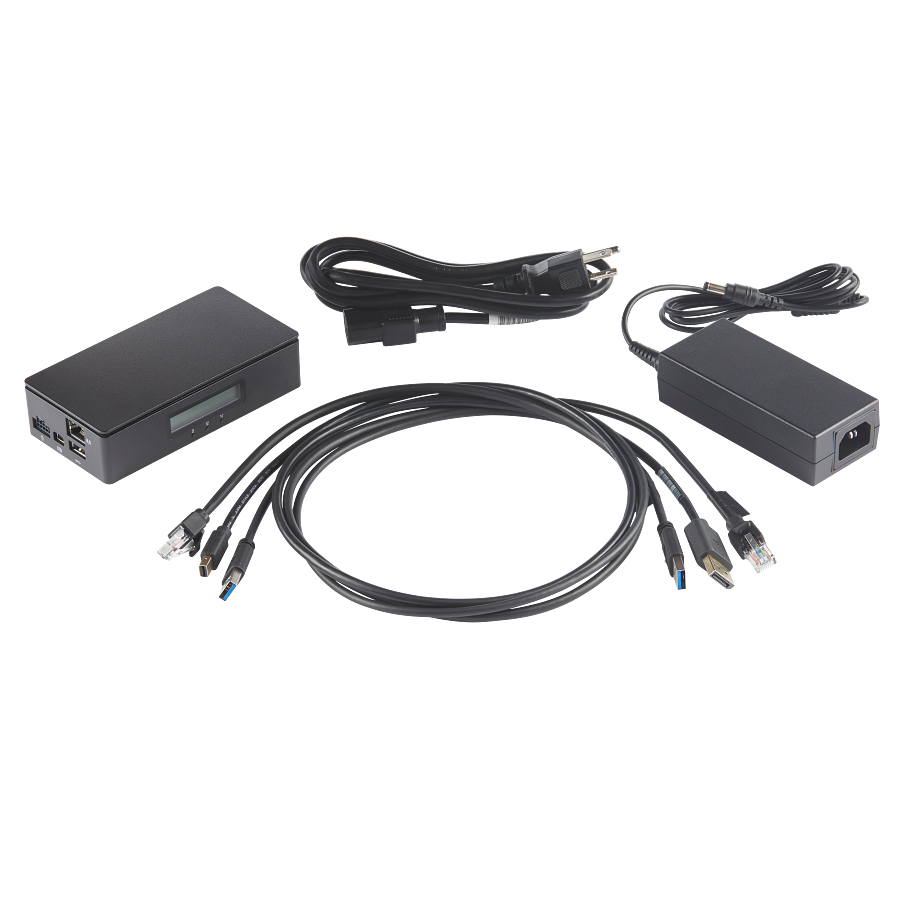

What's in the box	HP Remote System Controller; USB Type-A to Type-A cable (1 m); DisplayPort™ to Mini DisplayPort™ cable (1 m); CAT 5E Ethernet cable (1 m); LiteOn AC to DC adapter; Quick Start Guide
Power	Input: 100 - 240 VAC 50/60 Hz 1.2 A; Output: 12 VDC 3.33 A (40 W)
Registration required	No
Compatibility disclaimer 1	Not available for Ukraine, Morocco, or Cambodia
Compatibility	As a Universal KVM, all platforms are intended to be compatible if they can interface with both the DisplayPort™ Input and USB Input ports. Power Control, Host Power Status, and Host Power are available with the HP Z4/Z6/Z8 G4 and ZCentral 4R platforms when using the HP Z4/Z6/Z8 G4/ZCentral 4R Remote System Controller Cable Adapter (7K6E5AA) and the Main Board Adapter (included in 7K6D7AA or sold separately as 7K6D8AA. The Z2 G9 and Z4/Z6/Z8 G5 platforms and later all support full compatibility using the kit 7K6D7AA for the HP Remote System Controller.
Operating temperature range	32 to 104°F
Country of origin	China(, AB0, AKL, ABJ, ABA, ABY, ABZ, AKH, UUZ, AC8, ABU, AC4, AB1, ABM, ABT, ACQ, ABB, UUF, ACJ, ABG, AB2)
Headline	Workstation Fleet Management – From Anywhere
Key selling point	Deploy an ideal solution with flexible options across hardware and software. Choose an internal or external controller—compatible with Z by HP workstations[4] and other compute devices[5]—and embedded or browser-based public cloud management software.[3]
Legal disclaimer	Actual product may vary from image shown.
Legal disclaimer [01]	[6] Full suite of hardware alerts available with select Z desktop workstations.
Legal disclaimer [02]	[7] HP Remote System Management required to view consolidated reports from all devices paired with HP Remote System Controller or HP Integrated Remote System Controller.
Legal disclaimer [03]	[8] Viewing system information is only available when paired with select Z desktop workstations.
Legal disclaimer [04]	[9] HP Integrated Remote System Controller not compatible with Z2 Mini platforms and not recommended for non-Z devices.
Legal disclaimer [05]	[10] Based on HP’s unique and comprehensive security capabilities at no additional cost among desktop workstation vendors as of January 2017 on HP Desktop Workstations with 7th Gen and higher Intel® Processors.
Legal disclaimer [06]	[11] Remote Power Control feature only available when HP Remote System Controller or HP Integrated Remote System Controller is paired with select Z desktop workstations.
Overview	This remote out-of-band management solution gives you the power to monitor and manage a workstation fleet without compromising control, all from a single interface. Quick-to-deploy, scalable, and with strong security— now you can provide support and maintenance from anywhere.[1]
Company	HPI
Code name	Icicle
Product long name	HP Remote System Controller for Universal KVM
Product classification flag	Standard HP Product
Tangible flag	Y
Material Type for item	FERT

Notes and footnotes

The latest BIOS update is required so the host provides power to the HP Integrated Remote System Controller in all host power states. By installing the HP Z4/Z6/Z8 G4/ZCentral 4R Remote System Controller Cable Adapter, power will be stolen from the front USB ports on the host. This was necessary to be able to power the Remote System Controllers in all power states, and it leaves the front USB ports unpowered and unusable.
The RJ-45 port on the left side is a 1 GbE port intended for network pass through; An external power adapter is only required for use with non-Z desktop workstation systems. Z desktop workstations receive power through the Z Desktop Power and Signal Interface port
[1] Internet access required.
[2] Internet access required. Automation of tasks available with select Z desktop workstations.
[3] Internet access required. Fleet management requires HP Remote System Management.
[1] The AC power cord is localized to provide compatibility with most countries.
[4] HP Integrated Remote System Controller not compatible with Z2 Mini platforms and not recommended for non-Z devices.
[5] HP service and support not available for non-Z devices.
[2] The expected maximum wattage of the HP Remote System Controller is 18 W with idle power expected in the 4 - 5 W range.
[3] Power supply is only included with the HP Remote System Controller for Universal KVM (7K7N2AA), to provide power to the Remote System Controller when power from the host is not available.
