Key features
- Connections Galore
- Optimized Power
- Download, Upload, On the Road
- HP-Tested with a 3 Year Warranty
Technical specifications
Product
| Product type | Network accessories |
|---|---|
| UNSPSC code | 43201409 |
Storage
| Storage temperature range | -40°F to 185°F |
|---|
Wireless
| Wireless technologies | 4G LTE Advanced-Pro CAT16 Mobile Broadband |
|---|
Software
| Compatible Operating Systems | Windows 10; Windows 11 |
|---|
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Dimensions (W x D x H) | 42 x 31 x 2 mm |
|---|---|
| Weight | 7 g |
Package
| Master carton dimension (metric) | 29.6 x 19.7 x 25.1 cm |
|---|---|
| Package dimensions (W x D x H) | 9.13 x 5.83 x 0.39 in |
| Cartons per pallet | 100 |
| Layers per pallet | 5 |
| Products per pallet | 1800 |
| Products per pallet layer | 360 |
| Master carton weight (metric) | 1.4 kg |
| Package weight | 0.13 lb |
| Pallet weight | 308.2 lb |
Sustainability
| Environmental certification | Recycled materials? |
|---|---|
| Sustainability specifications | At least 15% post-consumer recycled plastic |
Warranty and service
| Manufacturer Warranty | HP Three-year limited warranty |
|---|
Other
| Minimum System Requirements | M.2 Key B port |
|---|---|
| What's in the box | Quick start poster; Warranty Card; Installation kit |
| Global navigation satellite system | GPS; GLONASS; Galileo; BDS |
| Registration required | No |
| Brand | HP |
| Compatibility disclaimer 1 | Only available with WWAN panel. |
| Compatibility | HP laptop requires configuration with WWAN panel |
| Compatibility Statement Note | Only available with WWAN panel models |
| Modulation type | LTE modulation: 3GPP Release 13, 100 MHz 5 DLCA, 256 QAM, 40 MHz 2 ULCA, 64 QAM |
| Operating temperature range | -20 to 65°C |
| Country of origin | Made in China |
| Headline | Connectivity and Global Flexibility |
| Key selling point | Travel the world without falling off the radar with dedicated cellular broadband. Enjoy constant connectivity across speedy, secure, and private LTE[1] networks. No more hunting down passwords or slogging through sketchy public Wi-Fi®. |
| Key selling point for SEO | Speedy, secure, and private LTE[1] connectivity almost anywhere. |
| Legal disclaimer | Actual product may vary from image shown. |
| Segment | Business |
| Cartons per layer | 20 |
| Overview | You need the internet...now, here, there, and everywhere. Stay connected swiftly and securely over LTE cellular networks at gigabit speed with optimized power consumption. The Intel® XXM™ 7560 R+ LTE-Advanced Pro[1] delivers dedicated broadband to select HP Business Notebooks. Now the world is truly within reach. |
| Product description for SEO | Connect with gigabit speed with Intel® XXM™ 7560 R+ LTE-Advanced Pro |
| Company | HPI |
| Code name | Patron 2 |

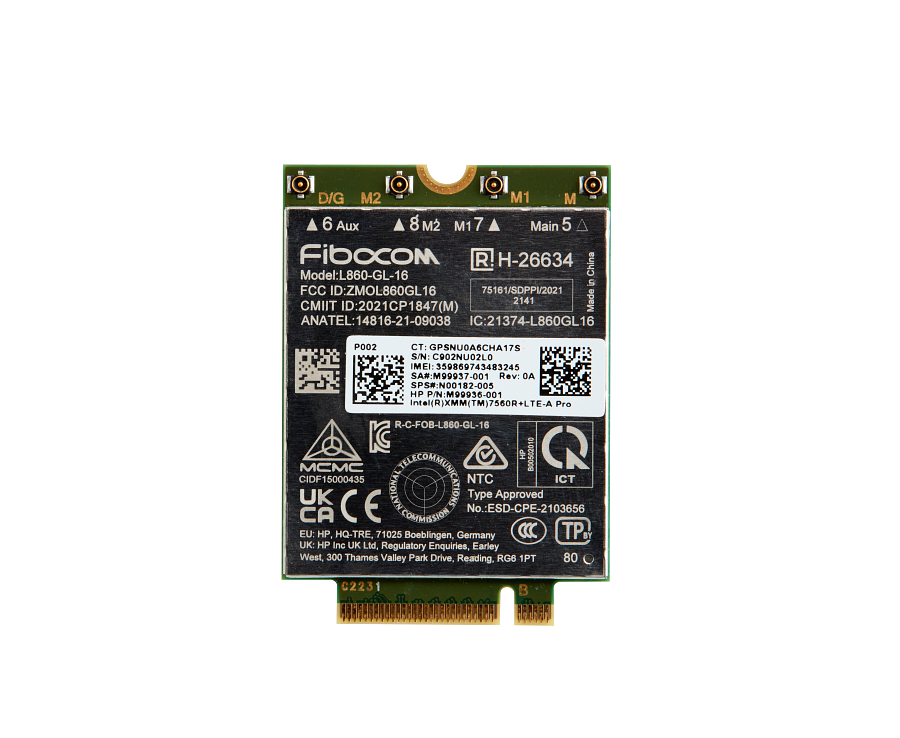

| Product long name | HP XMM 7560 R+ LTE-Advanced Pro WWAN |
| Product description | HP XMM 7560 R+ 4G LTE-Advanced Pro WWAN |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
| Material Type for item | FERT |
Notes and footnotes
- [1] Gigabit class Category 16 4G LTE module designed for up to 1 Gbps download speeds as carriers deploy 5 carrier aggregation and 100 Mhz channel bandwidth, requires activation and separately purchased service contract. Backwards compatible to HSPA 3G technologies. Check with service provider for coverage and availability in your area. Connection, upload and download speeds will vary due to network, location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions.
- [1] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT criteria.
