Technical specifications
Product
| UPC number | 19444185362 |
|---|---|
| Product type | Internal |
| Subcategory | Network print server |
| UNSPSC code | 43201537 |
Storage
| Storage temperature range | -40 to 158°F |
|---|
Software
| Compatible Network Operating Systems | Uses printer/MFP firmware. See the printer/MFP datasheet for compatible Network Operating Systems. |
|---|
Physical
| Dimensions (W x D x H) | 3.42 x 4.77 x 1.08 in |
|---|---|
| Weight | ~0.128 kg |
Package
| Case dimensions (case or master carton) | 23.5 x 15.6 x 6.3 in |
|---|---|
| Case or master carton dimensions (W x D x H) | 596 x 395 x 160 mm |
| Package dimensions (W x D x H) | 7.0 x 5.4 x 2.4 in |
| Pallet dimensions | 47.3 x 39.4 x50 in |
| Pallet dimensions (W x D x H) | 1200 x 1000 x1270 mm |
| Case or master carton quantity | 18 |
| Count of layers in pallet | 6 |
| Quantity per pallet | 540 |
| Package weight | ~0.32 kg |
| Pallet weight | 475.9 lb |
Warranty and service
| Manufacturer Warranty | One year HP or Dealer exchange warranty and support. Options vary by product, country, and legal requirements. (warranty code 4U, warranty ID A058) |
|---|---|
| IPP supported | Yes |
| Other network protocols supported | IPv4/IPv6: Apple Bonjour® compatible, SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, Port 9100, LPD, IPP, Secure-IPP, WS Discovery, WS Print, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode; AirPrint™, GCP 2.0, ePrint |
| Browser supported | Internet Explorer 6.0 or higher, Mozilla 2.x or higher, Firefox 2.x or higher, Safari, Google© Chrome |
| Warranty | Telephone support for basic set-up, installation, and troubleshooting during warranty. www.hp.com/support |
Other
| What's in the box | HP Jetdirect LAN; USB cable; Velcro Kit; Install Guide |
|---|---|
| Power | Powered from the product USB Host port |
| Registration required | No |
| Category | Network Print Servers |
| Electromagnetic compatibility | CISPR 22:2008 (International) Class A, CISPR 32:2012 (International) Class A / EN 55032:2012 Class A, CISPR 35:2016 (International) Class A / EN 55035:2017 Class A, EN 55024:2010 +A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR 47 Part 15 Class A, ICES-003, Issue 6 Class A. Other EMC approvals as required by individual countries. |
| FCC Class A emissions | FCC Class A emissions - for use in commercial environments, not residential environments |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries. |
| Network type | Ethernet; Fast Ethernet; Gigabit Ethernet |
| Connectivity, standard | Ethernet; Fast Ethernet; Gigabit Ethernet; 802.3; RJ-45 (10/100Base-TX/1000T); Hi-Speed USB 2.0 |
| Metric depth | 395 mm |
| Metric height | 160 mm |
| Metric width | 596 mm |
| Business filter | cMPS |
| Component type | Printer accessories |
| Non-Operating Humidity Range | 15 to 95% at 65°C (149°F) |
| Operating humidity range | 15 to 95% at 40°C (104°F) |
| Operating temperature range | 32 to 104°F |
| Country of origin | China |
| Image legal disclaimer | Product image may differ from actual product |
| Taxonomy | Printer and Driver Management; Network Print Servers |
| Segment | Business |
| Cartons per layer | 5 |
| Product count per unit | 1 |
| Print server type | External |
| Accessory type | Connectivity |
| Photo (product photo, jpg, 70x100) | Printing and Digital Imaging/jetdirect-635n_70x100.jpg |
| Company | HPI |

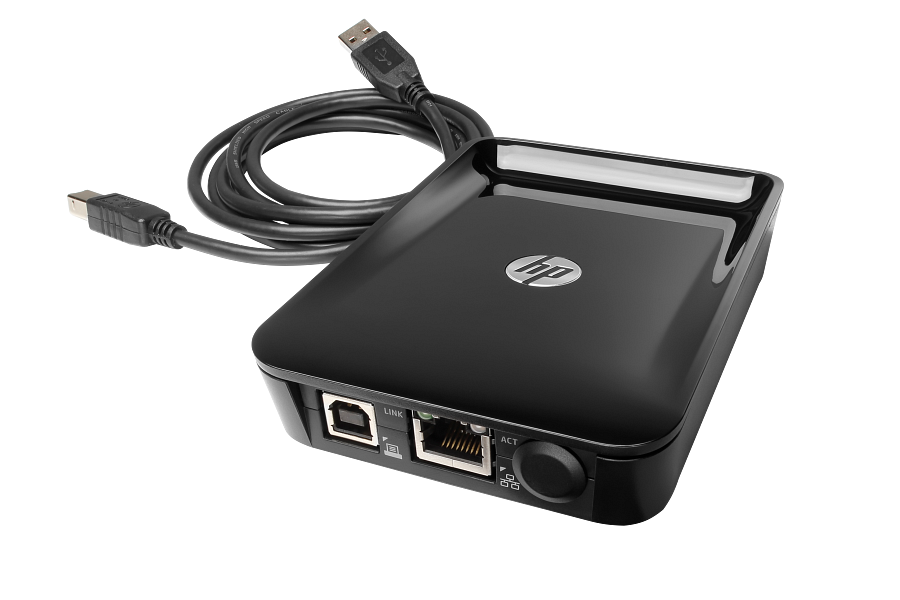

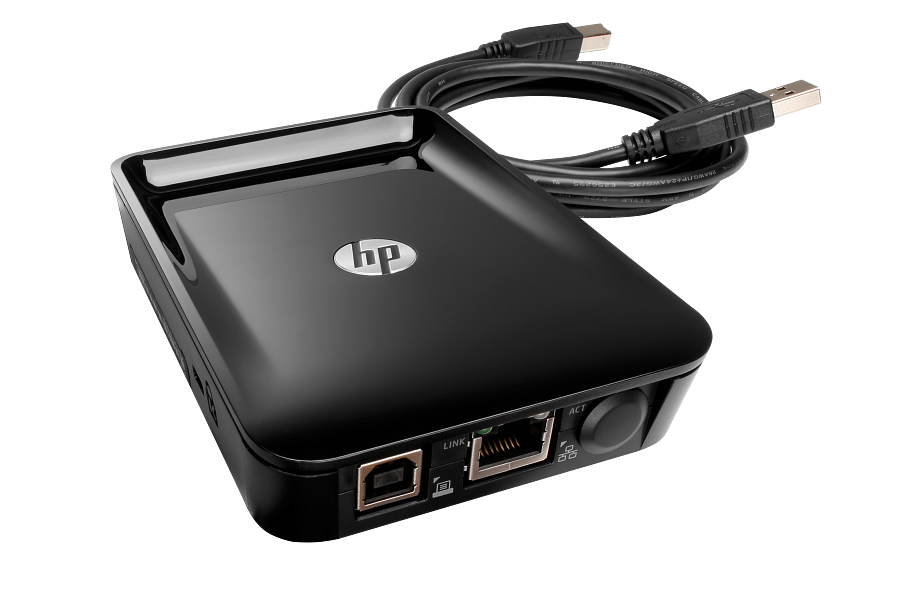

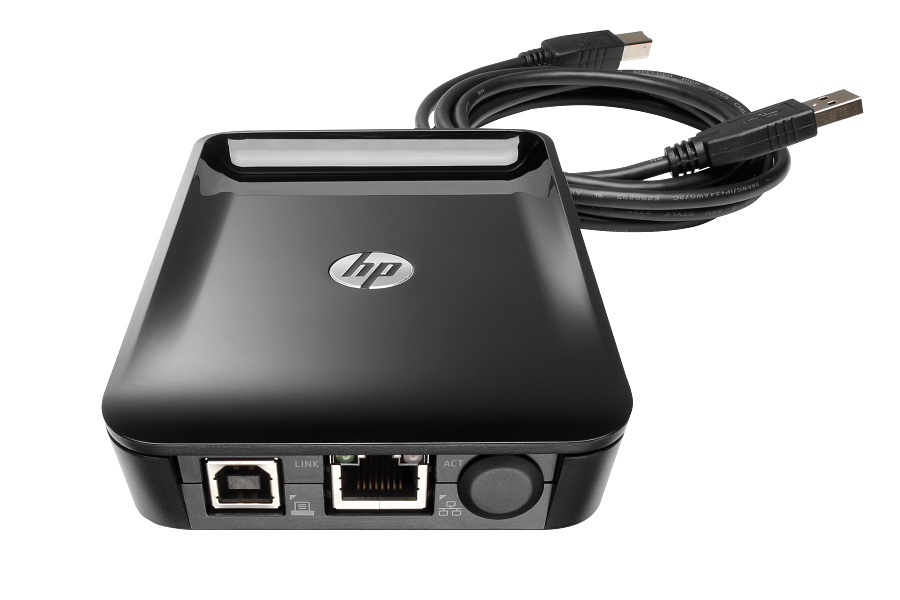

| Product long name | HP Jetdirect LAN Accessory |
| Tariff numbers | 8517620000; 8517620090;85176251; |
| Product classification flag | Standard HP Product |
| Master publishing date | 1/1/1 |
| Tangible flag | Y |
| Material Type for item | FERT |
Notes and footnotes
- HP Jetdirect LAN Accessory USB’ USB cable, Velcro kit, installation guide, warranty cards
