Technical specifications
Product
| UNSPSC code | 43211515 |
|---|
Camera and audio
| Camera | 108MP camera |
|---|
Ports
| Ports | 1 USB Type-C® 10Gbps signaling rate |
|---|
Software
| Software included | CapMan SDK |
|---|
Copy and scan
| Copyright notice | © Copyright 2024 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical

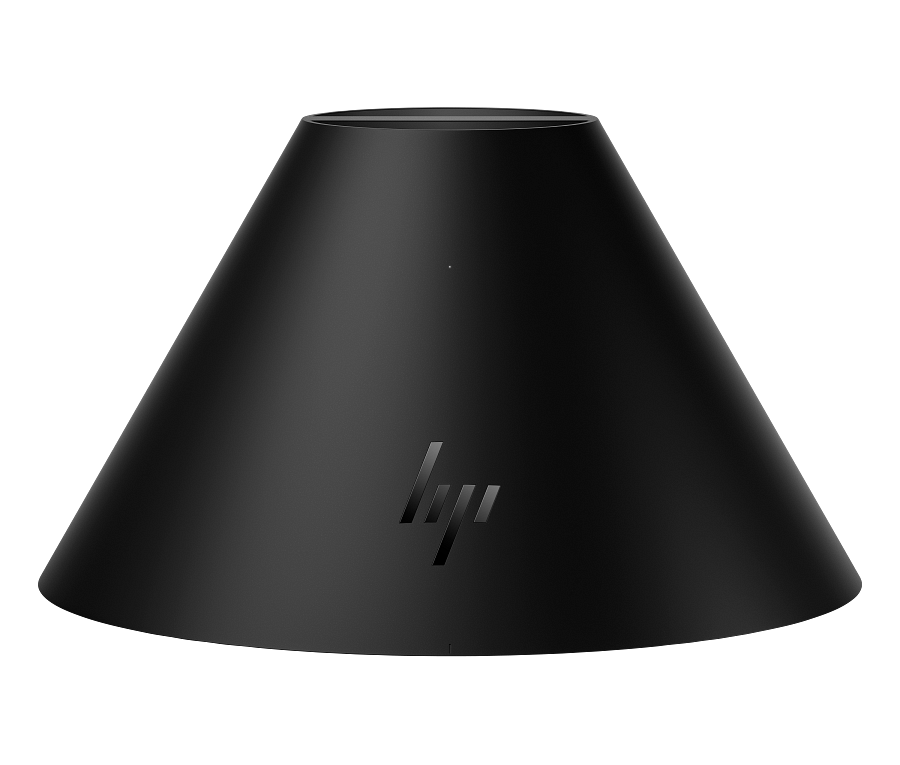

| Cone dimensions (metric) | 69.9 cm (base); 22.6 cm (top); 42.2 cm (height) |
|---|---|
| Weight | 16.6 kg (cone only); 2.1 kg (ring only); 17.9 kg (base only) |
Package
| Package dimensions (W x D x H) | 89.7 x 87.7 x 70.5 cm |
|---|---|
| Package weight | 59.6 kg |
Sustainability
| Sustainability specifications | Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; EPE foam is at least 90% recycled content |
|---|
Other

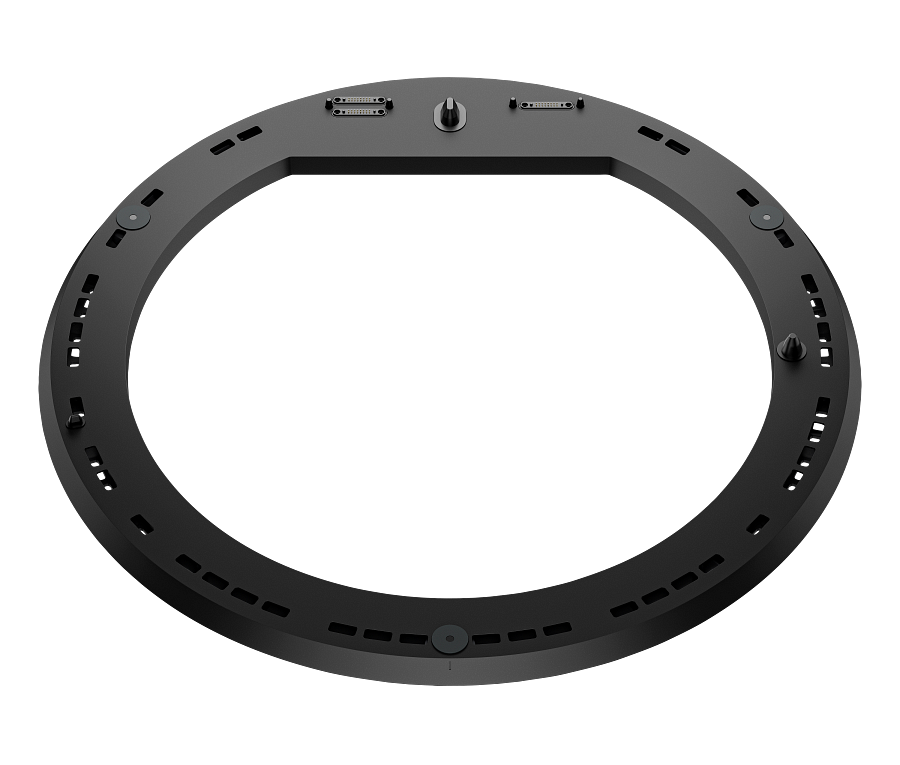

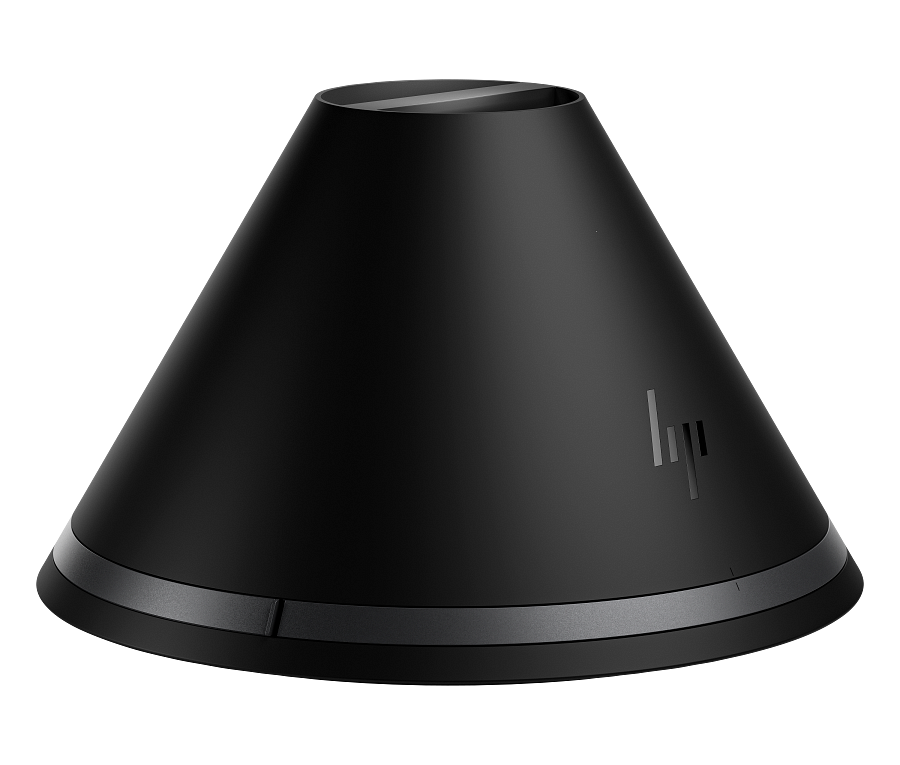

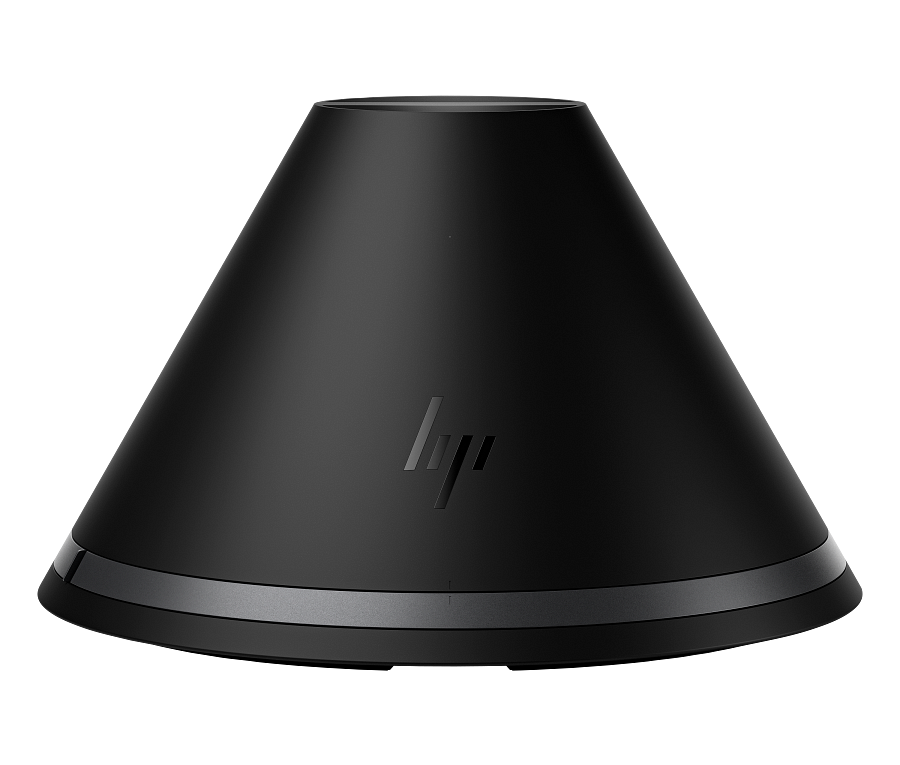

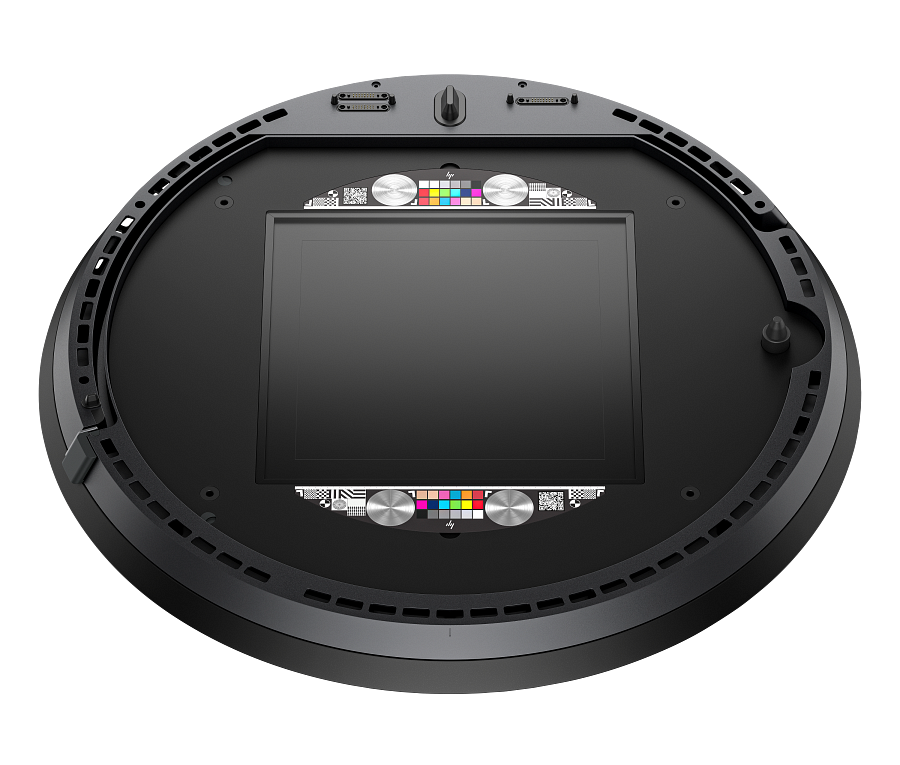

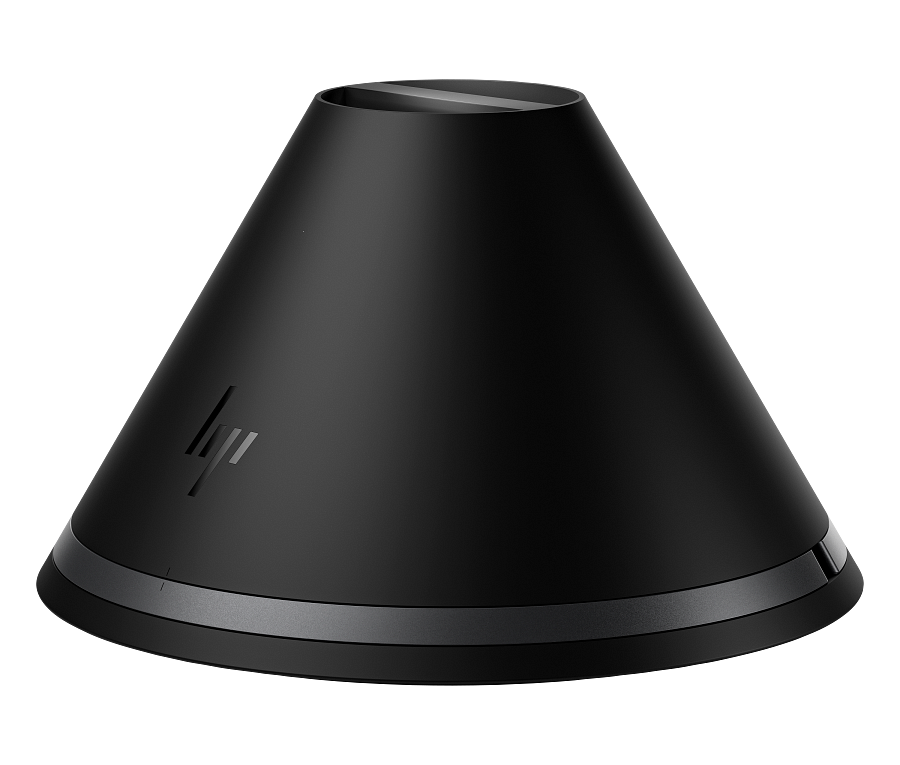

| What's in the box | Explorer ring; Studio Base; Capture cone; Accessory kit; Quick set up poster |
|---|---|
| Power | 230 W power adapter, up to 89% efficiency, active PFC; Input voltage 100 to 240 VAC (+/- 10%), 47/63 Hz AC (+/- 3 Hz) |
| Registration required | No |
| Series name | HP Z Captis |
| I/O Port location | Explorer ring and studio base |
| Form factor | Cone; Explorer ring; Studio Base |
| Headline | Digital materials. Made in minutes[2] anywhere. |
| Key selling point | With HP Z Captis, reduce the environmental impact of your product development cycles by using digital materials and renders to cut physical sample waste while saving time and money. |
| Trademark information | Intel, the Intel logo, Intel Core, Thunderbolt, Xeon, Ultrabookand Core Inside are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Adobe, Creative Cloud and Premier Pro are either registered trademarks or trademarks of Adobe Systems Incorporated . NVIDIA and Quadro are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. All other trademarks are the property of their respective owners. |
| Overview | The world is your palette with the power to capture digital materials from samples and surfaces in minutes[1]. Turbocharge creativity by seamlessly integrating the complex materials of the physical world into your 3D design workflow, while streamlining production to eliminate wasted costs and time. |
| Company | HPI |
| Code name | Captis |
| Product long name | HP Z Captis IDS Base Model |
| Product description | HP Z Captis Base Unit |
| Security management | TPM 2.0 Embedded Security Chip (Common Criteria EAL4+ Certified) (FIPS 140-2 Level 2 Certified) |
| Product classification flag | Base Unit-Configure to Order (CTO) |
| Tangible flag | Y |
| Material Type for item | HALB |
Notes and footnotes
- [1] Claim based on integration with Adobe Substance 3D Sampler, sold separately. HP Capture Management SDK included with purchase of HP Z Captis. Adobe Substance 3D Sampler not included with purchase. Minimum host PC requirements to run Adobe Substance 3D Sampler software: Windows 10 (64bit, version 1909), Intel Core i5 or AMD Ryzen 5, Nvidia Geforce GTX 1060, Nvidia Quadro M2000 (Pt only), Nvidia Quadro P2200 (Ds, Sa, and Sg), AMD Radeon RX 580, 4 GB VRAM, 16 GB RAM, SSD type with 30 GB of free space.
- [2] Claim based on integration with Adobe Substance 3D Sampler, sold separately.
- [3] Adobe Substance 3D Sampler license required and sold separately.
- [1] The Jetson AGX Xavier module makes AI-powered autonomous machines possible, running as little as 10W, including 32GB of DRAM and delivering up to 32 TOPs of AI performance. As part of the world’s leading AI computing platform, it benefits from NVIDIA’s rich set of AI tools and workflows, enabling developers to quickly train and deploy neural networks.
- [2] Single slot user upgradable PCIe NVME M.2 SSD. For storage drives, TB = 1 trillion bytes. Actual formatted capacity is less. Up to 64 GB is not user accessible.
- [3] Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 (802.11ax) is backwards compatible with prior 802.11 specs.
- [4] Camera module includes 7 lens elements. The field-of-view (FoV) of the imager (~70 deg H x ~56 deg V) allows for the capture of appropriately illuminated material samples as larger as 30cm x 30cm within the enclosure. Integrated Light Panels (89.7 x 87.7 x 70.5 cm).
- [5] This product is low halogen except for gear belt in polarizer assembly, external power supplies, power cords, cables, and peripherals. Service parts obtained after purchase may not be low halogen.
- [6] Fiber cushions made from 100% recycled wood fiber and organic materials.
- [7] HP Capture Management SDK included with purchase of HP Z Captis. Adobe Substance 3D Sampler not included with purchase. Minimum host PC requirements to run Adobe Substance 3D Sampler software: Windows 10 (64bit, version 1909), Intel Core i5 or AMD Ryzen 5, Nvidia Geforce GTX 1060, Nvidia Quadro M2000 (Pt only), Nvidia Quadro P2200 (Ds, Sa, and Sg), AMD Radeon RX 580, 4 GB VRAM, 16 GB RAM, SSD type with 30 GB of free space.
- [8] External data storage.
- [9] Workstation connection port.
