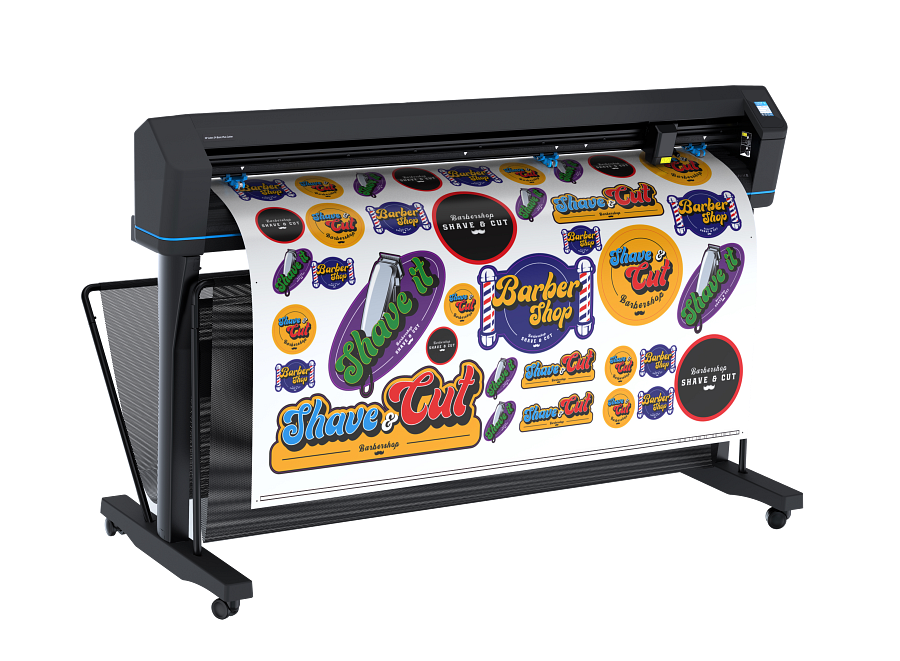

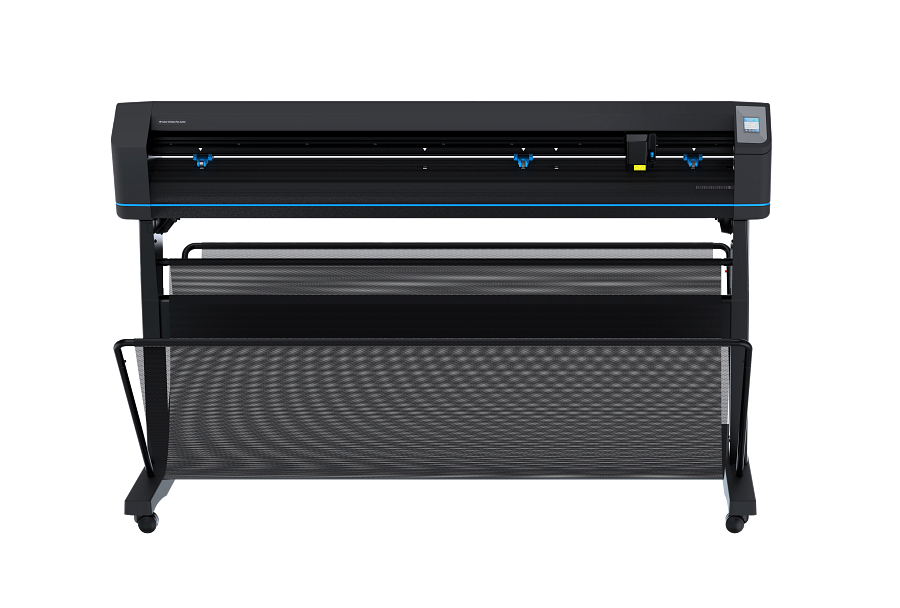

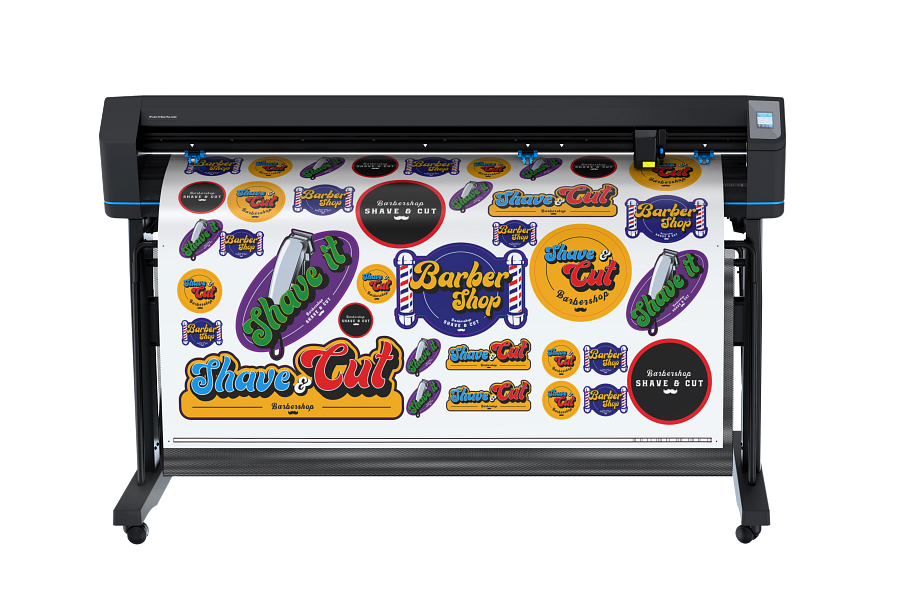

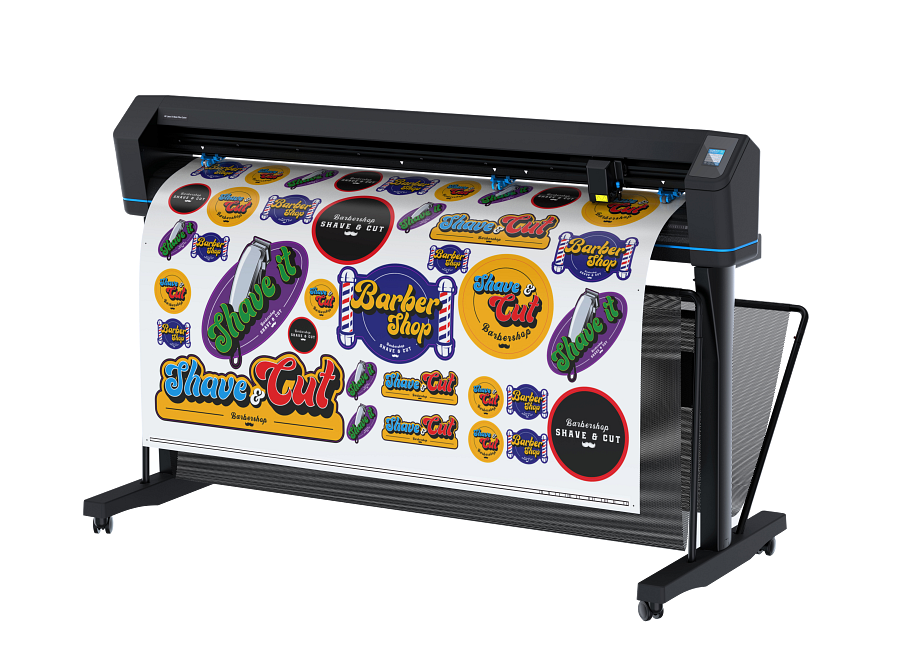

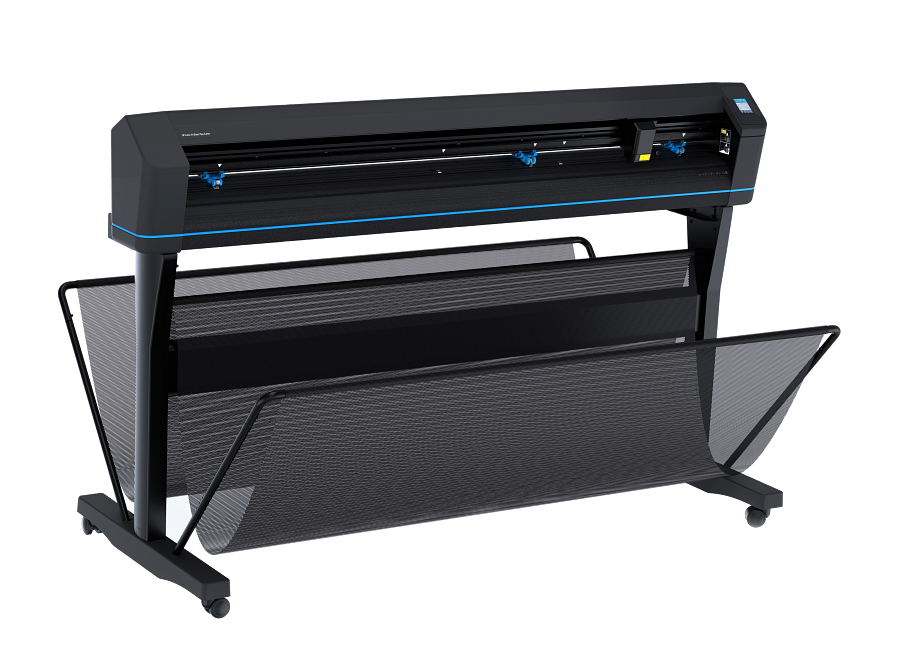

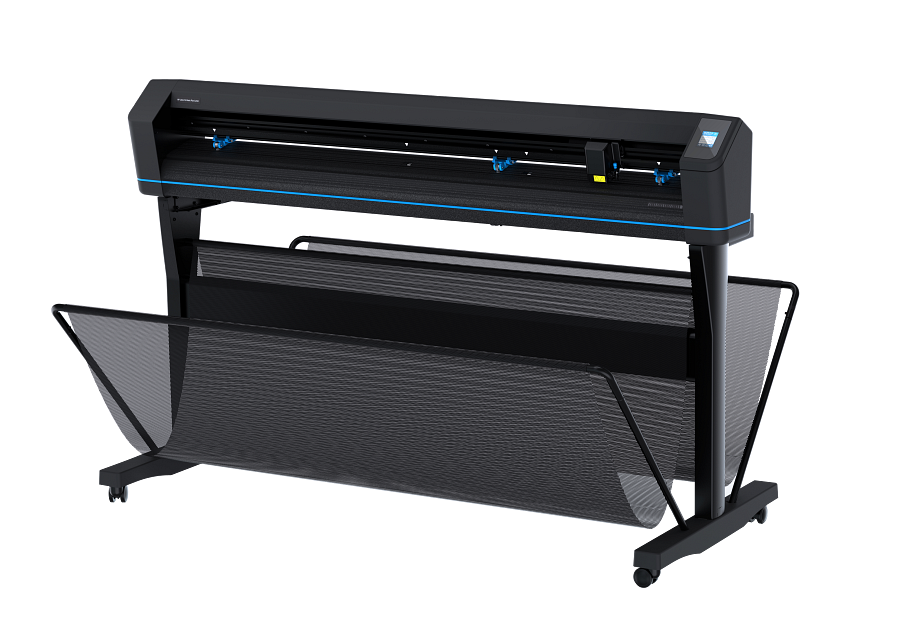

HP Latex 54 Basic Plus Cutting Solution

Back to Accessories (all)

SKU: 9TL93A

Request a quote

Technical specifications

Product

UPC number	195122173081
Product type	Printer accessories
UNSPSC code	23153405

Print

Acoustic power emissions (active, printing)	7.0 B(A)

Copy and scan

Copyright notice	© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Sustainability

Environmental certification	WEEE, RoHS (EU); CE marking compliant; REACH

Warranty and service

Manufacturer Warranty	One-year limited hardware warranty

Other

What's in the box	HP Latex Cutter; cutter stand; media basket; HP FlexiPrint and Cut RIP; HP Cutter Control software; quick reference guide; setup poster; documentation software; power cords; standard holder (1); standard blades (2); cut-off knife (1); 3-in media flanges (set of 2)
Power consumption	31 W (working mode)
Power consumption Note	One power cord, single phase / two wires and PE
Power	AC 100-240 V (±10%); 50/60 Hz, 85 VA max; 2 A
Registration required	No
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC)
Connectivity, standard	USB and Ethernet (LAN)
Accuracy	0.2% of movement or 0.25 mm, whichever is greater
Cut force	0 to 400 grams of downforce, in 5-gram steps
Cut thickness	0.002 to 0.01 in; 0.03 in with optional sandblast blade
Cut type	Drag-knife with TurboCut and Tangential emulation modes
Acoustic pressure emissions	56 dB(A)
Operating humidity range	35 to 75% RH (non-condensing)
Operating temperature range	15 to 35ºC
Country of origin	Malaysia(B1K)
Why to buy	Easily incorporate cutting into your printing workflow with this cutter/RIP solution that lets you print and cut at the same time. You can cut and laminate right away and deliver same day—there's no degas time with HP Latex Technology.
Headline	Easily incorporate cutting into your printing workflow with this cutter/RIP solution that lets you print and cut at the same time. You can cut and laminate right away and deliver same day—there's no degas time with HP Latex Technology.
Key selling point	Print and cut in 5 simple steps—add cut lines from the RIP, predefined cutting presets, easy user interface.
Image legal disclaimer	Product image may differ from actual product
Product logos	CE marking
Overview	Now you can enable new applications and growth for your business by enhancing your HP Latex printer with our unique print AND cut workflow.[1] Easily integrate this cutter/RIP solution and get accurate high-speed cutting and cut throughs.
Company	HPI
Product long name	HP Latex 54 Basic Plus Cutting Solution
Product classification flag	Standard HP Product
Tangible flag	Y
Ideal for	Existing and new customers of HP Latex printers who do not have a bundled print/cut solution and want to add cutting capabilities to their workflow.
Material Type for item	FERT

Notes and footnotes

[1] The HP FlexiPRINT and CUT RIP is designed for the HP Latex 300 and 100 series printers. For compatibility with other HP Latex printers, a RIP upgrade is required.
[2] Based on productivity and environmental advantages compared to the leading (per IDC market share numbers, March 2017) and comparably priced solvent-technology-based integrated print and cut solution. HP internal productivity testing performed February 2017. The HP Latex Print and Cut Solution also uses HP Latex Inks that meet UL ECOLOGO® Certification to UL 2801, demonstrating that an ink meets a range of multi-attribute, lifecycle based criteria related to human health and environmental considerations (see http://www.ul.com/EL).
[3] Requires an HP Applications Center account, Internet connection, and connected Internet-capable device. For more information, see http://www.hpapplicationscenter.com.
[4] You can consider unlaminated use for short-term signage with scratch resistance comparable to hard-solvent inks on self-adhesive vinyl and PVC banner. Scratch-resistance comparison based on testing third-generation HP Latex Inks and representative hard-solvent inks. Estimates by HP Image Permanence Lab on a range of media.
