SKU: AF9U6PT

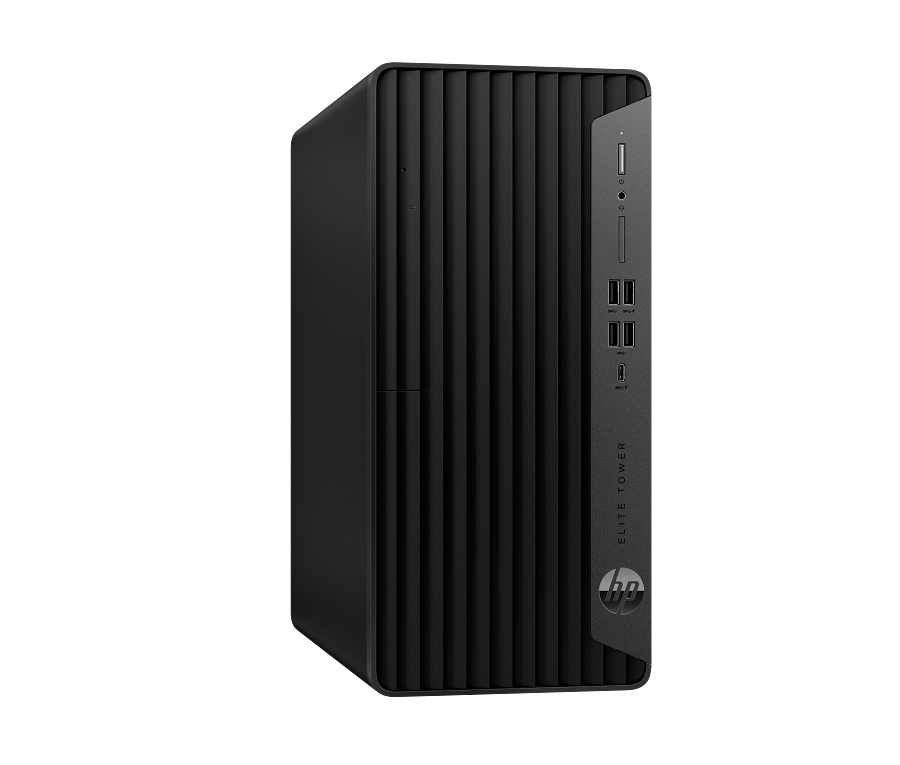

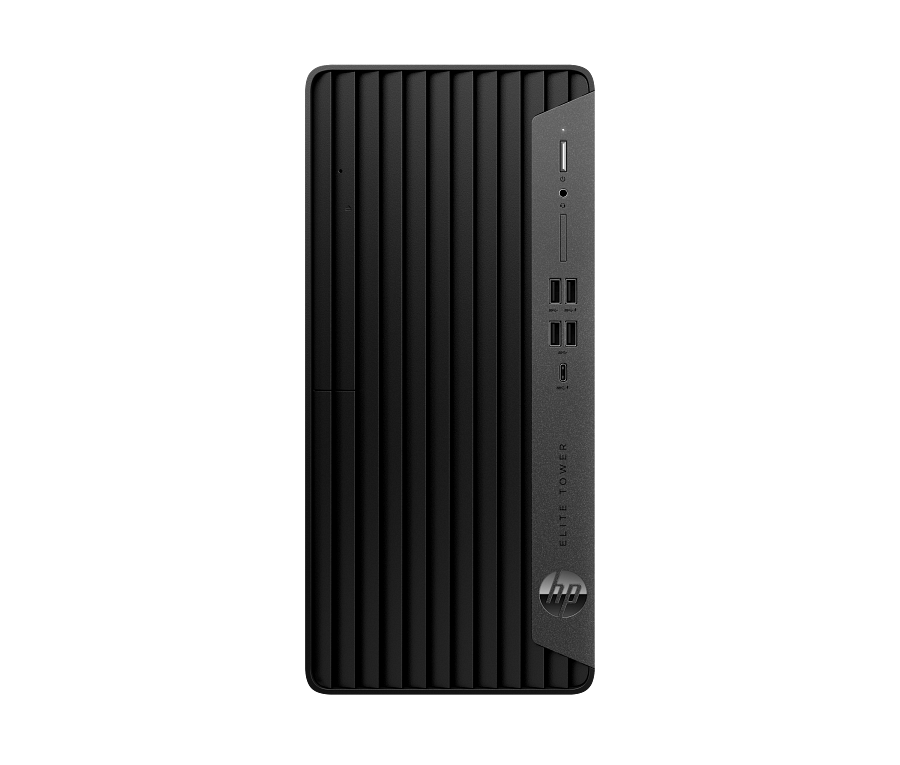

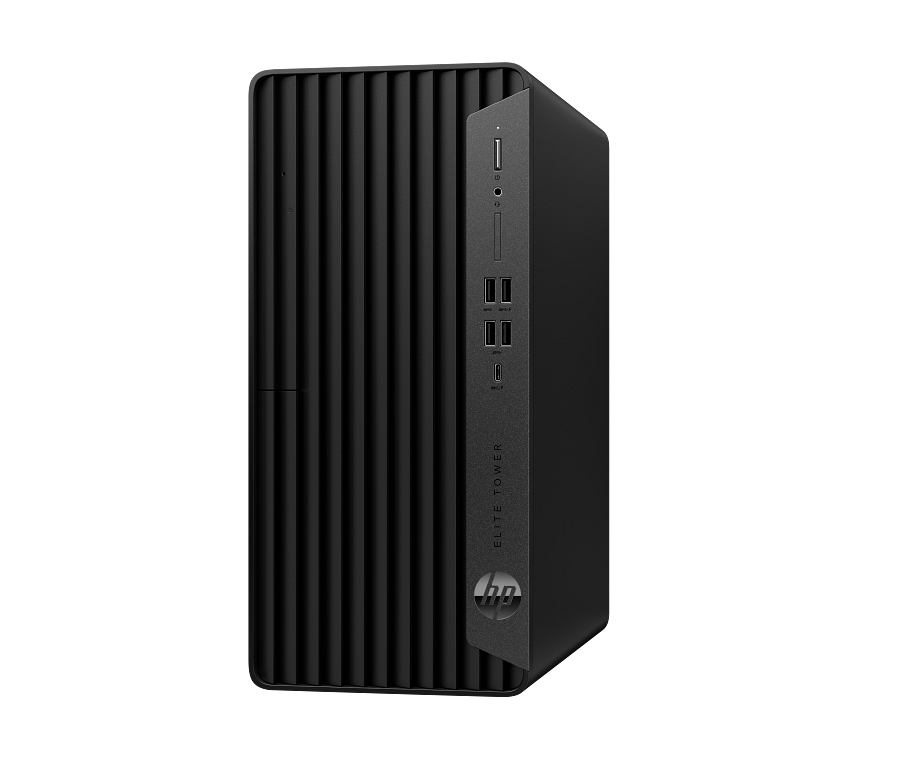

HP Elite Tower 800 G9 Desktop PC (7E5P9AV)
- Storage
- 256 GB
- Graphics
- Intel UHD
- Memory
- 16 GB DDR5-4800 MT/s (1 x 16 GB)
- Processor
- Core™ i5
Contact us for pricing
Key features
- HP Sure Run
- HP Sure Start
- HP Secure Erase
- HP Sure Click
- HP Sure Sense
- Absolute Persistence module
- HP Sure Recover
- HP Sure Admin
- HP Client Security Manager Gen7
- HP Tamper Lock
- Wi-Fi 6E
- 1 headphone/microphone combo
Technical specifications
Product
| UPC number | 198701125549 |
|---|---|
| Product type | Desktops |
| Subcategory | Desktop and All-in-One |
Processor
| Chipset | Intel® Q670 (vPro®) |
|---|---|
| Processor cache | 24 MB L3 |
| Processor family | Intel® Core™ i5 14th generation processor |
| Processor frequency technology | Intel® Turbo Boost Technology |
| Processor generation | 14th Generation |
| Processor maximum frequency | 5.0 GHz |
| Processor model | 14500 |
| Processor core | 14 |
| Processor | Intel® Core™ i5-14500 (up to 5.0 GHz with Intel® Turbo Boost Technology, 24 MB L3 cache, 14 cores, 20 threads) |
| Processor threads | 20 |
Memory
| Memory layout (slots & size) | 1 x 16 GB |
|---|---|
| Memory module type | UDIMM |
| Memory size | 16 GB |
| Memory Slots | 4 DIMM |
| Number of memory slots | 1 |
| Memory speed | 4800 MT/s |
| RAM (GB) | 16 |
| Memory type | DDR5 |
| Memory | 16 GB DDR5-4800 MT/s (1 x 16 GB) |
| Standard memory note | Transfer rates up to 4800 MT/s. |
Storage
| Storage | 256 GB |
|---|---|
| Internal drive bays | Two (3.5) 8.89 cm HDD; 1 slim ODD |
| Internal Storage | 256 GB PCIe® NVMe™ M.2 SSD |
| Memory and storage | 16 GB memory; 256 GB SSD storage |
Graphics
| Graphics | Integrated |
|---|---|
| Graphics (integrated) | Intel® UHD Graphics 770 |
Camera and audio
| Audio | Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support |
|---|
Wireless
| Wireless | Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card (supporting gigabit data rate) |
|---|
Ports
| Ports | 1 headphone/microphone combo; 4 SuperSpeed USB Type-A 10Gbps signaling rate; 1 SuperSpeed USB Type-C® 20Gbps signaling rate, 3 USB Type-A 5Gbps signaling rate; 1 HDMI 1.4; 1 RJ-45; 1 audio line-in/line-out; 2 DisplayPort™ 1.4a; 3 USB 2.0 Type-A |
|---|
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Dimensions (W x D x H) | 33.7 x 30.8 x 15.5 cm |
|---|
Package
| Package dimensions (W x D x H) | 28.7 x 40 x 49.9 cm |
|---|
Sustainability
| Sustainability specifications | At least 60% post-consumer recycled plastic; At least 10% ITE-derived closed loop plastic; Ocean-bound plastic in speaker enclosure and I/O strip; Bulk packaging available; 80 Plus® Platinum power supplies available; Outside box and corrugated cushions are made of 100% recycled or certified sources; Molded paper pulp cushion inside box is made of 100% recycled or certified sources and plastic cushion inserts contain 80% recycled content |
|---|---|
| Energy Usage CO2e (kg) | 197.327 |
| End of Life CO2e (kg) | 1.273 |
| Production CO2e (kg) | 147.038 |
| Total CO2e (kg) | 347.466 |
| Transportation CO2e (kg) | 1.828 |
Warranty and service
| Manufacturer Warranty | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
|---|
Other
| Power | 260 W internal power adapter, up to 92% efficiency, active PFC |
|---|---|
| Registration required | No |
| Series name | HP Elite Tower 800 G9 |
| Sub brand | Elite |
| TCO Certified | TCO Certified, generation 9 |
| Expansion slots | 1 M.2 2230; 2 PCIe 3 x1; 1 PCIe 3 x16 (wired as x4); 2 M.2 2280; 1 PCIe 4 x16 |
| Expansion slots note | 1 M.2 2230 slot for WLAN and 2 M.2 2280 slots for storage |
| I/O Port location | Front |
| Network interface type | WLAN |
| vPro enabled | vPro® |
| Operating humidity range | 10 to 90% RH |
| Operating temperature range | 10 to 35°C |
| Family positioning headline | Upgrade to amazing. |
| Form factor | Tower |
| Country of origin | India(ACJ) |
| Headline | Protected by HP Wolf Security |
| Key selling point | Dynamic performance from the latest Intel® processor[2], helps you quickly manage large projects. |
| Image legal disclaimer | Product image may differ from actual product |
| Legal disclaimer [01] | [1] Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the PC to communicate with other 802.11ax devices. Wi-Fi® supporting gigabit speeds is achievable with Wi-Fi 6 (802.11ax) when transferring files between two devices connected to the same router. Requires a wireless router, sold separately, that supports 160MHz channels. |
| Legal disclaimer [02] | [3] Not available on platforms with multiple internal storage drives. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss of data. |
| Legal disclaimer [03] | [4] HP Sure Click supports Microsoft® Internet Explorer and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed. |
| Legal disclaimer [04] | [5] HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement. |
| Trademark information | Intel®, the Intel logo, Intel® Core™, Thunderbolt™, vPro®, and Core Inside are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Bluetooth® is a trademark of its proprietor, used by HP Inc. under license. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. NVIDIA, the NVIDIA logo, and GeForce are trademarks and/or registered trademarks of NVIDIA Corporation in the US. and other countries. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. All other trademarks are the property of their respective owners. |
| Segment | Business |
| Usage | Mission critical |
| Legal tagline | HP recommends Windows 11 Pro for business |
Notes and footnotes
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [2] Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
- [1] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated and enabled. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.
- [6] HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, Workstation, and RPOS products. See product details for included security features and OS requirements.
- [3] HD-DVD disks cannot be played on the DVD-ROM drive. No support for DVD-RAM. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than single layer discs. Discs burned with this drive may not be compatible with many existing single-layer DVD drives and players. Flawless playback on all systems is not guaranteed.
- [4] For full Intel®? vPro®? functionality, Windows 11 Pro 64 bit, a vPro supported processor, vPro enabled chipset, vPro enabled wired LAN and/or WLAN card and TPM 2.0 are required. Some functionality requires additional 3rd party software in order to run. See http://intel.com/vpro
- [5] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
- [6] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
- [7] Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See http://www.intel.com/technology/turboboost/ for more information.
- [8] System architecture design is 2 DIMMS per channel and the population starts from the furthest memory slot from the processor.
- [9] Symmetric configurations are required for the 2 DIMMs within the same memory channel.
- [10] For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows) of system disk is reserved for the system recovery software.
- [11] Availability varies by countries.
- [12] PC can only be configured with one of these two available optional features: removable SATA HDD or M.2 SSD bay.
- [13] Sold separately or as an optional feature.
- [14] Thunderbolt™ 3.0 and Serial/PS/2 combo occupies a PCIe slot.
- [15] Intel® Ethernet Network Adapter I225-T1: sold separately or as an optional feature.
- [16] HP Connect for Microsoft Endpoint Manager is available from the Azure Market Place for HP Pro, Elite, Z and Point-of-Sale PCs managed with Microsoft Endpoint Manager. Subscription to Microsoft Endpoint Manager required and sold separately. Network connection required.
- [17] HP Patch Assistant available on select HP PCs with the HP Manageability Kit that are managed through Microsoft System Center Configuration Manager. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html.
- [18] NVIDIA® GeForce® GTX 3070 graphic card requires the 550W chassis. NVIDIA® GeForce® GTX 3060 graphic card is not available with the 260W chassis.
- [19] HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement.
- [20] HP Easy Clean requires Windows 10 RS3 and will disable the keyboard, touchscreen, and clickpad only. Ports are not disabled. See user guide for cleaning instructions.
- [21] Starting from November 1st 2023, all shipments will require Windows to be installed on SSD to provide users a better experience. HDD can only be configured as additional data drives and not the boot drive.
- [22] HHP Smart Support requires HP TechPulse to be installed. For more information about how to enable or to download HP Smart Support, please visit http://www.hp.com/smart-support .
- [23] HP Sure Sense 2 is available on select HP PCs with Windows 10 Pro, Windows 10 Enterprise, Windows 11 Pro, or Windows 11 Enterprise OS.
- [7] Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
- [26] HP Sure Run Gen5 is available on select HP PCs and requires Windows 10 or higher.
- [27] HP Sure Click requires Windows 10 Pro or higher or Enterprise. See https://bit.ly/2PrLT6A_SureClick for complete details.
- [29] HP Sure Start Gen7 is available on select HP PCs and requires Windows 10 and higher.
- [30] HP Sure Recover Gen5 with Embedded Reimaging is an optional feature which requires Windows 10 and higher must be configured at purchase. You must back up important files, data, photos, videos, etc. before use to avoid loss of data. Network based recovery using Wi-Fi is only available on PCs with Intel Wi-Fi Module.
- [31] HP Sure Admin requires Windows 10 or higher, HP BIOS, HP Manageability Integration Kit from http://www.hp.com/go/clientmanagement and HP Sure Admin Local Access Authenticator smartphone app from the Android or Apple store.
- [33] Based on US EPEAT®? registration according to IEEE 1680.1-2018 EPEAT®?. EPEAT®? status varies by country. Visit www.epeat.net for more information
- [34] External power supplies, WWAN modules, power cords, cables and peripherals excluded. Service parts obtained after purchase may not be Low Halogen.
- [35] Percentage of ocean-bound plastic contained in each component varies by product.
- [36] Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
- [37] ITE Derived Closed Loop Plastic percentage is based on the definition set in the IEEE 1680.1-2018 standard.
- [38] 100% outer box packaging and corrugated cushions made from sustainably sourced certified and recycled fibers.
- [39] Molded pulp cushions are made from 100% recycled wood fiber and organic materials.
- [40] myHP requires Windows OS.
- [41] Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs.
- [42] To achieve optimal memory speed, HP strongly recommends to use identical memory modules (e.g., same capacity, same part number and from the same supplier) within the same memory channel.
- [43] All memory slots are customer accessible / upgradeable.
- [44] Wi-Fi 6 is designed to support gigabit data rate when transferring files between two devices connected to the same router. Requires a wireless router, sold separately, that supports 80MHz and higher channels.
- [45] Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 7 (802.11BE) functionality requires Windows 11 2024, Intel ® Core ™ 14th gen processors, and a Wi-Fi 7 router, sold separately. Wi-Fi 7 is backwards compatible with prior 802.11 specs. Available in countries where Wi-Fi 7 is supported. The specification for 802.11BE is a draft specification and is not final. If the final specification differs from the draft specification, it may affect the ability of the device to communicate with other 802.11BE devices.
- [46] 256 GB PCIe® NVMe™ TLC M.2 SSD is only available with the 12th generation processors.
- [47] NVIDIA® GeForce® RTX 3050 Graphics card, Intel® ArcTM A380 Graphics card are only available with the 13th generation processors.
- [49] HP Services Scan is provided with Windows Update on select products and will check entitlement on each hardware device to determine if an HP TechPulse-enabled service has been purchased, and will download applicable software automatically. HP TechPulse is a telemetry and analytics platform that provides critical data around devices and applications and is not sold as a standalone service. HP TechPulse follows stringent GDPR privacy regulations and is ISO27001, ISO27701, ISO27017 and SOC2 Type2 certified for Information Security. Internet access with connection to TechPulse portal is required. For full system requirements or to disable this feature, please visit http://www.hpdaas.com/requirements. Not applicable in China.
- [57] All HP G9 Minis and AiOs support Wi-Fi 6E. HP 600/800 G9 TWR/SFF desktops with Intel® 13th Gen CPUs support Wi-Fi 6E. HP 600/800 G9 TWR/SFF desktops do not support Wi-Fi 6E or operate under 6GHz band when configured with Intel 12th Gen CPUs. Wi-Fi 6E requires a Wi-Fi 6E router, sold separately, to function in the 6GHz band. Availability of public wireless access points limited. Wi-Fi 6E is backwards compatible with prior 802.11 specs. And available in countries where Wi-Fi 6E is supported.
- [63] TCO Certified is an ISO 14024 Type 1 sustainability label for IT products. Compliance with all criteria is independently verified.
