Product details

Back to Accessories (all)

SKU: AM5R3AA

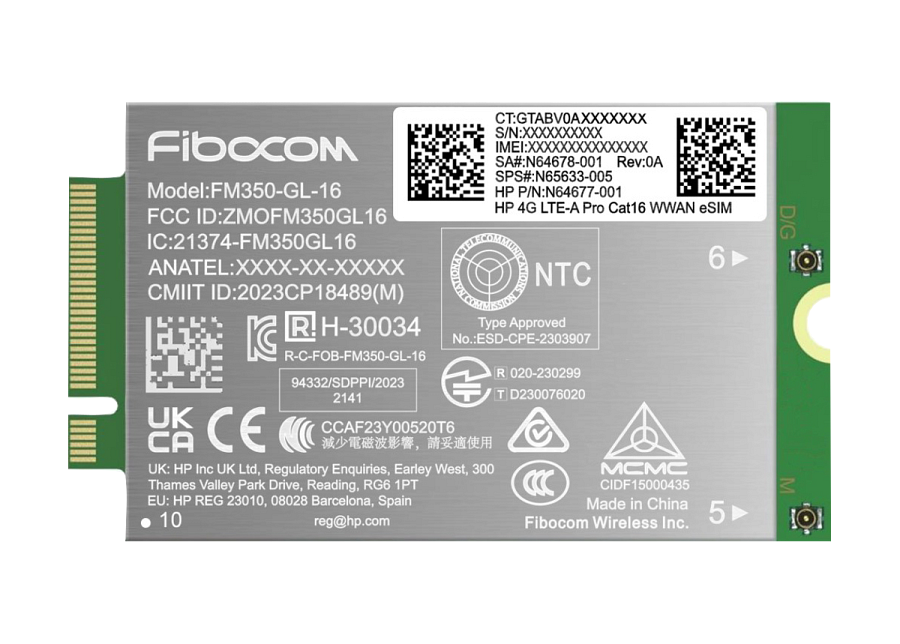

HP 4G LTE-A Pro Cat16 WWAN

Contact us for pricing

Key features

  • Optimized Power
  • Download, Upload, On the Road
  • HP-Tested with a limited 3 Year Warranty

Technical specifications

Product

UPC number 198701332886
Product type Network accessories
UNSPSC code 43201409

Storage

Storage temperature range -40°F to 185°F

Wireless

Wireless technologies 4G FDD LTE; 4G TDD LTE; UMTS/HSPA+

Software

Compatible Operating Systems Windows 10; Windows 11

Copy and scan

Copyright notice © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Physical

Dimensions (W x D x H) 52 x 30 x 2.3 mm
Weight 7 g

Package

Master carton dimension (metric) 29.6 x 19.7 x 25.1 cm
Package dimensions (W x D x H) 232 x 148 x 10 mm
Cartons per pallet 100
Layers per pallet 5
Products per pallet 1800
Products per pallet layer 360
Master carton weight (metric) 1.4 kg
Package weight 59 g
Pallet weight 139.8 kg

Sustainability

Environmental certification Recycled materials?
Sustainability specifications At least 30% post-consumer recycled plastic

Warranty and service

Manufacturer Warranty HP three-year limited warranty

Other

What's in the box Quick setup poster; Warranty card, Product notices; Mailer; Plastic inner tube; Plastic outer tube; Screw; Paper bag; Spacer
Global navigation satellite system GPS; GLONASS; Galileo; BDS; QZSS
Registration required No
Brand HP
Compatibility HP ProBook 445 (14) 35.56 cm G11 Notebook PC; HP ProBook 465 (16) 40.64 cm G11 Notebook PC; HP ProBook 440 (14) 35.56 cm G11 Notebook PC; HP ProBook 460 (16) 40.64 cm G11 Notebook PC; HP EliteBook 630 (13.3) 33.78 cm G11 Notebook PC; HP EliteBook 640 (14) 35.56 cm G11 Notebook PC; HP EliteBook 660 (16) 40.64 cm G11 Notebook PC; HP EliteBook 645 (14) 35.56 cm G11 Notebook PC; HP EliteBook 665 (16) 40.64 cm G11 Notebook PC; HP EliteBook 830 (13) 33.02 cm G11 Notebook PC; HP Elite x360 830 (13) 33.02 cm G11 2-in-1 Notebook PC; HP EliteBook 840 (14) 35.56 cm G11 Notebook PC; HP EliteBook 860 (16) 40.64 cm G11 Notebook PC; HP EliteBook 835 (13) 33.02 cm G11 Notebook PC; HP EliteBook 845 (14) 35.56 cm G11 Notebook PC; HP EliteBook 865 (16) 40.64 cm G11 Notebook PC; HP EliteBook 1040 (14) 35.56 cm G11 Notebook PC; HP Elite x360 1040 (14) 35.56 cm G11 2-in-1 Notebook PC; HP ZBook Power (16) 40.64 cm G11 Mobile Workstation PC; HP ZBook Power (16) 40.64 cm G11 A Mobile Workstation PC; HP ZBook Fury G11 Mobile Workstation PC; HP ZBook Firefly (14) 35.56 cm G11 Mobile Workstation PC; HP ZBook Firefly (16) 40.64 cm G11 Mobile Workstation PC; HP ZBook Firefly (14) 35.56 cm G11 A Mobile Workstation PC
Modulation type LTE Modulation: 3GPP Release 15, 100 MHz 5 DLCA, 256 QAM, 40 MHz 2 ULCA, 256 QAM; UMTS Modulation: 3GPP Release 8
Operating temperature range -20 to 65°C
Country of origin China; Thailand; Vietnam
Headline Connectivity and Global Flexibility
Key selling point Travel the world without falling off the radar with dedicated cellular broadband. Enjoy constant connectivity across speedy, secure, and private LTE[1] networks. No more hunting down passwords or slogging through sketchy public Wi-Fi®.
Key selling point for SEO Speedy, secure, and private LTE[1] connectivity almost anywhere.
Legal disclaimer Actual product may vary from image shown.
Legal disclaimer [01] [1] Gigabit class Category 16 4G LTE module designed for up to 1 Gbps download speeds as carriers deploy 5 carrier aggregation and 100Mhz channel bandwidth, requires activation and separately purchased service contract. Backwards compatible to HSPA 3G technologies. Check with service provider for coverage and availability in your area. Connection, upload and download speeds will vary due to network, location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions.
Legal disclaimer [02] [2] For information on connecting to a mobile network using an eSIM (Windows 11, 10), please see HP support page: https://support.hp.com/si-en/document/ish_9233090-9233148-16
Segment Business
Cartons per layer 20
Overview You need the internet...now, here, there, and everywhere. Stay connected swiftly and securely over LTE cellular networks at gigabit speed with optimized power consumption.[1] The HP 4G LTE-A Pro Cat16 WWAN delivers dedicated broadband to select HP Business Notebooks. Now the world is truly within reach.
Company HPI
Code name Kahlua
Product long name HP 4G LTE-A Pro Cat16 WWAN
Product description HP 4G LTE-Advanced Pro WWAN
Product classification flag Standard HP Product
Tangible flag Y
Material Type for item FERT
Notes and footnotes
  1. [1] Gigabit class Category 16 4G LTE module designed for up to 1 Gbps download speeds as carriers deploy 5 carrier aggregation and 100Mhz channel bandwidth, requires activation and separately purchased service contract. Backwards compatible to HSPA 3G technologies. Check with service provider for coverage and availability in your area. Connection, upload and download speeds will vary due to network, location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions.
  2. [2] For information on connecting to a mobile network using an eSIM (Windows 11, 10), please see HP support page: https://support.hp.com/si-en/document/ish_9233090-9233148-16
  3. [1] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT criteria.
  4. [2] Supports Windows 10, Windows 11.
