Key features
- Broad compatibility
- Smart charging
- 1-Year limited Warranty
Technical specifications
Product
| UPC number | 198701523017 |
|---|---|
| Product type | AC adapters |
| UNSPSC code | 39121006 |
Ports
| Number of output ports | 1 |
|---|
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Dimensions (W x D x H) | 7.09 x 3.46 x 1 in |
|---|---|
| Weight | 1.4 lb |
Package
| Package dimensions (W x D x H) | 9.02 x 6.93 x 2.15 in |
|---|---|
| Package weight | 1.9 lb |
Sustainability
| Environmental certification | Recycled materials? |
|---|---|
| Sustainability specifications | At least 30% post-consumer recycled plastic |
| Energy Usage CO2e (kg) | 6 |
| End of Life CO2e (kg) | 0.1 |
| Production CO2e (kg) | 3 |
| Total CO2e (kg) | 10 |
Warranty and service
| Manufacturer Warranty | HP standard one-year limited warranty |
|---|
Other
| Cable length | 100 cm (power cable); 180 cm (non-detachable 4.5 mm barrel cable) |
|---|---|
| Connection type | 4.5 mm barrel port |
| Minimum System Requirements | 4.5 mm AC jack |
| What's in the box | AC power adapter; Warranty Card; Power cord |
| Hold-up time | 5 ms at 115 VAC input |
| Input frequency | 47-63 Hz |
| Registration required | No |
| Brand | HP |
| Certifications and compliances | CE Mark; UL 62368-1; C-UL-US; DENAN; CISPR 32 Class B; NOM-1 NYCE; NORDICS; MTBF; EN 55032 Class B; EN 55035 Class B; FCC Part15 Class B |
| Compatibility | Supports up to 230 W power delivery |
| Connector type | 4.5 mm barrel |
| Country of origin | China(ABA, AR6, ABG, ABU, AB2, ABJ, AB1, AC4, ABB, ABY, UUF, ABM, AB0, ACJ, UUZ) |
| Headline | All the power you need |
| Key selling point | Work without worry with built-in surge, overcurrent, overtemperature, and overvoltage protection, plus an embedded resistor. This smart adapter has been tested with HP laptops[1] to ensure stable compatibility and connection, even with heavy usage. |
| Key selling point for SEO | Contains at least 30% post-consumer recycled materials[2] |
| Legal disclaimer | Actual product may vary from image shown. |
| Segment | Business |
| Overview | Harness the power to charge high-performance laptops[1] reliably and efficiently. Boasting up to 230W of power output, this thoughtfully designed 4.5mm charger is tested with HP laptop devices to ensure it can safely fuel your most demanding work.[1] |
| Company | HPI |
| Code name | Rhea II |

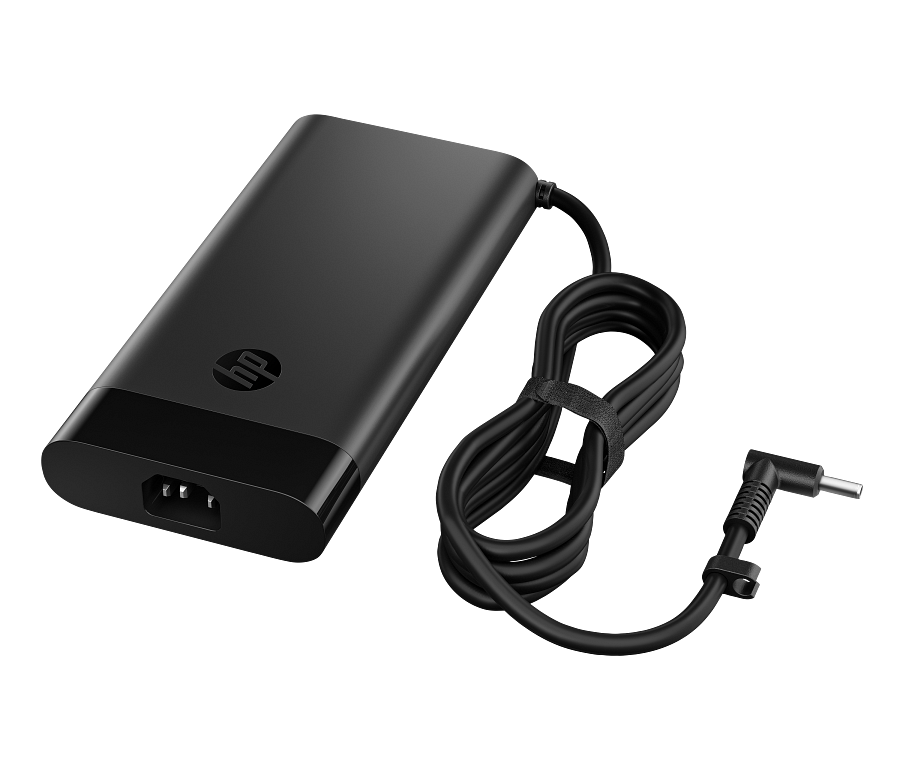

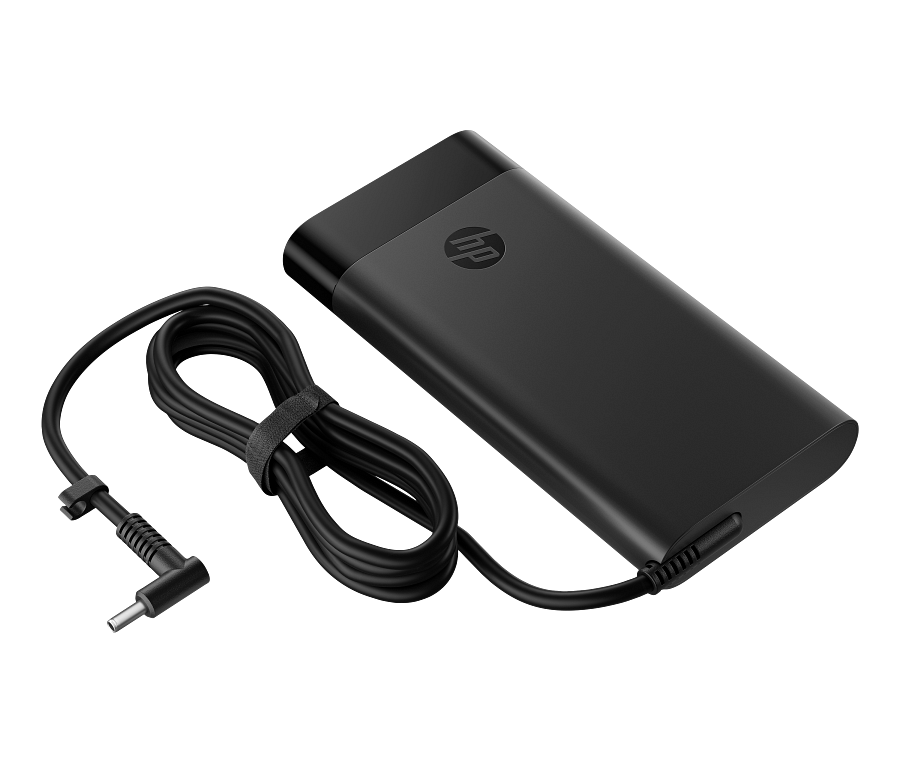

| Product long name | HP 230W Smart AC Adapter |
| Output voltages | 19.5V |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
| Material Type for item | FERT |
Notes and footnotes
- [1] Compatible with HP laptops and mobile workstations with a 4.5 mm barrel charging port.
- [2] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT® standard for computers, IEEE 1680.1-2018 standard.?
- [1] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT criteria.
