Key features
- Intel vPro support
- More Ports. More Flexibility.
- Intuitive, compact design
- A full suite of manageability tools
- Wired Intel® vPro®
- 3-year limited warranty
- Compatible with myHP
Technical specifications
Product
| UPC number | 198701752660 |
|---|---|
| Product type | Docking Stations |
| UNSPSC code | 43211602 |
Storage
| Storage altitude | -49.2 to 40,000 ft |
|---|
Display
| Displays supported | Quad monitor |
|---|---|
| Display support | Up to 3 external displays and 1 PC display or up to 4 external displays |
| Resolution (maximum) | Up to 8K |
| Resolutions supported | Non-Thunderbolt™ with multi-function PCs: 4 x QHD (2560 x 1440 @ 60 Hz)[1], 3 x FHD (1920 x 1080 @ 60 Hz), 2 x QHD (2560 x 1440 @ 60 Hz), 1 x 5K (5120?×?2880 @ 60 Hz)[1], 1 x FHD (1920 x 1080 @ 360 Hz); Non-Thunderbolt™ with high-resolution PCs: 4 x 4K (3840 x 2160 @ 60 Hz)[1], 3 x QHD (2560 x 1440 @ 60 Hz), 2 x 4K (3840 x 2160 @ 60 Hz), 1 x 5K (5120?×?2880 @ 60 Hz), 2 x FHD (1920 x 1080 @ 360 Hz)[1]; 1 x QHD (2560 x 1440 @ 360 Hz)[1]; Thunderbolt™ with dual DisplayPort™ streams: 4 x 4K (3840 x 2160 @ 60 Hz)[1], 3 x QHD (2560 x 1440 @ 60 Hz), 2 x 4K (3840 x 2160 @ 60 Hz), 1 x 5K (5120?×?2880 @ 60 Hz); Thunderbolt™ with single DisplayPort™ stream: 4 x 4K (3840 x 2160 @ 60 Hz)[1], 3 x QHD (2560 x 1440 @ 60 Hz), 2 x 4K (3840 x 2160 @ 60 Hz), 1 x 5K (5120?×?2880 @ 60 Hz) |
Ports

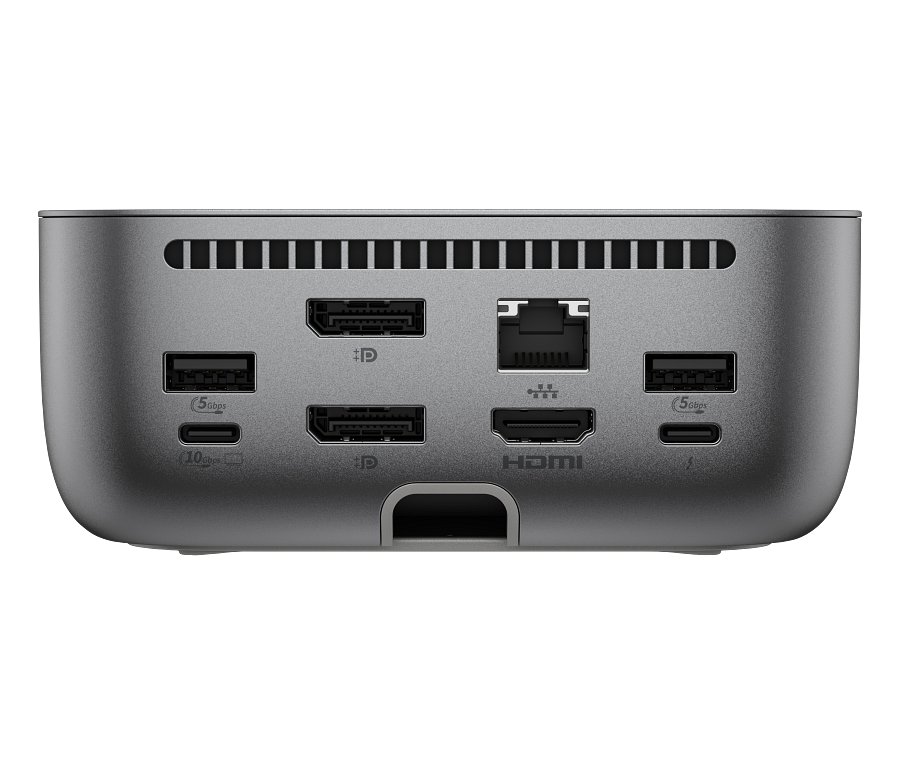

| External I/O ports | USB Type-C?; USB Type-A; HDMI; DisplayPort; RJ-45; Thunderbolt |
|---|---|
| Ports | 1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate; 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4); 2 USB Type-A 5Gbps signaling rate (charging); 1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE) |
Software
| Certified collaboration software | Intel® Thunderbolt™ 4 |
|---|---|
| Management Software | Poly Lens with automatic firmware updates |
| Compatible Operating Systems | Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS |
| Software included | HP Quick Connect |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Dimensions (W x D x H) | 4.76 x 4.76 x 1.95 in |
|---|---|
| Weight | 1.7 lb |
Package
| Master carton dimension (metric) | 39.6 x 17.1 x 9.5 cm |
|---|---|
| Package dimensions (W x D x H) | 15.59 x 6.73 x 3.74 in |
| Pallet dimensions | 47.24 x 39.37 x 5.51 in |
| Pallet dimensions (W x D x H) | 120 x 100 x 14 cm |
| Cartons per pallet | 5 (air); 10 (ocean) |
| Layers per pallet | 6 (air); 14 (ocean) |
| Products per pallet | 168 (air); 392 (ocean) |
| Package weight | 1.14 kg |
Sustainability
| Sustainability specifications | 35% post-consumer recycled plastic |
|---|---|
| Energy Usage CO2e (kg) | 6 |
| End of Life CO2e (kg) | 0.1 |
| Production CO2e (kg) | 7 |
| Total CO2e (kg) | 10 |
| Transportation CO2e (kg) | 0.3 |
Warranty and service
| Manufacturer Warranty | HP three-year limited warranty |
|---|
Other
| Cable length | 1 m |
|---|---|
| Connection type | Thunderbolt™ 4 and 4.5 mm power barrel |
| Minimum System Requirements | USB Type-C® (USB Power Delivery, Alt Mode DisplayPort™); Thunderbolt™ 4 port |
| What's in the box | HP Thunderbolt 4 Ultra 280W G6 Dock; 330 W power adapter; Thunderbolt™ 4 and 4.5 mm power barrel combination cable (1 m); Power cord; Product notice; Warranty card |
| Power delivery (PD) profiles | 12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A |
| Power | 330 W external power adapter |
| Power to host | Up to 280 W via 4.5 mm power barrel or up to 180 W via Thunderbolt™ 4 cable (both HP and non-HP host devices that support Power Delivery 3.1) |
| Registration required | No |
| Compatibility | Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more. |
| Connector type | 4.5 mm barrel; Thunderbolt |
| I/O Port location | Right side |
| Operating voltage | 19.5 V |
| Video connectors | HDMI; DisplayPort™-out; USB Type-C®; Thunderbolt™ |
| Refresh rate (maximum) | 360 Hz |
| Non-Operating Humidity Range | 5 to 95% non-condensing |
| Non-operating temperature - Celsius | -20 to 60°C |
| Non-operating temperature - fahrenheit | -4 to 140°F |
| Operating altitude | -49.2 to 10,000 ft |
| Operating humidity range | 10 to 90% non-condensing |
| Operating temperature range | 32 to 95°F |
| Country of origin | China(ABG, AB0, UUZ, ABY, AB1, ABT, ACJ, ABJ, AC8, ABA, AR6, AB2, ABU, ABM, ABB, ABZ, AC4, ACQ, UUF); Thailand(ABG, AB0, UUZ, ABY, AB1, ABT, ACJ, ABJ, AC8, ABA, AR6, AB2, ABU, ABM, ABB, ABZ, AC4, ACQ, UUF) |
| Headline | Powerful connections in an instant |
| Key selling point | Find true momentum with uninterrupted connections to your devices. HP Quick Connect[1] wakes your devices before you even take a seat. Stay in your flow all day with up to 280W[3] of power delivery and 40 Gbps of data transfer speeds via Thunderbolt™ 4 technology[2] and all the ports you need to connect your setup. |
| Key selling point for SEO | Thoughtfully designed for longevity and comes in plastic-free packaging[7] |
| Legal disclaimer | Actual product may vary from image shown. |
| Legal disclaimer [01] | [9] Comes with power cord. |
| Legal disclaimer [02] | [10] Windows Management Instrumentation installation required. Requires Windows 10 or higher. |
| Legal disclaimer [03] | [11] Requires Windows 10 or higher. |
| Segment | Business |
| User type | Everyday; Office & Home work |
| Cable type | 1 Thunderbolt™ 4 cable and a 4.5 mm power barrel to connect to host system |
| Power button type | Mechanical power button with RGB LED indicator to power or wake host system |
| Cartons per layer | 28 |
| Multiple order quantity | 1 |
| Overview | Work without interruptions and maximize productivity with ultimate power delivery from the HP Thunderbolt 4 Ultra 280W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity. |
| Company | HPI |
| Code name | Hendrixx |
| Product long name | HP Thunderbolt 4 Ultra 280W G6 Dock |
| Current, maximum | 6.15 A |
| Physical security | 1 nano security lock slot |
| Security management | HP Sure Start; System network manageability in any power state (HP with HP) |
| Drivers included | Intel® NIC driver; Realtek NIC driver (ARM); Realtek NIC driver (Windows) |
| Management features | HP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation states); MAC address pass-through (from the On, Off, Sleep or Hibernation states); LAN/WLAN switching; Disable LAN; Event messaging; Intel® vPro® Technology (wired) |
| Product classification flag | Standard HP Product |
| LED | Front LED bar: RGB LED (white, blue, amber, green, red); Power button: RGB LED (white, blue, amber, green, red) |
| Tangible flag | Y |
| Material Type for item | FERT |
Notes and footnotes
- Our docks are tested and validated with most HP USB-C and Thunderbolt 4 systems as well as tested with select 3rd party systems like Dell, Lenovo, and Apple. Contact your local sales representative to learn more.
- [1] HP Quick Connect must be enabled on the PC's BIOs and on the dock. HP Quick Connect is available on select HP G11 Intel and G12 Intel and AMD PCs. Bluetooth® required. Not available on TAA versions. Contact your local sales representative to learn more.
- [2] For full data and video capability, the PC must support either: DisplayPort™ alt mode, Thunderbolt™ 3 alt mode, or USB4 through its USB-C® port. Charging and port replication are supported on notebooks that have implemented the USB-C® Power Delivery specifications. HP Quick Connect, Wake-on LAN from warm and cold dock, Wake-on LAN from S4/S5, and MAC Address Pass-Through, S0, S3, S4, S5 when connecting an on or off notebook to the dock features only function on HP or HP supported notebooks. HP does not provide ethernet and audio drivers on Mac PCs. Power button to turn off or to wake the system depends on implementation of the related and optional Power Delivery specification.
- [3] Up to 280W power delivery through the Thunderbolt™ 4 cable available on PC's that support PD 3.1.
- [1] Requires DisplayPort™ 1.4 support with Display Stream Compression.
- [4] Poly Lens is a cloud-based device management solution that provides actionable insights and analytics around unified communications endpoints like Poly voice, video, headset devices, and select HP docking stations and can be sold as a stand-alone service. Internet access is required. Not available on TAA versions. Visit lens.poly.com to set-up an account.
- [5] HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, RPOS and Workstation products. See product details for included security features.
- [2] For full data and video capability, the PC must support either: DisplayPort™ alt mode, Thunderbolt™ 3 alt mode, or USB4 through its USB Type-C® port. Charging and port replication are supported on notebooks that have implemented the USB Type-C® Power Delivery specifications. HP Quick Connect, Wake-on LAN from warm and cold dock, Wake-on LAN from S4/S5, and MAC Address Pass-Through, S0, S3, S4, S5 when connecting an on or off notebook to the dock features only function on HP or HP supported notebooks. HP does not provide ethernet and audio drivers on Mac PCs. Power button to turn off or to wake the system depends on implementation of the related and optional Power Delivery specification.
- [6] Based on HP’s internal analysis of docking stations that are Thunderbolt™ 4, have auto validating & self healing firmware, Meet NIST 800-173 requirements, the ability to disable the RJ-45 and a BIOS MAPT authorized list. HP Sure Start on HP Thunderbolt G6 dock supports firmware integrity verification and recovery during dock start-up and disconnect. It does not include real-time and runtime protections or Microsoft SCCM integration typically found on HP Sure Start in HP notebooks.
- [3] HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, RPOS and Workstation products. See product details for included security features.
- [7] HP Total Test Process testing is not a guarantee of future performance under these test conditions. Damage under the HP Total Test Process test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.
- [4] Based on HP’s internal analysis of docking stations that are Thunderbolt™ 4, have auto validating & self healing firmware, Meet NIST 800-173 requirements, the ability to disable the RJ-45 and a BIOS MAPT authorized list. HP Sure Start on HP Thunderbolt G6 dock supports firmware integrity verification and recovery during dock start-up and disconnect. It does not include real-time and runtime protections or Microsoft SCCM integration typically found on HP Sure Start in HP notebooks.
- [8] HP packaging for this product is reported by suppliers as plastic free. Packaging refers to the primary product box and all materials inside, excluding any additional boxes provided by third parties, bulk packaging, and packaging for accessories and spare parts.
- [5] Operating systems supported: Windows 10 22H2 and up, Win 10 IoT Enterprise LTSC 2021, Windows 11 23H2 and up, ChromeOS M133 and up, Ubuntu Linux 22.04 LTS with 5.15 kernel, ThinPro OS 8.0 and MacOS Sonoma 14. Not all features work with all operating systems, ask your sales representative about compatibility with your PC. Linux, ChromeOS, MacOS, and ThinPro OS testing currently underway and expected to be completed after launch.
- [6] The dock power button may support non-HP notebooks that have implemented USB Power Delivery specification to support Extended Alert messages.
- [7] Please refer to the User Guide for LED light behaviors. The User Guide can be found on https://support.hp.com/ .
- [8] Your computer might support Wake on LAN from the Off, Sleep or Hibernate States, or only when the computer is On or in Sleep.
- [9] Your computer might support MAC address pass-through on the On, Off, Sleep or Hibernate States, or only when the computer is On or in Sleep. Thunderbolt™ host systems require Thunderbolt™ software (minimum SW17.x). Ethernet drivers need to be installed separately on non-HP Windows systems for headset auto switching functionality. Drivers available on HP website. For Apple PCs, HP does not provide ethernet and audio drivers. Firmware updates on Window-based host systems only. Certain features are not functional on non-HP supported nor non-HP notebooks: • Power button to turn on or wake the system. • Wake on LAN from warm and cold dock. • Wake on LAN from S4/S5. • MAC Address pass-through S0, S3, S4, S5 when connecting an on or off notebook to the dock.
- [10] Feature(s) not available on TAA docks.
- [11] Poly Lens is a cloud-based device management solution that provides actionable insights and analytics around unified communications endpoints like Poly voice, video, headset devices, and select HP docking stations and can be sold as a stand-alone service. Internet access is required. Not available on TAA versions. Visit lens.poly.com to set-up an account.
- [12] HP Quick Connect must be enabled on the PC's BIOs and on the dock. HP Quick Connect is available on select HP G11 Intel and G12 Intel and AMD PCs. Bluetooth® required. Not available on TAA versions. Contact your local sales representative to learn more.
- [13] Video resolution and support is dependent on the maximum capability of the notebook.
- [14] Compatible with the following HP locks: 63B28AA - HP Nano Combination Cable Lock, 63B31AA - HP Essential Nano Combination Cable Lock.
- [15] Up to 280 W power delivery through the Thunderbolt 4 cable available on PC's that support PD 3.1.
- [16] Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
