Key features
- Integrated speakers
- VESA mountable
- IPS panel
- FHD Resolution
- Built-In 2 x 1.5 W Speakers
- IPS Technology
- 75 Hz Refresh Rate
- More Contrast
- Adjustable Tilt
- Software Low Blue Light Mode
- Plenty of Ports
- 3-Sided Micro-Edge Bezel
Technical specifications
Product
| UPC number | 198828485618 |
|---|---|
| Product type | Monitors |
| UNSPSC code | 43211902 |
Display
| Aspect ratio | 16:9 |
|---|---|
| Backlight lamp life minimum (to half brightness) | 30,000 hours |
| Brightness | 250 nits |
| Bezel | 3-sided borderless |
| Display area (metric) | 52.7 x 29.65 cm |
| Display colors | Up to 16.7 million colors supported |
| Display contrast ratio (dynamic) | 1,000,000:1 |
| Display features | Tilt |
| Display size (diagonal) | 60.5 cm (23.8") |
| Onscreen controls | Color; Image; Brightness; OSD setting; Others; Reset |
| Native resolution | FHD (1920 x 1080) |
| Panel bit depth | 8 bit (6 bit + 2 FRC) |
| Panel technology | IPS; LCD |
| Resolution (maximum) | FHD (1920 x 1080 @ 75 Hz) |
| Resolutions supported | 640 x 480 @ 60 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 60 Hz; 1024 x 768 @ 60 Hz; 1280 x 720 @ 60 Hz; 1280 x 1024 @ 60 Hz; 1440 x 900 @ 60 Hz; 1600 x 900 @ 60 Hz; 1680 x 1050 @ 60 Hz; 1920 x 1080 @ 60 Hz; 640 x 480 @ 75Hz (HDMI only); 800 x 600 @ 75 Hz (HDMI only); 1024 x 768 @ 75 Hz (HDMI only); 1280 x 1024 @ 75 Hz (HDMI only); 1920 x 1080 @ 50 Hz (HDMI only); 1920 x 1080 @ 75 Hz (HDMI only); 720 x 480 @ 60 Hz; 720 x 576 @ 50 Hz; 1280 x 800 @ 60 Hz |
| Screen treatment | Anti-glare |
| Maximum resolution | 1920 x 1080 (FHD) |
| Resolution | FHD |
| Screen size (cm) | 60.5 |
| Screen size range | 23 - 25 |
| Screen size (in) | 23.8 |
Camera and audio
| Camera | No integrated camera |
|---|---|
| Audio port | 1 x 3.5 mm Audio Jack (Audio In) |
| Speaker output power | 2 x 1.5 W |
Ports
| Ports | HDMI; VGA; DisplayPort |
|---|---|
| DisplayPort™ | 1 DisplayPort™ 1.2 |
| HDMI | 1 HDMI 1.4 |
| VGA | 1 VGA |
Battery and power
| Power supply type | External |
|---|
Copy and scan
| Display scan frequency (horizontal) | 30-86 kHz |
|---|---|
| Display scan frequency (vertical) | 50-75 Hz |
| Copyright notice | © Copyright 2024 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
Physical
| Product color | Black |
|---|---|
| Dimensions (W x D x H) | 54.1 x 4.7 x 32.6 cm (without stand) |
| Dimensions With Stand (W x D x H) | 54.1 x 19 x 41.6 cm |
| Color gamut | 72% NTSC |
Package
| Package dimensions (W x D x H) | 59.5 x 12.5 x 39 cm |
|---|---|
| Pallet dimensions (W x D x H) | 109.5 x 109.5 x 207.5 cm |
| Layers per pallet | 5 |
| Products per pallet | 80 |
| Products per pallet layer | 16 |
Sustainability
| Energy star certified | ENERGY STAR® certified |
|---|---|
| Environmental certification | ENERGY STAR® certified; Low halogen; TCO Certified |
| Sustainability specifications | Low halogen; Recycled plastic cushions; 2% post-consumer recycled plastic |
| Energy Usage CO2e (kg) | 143.497 |
| End of Life CO2e (kg) | 1.163 |
| Production CO2e (kg) | 83.003 |
| Total CO2e (kg) | 228.72 |
| Transportation CO2e (kg) | 1.057 |
Warranty and service
| Manufacturer Warranty | HP three-year limited warranty |
|---|
Other
| What's in the box | Monitor; HDMI cable; Warranty card; Power adapter; Quick Setup Poster; AC power cord |
|---|---|
| Power consumption | 36 W (maximum), 18 W (typical), 0.5 W (standby) |
| Power | 100 - 240 VAC 50/60 Hz |
| Registration required | No |
| Brand | HP |
| Series name | HP Series 3 Pro 23.8 inch |
| Sub brand | HP Series 3 Pro |
| Certifications and compliances | BIS; CB(62368-1); TUV Rheinland |
| TCO Certified | TCO Certified, generation 10 |
| HDCP | Yes, DisplayPort™ and HDMI |
| Video connectors | HDMI; DisplayPort™-in |
| Base area footprint (metric) | 23 x 19 cm |
| Backlight type | Edge-lit |
| Curvature | Flat |
| Detachable stand | Yes |
| Contrast ratio | 1200:1 |
| Hardness | 3H |
| Haze | 25% |
| Horizontal viewing angle | 178° |
| Low blue light | TÜV certified |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Pixels per inch (ppi) | 93 ppi |
| Refresh rate (maximum) | 75 Hz |
| Response time (typical) | 5ms GtG (with overdrive) |
| Stand type | Fixed height stand; Base stand; With stand |

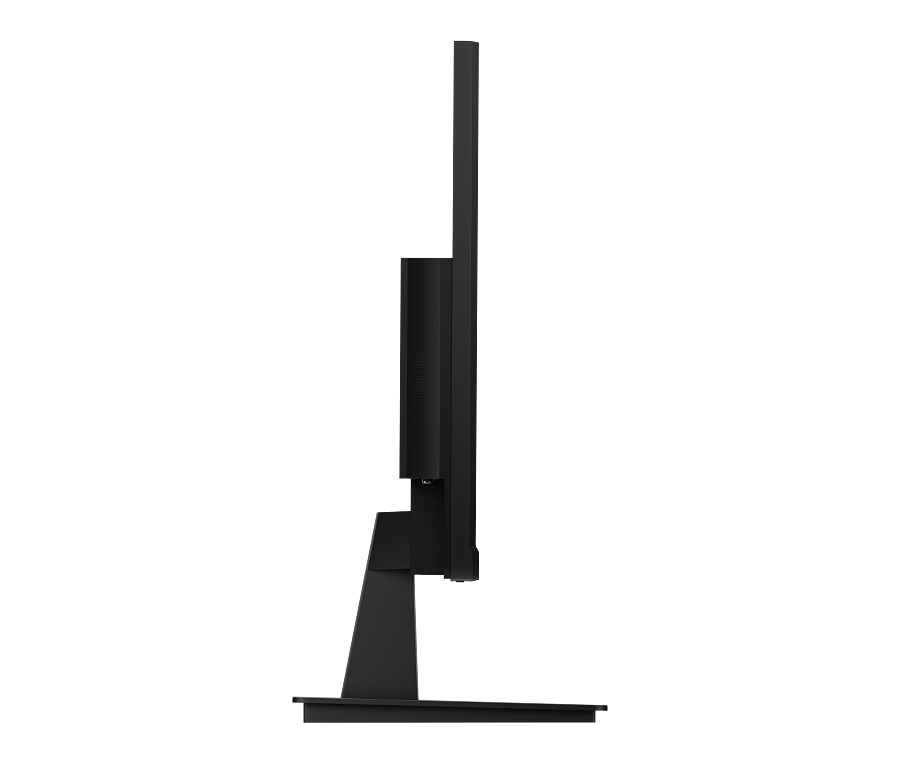

| Tilt | -5 to +15° |

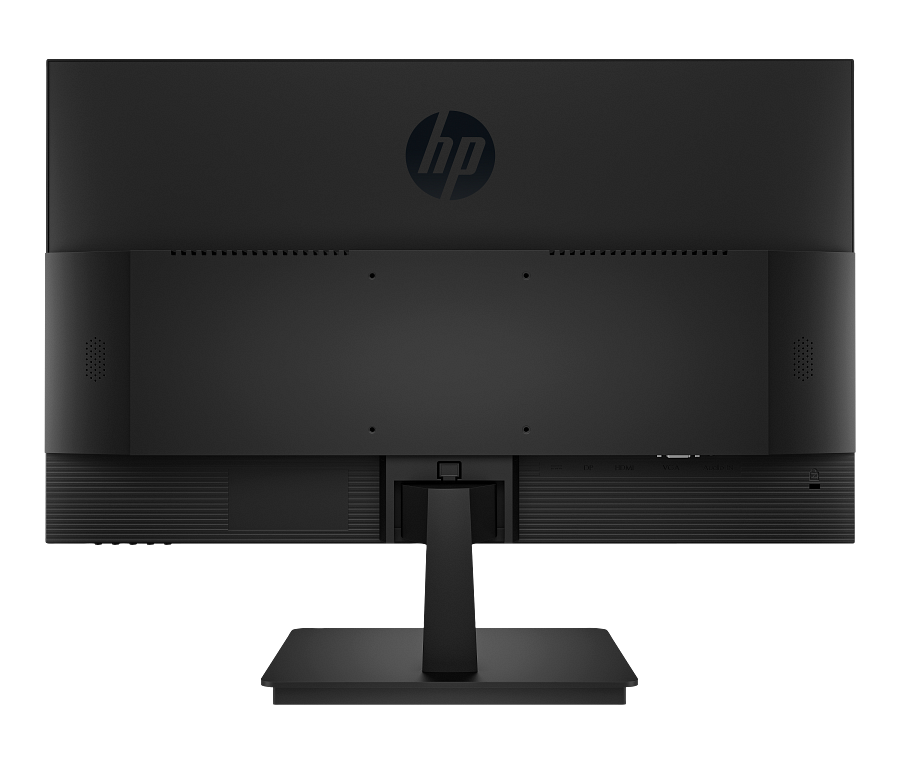

| VESA mounting | 100 x 100 mm |
| Viewable diagonal size | 23.8" (60.47 cm) |
| Non-Operating Humidity Range | 5 - 90 % |
| Non-operating temperature - Celsius | -20 to 60°C |
| Non-operating temperature - fahrenheit | -4 to 140°F |
| Operating altitude | Up to 5,000 m |
| Operating humidity range | 5 to 90% RH |
| Operating temperature range | 32 to 122°F |
| Country of origin | India(ACJ) |
| Headline | Plug and Play Convenience |
| Key selling point | Be more productive on your everyday tasks with this 23.8" FHD monitor with built-in speakers. An IPS panel ensures you can see your content from any angle. Experience more vibrant colors with 1200:1 contrast ratio and fluid content with up to 75 Hz refresh rate.[1] |
| Image legal disclaimer | Product image may differ from actual product |
| Legal disclaimer [01] | [3] FHD content is required to view FHD images. |
| Legal disclaimer [02] | [4] This product has been verified to meet ENERGY STAR® requirements. |
| Trademark information | DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. ENERGY STAR® is a registered mark owned by the U.S. government. |
| Segment | Business |
| User type | Office & Home work; Everyday home |
| Overview | Make work easy with an everyday monitor. A sharp 23.8-inch FHD, IPS screen and built-in speakers boosts your productivity, while tilt adjustability helps you work comfortably. Plus, the essential ports that you need to get your work done, including DisplayPort™, HDMI and VGA. |
| Company | HPI |
| Code name | Titan II |

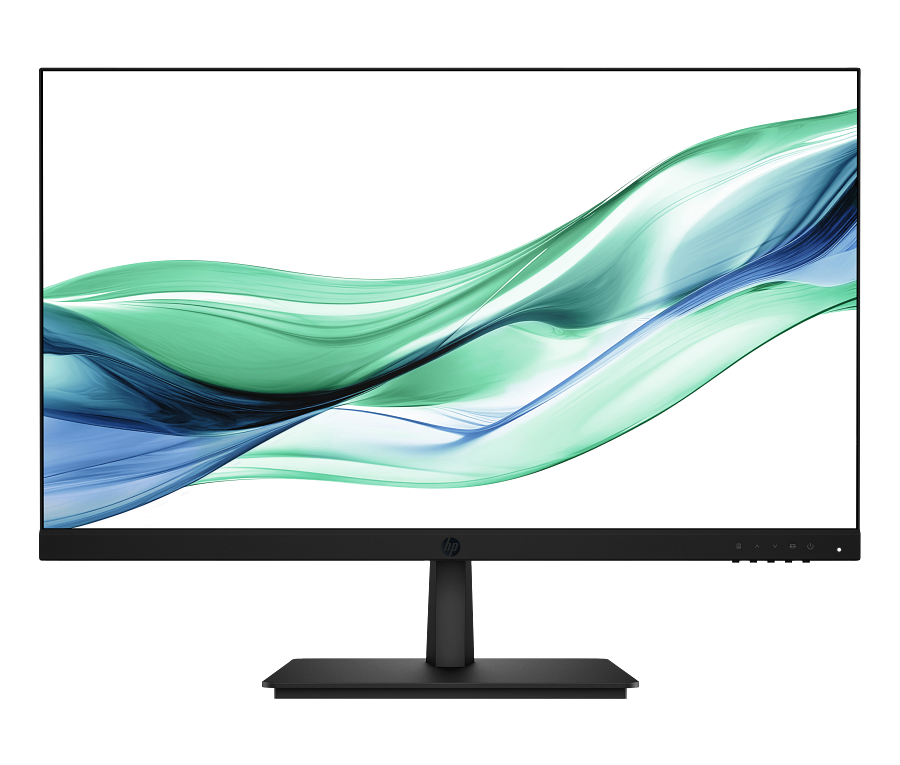

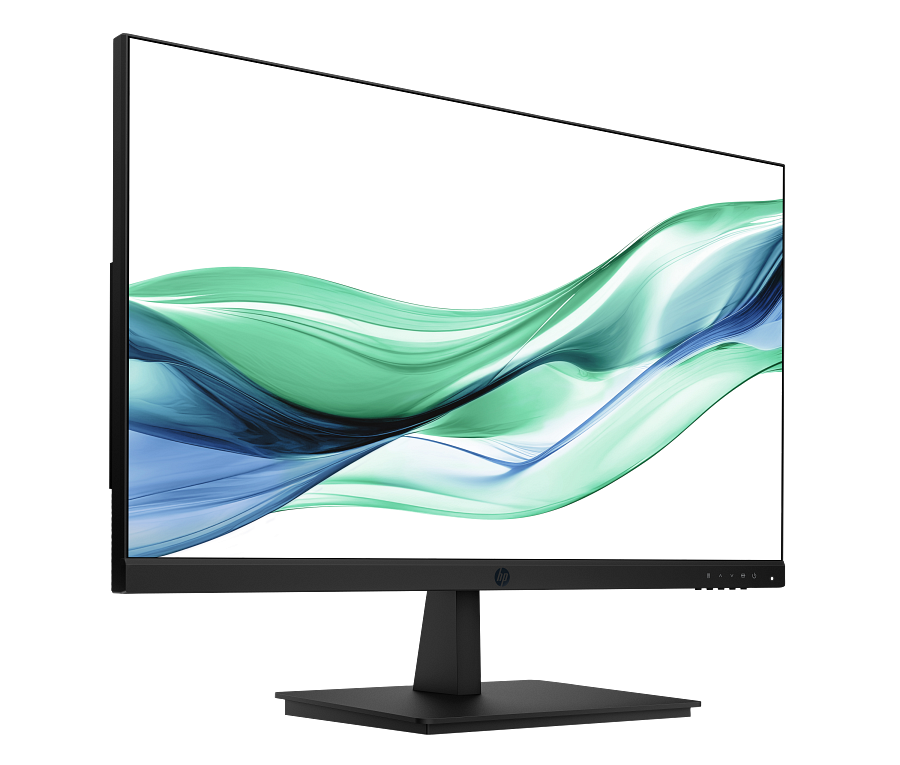

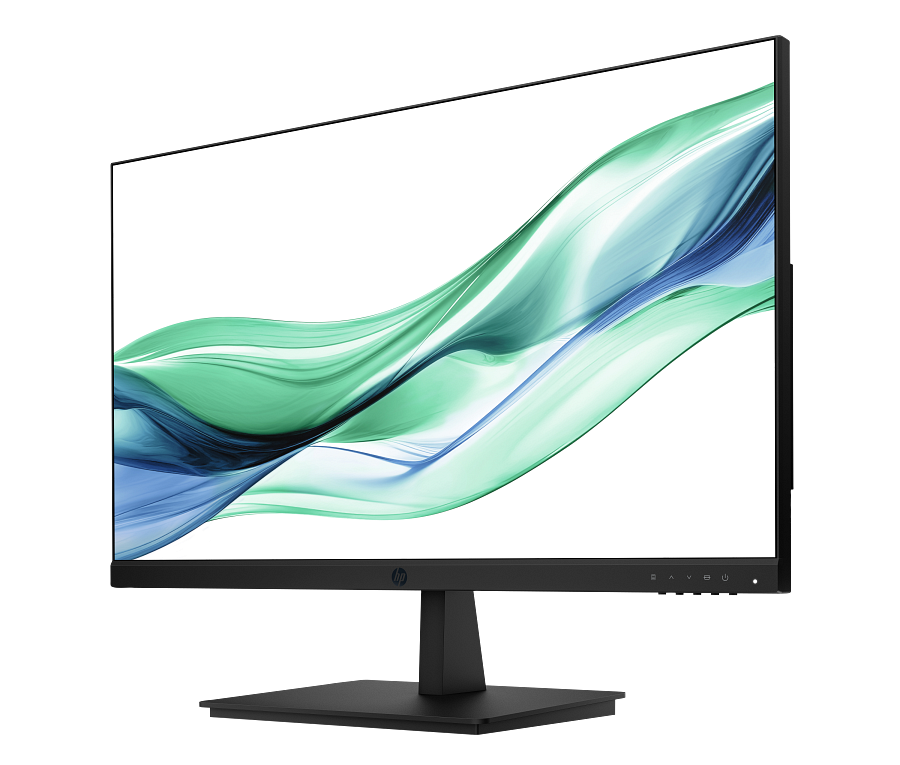

| Product long name | HP Series 3 Pro 23.8 inch FHD Monitor - 324pb |
| Product long name specifications | HP Series 3 Pro 23.8 inch FHD Monitor - 324pb, 75 Hz, 72% NTSC, IPS; LCD, No integrated camera, TÜV certified |
| Product short name specifications | HP Series 3 Pro 23.8 inch FHD Monitor - 324pb, 75 Hz, 72% NTSC, IPS; LCD |
| Physical security | Standard lock slot |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
Notes and footnotes
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [1] All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. 75 Hz refresh rate can be supported via HDMI and DisplayPort™ cable connection only. 60 Hz refresh rate with VGA.
- [2] HDMI 1.4, AC power cable and power adapter included. All other cables sold separately.
- [1] All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
- [2] DisplayPort™ 1.2 or HDMI 1.4 required to drive panel at its native resolution. The video card of the connected PC must be capable of supporting 1920 x 1080 and include one DisplayPort™, one HDMI or one VGA outputs to drive the monitor at the Preferred Mode.
- [3] Number of colors through A-FRC technology.
- [4] Service parts obtained after purchase may not be Low Halogen.
- [5] Plastic cushions are made from >90% recycled plastic.
- [6] Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
- [7] Included cables may vary by country.
- [8] Lock sold separately.
- [9] TCO Certified is a ISO 14024 Type 1 sustainability label for IT products. Compliance with all criteria is independently verified.
