SKU: B7JM6AA

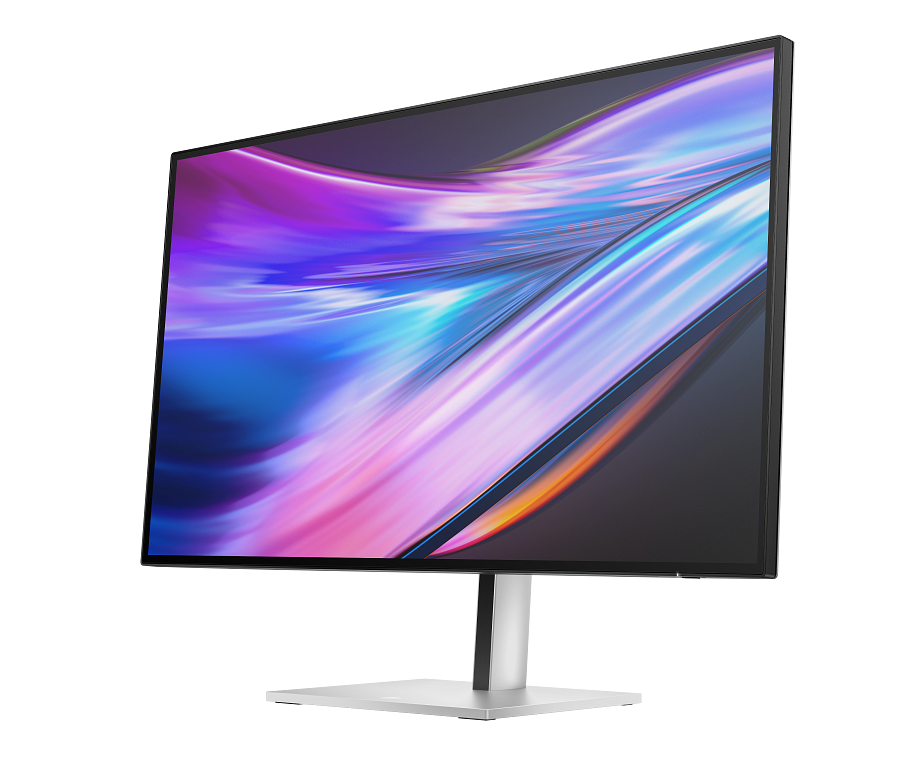

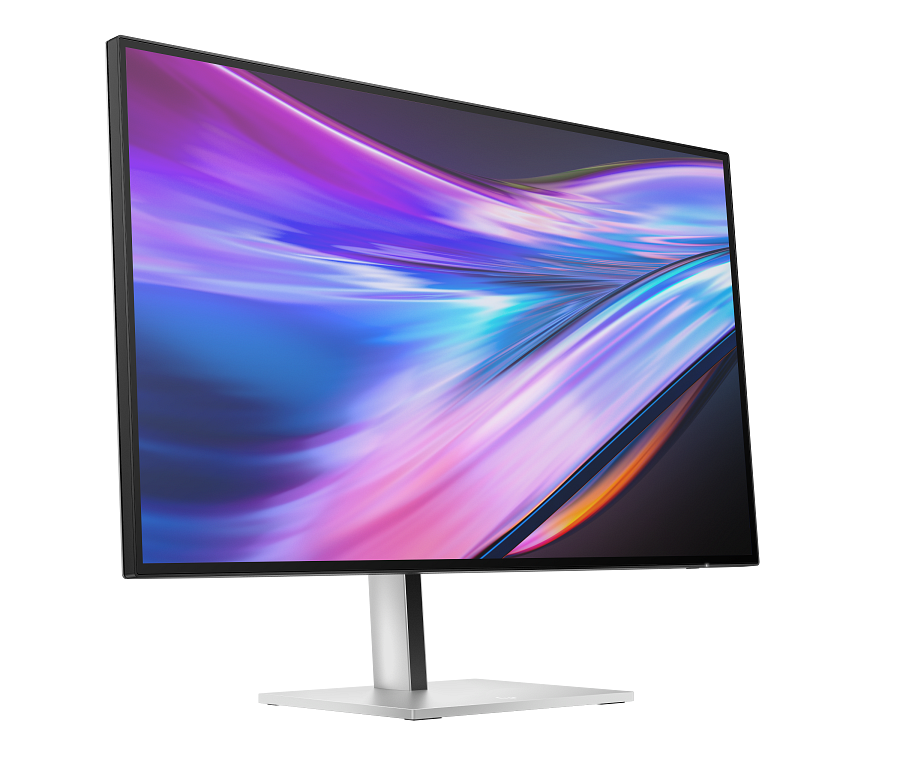

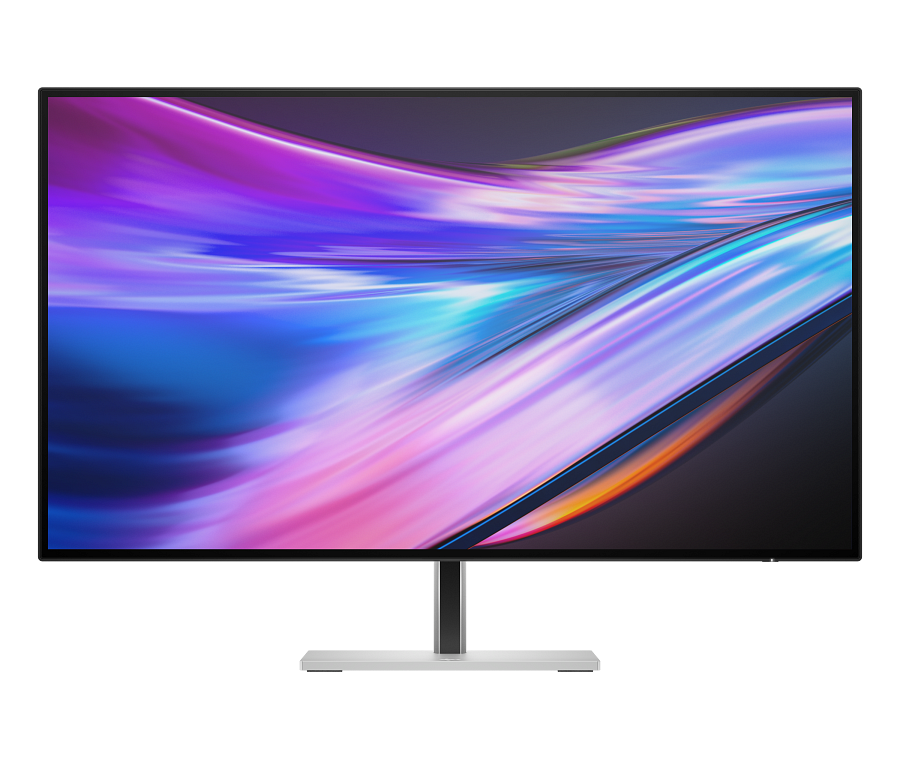

HP Series 7 Pro 31.5 inch 4K Thunderbolt 4 Docking Monitor - 732xk
Contact us for pricing
Key features
- Adjustable stand
- DreamColor
- USB Type-C® Power Delivery
- Docking
- Sustainable
- HP Eye Ease
- Thunderbolt™
- VESA DisplayHDR certified
- Ambient light sensor
- The Ultimate Color Solution
- 4K UHD Resolution
- VESA Display HDR™ 600
Technical specifications
Product
| UPC number | 198990309811 |
|---|---|
| Product type | Monitors |
Storage
| Storage altitude | Up to 40,000 ft |
|---|
Display
| Aspect ratio | 16:9 |
|---|---|
| Backlight lamp life minimum (to half brightness) | 30,000 hours |
| Brightness | 450 nits |
| Bezel | 4-sided borderless |
| Display area (metric) | 69.73 x 39.22 cm |
| Display colors | Up to 1.07 billion colors supported |
| Display contrast ratio (dynamic) | 5,000,000:1 |
| Display features | Docking monitor |
| Display size (diagonal) | 80.01 cm (31.5") |
| Flicker-free | Yes (TÜV certified) |
| Onscreen controls | Color; Image; Input; Power; Menu; Management; Information; Exit; Split screen |
| Native resolution | 4K UHD (3840 x 2160) |
| Panel bit depth | 10 bit (8 bit + FRC) |
| Panel technology | IPS Black; Neo:LED |
| Resolution (maximum) | 4K UHD (3840 x 2160 @ 120 Hz) |
| Resolutions supported | 640 x 480 @ 60 Hz; 640 x 480 @ 75 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 60 Hz; 800 x 600 @ 75 Hz; 1024 x 768 @ 60 Hz; 1280 x 720 @ 60 Hz; 1280 x 1024 @ 60 Hz; 1440 x 900 @ 60 Hz; 1600 x 900 @ 60 Hz; 1600 x 1200 @ 60 Hz; 1680 x 1050 @ 60 Hz; 1920 x 1080 @ 60 Hz; 1920 x 1080 @ 100 Hz; 1920 x 1200 @ 60 Hz; 2560 x 1440 @ 60 Hz; 3840 x 2160 @ 30 Hz; 3840 x 2160 @ 60 Hz; 1280 x 1024 @ 75 Hz; 1024 x 768 @ 75 Hz; 3840 x 2160 @ 50 Hz; 3840 x 2160 @ 100 Hz; 3840 x 2160 @ 120 Hz; 1920 x 2160 @ 60 Hz; 1920 x 2160 @ 120 Hz |
| Screen treatment | Anti-glare |
| Maximum resolution | 3840 x 2160 (4K UHD) |
| Resolution | 4K UHD |
| Screen size (cm) | 80 |
| Screen size range | > 27 |
| Screen size (in) | 31.5 |
Camera and audio
| Camera | No integrated camera |
|---|
Ports

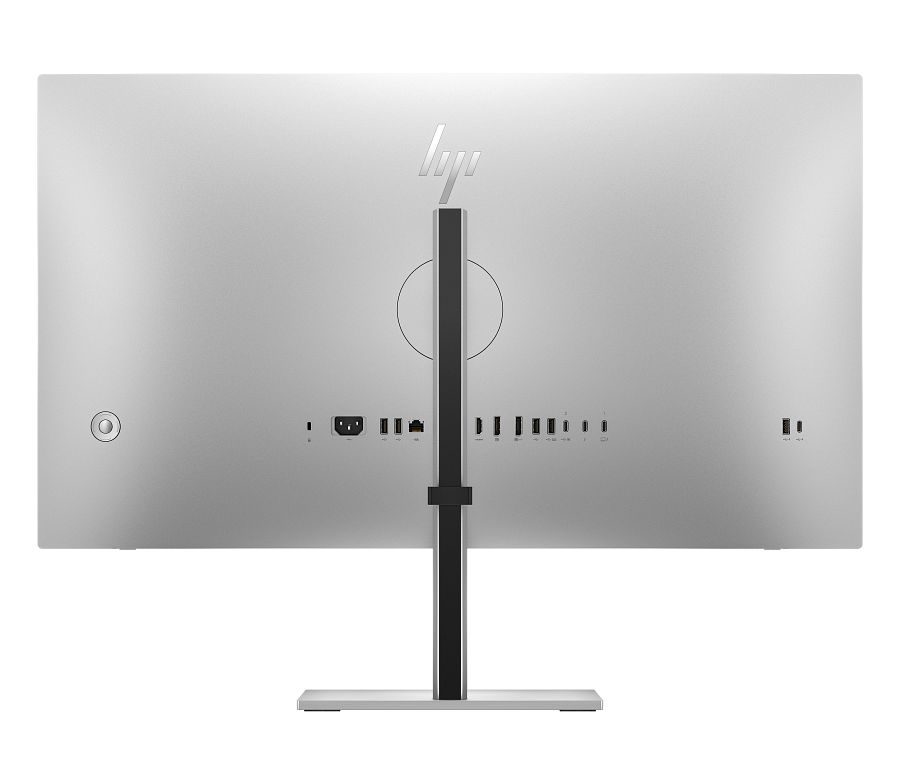

| Ports | HDMI; USB-C; USB hub; DisplayPort; Thunderbolt; DisplayPort out |
|---|---|
| DisplayPort™ | 1 DisplayPort™ 1.4 |
| DisplayPort™ Out | 1 DisplayPort™ 1.4-out |
| Ethernet | 1 RJ-45 (10/100/1000/2500 Mbps) |
| HDMI | 1 HDMI 2.1 |
| USB Type-A | 5 USB Type-A 10Gbps signaling rate (1 charging) |
| USB Type-C® data | 1 USB Type-C® 10Gbps signaling rate (15 W charging) |
| USB Type-C® video input | 1 Thunderbolt™ 4 Out (15W) for Daisy chain; 1 USB Type-C® 10Gbps signaling rate (Up to 140W dynamic power delivery, USB-C® power sharing, Alt Mode DisplayPort™ 1.4); 1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate (Up to 140W dynamic power delivery, USB-C® power sharing, DisplayPort™ 1.4) |
Battery and power
| Power supply type | Internal |
|---|
Software
| Management Software | HP Display Center; HP Client Management Script Library |
|---|
Copy and scan
| Display scan frequency (horizontal) | 30-275 kHz |
|---|---|
| Display scan frequency (vertical) | 48-120 Hz |
Physical
| Product color | Black bezel; Pike silver rear cover |
|---|---|
| Stand color | Black; Silver |
| Dimensions (W x D x H) | 71.44 x 7.62 x 41.1 cm (without stand) |
| Product dimensions with stand (W x D x H) | 28.13 x 9.26 x 23.59 in |
| Dimensions With Stand (W x D x H) | 71.44 x 23.52 x 59.92 cm |
| Color gamut | 100% sRGB; 99.4% Adobe RGB; 99.4% Display P3; Pantone validated |
Package
| Package dimensions (W x D x H) | 32.13 x 6.34 x 19.61 in |
|---|---|
| Pallet dimensions | Slip sheet: 45.28 x 39.22 x 78.94 inch (20 ft, 40 ft), 45.28 x 39.22 x 98.58 inch (40 HQ); Pallet: 45.28 x 39.22 x 83.82 inch (20 ft, 40 ft, 40 HQ) |
| Pallet dimensions (W x D x H) | Slip sheet: 115 x 99 x 200.5 cm (20 ft, 40 HQ), 115 x 99 x 250.4 cm (40 HQ); Pallet: 115 x 99 x 212.9 cm (20 ft, 40 ft, 40 HQ) |
Sustainability
| Ecolabels | CECP; SEPA; Taiwan Green Mark; CEL Grade 2; Ukraine EE; Korea MEPS; California CEC |
|---|---|
| Energy star certified | ENERGY STAR® certified |
| Environmental certification | ENERGY STAR® certified; EPEAT® registered |
| EPEAT registered | EPEAT Gold with Climate+ |
| Sustainability specifications | At least 15% recycled metal including 100% recycled aluminum in the stand; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least 90% post-consumer recycled plastic in the monitor’s enclosure; Low halogen |
Warranty and service
| Manufacturer Warranty | HP three-year limited warranty |
|---|
Other
| What's in the box | Monitor; Thunderbolt™ cable; HDMI cable; Warranty card; AC power cable; Quick Setup Poster; 1 USB Type-C® to Type-A cable; DisplayPort™ 1.4 cable; Base stand; VESA mount adapter |
|---|---|
| Power consumption | 300 W (maximum); 48 W (typical) |
| Power | 100 - 240 VAC 50/60 Hz |
| Standby mode power demand | 0.5 W |
| Registration required | No |
| Brand | HP |
| Series name | HP Series 7 Pro 31.5 inch |
| Sub brand | HP Series 7 Pro |
| Certifications and compliances | BIS; BSMI; CB; CCC; CE; CECP; CEL; EAC; FCC; ISO 9241-307; KC; KCC; NOM; PSB; RCM; TUV-S; UL/CSA; VCCI; WEEE; Low Blue Light; WW application; ICE; UAE; NRCS; GS; Ukraine CoC; Ukraine DOC; TUV Eye Comfort 3.0 |
| Energy efficiency class | F |
| TCO Certified | TCO Certified, generation 10; TCO Certified, Edge |
| HDCP | Yes, DisplayPort™, HDMI, USB Type-C® and Thunderbolt™ |
| Base area footprint (metric) | 25.6 x 20.5 cm |
| Backlight type | Edge-lit |
| Curvature | Flat |
| Detachable stand | Yes |
| Contrast ratio | 2700:1 |
| Hardness | 3H |
| Haze | 35% |
| HDR | VESA DisplayHDR™ 600 |
| Horizontal viewing angle | 178° |
| Low blue light | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified) |
| pivot | ±90° |
| Pixel pitch | 0.1816 x 0.1816 mm |
| Pixels per inch (ppi) | 114 ppi |
| Refresh rate (maximum) | 120 Hz |
| Response time (typical) | 5ms GtG (with overdrive) |
| Stand type | With stand; Height adjustable stand |
| Swivel | ±45° |
| Tilt | -5 to +20° |
| VESA mounting | 100 x 100 mm (bracket included) |
| Viewable diagonal size | 31.5" (80.01 cm) |
| Non-Operating Humidity Range | 5 - 95% |
| Non-operating temperature - Celsius | -20 to 60°C |
| Non-operating temperature - fahrenheit | -4 to 140°F |
| On mode power demand in Standard Dynamic Range (SDR) | 32.4 W |
| Operating altitude | Up to 16,400 ft |
| Operating humidity range | 20 to 80% RH (non-condensing) |
| Operating temperature range | 41 to 95°F |
