SKU: CD949A

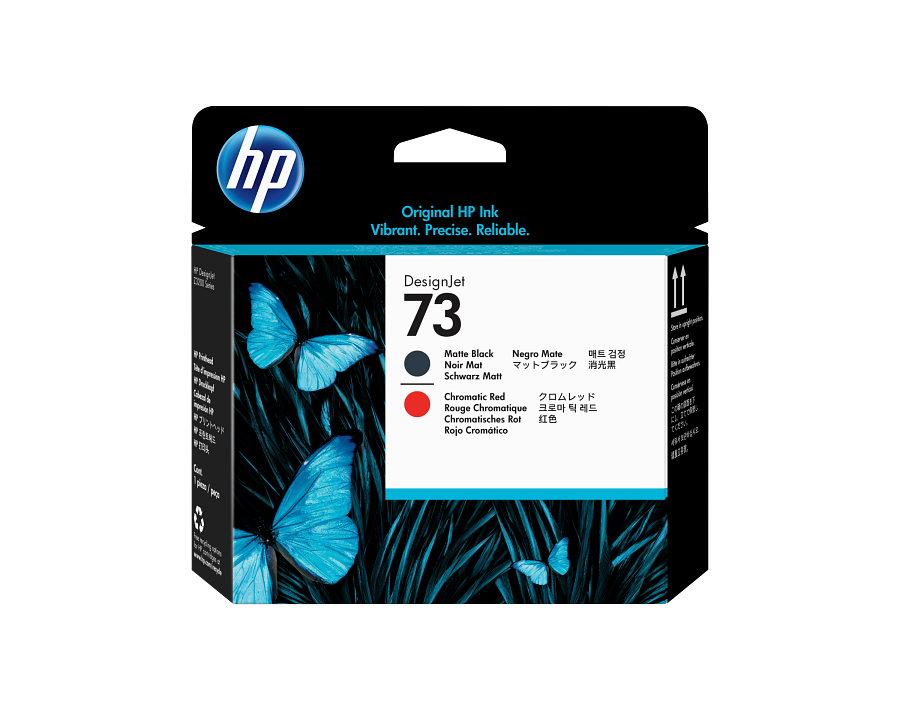

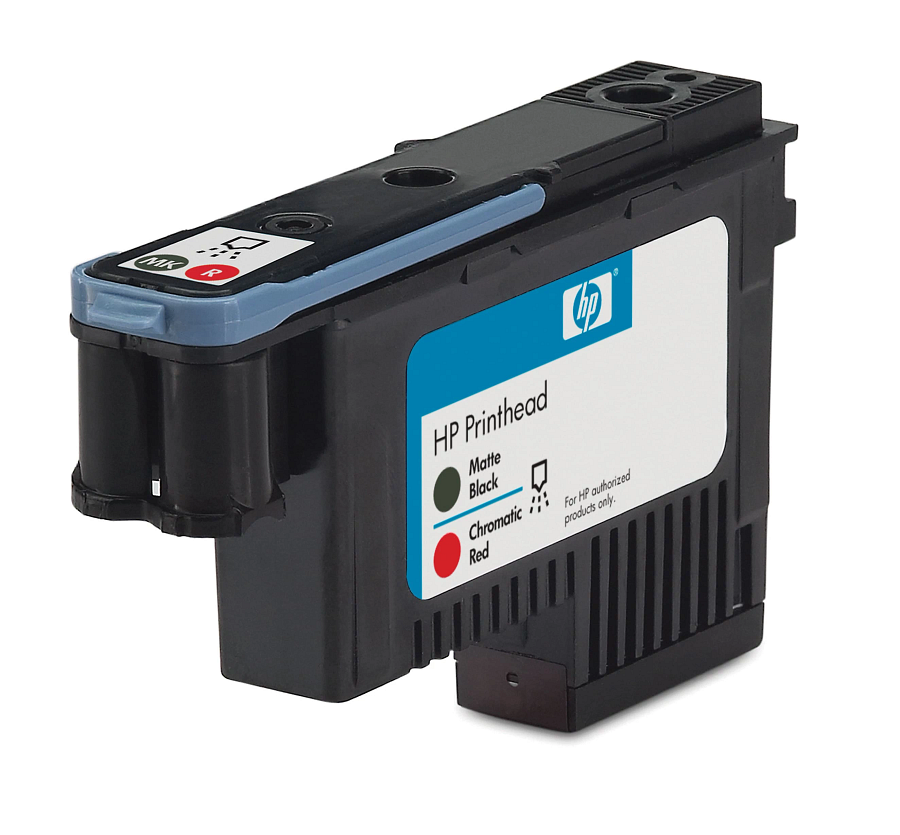

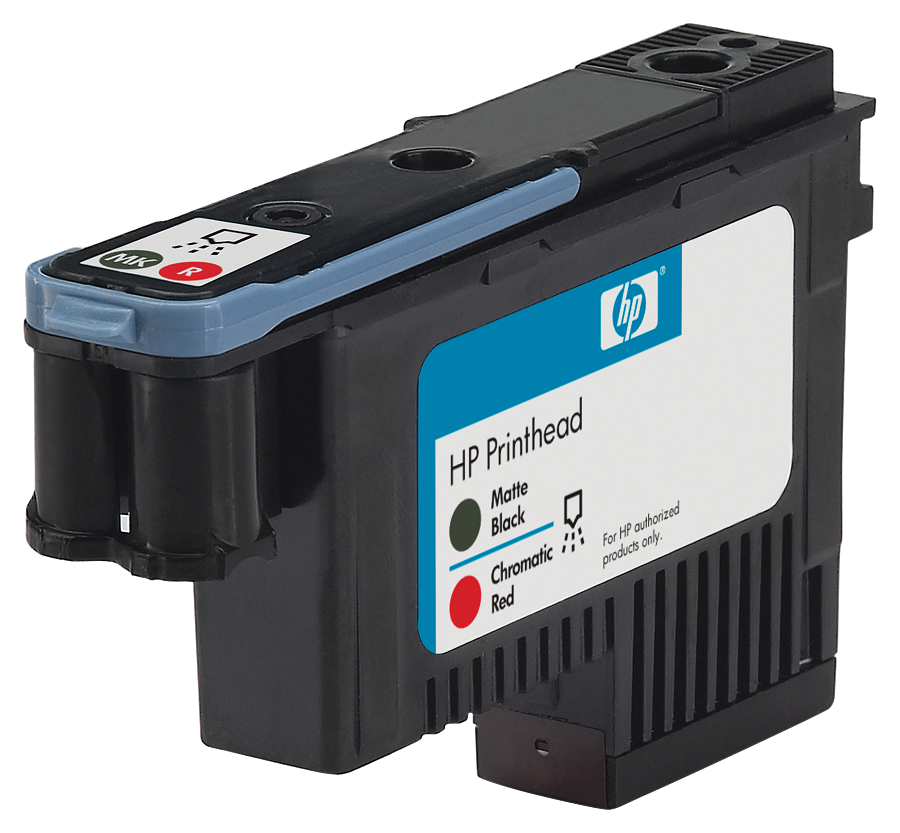

HP 73 Matte Black and Chromatic Red DesignJet Printhead
- Print technology
- Ink
Contact us for pricing
Technical specifications
Product
| UPC number | (018) 884420435266; (141) 885631723807 |
|---|---|
| UNSPSC code | 44103110 |
Display
| Product/Series display name | HP 73 Printheads |
|---|
| Print technology | HP Thermal Inkjet |
|---|---|
| Print Resolution Technologies | TIJ 4.0 |
| Printing Material Shelf Life | 12 months |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| BCP bubble graphic color | Matte Black and Red |
|---|---|
| Cartridge Colors | Matte Black; Red |
| Print Cartridge/Bottle, Color(s) | Matte black, chromatic red |
| Weight | 0.07 kg |
Package
| Larger master carton barcode | 10884420038693 |
|---|---|
| Pallet barcode | 20884420038690 |
| Package count | 1 |
| Larger master carton dimensions (W x D x H) | 365 x 298 x 150 mm |
| European pallet dimensions (W x D x H) | 1219 x 1016 x 1500 mm |
| Package dimensions (W x D x H) | 28 x 143 x 132 mm |
| Pallet dimensions (W x D x H) | 1219 x 1016 x 1325 mm |
| Cartons per pallet | 80 |
| Larger master carton quantity | 24 |
| Quantity per pallet | 1920 |
| Larger master carton weight | 2.8 kg |
| Package weight | 0.1 kg |
| Pallet weight | 248 kg |
Sustainability
| Total CO2e (kg) | 3.9 |
|---|
Warranty and service
| Manufacturer Warranty | 6 Months Limited Warranty (Return to HP/Dealer) |
|---|---|
| Warranty | HP warrants that HP products are free from defects in workmanship or material under normal use in accordance with specifications until the date marked on the product. Warranty does not cover empty products or products that have been modified in any way. For complete warranty details contact your dealer or see www.hp.com/support/inkjet_warranty. You may also have statutory legal rights against the seller in addition to this manufacturer's warranty which are not restricted by this manufacturer's warranty. |
Other
| What's in the box | Printhead |
|---|---|
| Registration required | No |
| Selectability | 73 |
| Ink drop | 4 pl |
| Ink types | Pigment-based |
| Print cartridge/bottle volume | 130 ml |
| Print head nozzles | 2112 |
| Printhead swath (inch) | 2.16 cm (0.85) |
| Supply type | Printheads |
| Compatibility | HP Designjet Z3200 Printer series |
| Non-Operating Humidity Range | 20 to 80% RH |
| Operating temperature range | 15 to 35° C |
| Why to buy | User-replaceable HP 73 Matte Black and Chromatic Red Printhead—designed for problem-free performance. |
| Headline | Save time and money with problem-free printing |
| Key selling point | Print quality and reliability are optimized with intelligent technology built into HP printheads. |
| Image legal disclaimer | Product image may differ from actual product |
| Overview | Print just what you envision. Then print it again confident that you will get the same vivid color, the same quality. It's no problem using the HP Matte Black and Chromatic Red Printhead. Intelligent technology built into Original HP printheads, ink cartridges and the printer makes automatic and continuous adjustments to optimize print quality and reliability. So you get consistently outstanding results that help you avoid rework, enabling faster turnaround times and lower costs of printing. |
| Photo (product photo, jpg, 190x170) | Ink Toner Paper Printer Supplies/CD949A_190x170.jpg |
| Photo (product photo, jpg, 400x400) | Ink Toner Paper Printer Supplies/CD949A_400x400.jpg |
| Photo (product photo, jpg, 70x100) | Ink Toner Paper Printer Supplies/CD949A_70x100.jpg |
| Company | HPI |
| Product long name | HP 73 Matte Black and Chromatic Red DesignJet Printhead |
| Short product name | HP 73 Matte Black and Chromatic Red Printhead |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
| Ideal for | Ideal for creating museum-quality, long-lasting prints for a range of projects including photos, fine-art prints, proofing and full-color reproduction. |
| Material Type for item | FERT |
Notes and footnotes
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
