SKU: CH646A

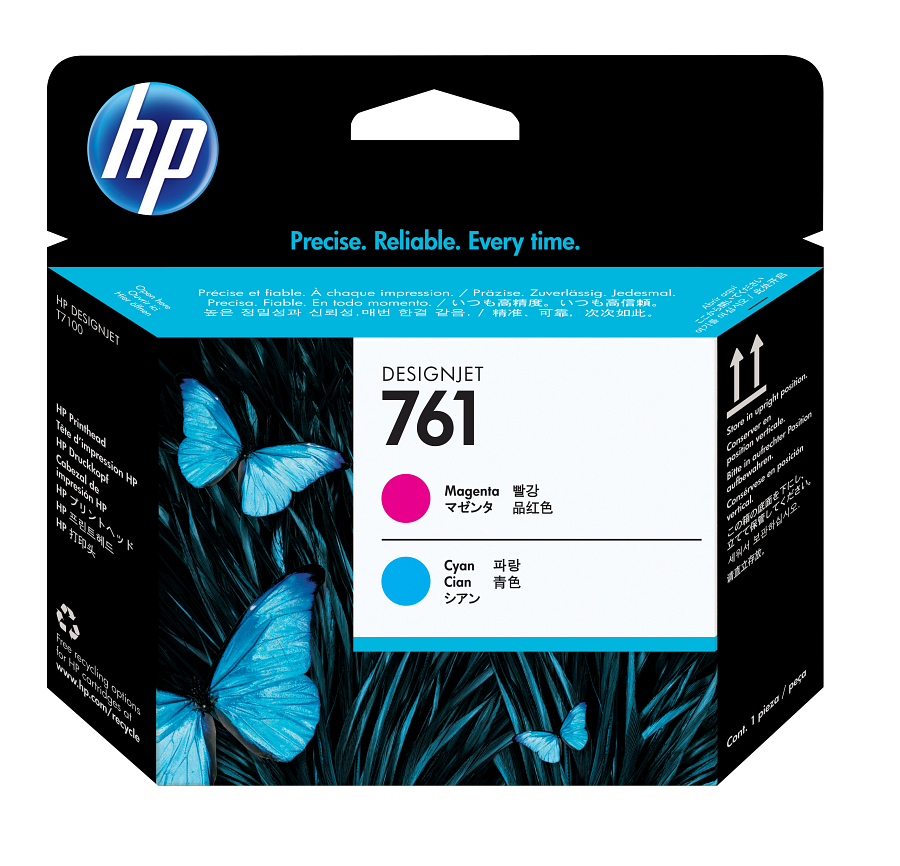

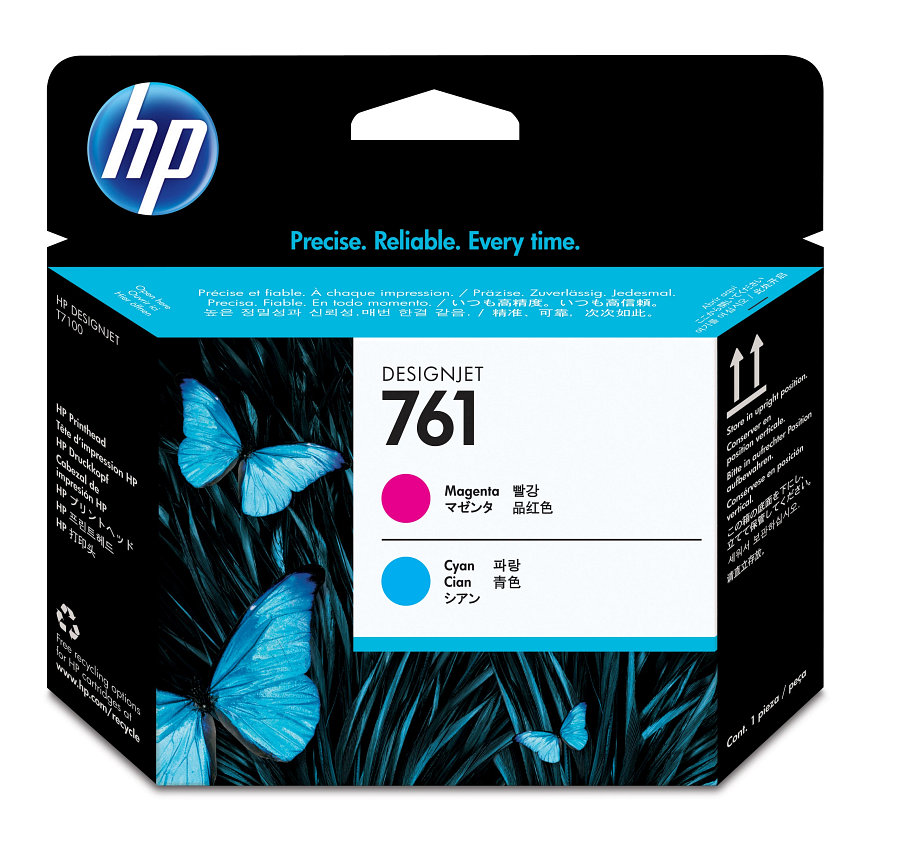

HP 761 Magenta/Cyan DesignJet Printhead
- Print technology
- Ink
Contact us for pricing
Technical specifications
Product
| UNSPSC code | 44103110 |
|---|
Storage
| Storage temperature range | -40 to 60º C |
|---|
| Print technology | HP Thermal Inkjet |
|---|---|
| Print Resolution Technologies | TIJ 4.0 |
| Printing Material Shelf Life | 12 months |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Cartridge Colors | Cyan; Magenta |
|---|---|
| Print Cartridge/Bottle, Color(s) | Magenta/cyan |
| Weight | 0.07 kg |
Package
| Smaller master carton barcode | 10885631448219 |
|---|---|
| Pallet barcode | 20885631448216 |
| Package count | 1 |
| Case dimensions (case or master carton) | 14.37 x 11.73 x 5.91 in |
| Case or master carton dimensions (W x D x H) | 365 x 298 x 150 mm |
| Package dimensions (W x D x H) | 28 x 143 x 132 mm |
| Pallet dimensions (W x D x H) | 1219 x 1016 x 1325 mm |
| Cartons per pallet | 80 |
| Case or master carton quantity | 24 |
| Case weight (case or master carton) | 2.85 kg |
| Package weight | 0.11 kg |
| Pallet weight | 248 kg |
Sustainability
| Total CO2e (kg) | 3.9 |
|---|
Warranty and service
| Manufacturer Warranty | 1 Year, Return to HP - Replacement |
|---|---|
| Warranty | Each HP ink cartridge, printhead, and related supply is warranted to be free from defects in materials and workmanship during the period of the warranty. This warranty pertains to any HP ink cartridge or printhead when used in its designated HP or authorized original equipment manufacturer (OEM) printing device. See the product manual for the printer to determine the correct ink cartridge, printhead, or related supply selection. This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with. The coverage lasts until the “Warranty Ends” date has been reached or the warranted usage limit has been reached, whichever occurs first. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HEWLETT-PACKARD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR SATISFACTORY QUALITY. TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT SHALL HEWLETT-PACKARD BE LIABLE FOR ANY INCIDENTAL, DIRECT, CONSEQUENTIAL, SPECIAL, OR INDIRECT DAMAGES, OR LOST PROFITS FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE. SOME COUNTRIES, STATES OR PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. |
Other
| What's in the box | Printhead |
|---|---|
| Registration required | No |
| Selectability | 761 |
| Ink drop | 6 pl |
| Ink types | Dye-based |
| Print cartridge/bottle volume | Not applicable |
| Print head nozzles | 2112 |
| Printhead swath (inch) | 2.24 cm (0.88) |
| Supply type | Printheads |
| Compatibility | HP Designjet T7100 Printer |
| Non-Operating Humidity Range | 8 to 90% RH |
| Operating humidity range | 40 to 55% RH |
| Operating temperature range | 20 to 25º C |
| Country of origin | Product of Singapore |
| Why to buy | Produce crisp, accurate, cost-effective drawings. Impress with high-quality color presentations. HP printheads provide low-maintenance, high-productivity printing. So you can print with ease and deliver with confidence. |
| Headline | Avoid the trial and error that costs you time with the trouble-free printing of HP supplies. HP printheads are designed and tested with Original HP inks and the printer to provide consistently crisp, clear, accurate quality with every print. |
| Key selling point | Experience fewer interruptions—intelligence built into Original HP DesignJet printheads maximizes usage life. |
| Image legal disclaimer | Product image may differ from actual product |
| Stacking number for carton | 8 |
| Overview | HP printheads are designed together with the printer to meet all your needs—from cost-effective monochrome drawings to impressive high-quality presentations. HP printheads provide crisp, clear, accurate quality. Consistent results and low-maintenance, trouble-free operation help you maintain high productivity and reduce costs. |
| Photo (product photo, jpg, 190x170) | Ink Toner Paper Printer Supplies/CH646A_190x170.jpg |
| Photo (product photo, jpg, 400x400) | Ink Toner Paper Printer Supplies/CH646A_400x400.jpg |
| Photo (product photo, jpg, 70x100) | Ink Toner Paper Printer Supplies/CH646A_70x100.jpg |
| Company | HPI |
| Code name | Dragon |
| Product long name | HP 761 Magenta/Cyan DesignJet Printhead |
| Short product name | 761 Printhead |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
| Ideal for | Mid-range print production environments, including reproduction houses looking to expand their offerings and increase profits and enterprise environments that want to add color. |
| Material Type for item | FERT |
Notes and footnotes
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [1]In the circa 50 countries and territories in which the HP Planet Partners program operates. Program features and availability varies.
