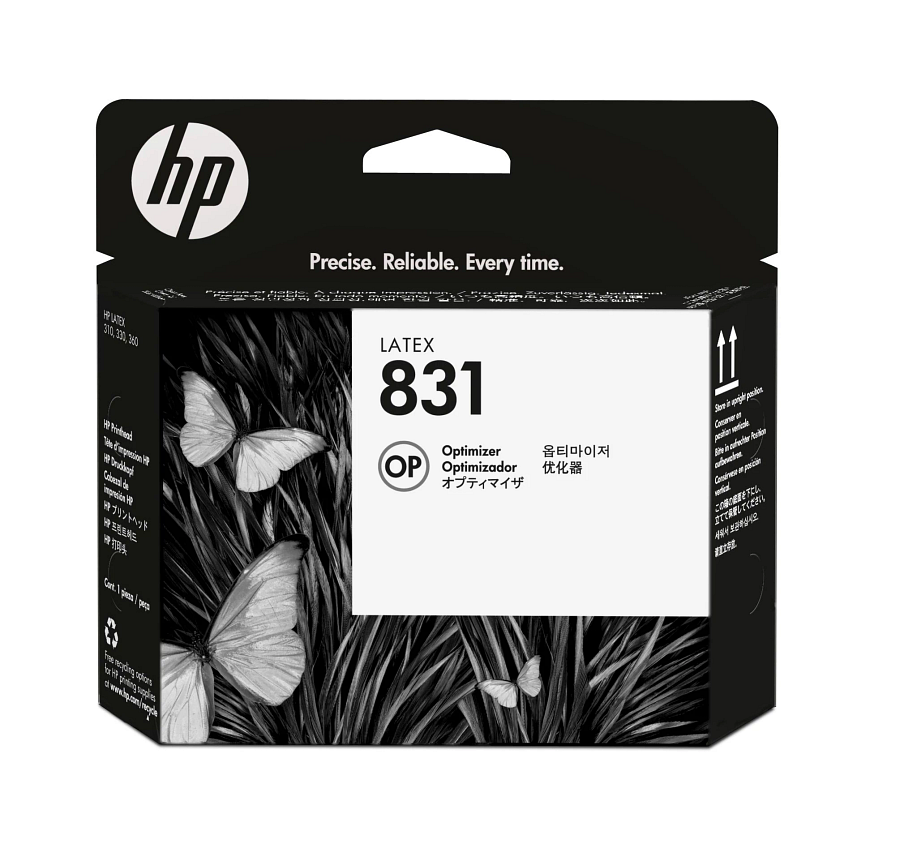

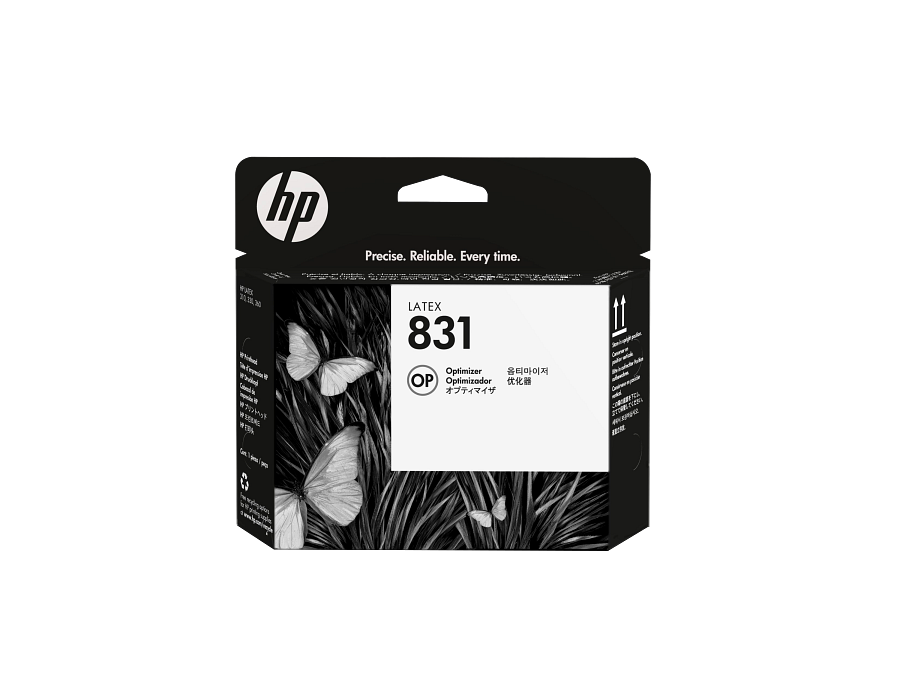

HP 831 Latex Optimizer Printhead

Back to Supplies

SKU: CZ680A

Print technology: Ink

Request a quote

Technical specifications

Product

UPC number	887758088722
UNSPSC code	44103105

Storage

Storage temperature range	41 to 104°F

Print

Print technology	HP Thermal Inkjet
Print Resolution Technologies	TIJ 4.0
Printing Material Shelf Life	18 months

Copy and scan

Copyright notice	© Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

© Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Physical

Weight	0.17 lb

Package

Smaller master carton barcode	10887758088729
Pallet barcode	20887758088726
Package count	1
Case dimensions (case or master carton)	14.4 x 11.7 x 5.9 in
Case or master carton dimensions (W x D x H)	366 x 297 x150 mm
Package dimensions (W x D x H)	1.1 x 5.6 x 5.2 in
Pallet dimensions	40 x 48 x 51.9 in
Pallet dimensions (W x D x H)	1016 x 1219 x 1318 mm
Cartons per pallet	80
Case or master carton quantity	24
Count of layers in pallet	8
Quantity per pallet	1920
Case weight (case or master carton)	2.85 kg
Package weight	0.23 lb
Pallet weight	531 lb

Sustainability

Total CO2e (kg)	3.9

Warranty and service

Manufacturer Warranty	1 Year, Return to HP - Replacement
Warranty	Each HP ink cartridge, printhead, and related supply is warranted to be free from defects in materials and workmanship during the period of the warranty. This warranty pertains to any HP ink cartridge or printhead when used in its designated HP or authorized original equipment manufacturer (OEM) printing device. See the product manual for the printer to determine the correct ink cartridge, printhead, or related supply selection. This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with. The coverage lasts until the “Warranty Ends” date has been reached or the warranted usage limit has been reached, whichever occurs first. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HEWLETT-PACKARD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR SATISFACTORY QUALITY. TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT SHALL HEWLETT-PACKARD BE LIABLE FOR ANY INCIDENTAL, DIRECT, CONSEQUENTIAL, SPECIAL, OR INDIRECT DAMAGES, OR LOST PROFITS FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE. SOME COUNTRIES, STATES OR PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Manufacturer Warranty

1 Year, Return to HP - Replacement

Warranty

Each HP ink cartridge, printhead, and related supply is warranted to be free from defects in materials and workmanship during the period of the warranty. This warranty pertains to any HP ink cartridge or printhead when used in its designated HP or authorized original equipment manufacturer (OEM) printing device. See the product manual for the printer to determine the correct ink cartridge, printhead, or related supply selection. This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with. The coverage lasts until the “Warranty Ends” date has been reached or the warranted usage limit has been reached, whichever occurs first. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HEWLETT-PACKARD SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITION OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR SATISFACTORY QUALITY. TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT SHALL HEWLETT-PACKARD BE LIABLE FOR ANY INCIDENTAL, DIRECT, CONSEQUENTIAL, SPECIAL, OR INDIRECT DAMAGES, OR LOST PROFITS FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE. SOME COUNTRIES, STATES OR PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Other

What's in the box	Printhead
Registration required	No
Selectability	831
Ink drop	6 pl
Ink types	Latex
Print head nozzles	2112
Printhead swath (inch)	0.88 in
Supply type	Printheads
Compatibility	HP Latex 110 Printer, HP Latex 310 Printer, HP Latex 330 Printer, HP Latex 360 Printer, HP Latex 560 Printer, HP Latex 570 Printer, HP Latex 115 Print and Cut Solution, HP Latex 315 Print and Cut Solution, HP Latex 335 Print and Cut Solution
Non-Operating Humidity Range	20 to 90% RH
Operating humidity range	20 to 80% RH
Operating temperature range	15 to 30ºC
Country of origin	China; Singapore
Differentiator	Latex optimizer
Why to buy	Grow further—achieve high image quality and consistency on a wide substrate range and expand your outdoor and indoor application offering. Maintain efficient operation with easy, productive printing. Recycle HP 831 Latex Printheads.[2]
Headline	Avoid the trial and error that costs you time. User-replaceable HP printheads are designed and tested with HP Latex Inks and the printer to provide consistent, high-resolution image quality and easy, productive, low-maintenance printing.
Key selling point	Avoid rework—the entire printing system continuously optimizes print quality and printing system reliability.
Image legal disclaimer	Product image may differ from actual product
Cartons per layer	10
Overview	Take on a broader range of outdoor and indoor applications. Maintain efficient operations with the easy, productive, low-maintenance printing with user-replaceable HP Latex printheads. Offer a broad range of high-resolution outdoor and indoor applications across a versatile array of substrates. And reduce the impact of printing on the environment—you can recycle HP 831 Latex Printheads.[2]
Photo (product photo, jpg, 190x170)	Ink Toner Paper Printer Supplies/CZ680A_190x170.jpg
Photo (product photo, jpg, 400x400)	Ink Toner Paper Printer Supplies/CZ680A_400x400.jpg
Photo (product photo, jpg, 70x100)	Ink Toner Paper Printer Supplies/CZ680A_70x1700.jpg
Company	HPI
Code name	Nexus
Product long name	HP 831 Latex Optimizer Printhead
Short product name	831 Printhead
Product classification flag	Standard HP Product
Tangible flag	Y
Ideal for	Ideal for small sign shops, quick printers, copy shops, and print service providers that want to diversify and grow their businesses with durable outdoor and indoor applications.
Material Type for item	FERT

Notes and footnotes

A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
[1] For select HP Latex printers only. Performance may vary depending on media—for more information, see http://www.hp.com/go/mediasolutionslocator. For best results, use textiles that do not stretch. The ink collector is required for porous textiles.
[2] Visit http://www.hp.com/recycle to see how to participate and for HP Planet Partners program features and availability; program may not be available in your area. Where this program is not available, consult the Material Safety Data Sheet (MSDS) available at http://www.hp.com/go/ecodata to determine appropriate disposal.
