Product details

Back to Laptops

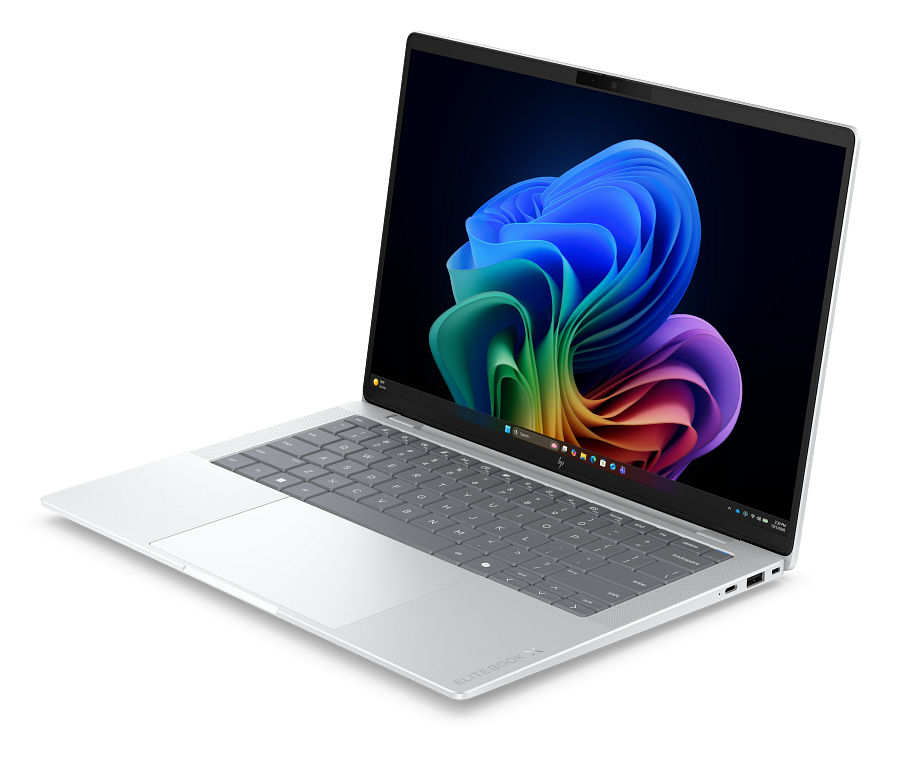

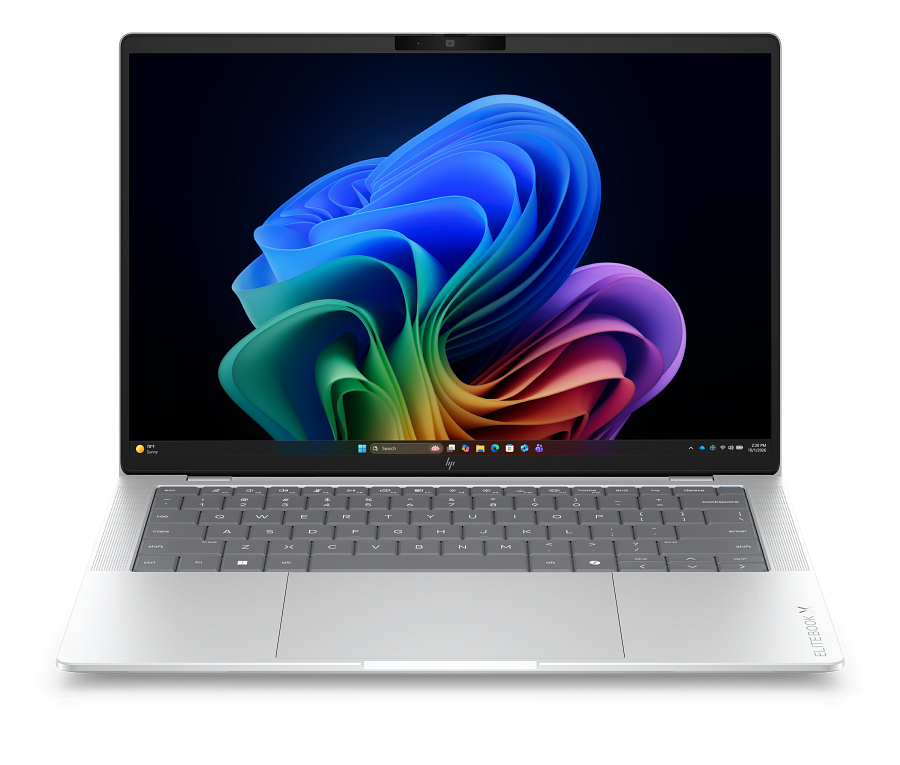

HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV)
HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV) HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV) HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV) HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV) HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV) HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV) HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV)

SKU: D5FH6AW

HP EliteBook X G2a 14 inch Notebook Next Gen AI PC (C66XJAV)

Display
35.6 cm (14") diagonal WUXGA display
Storage
512 GB
Graphics
Integrated

Contact us for pricing

Request a quote

Key features

  • HP Premium Keyboard – spill resistant, backlit keyboard
  •  Wi-Fi 7
  •  1 HDMI 2.1
  • 1 stereo headphone/microphone combo jack
  • 1 nano security lock slot
  • 1 USB Type-A 5Gbps signaling rate (powered)
  • 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 2.1)
  •  At least 30% post-consumer recycled plastic
  • At least 80% recycled metal
  • HP paper-based packaging is from recycled or certified sources
  • Low halogen
  • Bulk packaging available

Technical specifications

Product

UPC number 199896902021
Product type Laptops

Storage

Storage 512 GB
Internal Storage 512 GB PCIe® NVMe™ M.2 SSD

Display

Display 35.6 cm (14") diagonal, WUXGA (1920 x 1200), IPS, anti-glare, 400 nits, 100% sRGB

Graphics

Graphics Integrated
Graphics (integrated) AMD Radeon™ 860M Graphics

Wireless

Wireless MediaTek Wi-Fi 7 MT7925 (2x2) and Bluetooth® 6.0 wireless card
Wireless network WLAN

Ports

Ports 1 HDMI 2.1; 1 stereo headphone/microphone combo jack; 1 nano security lock slot; 1 USB Type-A 5Gbps signaling rate (powered); 2 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate (USB Power Delivery, DisplayPort™ 2.1); 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 2.1)
Ports note HDMI cable sold separately.

Battery and power

Battery life note Battery is internal. Serviceable by warranty. Fast charging 50% in 30 minutes.
Battery type HP Long Life 3-cell, 68 Wh Li-ion polymer

Copy and scan

Copyright notice © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Physical

Dimensions (W x D x H) 31.27 x 21.7 x 0.79 cm (minimum front); 31.27 x 21.7 x 1.31 cm (minimum rear); 31.27 x 21.7 x 0.8 cm (maximum front); 31.27 x 21.7 x 1.43 cm (maximum rear)
Color gamut 100% sRGB

Sustainability

Ecolabels TCO Certified
Energy star certified ENERGY STAR® certified
Environmental certification TCO Certified;ENERGY STAR® certified
EPEAT registered EPEAT registered configurations available
Sustainability specifications At least 30% post-consumer recycled plastic; At least 80% recycled metal; HP paper-based packaging is from recycled or certified sources; Low halogen; Bulk packaging available; External power supply 90% efficiency; Molded paper pulp cushion and folded corrugated cushion inside box are made of 100% recycled or certified sources; Outside box and corrugated cushions are made of 100% recycled or certified sources
Energy Usage CO2e (kg) 52.44
End of Life CO2e (kg) 0.584
Production CO2e (kg) 184.371
Total CO2e (kg) 237.414
Transportation CO2e (kg) 0.019

Warranty and service

Manufacturer Warranty 1 year(1/1/1)limited warranty includes 1 year of parts,labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

Other

Power HP 100 W wall mount USB Type-C® GaN power adapter
Registration required No
Series name HP EliteBook X G2a 14" Next Gen AI
Sub brand EliteBook
Certifications and compliances CSA/UL 62368-1; FCC/ICES/CISPR/VCCI; CE Marking; China CCC/SRRC; Taiwan BSMI/NCC; Korea KCC/KC/KES; Ukraine NSoC/TEC; EAEU Compliance; Saudi Arabian Compliance; Low Blue Light; WW RoHS; MIL-STD 810H
TCO Certified TCO Certified, generation 10
Maximum Height (metric) 1.71 cm
Form factor Standard laptop
Headline Highly secure, smart, built for business agility
Key selling point Join every meeting with confidence. Poly Camera Pro keeps you framed and distraction-free with smart background adjustments and spotlight.[5]
Image legal disclaimer Product image may differ from actual product
Legal disclaimer [01] [1] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 11 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com. Microsoft Copilot requires Windows 11. Some features require an NPU. Timing and availability will be dependent on Microsoft and varies by market and device. Requires Microsoft account to log in. Where Copilot is not available, the Copilot key will lead to the Bing search engine. See http://aka.ms/WindowsAIFeatures.
Legal disclaimer [02] [2] Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD ’s numbering is not a measurement of clock speed. Features and software that require a NPU may require software purchase, subscription or enablement by a software or platform provider, and third party software may have specific configuration or compatibility requirements. Potential NPU inferencing performance varies by use, configuration, and other factors.
Notes and footnotes
  1. Front height measurement is near the front edge where the chassis bottom cover taper begins. Back height measurement is near the back edge where the chassis bottom cover taper ends.
  2. Product packaging size varies based on options chosen. Please contact your HP representative for your packaging size details. For detailed packaging information, access the HP Commercial Notebooks Packaging Guide.(https://h20195.www2.hp.com/v2/GetPDF.aspx/c08960410.pdf)
  3. A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
  4. [1] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated and enabled. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.
  5. [4] Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. EPEAT® status varies by country. Visit www.epeat.net for more information.
  6. [5] Requires HP app and Windows OS. AI Magic Background runs on the GPU when initially generating your background in Poly Camera Pro. The NPU is used for streaming your restyled background in your collaboration applications.
  7. [2] Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.
  8. [6] HP Wolf Security for Business requires Windows 10 or 11 Pro and higher, includes various HP security features and is available on HP Pro, Elite, Workstation, and RPOS products. See product details for included security features.
  9. [3] Max Boost clock frequency performance varies depending on hardware, software and overall system configuration.
  10. [7] Smart Sense requires the HP app and Windows 11 OS. Features may vary by platform.
  11. [4] Features and software that require a NPU may require software purchase, subscription or enablement by a software or platform provider, and third party software may have specific configuration or compatibility requirements. Potential NPU inferencing performance varies by use, configuration, and other factors.
  12. [5] For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 32 GB is reserved for system recovery software.
  13. [6] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD's numbering is not a measurement of clock speed.
  14. [7] Max Boost clock frequency performance varies depending on hardware, software and overall system configuration.
  15. [8] 5G module is optional. WWAN-ready configuration must be selected at purchase to add WWAN module at a later date (WWAN After Market Option Kit). Module designed for 5G NR SA(standalone) and 5G NR NSA (non-standalone) Public and Private networks including Evolved-Universal Terrestrial Radio Access New Radio Dual Connectivity (ENDC) with both 100Mhz of 5G NR and LTE channel bandwidth, using 256QAM 4x4 as defined by 3GPP. Module includes embedded eSIM. Module requires activation and separately purchased service contract. Check with service provider for coverage and availability in your area. Data connection, upload and download speeds will vary due to network, location, environment, network conditions, and other factors. Backwards compatible to 4G LTE and 3G HSPA technologies. 5G module planned to be available in select platforms and select countries, where carrier and frequency bands supported.
  16. [9] LPWAN (also called Mobile Narrowband) supports HP Protect & Trace with Wolf Connect service through the subscription term, but does not support mobile broadband use.
  17. [10] Sold separately or as an optional feature.
  18. [11] USB 20Gbps signaling rate is not available with Thunderbolt™ 4. Actual throughput may vary.
  19. [12] WUXGA (FHD+) content required to view WUXGA (FHD+) images.
  20. [13] Resolutions are dependent upon monitor capability, and resolution and color depth settings.
  21. [14] HP Sure View integrated privacy screen is an optional feature that must be configured at purchase and is designed to function in landscape orientation.
  22. [15] Actual brightness will be lower with touchscreen or Sure View.
  23. [16] All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
  24. [17] For new batteries, actual battery Watt-hours (Wh) may differ from the design capacity and may have a full charge capacity that differs by up to 10, which is typical for lithium-ion batteries. Battery capacity naturally decreases over time and with use, depending on several factors such as battery health management settings, shelf life, temperature, environment, loaded apps, features, system configuration, and power settings.
  25. [18] Recharges your battery up to 50% within 30 minutes when the system is off or in standby mode. Power adapter minimum of 65 watts required for battery capacities 56Whr or less. Power adapter minimum of 100 watts required for battery capacities greater than 56Whr and less than 83Whr. Power adapter minimum of 120 watts required for battery capacities greater than 83Whr and less than 100Whr. After charging has reached 50% capacity, charging will return to normal. Charging time may vary +/-10% due to System tolerance.
  26. [19] Availability may vary by country.
  27. [22] Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information.
  28. [23] HP IQ delivery app is preloaded on select HP PCs; it will be automatically updated to the future featured HP IQ application if you have auto updates enabled in Windows or will be available for download from the Microsoft Store. The future featured HP IQ app uses artificial intelligence. Features vary by configuration. For complete details see https://support.hp.com/us-en/document/ish_13696672-13696717-16 .
  29. [7] Major parts do not include screws, cables, inner frame, SSD, memory, and sub PCBs.
  30. [24] HP Services Scan automatically collects the telemetry necessary upon initial boot of the product to deliver device-level configuration data and health insights and is available preinstalled on select products, thru HP Factory Configuration Services; or it can be downloaded. For more information about how to enable HP Smart Support or for download, please visit http://www.hp.com/smart-support.
  31. [26] HP Support Assistant is available on Windows. For more information, please visit www.support.hp.com/help/hp-support-assistant .
  32. [27] HP App with Multicamera support for Mini Desktop PC will only available on 13th processor and beyond.
  33. [28] Poly Lens Desktop requires a Windows OS.
  34. [29] HP Client Catalog not preinstalled, however available for download at (https://www.hp.com/us-en/solutions/client-management-solutions.html).
  35. [30] HP Client Management Script Library (https://www.hp.com/us-en/solutions/client-management-solutions.html#tab=manageability-tools).
  36. [31] HP Cloud Recovery is available for Z by HP, HP Elite and Pro desktops and laptops PCs with Intel® or AMD processors and requires an open, network connection. Note: You must back up important files, data, photos, videos, etc. before use to avoid loss of data. Detail, please refer to: https://support.hp.com/us-en/document/c05115630 .
  37. [32] HP Connect for Microsoft Endpoint Manager is available from the Azure Market Place for HP Pro, Elite, Z and Point-of-Sale PCs managed with Microsoft Endpoint Manager. Subscription to Microsoft Endpoint Manager required and sold separately. Network connection required.
  38. [33] HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement .
  39. [34] HP Image Assistant not preinstalled, however available for download at (https://ftp.ext.hp.com/pub/caps-softpaq/cmit/HPIA.html).
  40. [35] HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement .
  41. [36] HP Patch Assistant available on select HP PCs with the HP Manageability Kit that are managed through Microsoft System Center Configuration Manager. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html .
  42. [37] HP Power Manager with Battery Health can be downloaded by entering your system information here: https://support.hp.com/in-en/document/ish_4449597-3519507-16 .
  43. [38] Secured-Core PC Enable requires an Intel® vPro®, AMD Ryzen™ Pro processor or Qualcomm® processor with SD850 or higher and requires 8 GB or more system memory. Secured-core PC is enabled from the factory.
  44. [39] HP Sure Admin requires HP G8 or newer platforms, Windows 10 or higher, HP BIOS, HP Manageability Kit or KMS Service from http://www.hp.com/go/clientmanagement and HP Sure Admin Local Access Authenticator.
  45. [40] HP Sure Click requires Windows 10 Pro or higher or Enterprise. See https://bit.ly/2PrLT6A_SureClick for complete details.
  46. [41] HP Sure Recover is available on select HP PCs and requires Windows 10 or 11 and an open network connection. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss of data. HP Sure Recover Gen6 with Embedded Reimaging is an optional feature on select HP PCs which requires Windows 10 or 11 must be configured at purchase. You must back up important files, data, photos, videos, etc. before use to avoid loss of data.
  47. [42] HP Sure Run is available on select HP PCs and requires Windows 10 and higher.
  48. [43] HP Sure Sense is available on select HP PCs with Windows 10 Pro, Windows 10 Enterprise, Windows 11 Pro, or Windows 11 Enterprise OS.
  49. [44] HP Sure Start is available on select HP PCs and requires Windows 10 and higher.
  50. [45] HP Tamper Lock can be Enabled/disabled by customers or IT administrator with administrator authority.
  51. [46] Absolute Persistence firmware module is shipped turned off and can only be activated with the purchase a license subscription and full activation of the software agent. License subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. Certain conditions apply. For full details visit: https://www.absolute.com/about/legal/agreements/absolute/ .
  52. [47] HP BIOSphere features may vary depending on the platform and configuration.
  53. [48] HP Secure Erase implements the methods outlined in the National Institute of Standards and Technology Special.
  54. [49] Lock is sold separately.
  55. [52] Typical dimension. Actual dimension may vary +/- 0.5mm. Height may vary based on configuration. Maximum Height does not include Rubber feet. Actual maximum product height may vary between 1.59 cm (0.63 in) and 1.71 cm (0.68 in) depending on the configuration/model.
  56. [64] TCO Certified is a ISO 14024 Type 1 sustainability label for IT products. Compliance with all criteria is independently verified.
