SKU: D9FD4PA

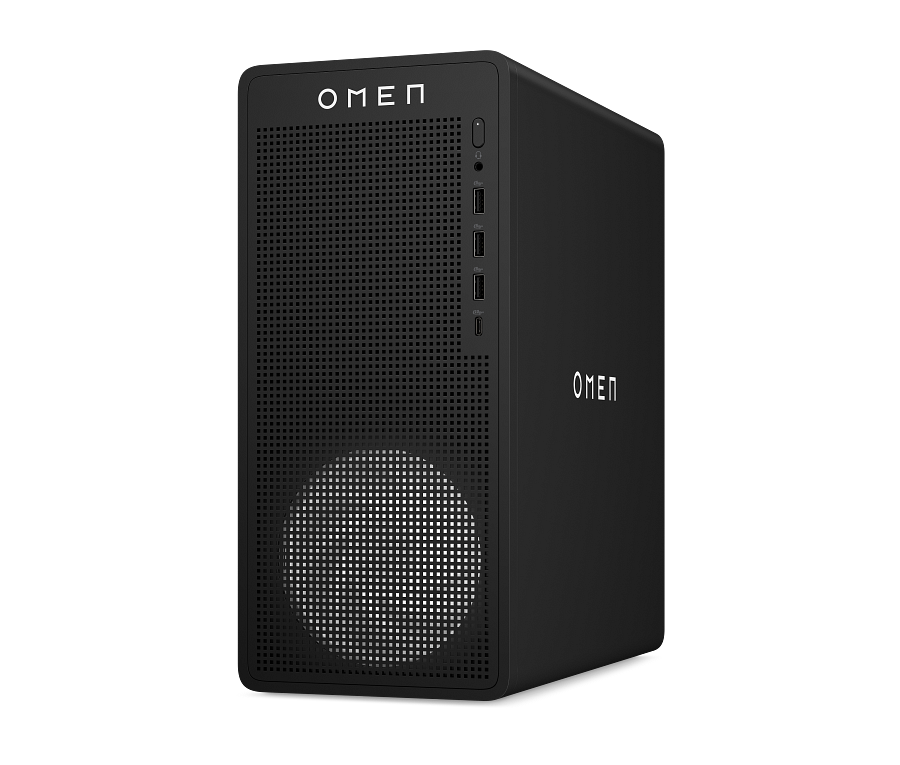

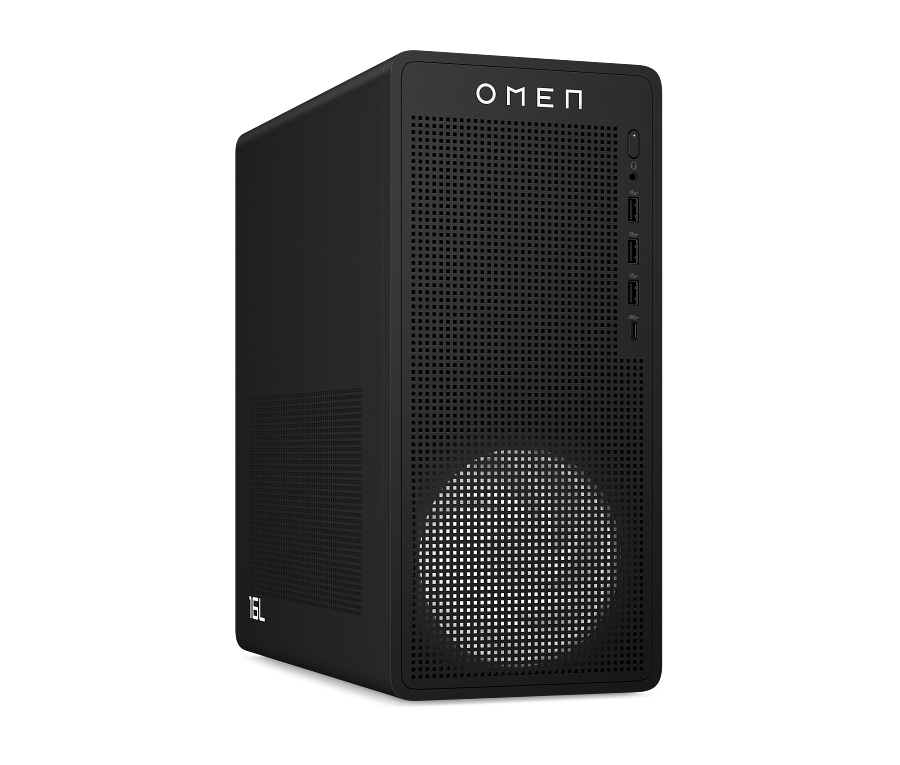

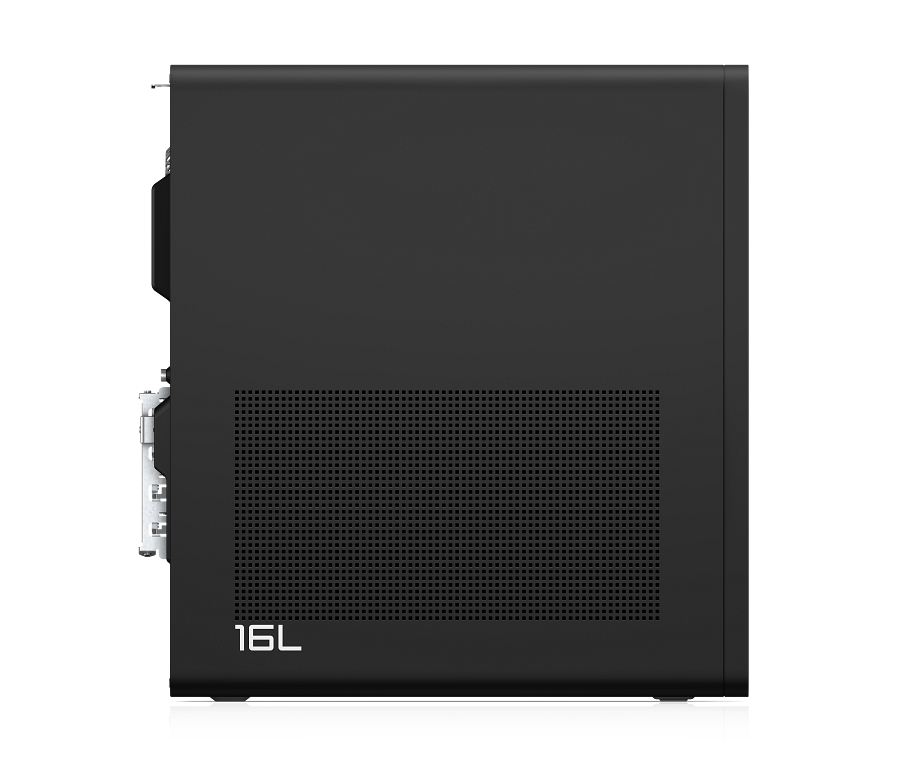

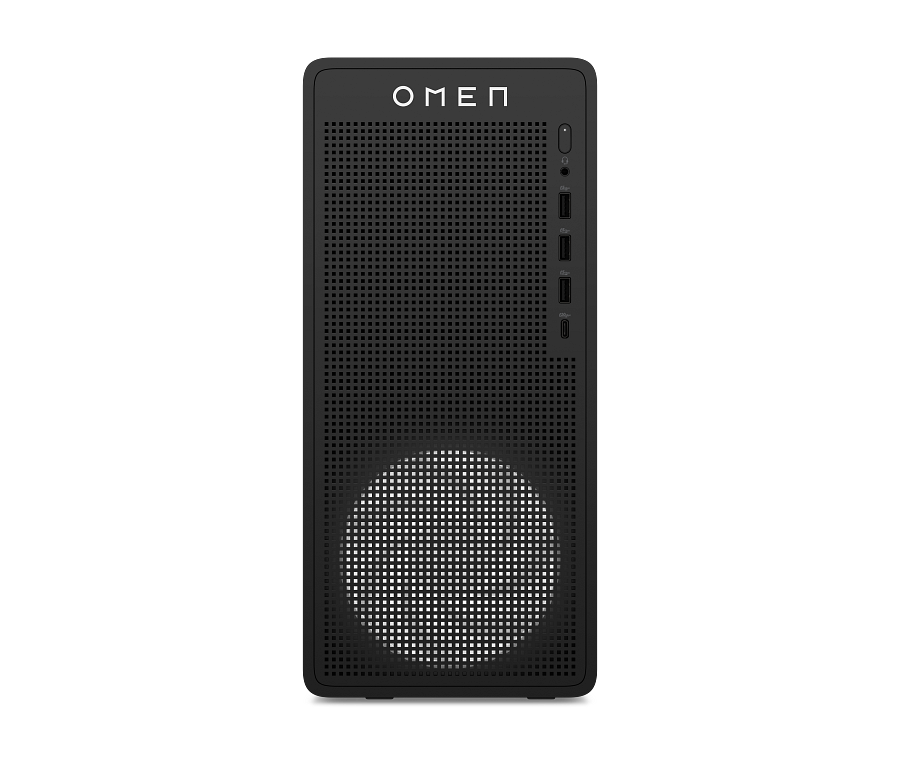

OMEN 16L Gaming Desktop PC TG03-1000 (BX8K6AV)
- Storage
- 1 TB
- Graphics
- Intel UHD
- Memory
- 16 GB DDR5-5600 MT/s (1 x 16 GB)
- Processor
- Core™ i7
Contact us for pricing
Key features
- Kensington Security lock slot
- Padlock
- Wi-Fi 6E
- Integrated 10/100/1000 GbE LAN
- 1 USB Type-C® 10Gbps signaling rate
- 3 USB Type-A 5Gbps signaling rate
- 1 headphone/microphone combo
- 4 USB 2.0 Type-A
- 1 microphone
- 1 RJ-45
- 1 line in
- 1 line out
Technical specifications
Product
| UPC number | 821844665008 |
|---|---|
| Product type | Desktops |
| Subcategory | Desktop and All-in-One |
| Product brand name | HP |
| UNSPSC code | 43211507 |
Processor
| Chipset | Intel® HM770 |
|---|---|
| Processor cache | 30 MB L3 |
| Processor family | Intel® Core™ i7 14th generation processor |
| Processor frequency technology | Intel® Turbo Boost Technology |
| Processor generation | 14th Generation |
| Processor maximum frequency | 5.2 GHz |
| Processor model | 14650HX |
| Processor | Intel® Core™ i7-14650HX (up to 5.2 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 16 cores, 24 threads) |
| Processor socket | BGA 1964 |
| Processor threads | 24 |
| Processor type | Intel Core i7 |
Memory
| ECC memory | non-ECC |
|---|---|
| Maximum Memory | Supports up to 64 GB max system memory |
| Memory layout (slots & size) | 1 x 16 GB |
| Memory module type | SODIMM |
| Memory size | 16 GB |
| Memory Slots | 2 SODIMM |
| Memory speed | 5600 MT/s |
| RAM (GB) | 16 |
| Memory type | DDR5 |
| Memory | 16 GB DDR5-5600 MT/s (1 x 16 GB) |
| Memory Note | Transfer rates up to 5600 MT/s. |
Storage
| Storage | 1 TB |
|---|---|
| Internal Storage | 1 TB PCIe® Gen4 NVMe™ M.2 SSD |
| Storage interface | PCIe® Gen 4 |
| Memory and storage | 16 GB memory;1 TB SSD storage |
Graphics
| Graphics | Integrated |
|---|---|
| Graphics (integrated) | Intel® UHD Graphics |
Camera and audio
| Audio | DTS:X® |
|---|
Wireless
| Wireless | Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card (supporting gigabit data rate) |
|---|
Ports
| Ports | 1 USB Type-C® 10Gbps signaling rate; 3 USB Type-A 5Gbps signaling rate; 1 headphone/microphone combo, 4 USB 2.0 Type-A; 1 microphone; 1 RJ-45; 1 line in; 1 line out |
|---|---|
| USB Type-A | 7 |
Battery and power
| Power supply type | 500 W 80 Plus Platinum certified power supply |
|---|
Software
| Operating system | Windows 11 Home Single Language in S mode |
|---|---|
| Software included | McAfee Online Protection 30-day trial |
| Software - Productivity & finance | 1 month trial for new Microsoft 365 customers |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Physical
| Product color | Shadow black |
|---|---|
| Product design | Textured finish |
| Dimensions (W x D x H) | 15.5 x 33.7 x 30.8 cm |
| Weight | 5.57 kg |
Package
| Package dimensions (W x D x H) | 40 x 49.9 x 28.7 cm |
|---|---|
| Package weight | 8.72 kg |
Sustainability
| Sustainability specifications | At least 20% recycled metal; At least 55% post-consumer recycled plastic |
|---|
Warranty and service
| Manufacturer Warranty | 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
|---|---|
| Cloud service | 100 GB Dropbox storage for 3 months |
| Support service included | HP 3 years 3 day Onsite Desktop Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8282EEIN & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEIN.pdf |
Other
| Registration required | No |
|---|---|
| Series name | OMEN 16L |
| Sub brand | OMEN |
| Expansion slots | 3 M.2 (2 for SSD, 1 for WLAN); 1 PCIe Gen4 x16; 1 PCIe Gen3 x1 |
| I/O Port location | Front |
| Network interface | Integrated 10/100/1000 GbE LAN |
| Form factor | Customized |
| Headline | Get set for gaming greatness |
| Key selling point | Enjoy smoother gameplay and enhanced cooling with CPU fans, boosting airflow and featuring customizable lighting. |
| Image legal disclaimer | Product image may differ from actual product |
| Legal disclaimer | Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See http://www.microsoft.com. |
| Legal disclaimer [01] | [6] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated and enabled. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com. |
| Legal disclaimer [02] | [7] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering is not a measurement of higher performance. Intel and Core are trademarks of Intel Corporation in the U.S. and other countries. |
| Legal disclaimer [03] | [8] For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 35GB of system disk is reserved for system recovery software. |
| Legal disclaimer [04] | [9] Listening to personal stereo equipment at full volume for long periods can damage the user’s hearing. To reduce the risk of hearing damage, lower the volume and amount of time listening at full volume. |
| Legal disclaimer [05] | [10] Actual throughput may vary. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. |
| Legal disclaimer [06] | [11] Wi-Fi 6E requires a Wi-Fi 6E router, sold separately, to function in the 6GHz band. Availability of public wireless access points limited. Wi-Fi 6E is backwards compatible with prior 802.11 specs. And available in countries where Wi-Fi 6E is supported. Wi-Fi 6E is designed to support gigabit data rate when transferring files between two devices connected to the same router. Requires a wireless router, sold separately. Bluetooth® 5.3 operation requires Microsoft OS/Chrome OS support. Until Microsoft OS/Chrome OS support is available, Bluetooth® 5.3 will function as Bluetooth® 5.2 or lower. |
| Trademark information | All other trademarks are the property of their respective owners. |
| Segment | Home |
| Usage | Gaming |
| Overview | Step into your gaming era with the OMEN 16L. Powered by an Intel® processor [1] and high-performance graphics card, it delivers elevated performance in a compact form. Great for unwinding after a busy day or gaming during your downtime. |
| Product description for SEO | A compact system designed to be the gateway into PC gaming with a clean design and elevated performance. |
| Company | HPI |
| Code name | SnowflakI_26C1 |
| Product long name | OMEN 16L Gaming Desktop PC TG03-1031in PC |
| Product long name specifications V2 | Windows 11 Home Single Language in S mode, Intel® Core™ i7, 16GB RAM, 1TB SSD, Shadow black |
| Product long name specifications | OMEN 16L Gaming Desktop PC TG03-1031in PC, Windows 11 Home Single Language in S mode, Intel® Core™ i7, 16GB RAM, 1TB SSD, Shadow black |
| Product short name specifications | OMEN 16L Gaming Desktop PC TG03-1031in PC, Intel® Core™ i7, 16GB RAM, 1TB SSD |
| Security management | Kensington Security lock slot; Padlock |
| Product classification flag | Standard HP Product |
| Tangible flag | Y |
| Ideal for | Power and performance for a premium entertainment, gaming and multitasking experience. |
| Material Type for item | FERT |
Notes and footnotes
- [1] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
- [2] 100% outer box/corrugate cushion packaging made from sustainably sourced certified and recycled fibers. Fiber cushions made from 100% recycled wood fiber and organic material. Any plastic cushions are made from >90% recycled plastic. Excludes plastic bags and plastic foam sheeting.
- [3] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.
- [1] 100 GB of free Dropbox storage for 3 months from date of registration. For complete details and terms of use, including cancellation policies, visit the Dropbox website at https://www.dropbox.com/help/space/hp-promotion. Internet service required and not included.
- [4] Recycled metal is expressed as a percentage of the total weight of the metal according to ISO 14021 definitions for metal parts over 25 grams.
- [5] Recycling facilities not available in all locations.
- [2] Internet access required and not included. McAfee is pre-installed on your PC and an account is required for activation. Subscription renewal required after trial period. VPN feature is not available in India, China, Syria or North Korea. McAfee is not compatible with Windows 11 in S mode. You'll need to permanently switch out of S mode. There's no charge to switch out of S mode, but you won't be able to turn it back on.
- [6] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel's numbering, branding and/or naming is not a measurement of higher performance.
- [7] Intel® Turbo Boost performance varies depending on hardware, software and overall system configuration. See http://www.intel.com/technology/turboboost/ for more information.
- [12] Wi-Fi 6E requires a Wi-Fi 6E router, sold separately, to function in the 6GHz band. Availability of public wireless access points limited. Wi-Fi 6E is backwards compatible with prior 802.11 specs. And available in countries where 6GHz is supported.
- [24] Must activate within 180 days of Windows activation.
- [40] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT criteria.
- [41] Recycled metal is expressed as a percentage of the total weight metal as per defined in the EPEAT criteria.
- [46] Bluetooth® 5.3 operation requires Microsoft OS/Chrome OS support. Until Microsoft OS/Chrome OS support is available, Bluetooth® 5.3 will function as Bluetooth® 5.2 or lower.
- [51] Weight and system dimensions may fluctuate due to configuration and manufacturing variances.
