Back to DesignJet / Large Format
SKU: F9A28L

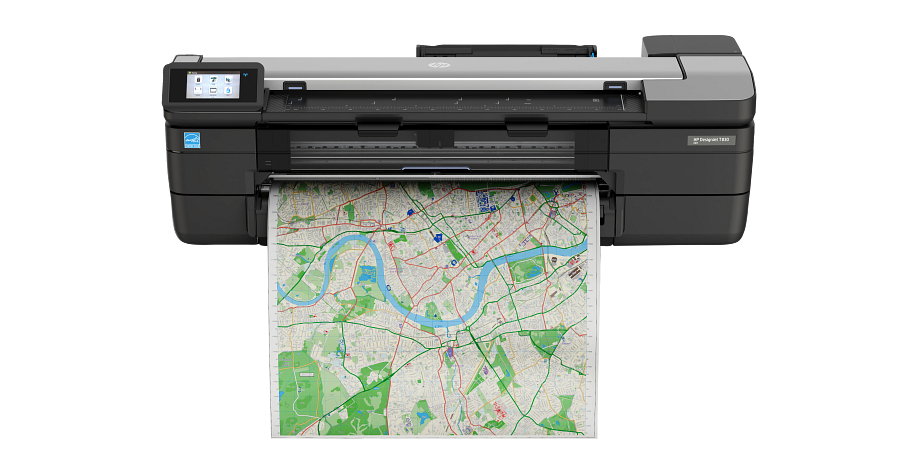

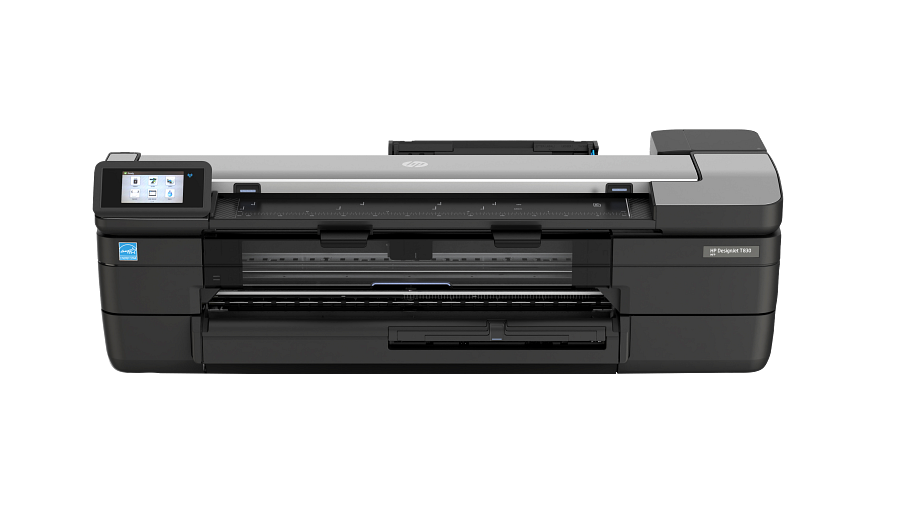

HP DesignJet T830SE 24-in Multifunction Printer
- Print technology
- Ink
- Memory
- 1 GB
Contact us for pricing
Key features
- Touchscreen
- Automatic document feeder
- Front USB flash drive port
- Scan to PDF
- Sheet input tray
- Automatic horizontal cutter
- Stand
- Wi-Fi
- USB
Technical specifications
Product
| UPC number | 196068147013 |
|---|---|
| Product type | Office Printers for CAD and GIS |
| Subcategory | Large format |
| UNSPSC code | 43212104 |
Memory
| Maximum Memory | 1 GB |
|---|
Storage
| Storage temperature range | -13 to 131ºF |
|---|---|
| Internal Storage | None |
Software
| Software included | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows |
|---|
| Print technology | HP Thermal Inkjet |
|---|---|
| Mobile printing capability | Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint™ and HP Smart App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS |
| Acoustic power emissions (active, printing) | 6.5 B(A) (operating), |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print speed | 26 sec/page on A1, 81 A1 prints per hour[1] |
| Printing path | Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive, HP Click Driver for Windows 11 |
Copy and scan
| Copy reduce / enlarge settings | 50 to 400% |
|---|---|
| Copy resolution (color text and graphics) | Up to 600 x 600 dpi |
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
| Enhanced scanning resolution | 600 dpi |
| Scan resolution, optical | Up to 600 dpi |
| Linear scan speed | Up to 3.81 cm/sec (color, 200 dpi); Up to 11.43 cm/sec (grayscale, 200 dpi) |
| Scan file format | JPEG, PDF, TIFF |
| Scan input modes | Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile |
| Scanner maximum media thickness | 0.03 in |
| Scan size, maximum | 610 mm x 2.77 m |
| Scan size, minimum | 203 x 127 mm |
| Scanner type | Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method |
Paper handling
| Media size maximum (mm) | 610 |
|---|---|
| Media size maximum (in) | 24 |
| Media sizes standard (metric rolls) | 279 to 610 mm |
| Media sizes standard (sheets, rolls) | 11 to 24 in |
| Media sizes, custom | Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 610 x 1897 mm |
| Media sizes supported | Input tray: A4, A3; Manual feed: A2, A1 |
Physical
| Color ink technology | Pigment; Dye |
|---|---|
| Print Cartridge/Bottle, Color(s) | Cyan, magenta, yellow, matte black |
| Dimensions (W x D x H) | 43.3 x 20.1 x 12.6 in |
| Color or black | Color |
| Roll maximum weight | 9.1 lb |
| Finished output handling | Sheet feed, roll feed, input tray, automatic horizontal cutter |
| Media weight, recommended | 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray) |
| Weight | 92.6 lb |
Package
| Package dimensions (W x D x H) | 51.6 x 22.4 x 25.4 in |
|---|---|
| Package weight | 125.7 lb |
Sustainability
| Energy star certified | Yes |
|---|---|
| Environmental certification | ENERGY STAR, EPEAT, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine. |
| Sustainability Impact | ENERGY STAR®; EPEAT® |
| Sustainability specifications | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered |
Warranty and service
| Manufacturer Warranty | One-year limited warranty. Warranty and support options vary by product, country and local legal requirements. |
|---|---|
| Supported Primary Applications | Line drawings; Renderings; Presentations |
Other
| What's in the box | HP DesignJet T830SE 24-in MFP, printhead, ink cartridges, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers |
|---|---|
| Power consumption | 35 watts (printing), 3.5 watts (sleep), 0.2 watts (off) |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
| Registration required | No |
| Cartridge volume | Less than 130 ml; 300 ml |
| Ink drop | 6 pl (C, M, Y); 12.6 pl (mK) |
| Ink types | Dye-based (C, M, Y); pigment-based (mK) |
| Number of cartridges | 4 |
| Print Cartridges/Bottle, Number | 4 (C, M, Y, mK) |
| Print cartridge/bottle volume | HP 728 Ink Cartridge: matte black, cyan, magenta, yellow (300 ml); cyan, magenta, yellow (130 ml); matte black (69 ml); cyan, magenta, yellow (40 ml) |
| Print head nozzles | 1376 |
| Print heads | 1 (C, M, Y, mK) |
| Primary applications | Office documents and presentations; Engineering and construction documents |
| Sub brand | DesignJet |
| Electromagnetic compatibility | Compliant with Class B requirements: Japan (VCCI) |
| Safety | Compliant with IEC 60950-1 and IEC 62368-1 |
| Connectivity | Apple AirPrint™; Ethernet networking; USB; Wireless (Wi-Fi®); Wireless direct printing |
| Connectivity, optional | HP USB 3.0 to Gigabit LAN Adapter |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
| Network ready | Standard |
| Copier settings | Content type; Lighter/Darker; Background noise removal; Background color removal; Blue print invert; Translucent media; Color; Scan full width (24-in); Auto De-skew; Resize; Copy Margins; Quality |
| Copies, maximum | Up to 99 copies |
| Acoustic pressure emissions | 48 dB(A) (operating), |
| Non-Operating Humidity Range | 0 to 95% RH |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104ºF |
| Functions | Multifunction / All-in-One |
| Country of origin | China |
| Plus | HP Click printing software, integrated scanning, Wi-Fi Direct, HP Mobile Printing |
| Why to buy | When your architect/construction office is ready to share project changes more effectively and enhance communication with partners, this super compact print/scan/copy device, designed for the desktop, is the smart solution for the way you work. |
| Headline | Get reliable, accurate prints—including layered files and PDF documents—in one click. HP DesignJet quality is delivered in large and small-format sizes—with 50-sheet A4/A3 input tray. Colors are precise and your originals are protected from damage. |
| Key selling point | Achieve precise colors and protect originals from damage—HP’s scanner detection system enables safe scanning. |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | AirPrint; ENERGY STAR; EPEAT; IPv6 Ready Phase 2 (Gold); Mac; Wi-Fi CERTIFIED; Windows 10 Compatible |
| Monthly printed pages | Often |
| Taxonomy | Large Format Printers/ Plotters |
| Segment | Business |
| Non-printable area (cut-sheet) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Maximum optical density (black) | 8 L* min/2.10 D[3] |
| Average weekly print volume (D/A1) | 90 A1/D prints per week |
| Line accuracy | ±0.1%[2] |
| Model size | 610 mm |
| Guaranteed minimum line width | 0.0028 in (ISO/IEC 13660:2001(E)) |
| Printer drivers included | HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows; HP Click Driver for Windows 11 |
| Print languages | HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF |
| Theoretical minimum line width | 0.0008 in (HP-GL/2 addressable) |
| Maximum roll diameter | 3.9 in |
| Media thickness | Up to 11.8 mil |
| Printer Applications | Architecture; Engineering; Construction; Technical documents |
| Roll maximum input | 1 |
| Roll size | Up to 24 in |
| Product Disclaimer | Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges. |
| Dynamic security | Dynamic security enabled printer |
| Overview | Immediately update all your partners on project review results with the most compact large-format MFP.[1] Intuitive, convenient print/scan/copy and true print accuracy help you communicate effectively and move your projects forward. |
| Photo (product photo, jpg, 190x170) | Printers and Multifunction/HP-DesignJet-T830-Multifunction-Printer_190x170.jpg |
| Photo (product photo, jpg, 70x100) | Printers and Multifunction/HP-DesignJet-T830-Multifunction-Printer_70x100.jpg |
| Company | HPI |
| Code name | Photon |
| Product long name | HP DesignJet T830SE 24-in Multifunction Printer |
| Short product name | T830 |
| Bit depth | 24-bit/8-bit |
| Product classification flag | Standard HP Product |
| Media thickness maximum (metric) | Up to 0.3 mm |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene) |
| Master publishing date | 9/22/2016 |
| Tangible flag | Y |
| Ideal for | Architects/engineers and construction teams working in the office or at the job site that need convenient multifunction printing, scanning, and copying of technical documents to enable effective communication. |
| Material Type for item | FERT |
Notes and footnotes
- [1] The HP DesignJet T830 24-inch and 36-inch Multifunction Printers are the most compact large-format devices performing print/scan/copy functions based on H x W x L specifications published as of September 2021.
- [2] Mechanical printing time, printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP Bright Office Inks.
- [3] The HP Smart app is available for Apple® iPad, iPhone, and iPod Touch running iOS v7.0 or later and for Android™ mobile devices running Android™ v4.4 or later. The HP Smart app is available for free from the Apple® App Store for Apple® mobile devices and from the Google Play Store for Android™ mobile devices.
- [1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.
- [4] One-click printing with HP Click software. Applicable to PDF, JPEG, TIFF, DWF, and HP-GL/2 files.
- [2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.
- [3] With HP Premium Instant Dry Photo Gloss media with Original HP inks.
- Measured at 200 dpi in color and grayscale
