SKU: J8H61A

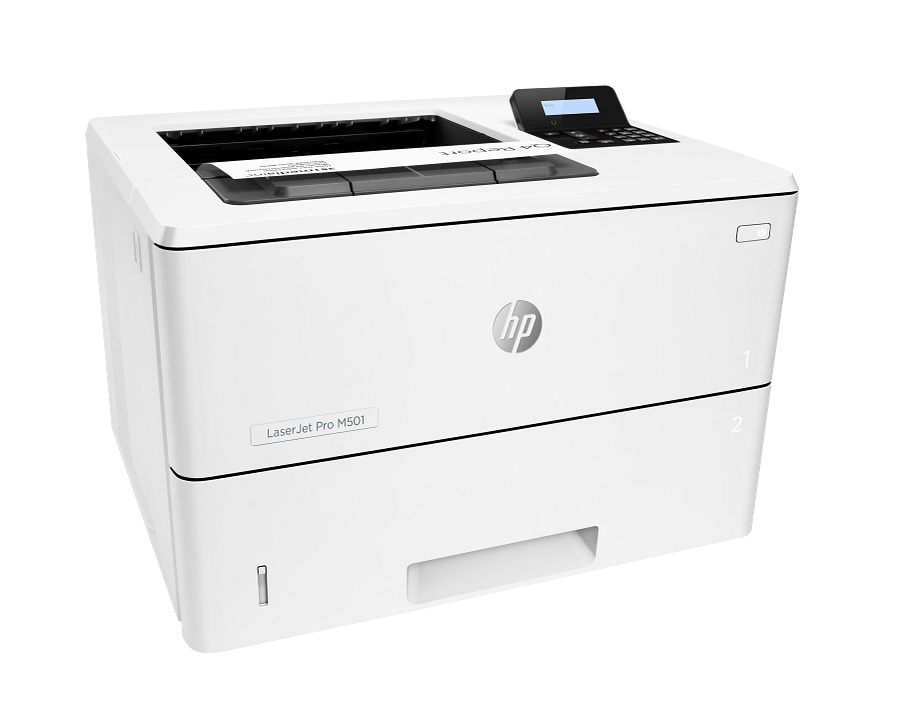

HP LaserJet Pro M501dn
- Print technology
- Laser
- Display
- 2-line LCD (text)
- Memory
- 256 MB
Contact us for pricing
Key features
- JetIntelligence cartridge
- Optional high-capacity trays
- Two-sided printing
- Print from mobile device
- Fast wake-up and print
- Leading energy efficiency
- Fast two-sided printing
- Compact size
- Fast printing on narrow media
- 1,200-sheet input capacity
- Job storage with PIN printing
- Works with HP JetAdvantage Security Manager
Technical specifications
Product
| UPC number | (201) 889296258483; (696) 889296564348; (AAZ) 889296258490; (AB0) 889296258421; (AB2) 889296258438; (ABJ) 889296258445; (ABT) 725184117558; (ABU) 198415553850; (ABY) 725184117565; (AC8) 889296564362; (ACJ) 889296258452; (ACQ) 725184117572; (AKV) 889296564355; (B13) 725184117589; (B19) 725184117596; (BAZ) 725184117602; (BBU) 889296258469; (BGJ) 889296258506; (BGM) 889296258476 |
|---|---|
| Product type | Laser printers |
| Subcategory | Single and multifunction printers |
Memory
| Maximum Memory | 256 MB |
|---|
Storage
| Storage temperature range | -20 to 60ºC |
|---|
Display
| Display | 2-line LCD (text) |
|---|---|
| Display area (metric) | 46 x 12.5 mm |
Ports

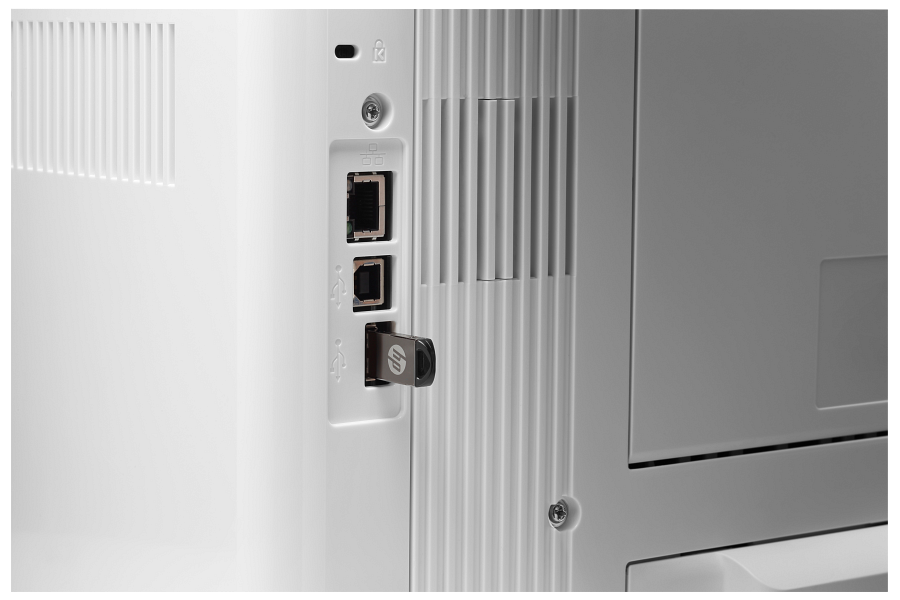

| Ports | Hi-Speed USB 2.0 Host/Device Ports; Fast Ethernet 10Base-T/100Base-Tx, Gigabit Ethernet 1000Base-T |
|---|
Battery and power
| Power supply type | Internal (Built-in) power supply |
|---|
Software
| Compatible Operating Systems | Windows OS compatible with In-Box Driver; Windows XP SP3 all 32-bit editions (XP Home, XP Pro, etc.), Windows Vista all 32-bit editions (Home Basic, Premium, Professional, etc.), Windows 7 all 32- & 64-bit editions, Windows 8/8.1 all 32- & 64-bit editions (excluding RT OS for Tablets),Windows 10 all 32- & 64-bit editions (excluding RT OS for Tablets);Windows OS compatible with Universal Print Driver (From HP.com); Windows XP SP3 32- & 64-bit editions (XP Home, XP Pro, etc.),Windows Vista all 32- & 64-bit editions (Home Basic, Premium, Professional, etc.),Windows 7 all 32- & 64-bit editions, Windows 8/8.1 all 32- & 64-bit editions (excluding RT OS for Tablets), Windows 10 all 32- & 64-bit editions (excluding RT OS for Tablets) ;Mac OS (HP Print Drivers available from HP.com and Apple Store); OS X 10.9 Mavericks, OS X 10.10 Yosemite, OS X 10.11 El Capitan; Mobile OS (In-OS drivers); iOS, Android, Windows 8/8.1/10 RT; Linux OS (In-OS HPLIP; SUSE Linux (12.2, 12.3, 13.1), Fedora (17, 18, 19, 20), Linux Mint (13, 14, 15, 16, 17), Boss (3.0, 5.0), Ubuntu (10.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10), Debian (6.0.x, 7.x); Other OS; UNIX |
|---|---|
| Printer smart software features | Auto-duplex printing, N-up printing, collation, HP ePrint, Apple AirPrint™, Google Cloud Print, Mopria-certified, HP Auto-On/Auto-Off, 2-line LCD control panel, Built-in Job Storage, JetIntelligence Cartridge Technology |
| Print Technology | Laser |
|---|---|
| Mobile printing capability | HP ePrint; Apple AirPrint™; Mopria™-certified |
| Acoustic power emissions (active, printing) | 6.8 B(A) |
| Acoustic pressure emissions bystander (active, printing) | 54 dB(A) |
| Print speed, black | 45 |
| Print quality black (best) | 600 x 600 dpi, Up to 4800 x 600 enhanced dpi |
| Print resolution black (fine lines) | Up to 1200 x 1200 dpi |
| Print Resolution Technologies | HP FastRes 1200, HP ProRes 1200, 600 dpi |
| Print speed | Print speed up to 45 ppm (black) |
| Print speed duplex (A4) | Up to 34 ipm |
| Print speed duplex (letter) | Up to 36 ipm |
| Print speed black (Landscape, A5) | Up to 66 ppm |
| Print speed black (ISO, letter) | Up to 45 ppm |
| Print speed black (ISO, A4) | Up to 43 ppm |
Copy and scan
| Copyright notice | © Copyright 2026 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
|---|
Paper handling
| Paper size | A4; Letter; Legal; B5 |
|---|
Physical
| Maximum dimensions (W x D x H) | 418 x 639 x 289 mm |
|---|---|
| Dimensions (W x D x H) | 418 x 376 x 289 mm |
| Color or black | Black and white |
Package
| Package dimensions (W x D x H) | 497 x 398 x 466 mm |
|---|---|
| Pallet dimensions (W x D x H) | 1200 x 1000 x 2481 mm |
| Count of layers in pallet | 5 |
| Quantity per pallet | 30 |
Sustainability
| Ecolabels | CECP; Blue Angel; EPEAT® Silver registered; Taiwan Green Mark; ENERGY STAR® certified |
|---|---|
| Energy star certified | Yes |
| Sustainability specifications | ENERGY STAR® certified; EPEAT® rated |
| Energy Usage CO2e (kg) | 121 |
| End of Life CO2e (kg) | 14 |
| Production CO2e (kg) | 91 |
| Total CO2e (kg) | 230 |
| Transportation CO2e (kg) | 4 |
Warranty and service
| Manufacturer Warranty | 1 Year Limited Warranty (Return to HP/Dealer - Standard Bench Repair) |
|---|---|
| Network protocols, supported | TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing, HP ePrint, Apple AirPrint™, Google Cloud Print 2.0, Mopria, FTP Print, IPP Print; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6), SSL Security and Certificate management; management: SNMPv1, SNMPv2, SNMPv3, HTTP/HTTPS, Syslog, FTP FW Download |
Other
| Minimum System Requirements | Compatible OS (see "Compatible Operating Systems"); CD-ROM drive or Internet connection (for software installation); dedicated USB connection or a network connection (wired or wireless); 1 GB available harddisk space; (For operating system minimum hardware requirements, see the OS manufacturer, such as microsoft.com) |
|---|---|
| What's in the box | HP LaserJet Pro M501; preinstalled introductory HP LaserJet Toner cartridge (Black: ~6000 pages); In-box documentation (Installation Guide, Getting Started Guide, User's Guide, Support Flyer, Warranty Guide); Printer documentation and software on CD-ROM; Software drivers and documentation on CD-ROM; CD's containing software and electronic documentation; Power cord; USB cable (AP only) |
| Energy savings feature technology | HP Auto-Off Technology; HP Auto-On/Auto-Off Technology; Instant-on Technology; Low-power sleep mode |
| Power consumption | 660 watts (active printing), 6.1 watts (ready), 1.3 (sleep), 0.7 watts (Auto-Off/wake on USB connection, disabled at shipment) 0.1 watts (Auto-Off/Manual-On), 0.1 watts (Manual-Off) |
| Power | Input voltage: 100 to 127 VAC, 60 Hz; Input voltage: 220 to 240 VAC, 50 Hz (Not dual voltage, power supply varies by part number with #option code identifier) |
| Cable included | Yes, 1 USB (AP only); No, please purchase USB cable separately (EMEA, Americas) |
| Registration required | No |
| Print Cartridges/Bottle, Number | 2 (black) |
| Replacement cartridges | HP 87A Black Original LaserJet Toner Cartridge (~8,550 yield) CF287A, HP 87X Black Original LaserJet Toner Cartridge (~18,000 yield) CF287X |
| Segment (filter) | Business |
| Supplies feature | HP JetIntelligence Cartridge |
| Brand | HP |
| Sub brand | LaserJet Pro |
| Blue Angel compliant | Yes, Blue Angel DE-UZ 219—only ensured when using Original HP supplies |
| Electromagnetic compatibility | CISPR 22:2008 (International) - Class A, EN 55022: 2010 (EU) - Class A, EN 61000-3-2: 2006 +A1: 2009 +A2: 2009, EN 61000-3-3: 2008, EN 55024: 2010, EMC Directive 2004/108/EC; FCC CFR 47 Part 15 Class A / ICES-003, Issue 5 Class A, Other EMC approvals as required by individual countries |
| FCC Class A emissions | FCC Class A emissions - for use in commercial environments, not residential environments |
| Safety | IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 (EU); EN 60825-1:2007 / IEC 60825-1:2007 (Class 1 Laser Product); EN 62479:2010 / IEC 62479:2010; Low Voltage Directive 2006/95/EC with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2011-12 Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007; Other safety approvals as required by individual countries |
| Accessories | HP LaserJet 550-sheet Paper Tray F2A72A |
| Connectivity | Apple AirPrint™; HP ePrint; USB; Ethernet networking; Mopria™ |
| Number of users | 5-15 Users |
| Connectivity, standard | Hi-Speed USB 2.0 Host/Device Ports; Fast Ethernet 10Base-T/100Base-Tx, Gigabit Ethernet 1000Base-T |
| Network capabilities | Yes, via built-in 10/100/1000Base-TX Ethernet, Gigabit; Auto-crossover Ethernet; Authentication via 802.1X |
| Network ready | Standard (built-in Gigabit Ethernet) |
| Business filter | cMPS |
| Component type | Printer |
| Printer black pages (MPV black) | 1600 |
| Acoustic power emissions (ready) | 4.0 B(A) |
| Acoustic pressure emissions bystander (ready) | 25 dB(A) |
| Non-Operating Humidity Range | 10 to 90% RH |
| Operating humidity range | 10 to 80% RH |
| Recommended operating humidity range | 30 to 70% RH |
| Operating temperature range | 15 to 32.5ºC |
| Recommended operating temperature range | 17.5 to 25ºC |
| Functions | Print only |
| Country of origin | Philippines; Made in Brazil (J8H61A #696) |
| Web address for additional information | Solutions: http://www.hp.com/go/gsc; Fonts and IPDS Emulation: http://www.hp/com/go/laserjetfonts; Services: http://www.hp.com/services/printer; Paper: http://www.hp.com/go/paper; HP ePrint center for business apps: http://www.hp.com/go/ePrintCenter |
| Differentiator (features) | Finish tasks fast and help conserve energy |
| Why to buy | Put impressive print speeds and performance to work in your office. This energy-saving printer starts faster[1] and delivers security features to help guard against threats. Original HP Toner cartridges with JetIntelligence produce more pages.[2] |
| Headline | Bring out the best in your printer. Print more high-quality pages than ever before,[2] using specially designed Original HP Toner cartridges with JetIntelligence. Count on the authentic HP quality you paid for—something the competition can’t match. |
| Key selling point | Don’t wait for documents. Print your first page in as few as 7.3 seconds from energy-efficient sleep mode.[5] |
| Image legal disclaimer | Product image may differ from actual product |
| Product logos | Microsoft Windows (7, 8 and 10), Apple Mac, Energy Star, ePrint, AirPrint |
| Monthly printed pages | 6000 |
| Usage | Small Work Team |
| Cartons per layer | 6 |
| Bottom margin (A4) | 5.0 mm |
| First page out black (A4, ready) | As fast as 5.8 sec |
| First page out black (A4, sleep) | As fast as 7.2 sec |
Notes and footnotes
- A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
- [1] Based on HP internal testing of top three leading competitors’ first page out from sleep mode and duplex print speed completed 12/2015. Subject to device settings. Actual results may vary. For details, see http://www.hp.com/go/Ljclaims
- [2] More pages versus predecessor cartridges claim based on page-yield comparison of HP 55X High Yield Black Original LaserJet Toner Cartridges with HP 87X High Yield Black Original LaserJet Toner Cartridges. For more information, see http://www.hp.com/go/learnaboutsupplies
- [3] Based on comparisons of TEC (Typical Electricity Consumption) data reported on energystar.gov for mono laser printers with > 1% worldwide market share as reported by IDC as of Q3 2015, available worldwide and with print speeds of 40–50 ppm (A4). Actual results may vary. Learn more at http://www.hp.com/go/ljclaims
- [1] EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.
- [4] Requires purchase of separate USB flash drive with at least 16 GB capacity.
- [5] Measured using ISO/IEC 17629. For more information, see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [2] Includes control panel height and 4mm side handle protrusions
- [6] Measured using ISO/IEC 24734 Feature Performance Test; excludes first set of test documents. For more information, see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [3] Includes size-A cartridge
- [7] Purchase of optional paper trays required to reach maximum input capacity.
- [4] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typicallty based on measurement of 115V device.
- [8] HP Web Jetadmin is available for download at no additional charge at http://www.hp.com/go/webjetadmin
- [5] Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty. Power consumption values typicallty based on measurement of 115V device.
- [9] Based on HP internal secured data (Device Security Comparison January 2015), and Solutions Report on HP JetAdvantage Security Manager 2.1 from Buyers Laboratory LLC, February 2015. Requires separate purchase. For details, see http://www.hp.com/go/securitymanager
- [6] Based on the BA TEC method with the following possible exceptions: 1 minute or less sleep delay setting, Wi-Fi disabled. Typical Electricity Consumption (TEC) rating represents the typical electricity consumed by a product during 1 week, measured in kilowatt-houes (kWh).
- [10] HP 87X High Yield Black Original LaserJet Toner Cartridges not included; please purchase separately.
- [7] Declared yield value in accordance with ISO/IEC 19752 and continuous printing. Actual yields vary considerably based on images printed and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
- [11] An FCC Class A emissions compliant device meets the less stringent (higher) levels of emissions allowed by the FCC for a product operation in a commercial environment. An FCC class A device cannot be marketed for use in a residential environment and an FCC class A device should not be purchased for use in a residential environment due to the increased risk of interference to radio communications.
- [8] Acoustic values are subject to change. For current information see http://www.hp.com/support. Configuration tested: Simplex printing using A4 paper at 43 ppm.
- [9] 256 MB PC31600
- [10] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [11] Measured using ISO/IEC 24734 Feature Performance Test, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [12] Measured using ISO/IEC 17629. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
- [13] Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
- [14] HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
- [15] HP SureSupply alerts you when your print cartridge is running low and helps you purchase online or locally through HP or a participating retailer. Only available with Original HP supplies; Internet access required. To learn more, visit http://www.hp.com/go/SureSupply.
- [16] Optional 550-sheet input tray; Optional printer stand.
- [17] Not all “Compatible Operating Systems” are supported with inbox software; Full solution software available only for Windows 7 and newer; Legacy Windows Operation Systems (XP, Vista, and equivalent servers) get print drivers only; Windows RT OS for Tablets (32-bit & 64-bit) uses a simplified HP print driver built into the RT OS; UNIX Modelscripts are available on hp.com (Modelscripts are printer drivers for UNIX operating systems); Linux systems use in-OS HPLIP software; HP Software for Mac is no longer included on the CD, but can be downloaded from hp.com - the Mac driver and Mac Utility are installed for Mac operating systems.
- FCC Class A emissions - for use in commercial environments, not residential environments [11]
